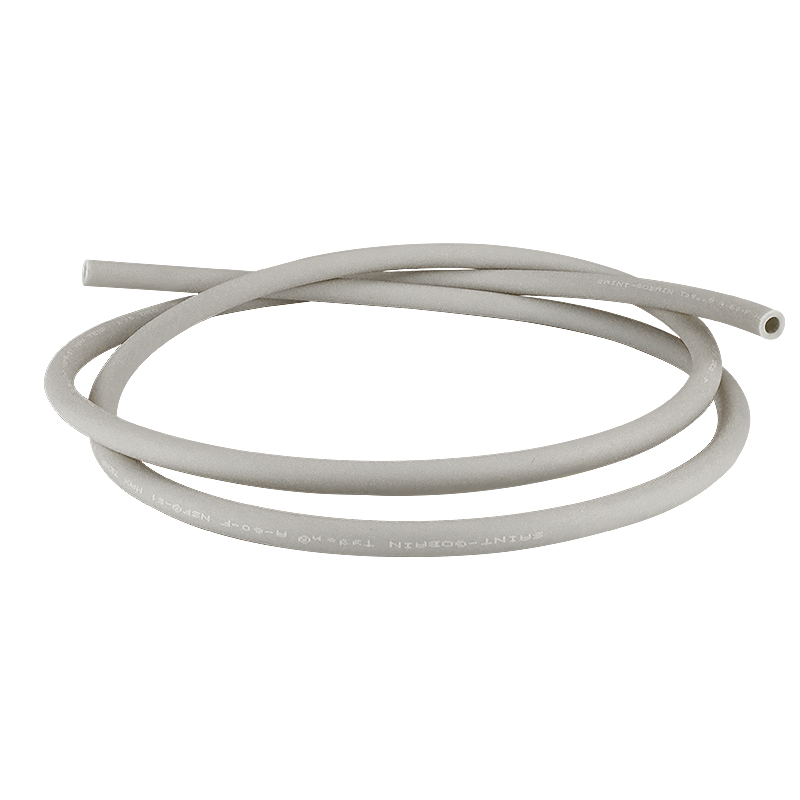

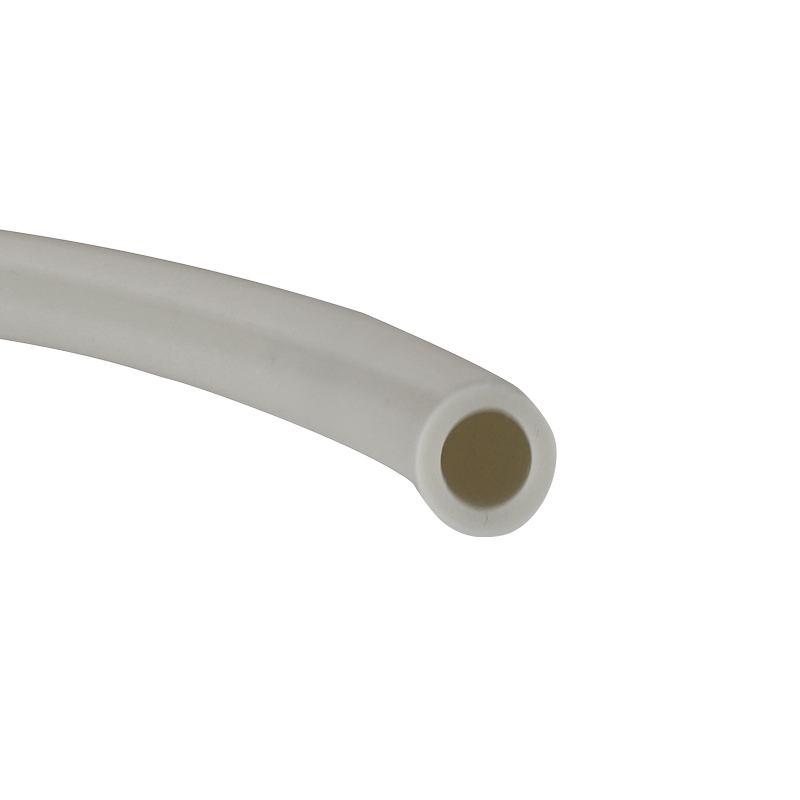

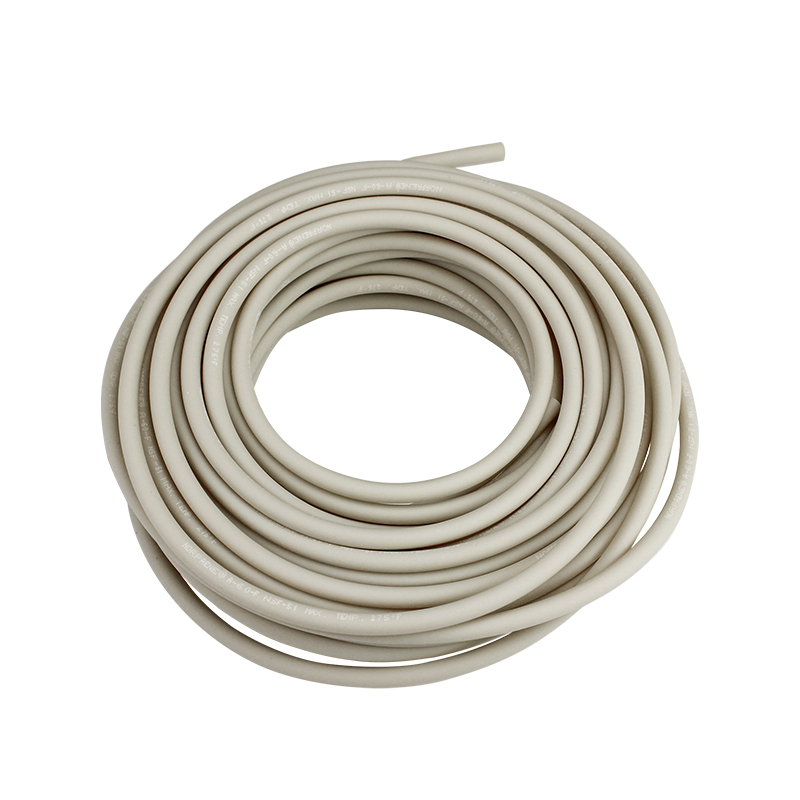

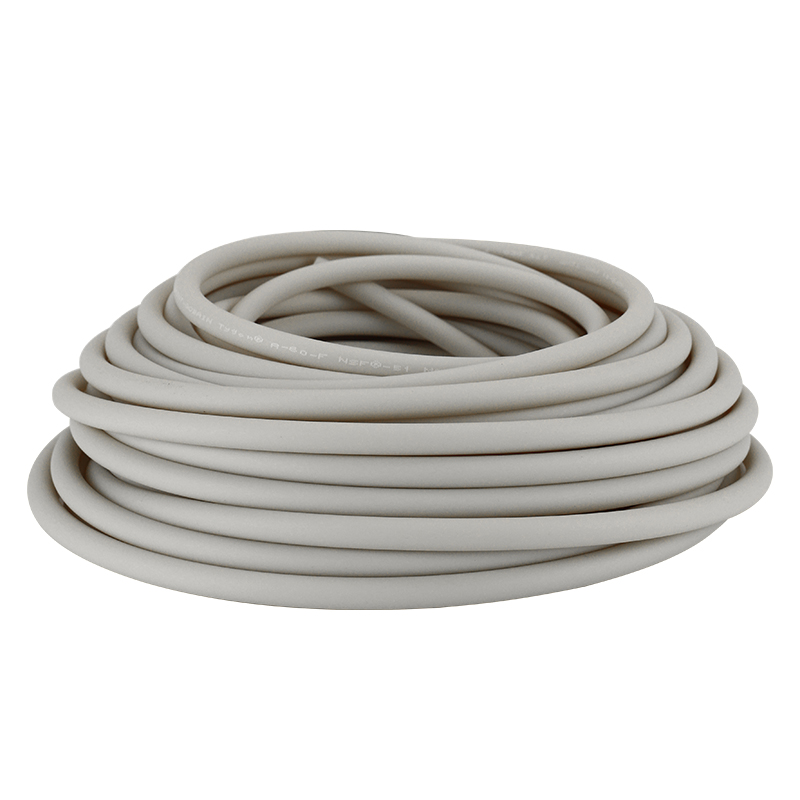

Saint Gobain Tygon A-60-F Tube
- Models: A-60-F Tube
- Maximum channel quantity:
- Reference flow rate:
â– Tygon A-60-F is an imported peristaltic pump pump tube;
â– Long service life, up to 1,000h;
■Working temperature -59°C~135℃;
â– Can be repeatedly heated and pressurized;
â– Resistant to ozone and UV rays;
â– Chemical resistance to a variety of foods and detergents.
Saint Gobain Tygon A-60-F tube is an imported high-performance peristaltic pump tube, known for its exceptional durability, with a service life of up to 1,000 hours and a wide working temperature range of -59°C to 135°C. This tube can withstand repeated heating and pressurization, exhibiting outstanding resistance to ozone and ultraviolet (UV) light, ensuring stable performance in outdoor and high-temperature environments.
Moreover, it boasts excellent chemical resistance to various foods and cleaning agents, ensuring reliability across multiple applications. Tygon A-60-F tube, whether in pharmaceuticals, food processing, or laboratory research, meets your needs with superior fluid transfer performance.
Product Parameters
| Product Parameters | |
| Product Name | Tygon A-60-F |
| Temp resistance | -59℃-135℃ |
| Hardness | 64A |
| Sterilization | Can be repeatedly heated and pressurized. |
| Life | Peristaltic pump extrusion life: ≥1000h |
| Color | Yellow and opaque |
| Advantages | It is resistant to ozone and ultraviolet radiation, and has chemical resistance to various foods and cleaning agents. It can transport designated foods or beverages in the temperature range of -59 ° C to 135 ° C. |
| Applications | Squeezing tube with peristaltic pump, sensitive cell culture, fermentation, synthesis, separation, purification, experimentation, medical, pharmaceutical, food, etc. |
| Note | 1. The values are provided by the official Saint Gobain for reference only. 2. Condition for hose life test: Using a 3-roller peristaltic pump, deliver clean water at a speed of 600rpm and 23 ℃ in an environment without pressure at the inlet and outlet, and continue running until the hose cracks. |
Product Specifications
| Tygon A-60-Ftube detailed dimensions（Unit: mm） | ||||||||||||
| A-60-F | Â | Â | Â | Â | Â | AAL00003 | Â | AAL00007 | AAL00012 | AAL00017 | Â | |
| Tube no. | 1*1 | 2*1 | 3*1 | 4*1 | 13# | 14# | 19# | 16# | 25# | 17# | 18# | |
| ID（mm) | 1 | 2 | 3 | 4 | 0.8 | 1.6 | 2.4 | 3.2 | 4.8 | 6.4 | 7.9 | |
| OD（mm) | 3 | 4 | 5 | 6 | 4 | 4.8 | 5.6 | 6.4 | 8 | 9.6 | 11.1 | |
| Wall Thickness（mm) | 1 | 1.6 | ||||||||||
| Hose Pressure-bearing（Mpa） | Continuous | 0.1 | 0.1 | 0.1 | 0.1 | 0.17 | 0.17 | 0.17 | 0.17 | 0.14 | 0.1 | 0.07 |
| Interval | 0.1 | 0.1 | 0.1 | 0.1 | 0.27 | 0.27 | 0.27 | 0.27 | 0.24 | 0.14 | 0.1 | |
| A-60-F | AAL00013 | Â | AAL00023 | Â | Â | AAL00029 | AAL00038 | |
| Tube no. | 15# | 24# | 35# | 36# | 26# | 73# | 82# | |
| ID（mm) | 4.8 | 6.4 | 7.9 | 9.6 | 6.4 | 9.6 | 12.7 | |
| OD（mm) | 9.6 | 11.2 | 12.7 | 14.4 | 13 | 16.2 | 19.3 | |
| Wall Thickness（mm) | 2.4 | 3.3 | ||||||
| Hose Pressure-bearing（Mpa） | Continuous | 0.17 | 0.17 | 0.14 | 0.1 | 0.27 | 0.17 | 0.2 |
| Interval | 0.27 | 0.27 | 0.24 | 0.14 | 0.27 | 0.27 | 0.27 | |
| Tube no. | 88# | 92# | 86# | 90# | |
| ID（mm) | 12.7 | 25.4 | 9.5 | 19 | |
| OD（mm) | 22.3 | 35 | 21.6 | 31.6 | |
| Wall Thickness（mm) | 4.8 | 6.3 | |||
| Hose Pressure-bearing（Mpa） | Continuous | 0.14 | 0.25 | 0.25 | 0.25 |
| Interval | 0.14 | 0.3 | 0.3 | 0.3 | |
