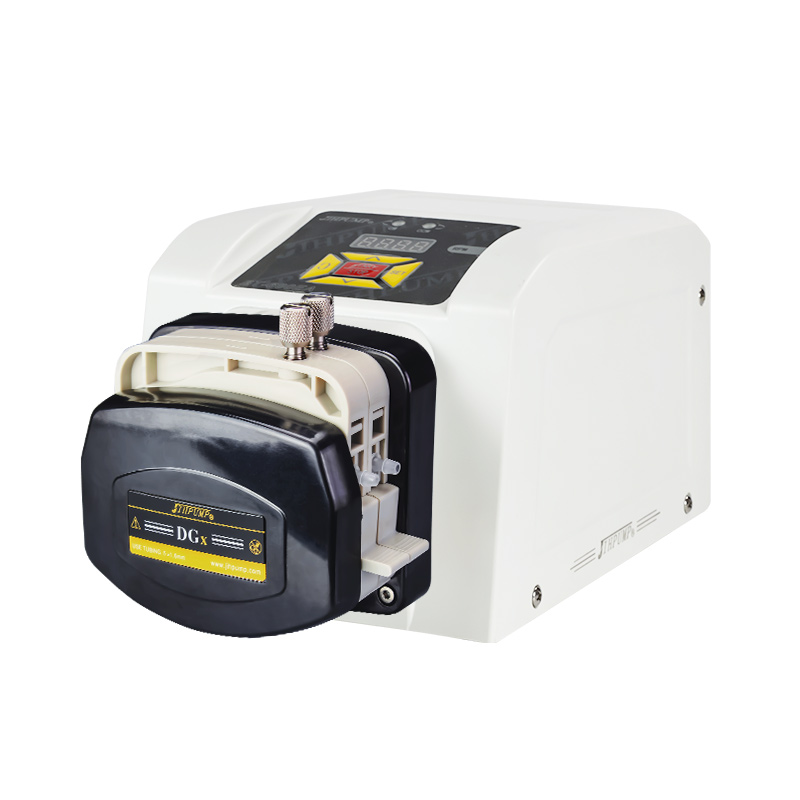

BT-600EA LED Display Series
- Models: BT-600EA
- Maximum channel quantity: 6
- Reference flow rate: ≤3365ml/min
■ Instant speed is displayed on a four-digit LED screen, with a resolution accuracy of 0.1 rpm;
■ The stepper motor features an 8-subdivision drive, ensuring accurate performance and low resonance;
■ Film buttons enable speed, rotation, and start/stop changes, allowing on-the-fly adjustments of speed and direction;
■ Built-in timing feature lets you freely configure running time, stop duration, and cycle count, ensuring easy assembly;

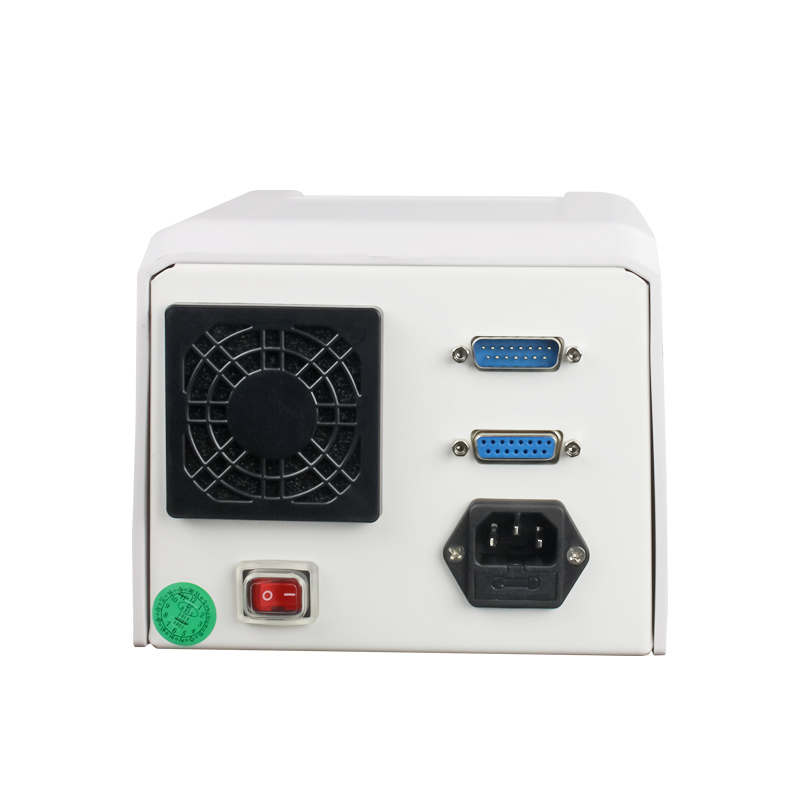

■ Allows pump control via external inputs like 0-5V, 0-10V, 4-20mA, and MODBUS for managing start, stop, rotation direction, and speed.
■ Features a memory function that retains the last operating settings in case of power failure;
■ Crafted from flame-resistant material, the casing features a corner-free design for easy cleaning;

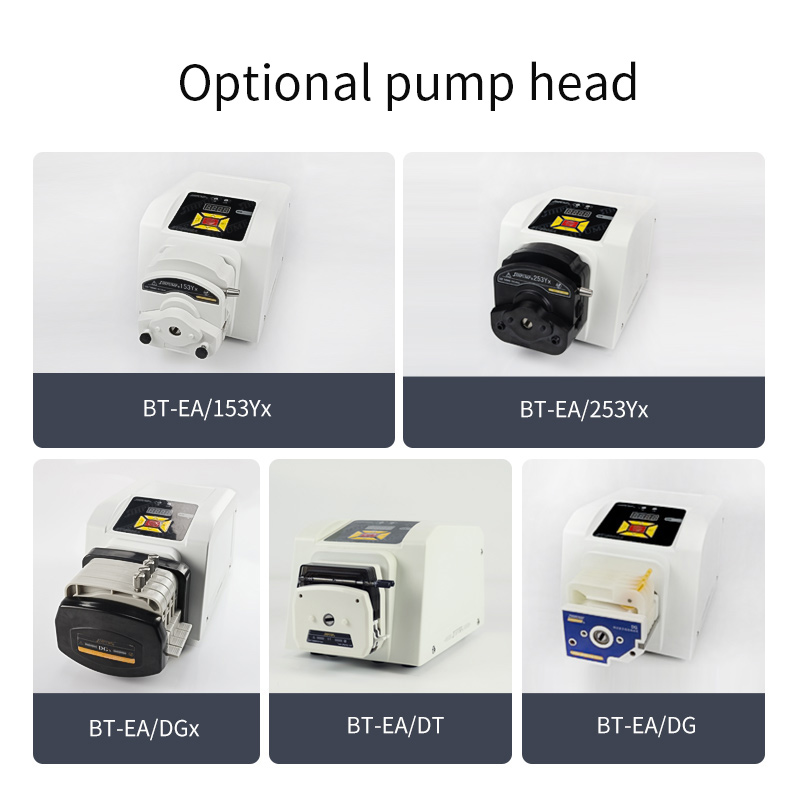

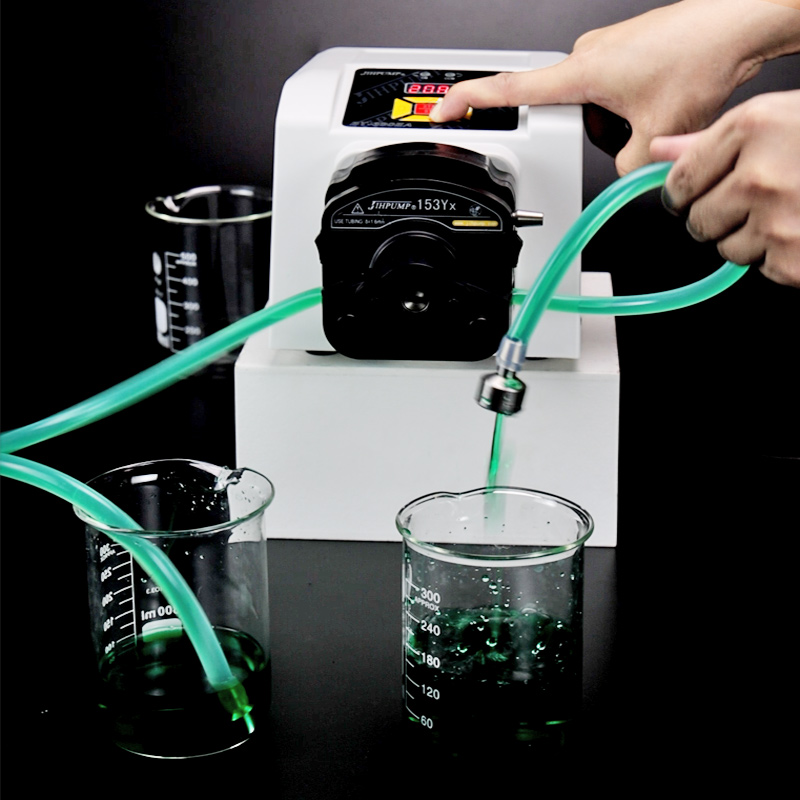

■ Supports a variety of peristaltic pump heads including 153Yx, 253Yx, DG, and DT, with multiple flow rate options available.
BT-600EA LED Display Series is an efficient peristaltic pump controller featuring a clear four-digit LED display that shows instantaneous speed with a resolution of 0.1 rpm. Its high-precision stepper motor operates with low resonance, ensuring smooth performance. Users can easily adjust speed, rotation direction, and start/stop operations using membrane buttons, catering to various industrial applications.
This pump supports multiple external control options, such as 0-5V and 4-20mA, allowing for flexible adaptability to different control environments. It includes a power-off memory function that automatically saves the last running parameters, preventing data loss. The housing is made of flame-retardant materials with a seamless design for easy cleaning, and it is compatible with various pump heads, making it suitable for diverse fluid transfer scenarios.
Product Parameters
| Product Parameters | |
| Product Name | BT-EA Series |
| Product Model | 600EA |
| Speed Range | 0.1～600r |
| Speed Resolution | 0.1rpm |
| Outlet Pressure | ≤0.17MPa |
| Control Mode | Membrane button |
| Major Function | Manual control, automatic, appointment timing, filling, external control、Power on operation |
| External Control Mode | Foot switch、0～5V、0～10V、4～20mA、 ModBus communication protocol |
| Display | LED Digital code |
| Voltage | AC 100～240V，50/60Hz， 2.0A |
| Power | ≤54W |
| Work Environment | Temperature 0 ~ 60 ℃, relative humidity ＜ 85%RH |
| Motor Type | Stepper motor |
| Motor Life | 6000~20000h |

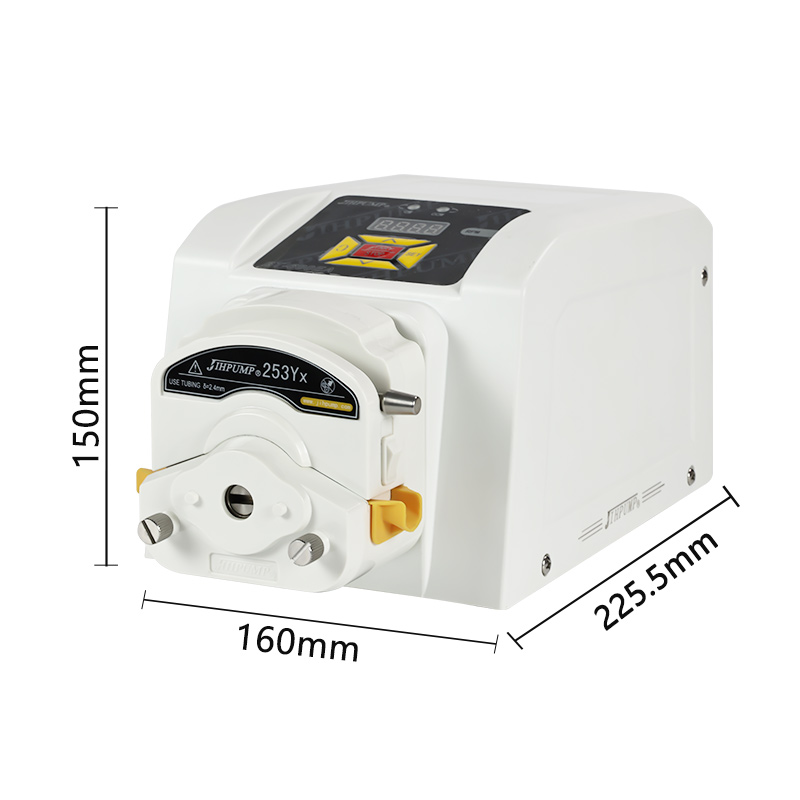

| Drive Size | L210*W150*H150mm |
| Drive Weight | 3.0KG |
| IP Rating | IP31 |
Reference Flow Rate
| Reference Flow Rate（unit: ml/min） | |||||||||
| Pump Head Model | 153Yx | 253Yx | |||||||
| Motor Speed/Tube Type | 14# | 16# | 25# | 17# | 18# | 15# | 24# | 35# | 36# |
| (ID1.6*OD4.8) | (ID4.8*OD8) | (ID6.4*OD9.6) | (ID6.4*OD9.6) | (ID7.9*OD11.1) | (ID4.8*OD9.6) | (ID6.4*OD11.2) | (ID7.9*OD12.7) | (ID9.6*OD14.4) | |
| 600rpm | 145 | 515 | 1080 | 1770 | 2135 | 1085 | 1695 | 2640 | 3365 |
| Number of pump heads in series | ≤6 | ≤4 | ≤3 | ≤2 | ≤3 | ||||
| Pump Head Model | DGx | DT (Max 150rpm) | DG (Max 150rpm) | ||||||
| Motor Speed/Tube Type | 14# | 16# | 25# | 1*1 | 2*1 | 3*1 | 1*1 | 2*1 | 3*1 |
| (ID1.6*OD4.8) | (ID4.8*OD8) | (ID6.4*OD9.6) | (ID1*OD3) | (ID2*OD4) | (ID3*OD5) | (ID1*OD3) | (ID2*OD4) | (ID3*OD5) | |
| 600rpm | 145 | 500 | 940 | 10 | 30 | 50 | 11 | 32 | 65 |
| Number of adaptive channels | ≤2 | 1 | ≤12 | ≤12 | |||||
| Flow Description | 1、The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. 2、The total flow rate of multiple series connections ≈ the flow rate of a single pump head * the number of series pump heads; 3、Total multi-channel traffic ≈ single channel traffic * number of channels. |
||||||||
Typical Applications
Analytical instruments, Lab, Industrial Process, Fine Chemicals, Food manufacturing process
