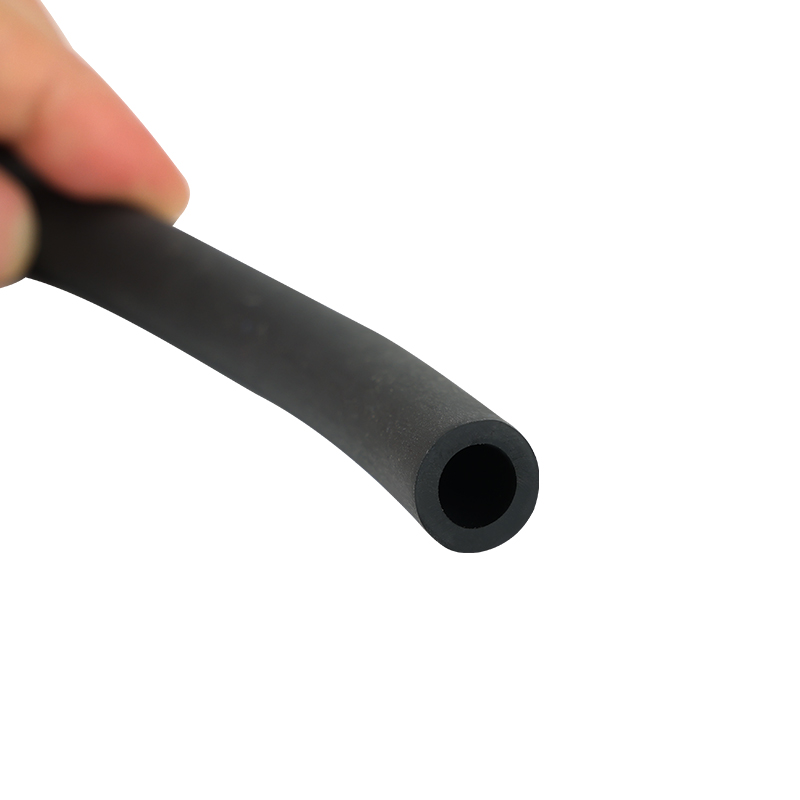

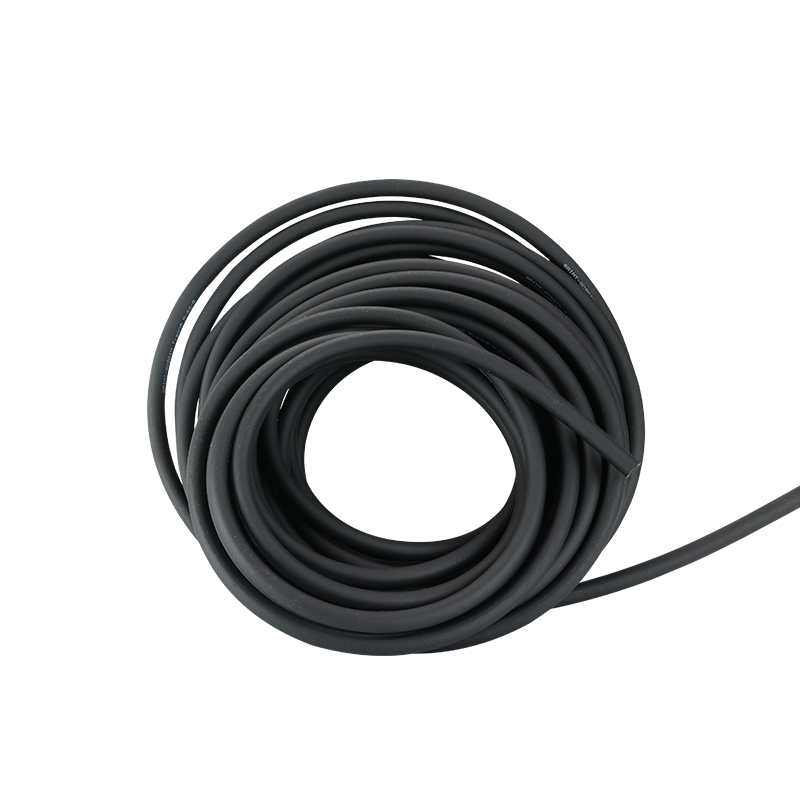

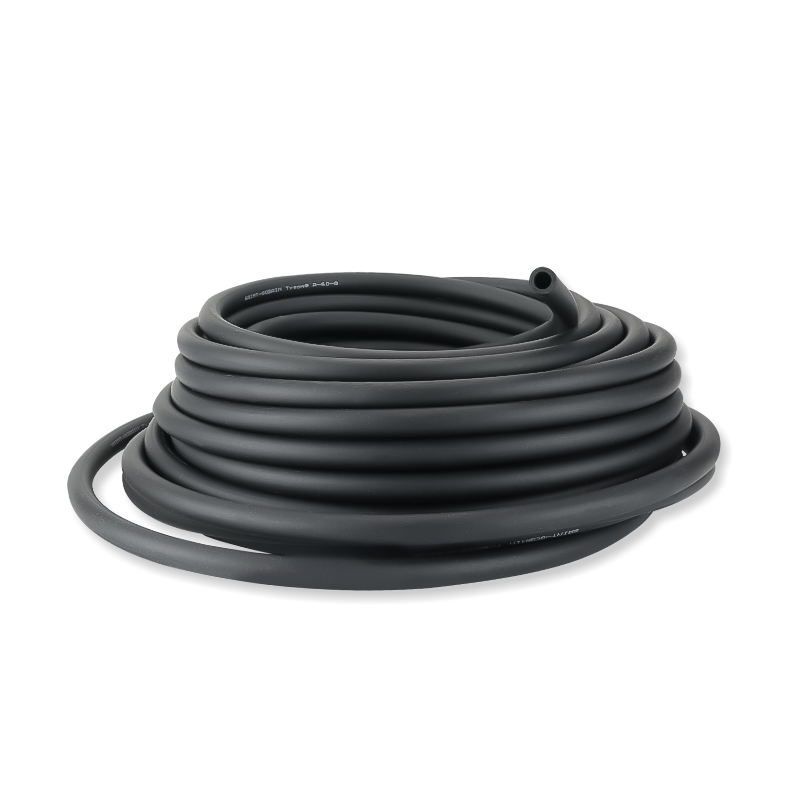

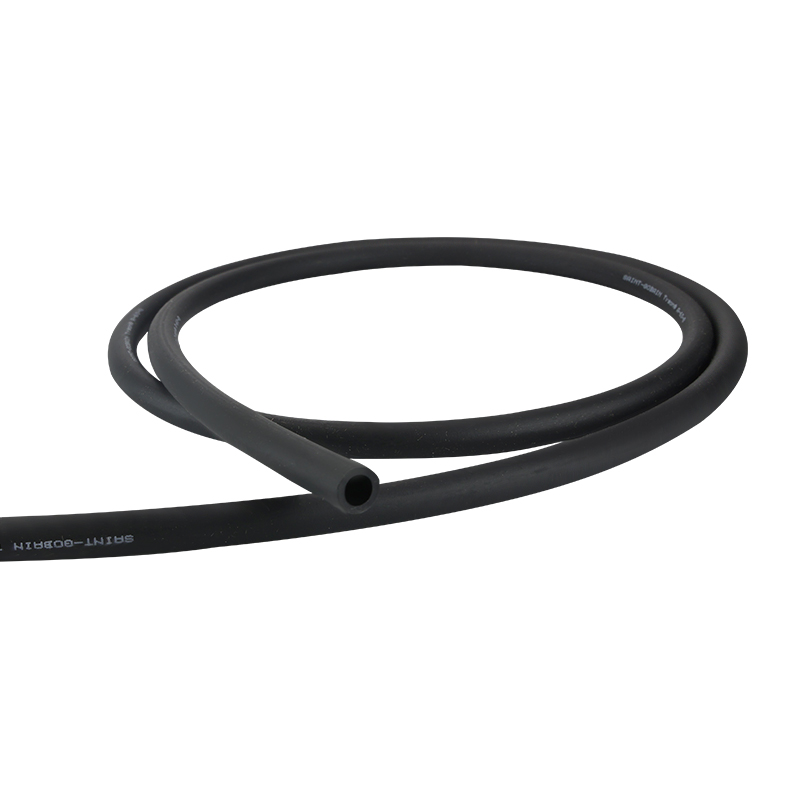

Saint gobain Tygon A-60-G Tube
- Models: A-60-G
- Maximum channel quantity:
- Reference flow rate:
â– Tygon A-60-G is imported peristaltic pump tube;
â– Excellent weather resistance and wear resistance;
â– Excellent resistance to bending fatigue;
â– Better air tightness than rubber hose;
â– Ozone (300 pphm) and UV resistance;
■Working temperature -60°C~135℃.
Saint Gobain Tygon A-60-G tubing is an imported high-performance peristaltic pump tube, renowned for its excellent weather resistance and wear resistance, enabling it to operate reliably in various harsh environments. This tubing boasts exceptional flexural fatigue resistance, ensuring consistent performance even in applications with frequent bending.
Its airtightness surpasses that of traditional rubber tubes, effectively preventing leaks, while also providing resistance to ozone (300 pphm) and ultraviolet light, making it suitable for use in diverse environments. With a wide operating temperature range from -60°C to 135°C, the Tygon A-60-G tubing is extensively used in the pharmaceutical, food processing, and chemical transfer industries, offering safe and reliable fluid transport solutions.
Product Parameters
| Product Parameters | |
| Product Name | Tygon A-60-G |
| Temp resistance | -59℃-135℃ |
| Hardness | 61A |
| Sterilization | Can be repeatedly heated and pressurized. |
| Life | Peristaltic pump extrusion life: ≥1000h |
| Color | Black |
| Advantages | Excellent weather resistance, wear resistance, excellent resistance to bending fatigue, better air tightness than rubber hose. |
| Applications | Peristaltic pump extrusion tube, connecting pipe, long-term application in industrial and chemical detergent used in the transportation industry. |
| Note | 1. The values ​​are provided by Saint-Gobain and are for reference only. 2. Tube life test conditions: Use a 3-roller peristaltic pump at 600 rpm, 23°C, no pressure at the inlet and outlet, and deliver clean water. Keep running until the hose breaks. |
Product Specifications
| Tygon A-60-G tube detailed dimensions（Unit: mm） | ||||||||||||
| A-60-G | Â | Â | Â | Â | Â | AFL00003 | Â | AFL00007 | Â | AFL00017 | AFL00022 | |
| Tube no. | 1*1 | 2*1 | 3*1 | 4*1 | 13# | 14# | 19# | 16# | 25# | 17# | 18# | |
| ID（mm) | 1 | 2 | 3 | 4 | 0.8 | 1.6 | 2.4 | 3.2 | 4.8 | 6.4 | 7.9 | |
| OD（mm) | 3 | 4 | 5 | 6 | 4 | 4.8 | 5.6 | 6.4 | 8 | 9.6 | 11.1 | |
| Wall Thickness（mm) | 1 | 1.6 | ||||||||||
| Hose Pressure-bearing（Mpa） | Continuous | 0.1 | 0.1 | 0.1 | 0.1 | 0.17 | 0.17 | 0.17 | 0.17 | 0.14 | 0.1 | 0.07 |
| Interval | 0.1 | 0.1 | 0.1 | 0.1 | 0.27 | 0.27 | 0.27 | 0.27 | 0.24 | 0.14 | 0.1 | |
| A-60-G | AFL00013 | AFL00018 | AFL00023 | Â | Â | AFL00029 | AFL00038 | |
| Tube no. | 15# | 24# | 35# | 36# | 26# | 73# | 82# | |
| ID（mm) | 4.8 | 6.4 | 7.9 | 9.6 | 6.4 | 9.6 | 12.7 | |
| OD（mm) | 9.6 | 11.2 | 12.7 | 14.4 | 13 | 16.2 | 19.3 | |
| Wall Thickness（mm) | 2.4 | 3.3 | ||||||
| Hose Pressure-bearing（Mpa） | Continuous | 0.17 | 0.17 | 0.14 | 0.1 | 0.27 | 0.17 | 0.2 |
| Interval | 0.27 | 0.27 | 0.24 | 0.14 | 0.27 | 0.27 | 0.27 | |
| Tube no. | 88# | 92# | 86# | 90# | |
| ID（mm) | 12.7 | 25.4 | 9.5 | 19 | |
| OD（mm) | 22.3 | 35 | 21.6 | 31.6 | |
| Wall Thickness（mm) | 4.8 | 6.3 | |||
| Hose Pressure-bearing（Mpa） | Continuous | 0.14 | 0.25 | 0.25 | 0.25 |
| Interval | 0.14 | 0.3 | 0.3 | 0.3 | |
