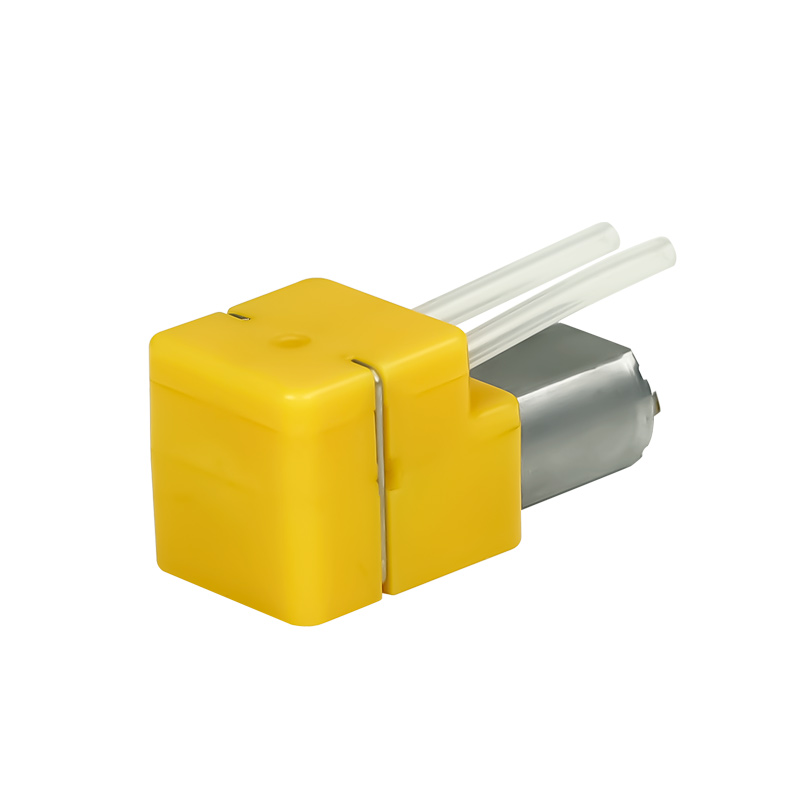

WX3 Micro OEM Peristaltic Pumps
- Models: WX3
- Maximum channel quantity: 1
- Reference flow rate: ≤10ml/min
â– A micro-peristaltic pump with micro-flow
â– Compact structure, small size, fine workmanship

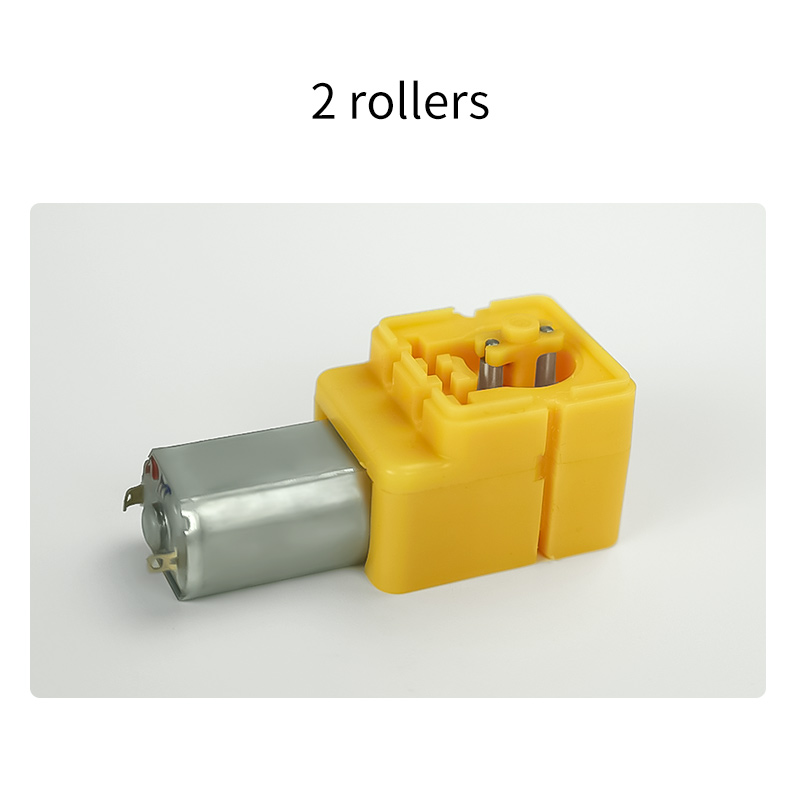

â– Stainless steel roller, stable longevity

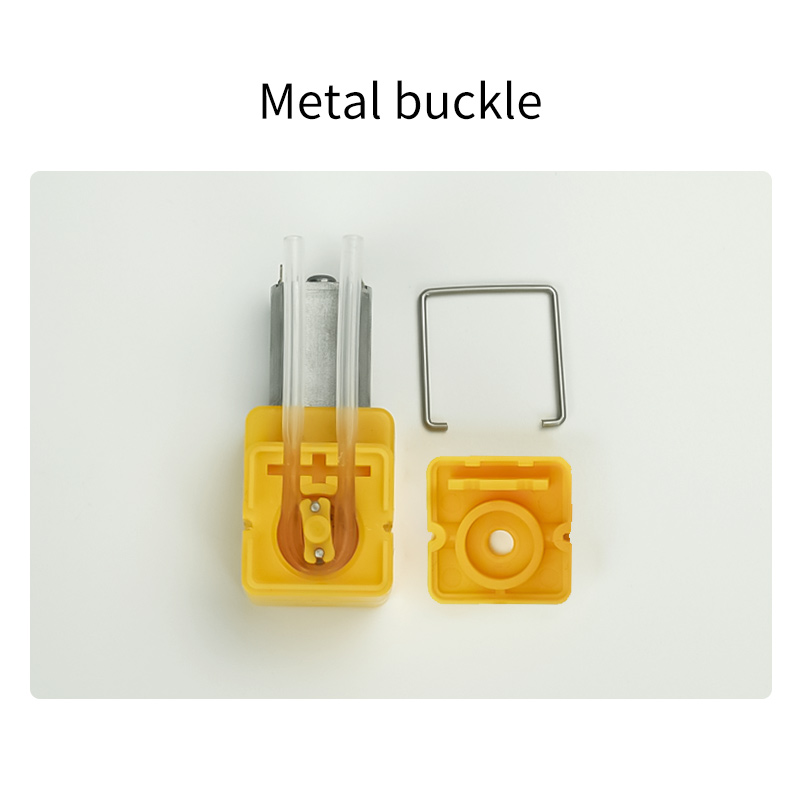

â– Metal anti-cover clip, prevent cover off, more stable operation
â– Pump body comes with mounting holes
â– Suitable for small household appliances.
WX3 Micro OEM peristaltic pump is a compact and efficient micro peristaltic pump designed for micro flow applications. Its stainless steel rollers ensure stable service life, and the metal anti-cover clip design effectively prevents the cover from falling off, making operation more stable. The pump body has a mounting hole for easy attachment, suitable for integration with small household appliances.
Product Parameters
| Product Parameters | |

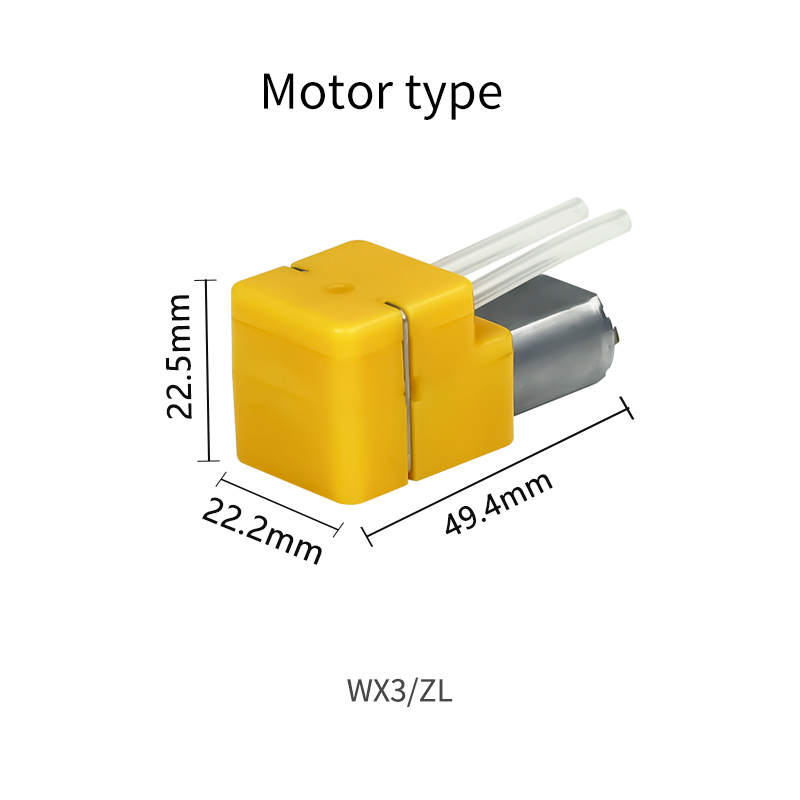

| Product Model | WX3/ZL |
| Motor Type | Micro DC motor |
| Voltage | DC3.7V |
| Power | 1～2W |
| Weight | 29g |
| Work Environment | Temperature 0 (no icing)～60℃, relative humidity≤85% |
| Outlet Pressure | ≤0.03MPa |

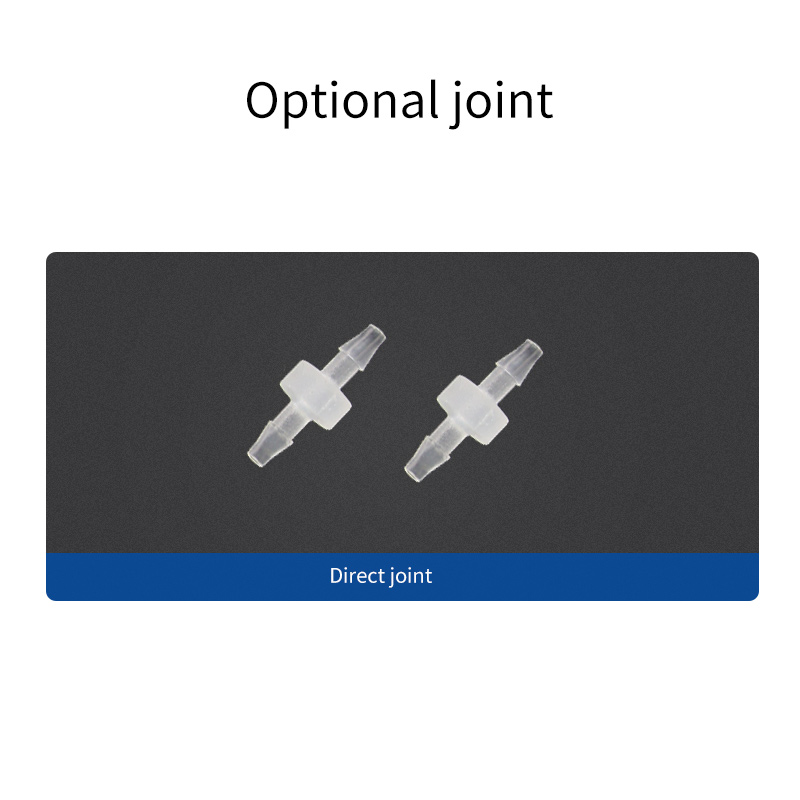

| Tube Connection Method | Standard: Direct joint |
| Installation Method | Pump body with mounting holes. |
| Noise | ≤58dB |
| （testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 0.3 meter.） |
|
| Function | Start/stop, cw rotation |
| Main Material | Pump cover: POM, Wheel frame: POM, Rollers: 304 Stainless Steel |
Reference Flow Rate
| Reference Flow Rate（unit: ml/min） | |||
| Motor Speed/Tube Type | Silicone tube | Fluorine rubber tube（V） | BPT tube |
| ID 1.6mm*wall 0.8mm | |||
| 220rpm | 10 | 7.1 | 7.1 |
| Flow description: The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. | |||
Typical Applications
Trace element analyzer, sweeping robot, chemiluminescence analyzer, mini water quality, soap dispenser, beauty instrument, essential oil transportation, tobacco oil transportation
