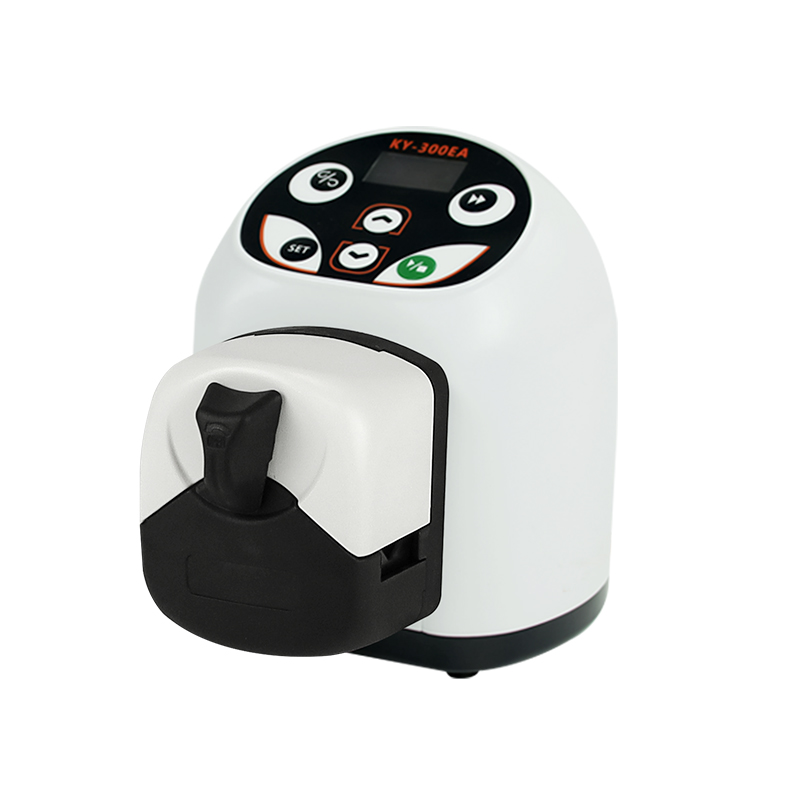

KY-300EA Economical Series
- Models: KY-300EA
- Maximum channel quantity: 2
- Reference flow rate: ≤565ml/min
â– New fluid transfer pump, simple and fast intelligent operating system;

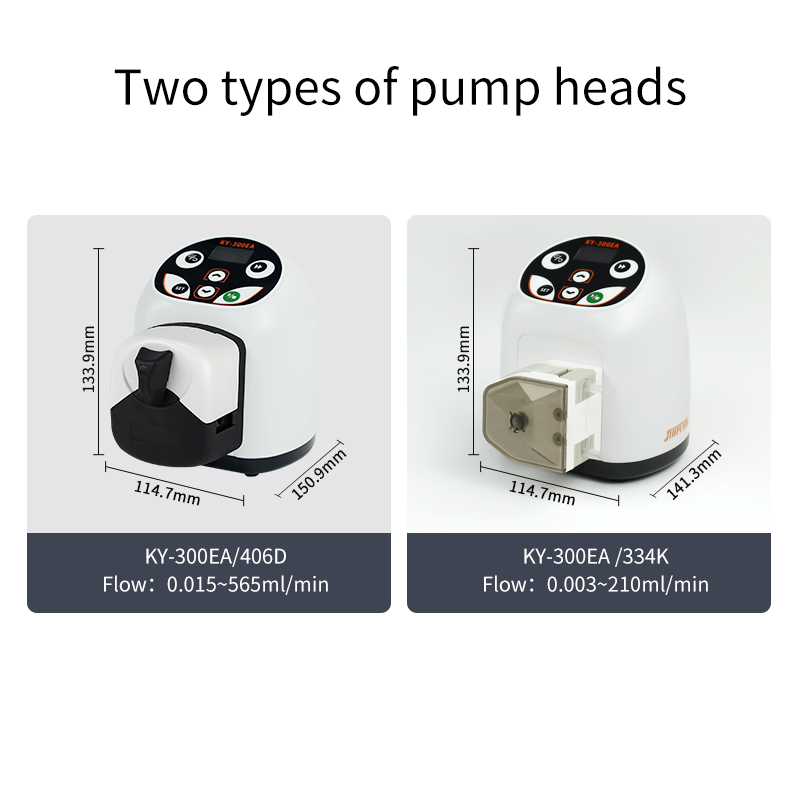

â– The product is adapted to 334K/406D two peristaltic pump heads, a variety of flow can be selected;
â– The product is small and exquisite, the minimum speed is 0.1rpm, suitable for titration adding operation;

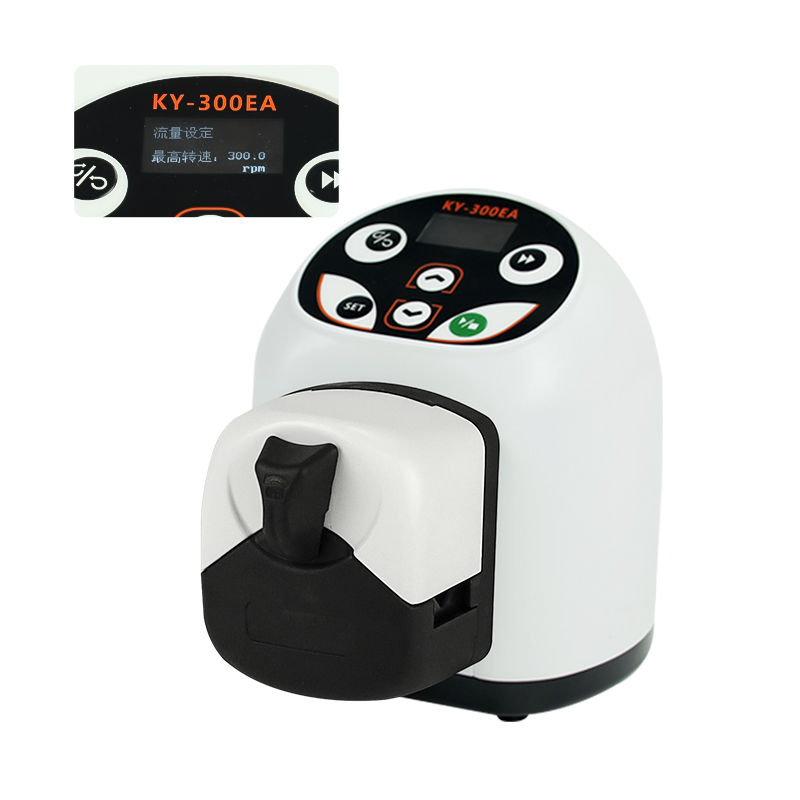

â– Chip drive technology, OLED display pump control mode, speed, flow, rotation;
â– Film key operation, flow mode, timing mode, APP control and other functions.
KY-300EA Economical Series fluid transfer pump features a brand-new smart operating system for quick and easy operation. It is compatible with both the 334K and 406D peristaltic pump heads, offering a variety of flow options to meet diverse needs. Its compact design allows for a minimum speed of 0.1rpm, making it ideal for precise titration applications.

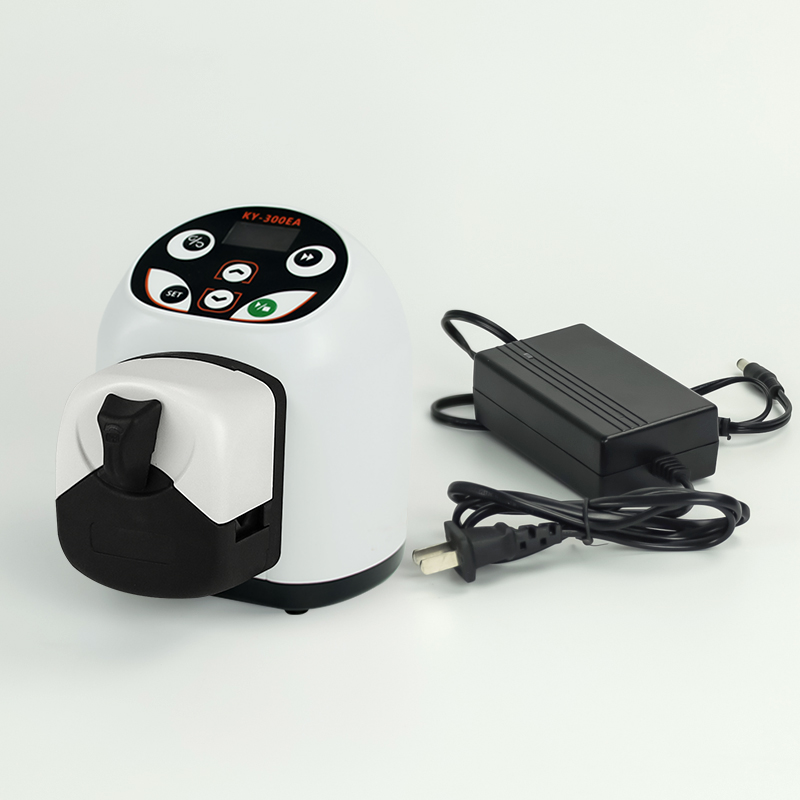

Equipped with advanced chip-driven technology, the OLED display provides real-time information on pump control modes, speed, flow, and revolutions for precise operation. The membrane key operation enables seamless switching between flow modes and timer settings, improving overall efficiency. Additionally, KY-300EA peristaltic pump supports a DC 24V option, ensuring compatibility with systems requiring higher power while maintaining versatility for a wide range of applications.
Product Parameters
| Product Parameter | ||
| Product Model | KY-300EA | |
| Pump Head Model | 334K | 406D |
| Speed Range | 0～300.0rpm | |
| Speed resolution | 0.1rpm | |
| Outlet Pressure | ≤0.17MPa | |
| Noise | ≤53dB | ≤50dB |
| (Testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 1 meter.) | ||
| Series Connection | ≤4 | |
| Control Mode | Membrane button | |
| Major Function | Flow rate, timing, APP control | |
| Display | OLED | |
| Voltage | DC24V | |
| Power | ≤ 24W (single driver) | |
| Work Environment | Temperature 0 (no icing)~60 ℃, relative humidity<85% RH | |
| Motor Type | Stepper motor drive | |
| Driver Size | 114.7*142.4*134mm³ | 114.7*152*134mm³ |
| Drive Weight | 787g | 857g |
| IP Rating | IP31 | |
Reference Flow Rate
| Single Channel Reference Flow（unit：ml/min） | |||||||||
| Pump Head Model | 334K | 406D | |||||||
| Motor Speed/Tube Type | 13# (ID0.8*OD4) |
14# (ID1.6*OD4.8) |
19# (ID2.4*OD5.6) |
16# (ID3.2*OD6.4) |
25# (ID4.8*OD8) |
14# (ID1.6*OD4.8) |
16# (ID3.2*OD6.4) |
25# (ID4.8*OD8) |
17# (ID6.4*OD9.6) |
| 300rpm | 10 | 35 | 80 | 115 | 210 | 45 | 170 | 370 | 565 |
| Number of adaptive Channels | ≤2 | 1 | ≤2 | 1 | |||||
| Flow Description | 1. The flow rate is measured by conveying clean water at a room temperature of 23 ℃ with no pressure at the inlet and outlet; 2. Total multi-channel traffic ≈ single channel traffic * number of channels. |
||||||||

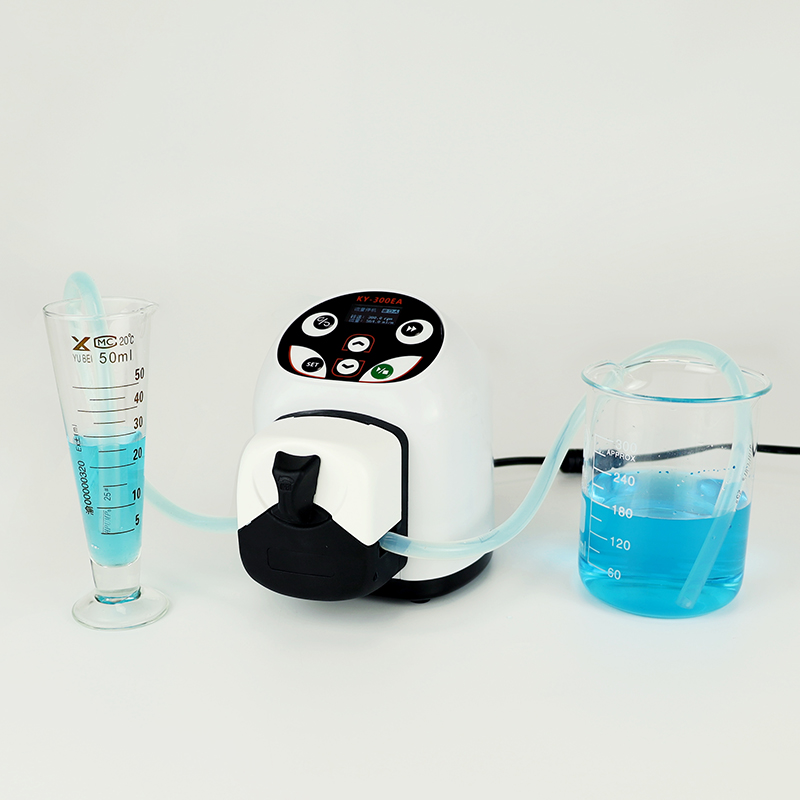

Typical Applications
Biological engineering, chemical, pharmaceutical, hospital, food small supporting production and scientific research unit laboratories.
