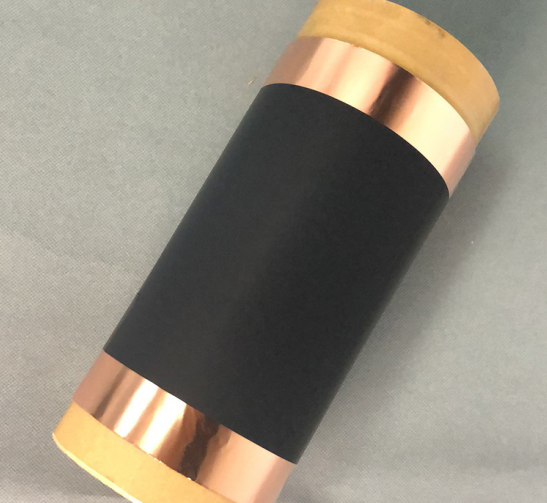

Carbon-Coated Copper Foil — Li-Ion Battery Anode Current Collector
Conductive carbon-coated copper foil for lithium-ion battery anode current collectors. The thin carbon layer (5–10 µm both sides) greatly improves adhesion of graphite and silicon-graphite active materials, reduces interfacial resistance, and suppresses copper dissolution at low voltages. Standard for next-generation battery research.
Key Specifications
- Cu foil thickness: 6 µm, 8 µm, 10 µm, 12 µm, 18 µm (standard)
- Carbon coating: 5 µm – 10 µm per side
- Surface resistance: <0.5 Ω/sq
- Tensile strength: ≥250 MPa
- Width: Up to 300 mm roll
Applications
- Li-ion battery anode current collector
- Silicon-graphite composite anode research
- Sodium-ion battery anode substrate
- Flexible battery development
Specify Cu foil thickness and roll width for pricing. Commonly available in 8 µm and 10 µm.
