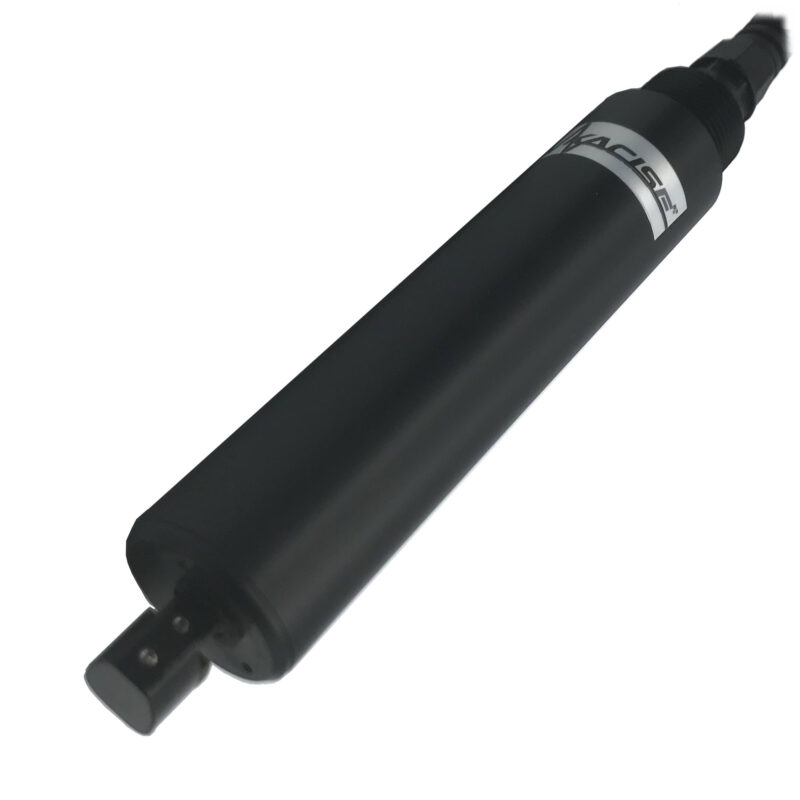

KWS-900 Fiber Optic Turbidity Sensor
Fiber-Optic Industrial Turbidity Sensor
Description
Description
Introduction
The applies fiber technology to the turbidity sensor to make the sensor has better repeatability and stability, not susceptible to ambient light coordination. The sensor’s automatic cleaning brush effectively eliminates air bubbles and reduces the effects of contamination on the measurement. Long-term online use, longer maintenance intervals and better stability.
Feature
- Digital sensor, RS-485 output, support MODBUS
- With automatic cleaning brush, prevent pollution, eliminate air bubbles
- Strong anti-interference ability, no ambient light and chromaticity
- 90° scattered light principle, better fiber technology repeat-ability.
Technical Specifications
| Item | Fiber | Self-cleaning | |
| Picture |
 |
 |
|
| Model | KWS-900A | KWS-900B | |
| Principle | 90° scattered light | ||
| Measuring Range | 0-1000NTU | ||
| Resolution | 0.1NTU | ||
| Accuracy | <5% or 0.3NTU(which is bigger) | ||
| Protection Rate | IP68 | ||
| Deepest Depth | Underwater 60 meters | Underwater 10 meters | |
| Temperature Range | 0 ~ 50℃ | ||
| Output | Support RS-485, MODBUS protocol | ||
| Power Supply | DC 5~12V, current <50mA | DC 5~12V, current <50mA (when not clean) | |
| Installation | Input type | Input type | |
| Size | Φ22mm*120mm | Φ33mm*156mm | |
| Probe Cable Length | 10 m, 5 m, 15 m and 30 m cable customizable | ||
| Self-Cleaning System | No | Yes | |
| Optical Windows | optical fiber | ||
