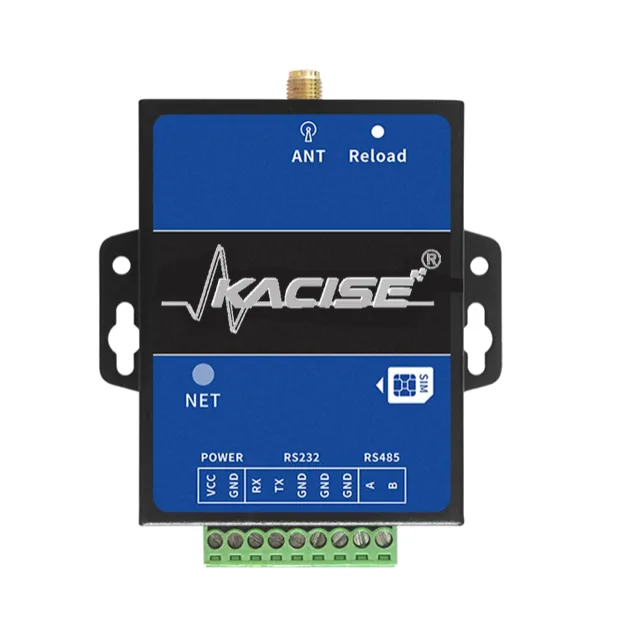

4G DTU Data Transmission Unit
4G Modbus Data Transmission Unit
Description
Description
1.Introduction
The 4G DTU is suitable for scenarios such as equipment control, status detection, and sensor data collection, where communication with the server is carried out via a 4G network. Its specific functional features are as follows:
- It supports a wide input voltage range of 5 – 36V.
- It supports contact discharge of ±8KV and air discharge of ±15KV.
- The working environment ranges from – 35℃ to 75℃.
- It supports global 4G + 2G frequency bands.
- It supports 1 – way RS485.
- It supports 1 – way RS232.
- It supports a hardware watchdog, ensuring stable operation without crashing.
- It supports the DTU transparent transmission firmware and is compatible with TCP, UDP, MQTT, HTTP, Alibaba Cloud IOT, and Tencent IOT.
- It supports customized label logo services.
It supports secondary development customization.
2.Hardware specifications
| Functional items | Detailed description | |
| 4G module | Network standards | Cat1 Global 4G+2G |
| Network frequency bands | LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/
B25/B26/B28/B66 LTE-TDD:B38/B40/B41 GSM:850/900/1800/1900 |
|
| Power parameters | 5 – 36V, 10W power supply. A power supply above 5V is recommended. | |
| Operating environment | Operating temperature | -35℃ ~+75℃ |
| Operating humidity | 5% – 95%RH (non – condensing) | |
| RS232 serial port | Quantity | 1 channel |
| 1200 – 460800; Data bits: 8; Stop bits: 1, 2; Parity bit: odd, even, none | ||
| RS485 serial port | Quantity | 1 channel |
| 1200 – 230400; Data bits: 8; Stop bits: 1, 2; Parity bit: odd, even, none | ||
| Dimensions | 73*88*20mm | |
| Installation method | Installation with M3 screws | |
