When you need more computing power, the X-series runs your collection, logic and forwarding on an x86 processor. Choose a small fanless box or a 1U/2U rack unit.
At a glance
- x86 processor for fast, high-load processing
- 2 or 4 Ethernet ports; 2 x RS232 and 2 x RS485
- Optional WiFi or 4G (models X100, X200, X300)
- 12 V DC supply; working temperature -25 to 75 degrees C

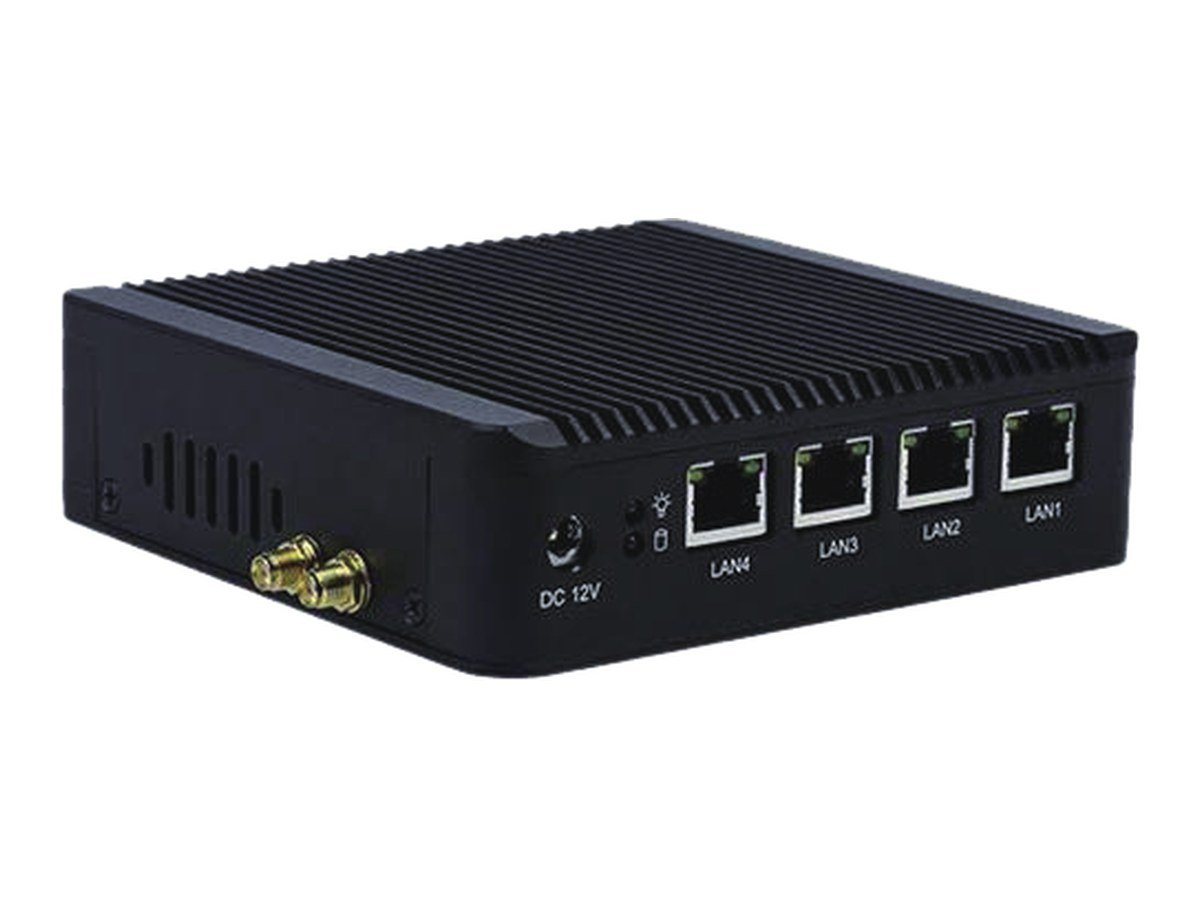

- Fanless box 133 x 125 x 40 mm, 1U and 2U rack versions
- Modbus, OPC UA, IEC 61850/104, MQTT, BACnet and custom protocols
Where it is used in Malaysia
- Papermaking, food and new materials plants
- Transport hubs and aquaculture
- Energy and utility monitoring centres
- Plant data aggregation rooms
Models in this range
How it works
The x86 platform handles many protocols and large data volumes at once, then passes the results to your SCADA or cloud system.
Order from AIBS
Ai Business Solutions Sdn Bhd supplies this product in Malaysia and across Asia Pacific. Send us a quote request with the model, the quantity and your application, and we will reply within one working day.
