The T-series is a small, cost-effective controller built on a fully domestic hardware platform. It suits sites that need a reliable collection and forwarding unit with a simple graphical set-up.
At a glance
- 1.2 GHz domestic processor; 125 x 80 x 52 mm
- 2 RS485 serial ports and 1 network port

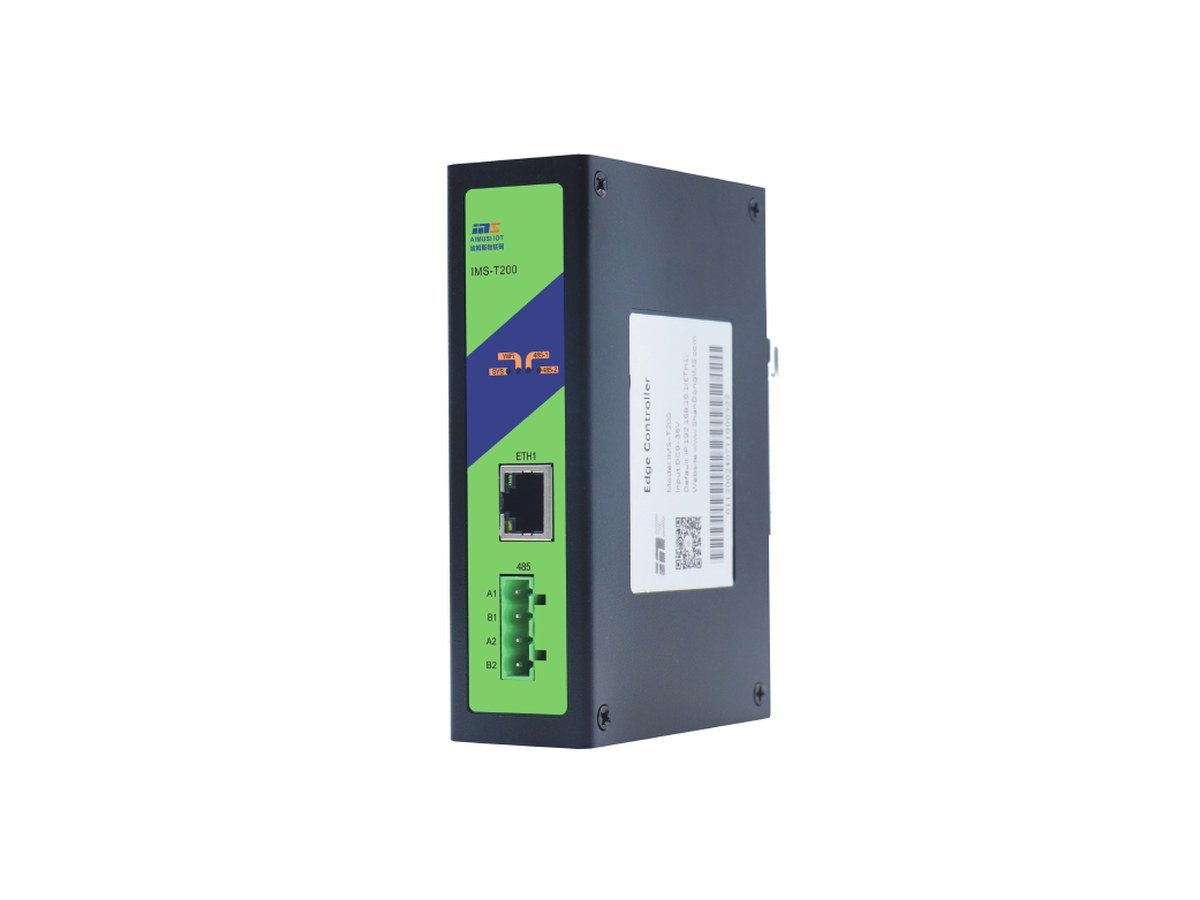

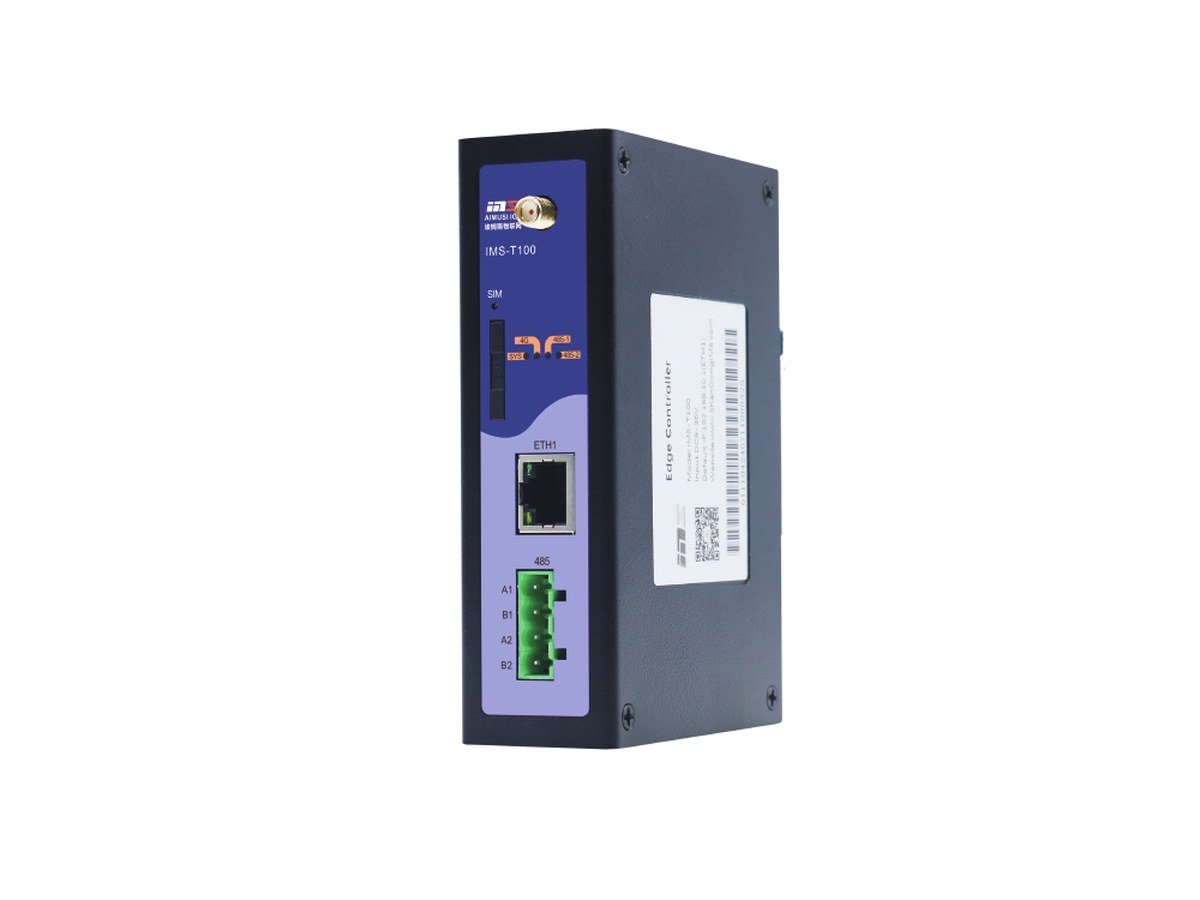

- Models T100 (4G) and T200 (with LoRa or WiFi option)
- Power DC 9 to 36 V; full port isolation
- Modbus RTU/TCP, OPC UA, IEC 61850, IEC 104, MQTT, BACnet, DL/T 645
- Graphical programming and cloud platform support
Where it is used in Malaysia
- Chemical, pharmaceutical and food plants
- Electric power and building materials
- Oil and gas wellheads and pipelines
- Building services and meters
Models in this range
How it works
The T-series reads field devices over RS485 and forwards the data over Ethernet, LoRa, WiFi or 4G. Logic is built graphically with no code.
Order from AIBS
Ai Business Solutions Sdn Bhd supplies this product in Malaysia and across Asia Pacific. Send us a quote request with the model, the quantity and your application, and we will reply within one working day.
