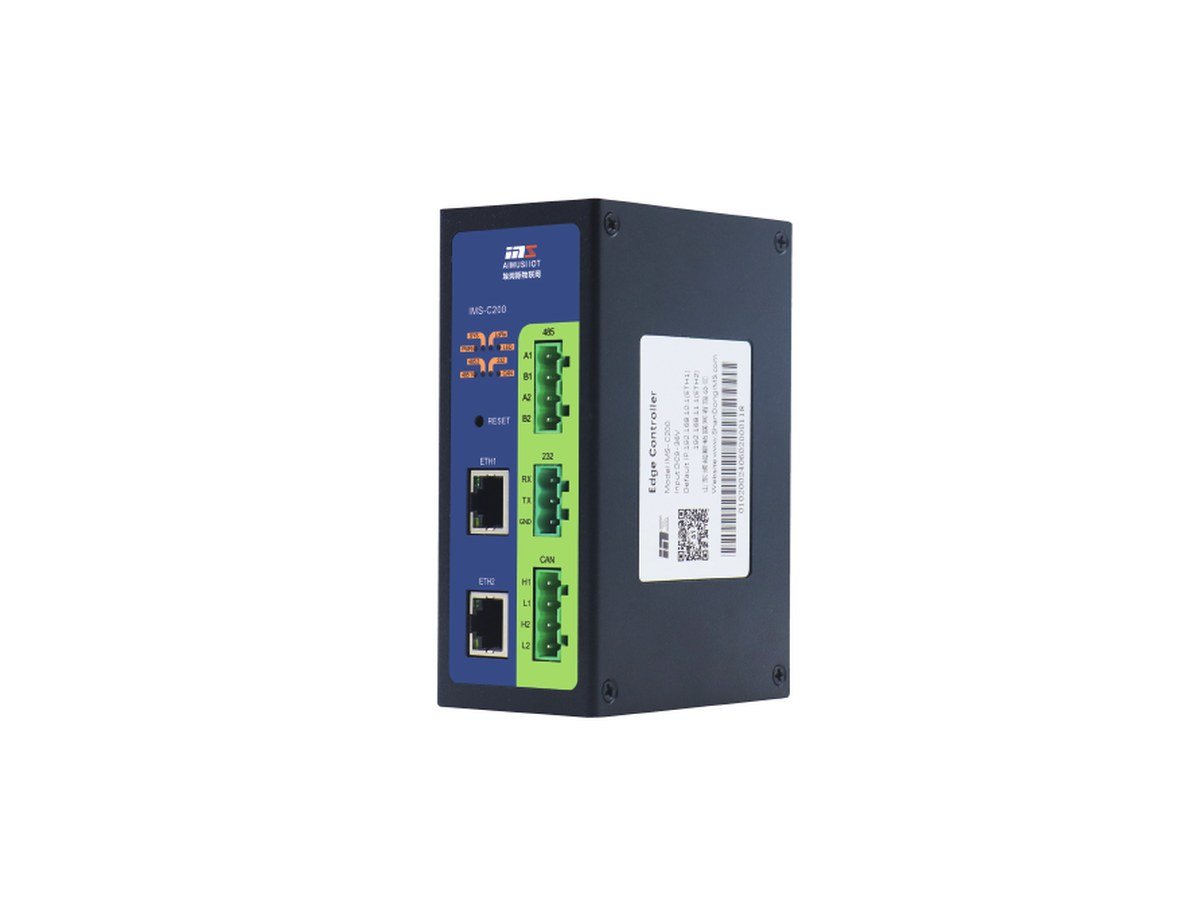

An edge controller collects data from meters, PLCs and sensors, runs your logic locally, and sends the results to the cloud. The C-series is the all-round model with rich ports and full port isolation, set up by drag and drop rather than code.
At a glance
- ARM processor on an NXP platform; 125 x 80 x 52 mm

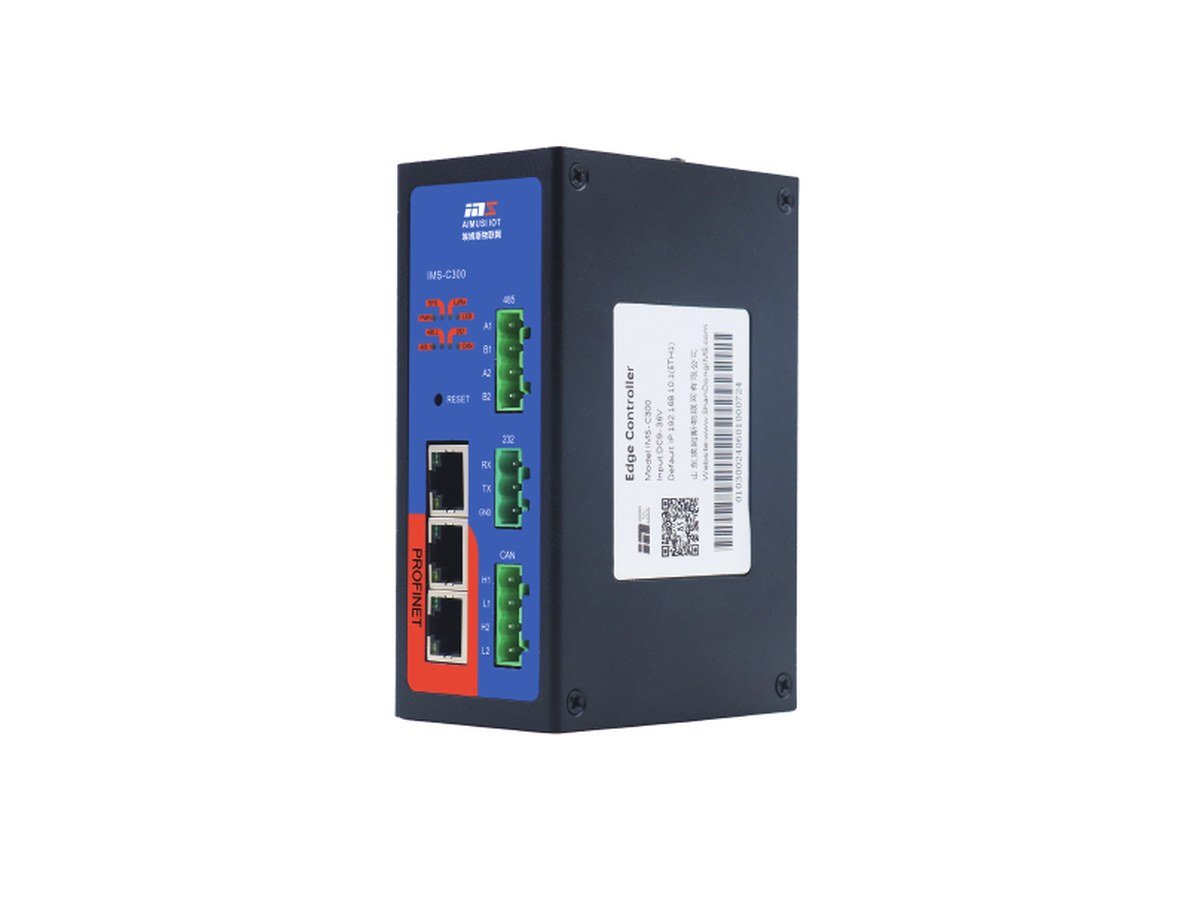

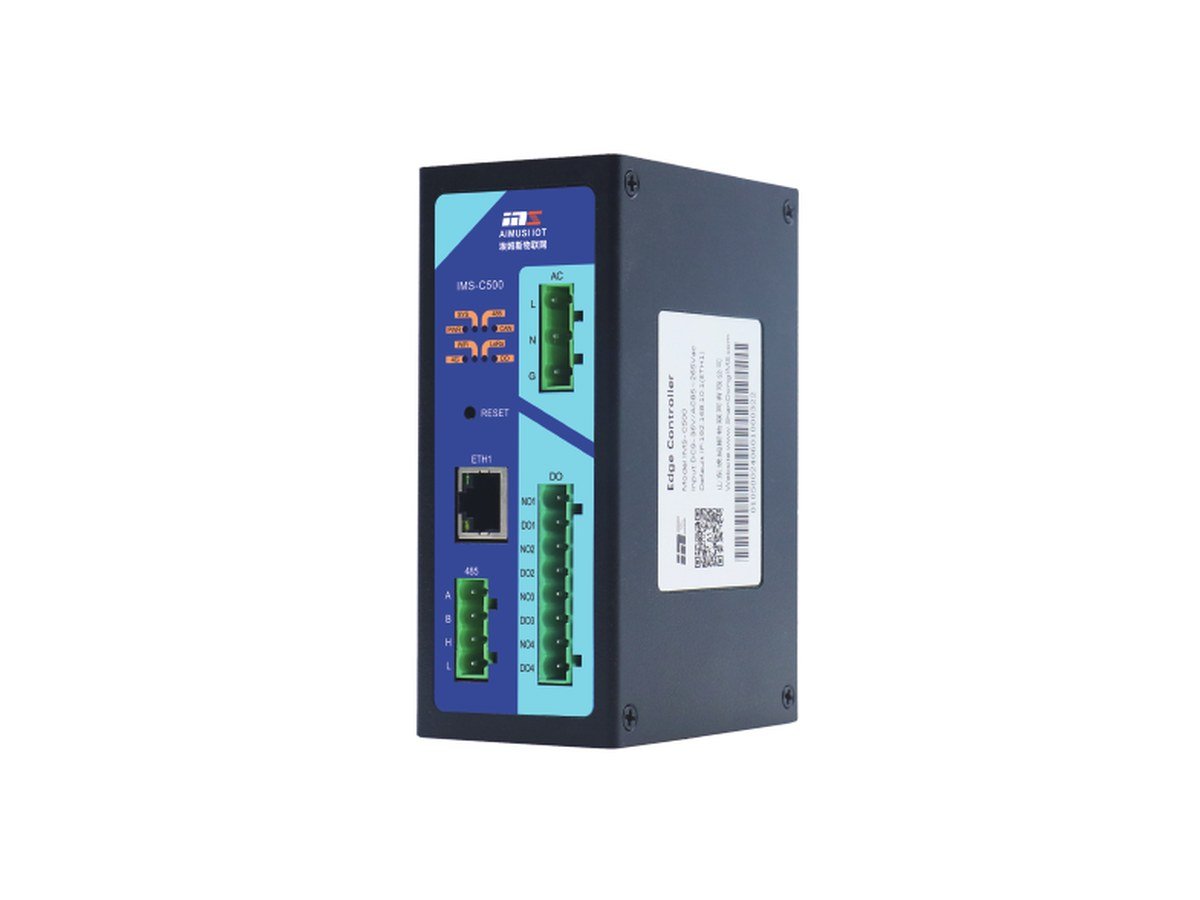

- Up to 4 serial ports, 3 network ports, 2 CAN, 1 WiFi, 1 LoRa, 1 4G, 4 DI and 4 DO (varies by model)

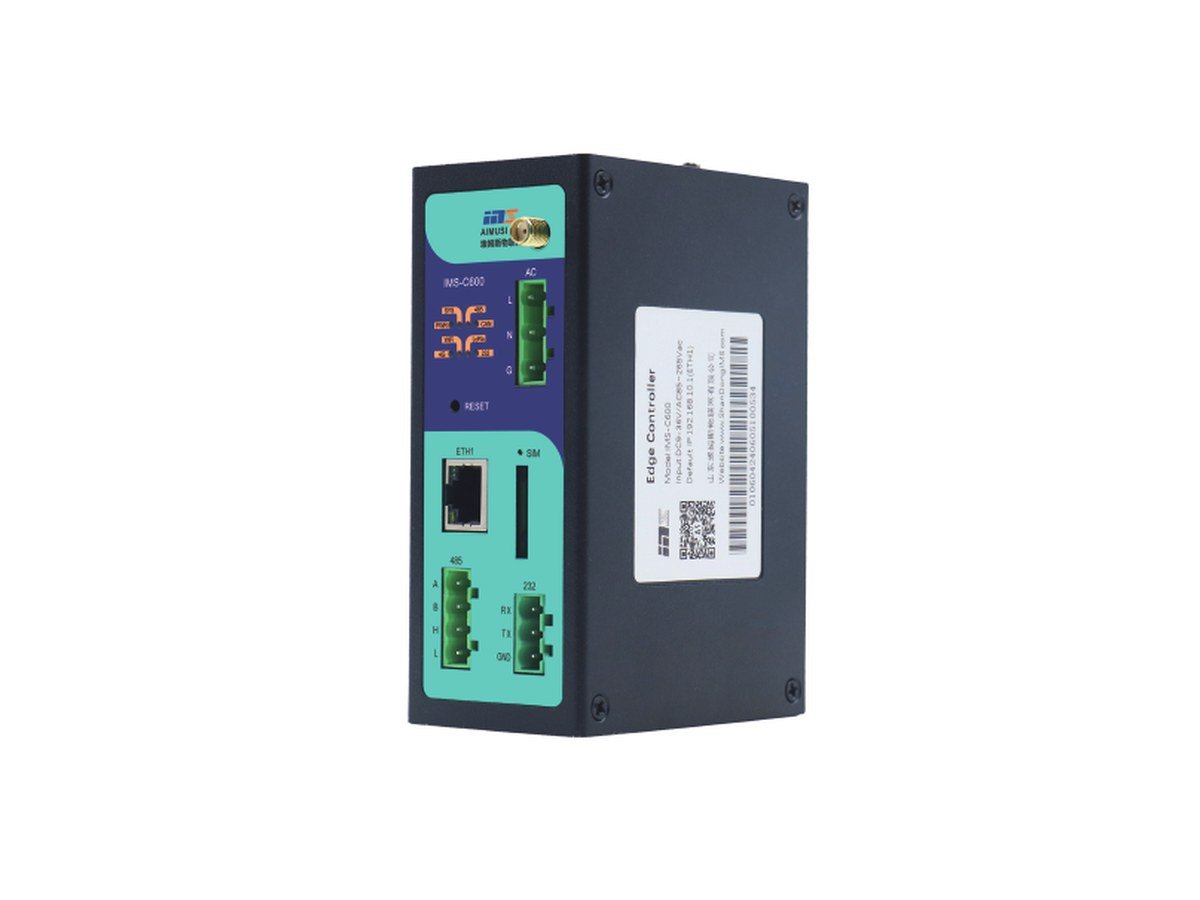

- Models C200, C300 (with Profinet), C500, C600 (4G) and C700
- Wide DC 9 to 36 V; AC 100 to 265 V on selected models
- Full port isolation; working temperature -25 to 75 degrees C
- Protocols: Modbus RTU/TCP, CANopen, OPC, IEC 61850, IEC 104, M-Bus, MQTT, Profinet, Profibus and custom

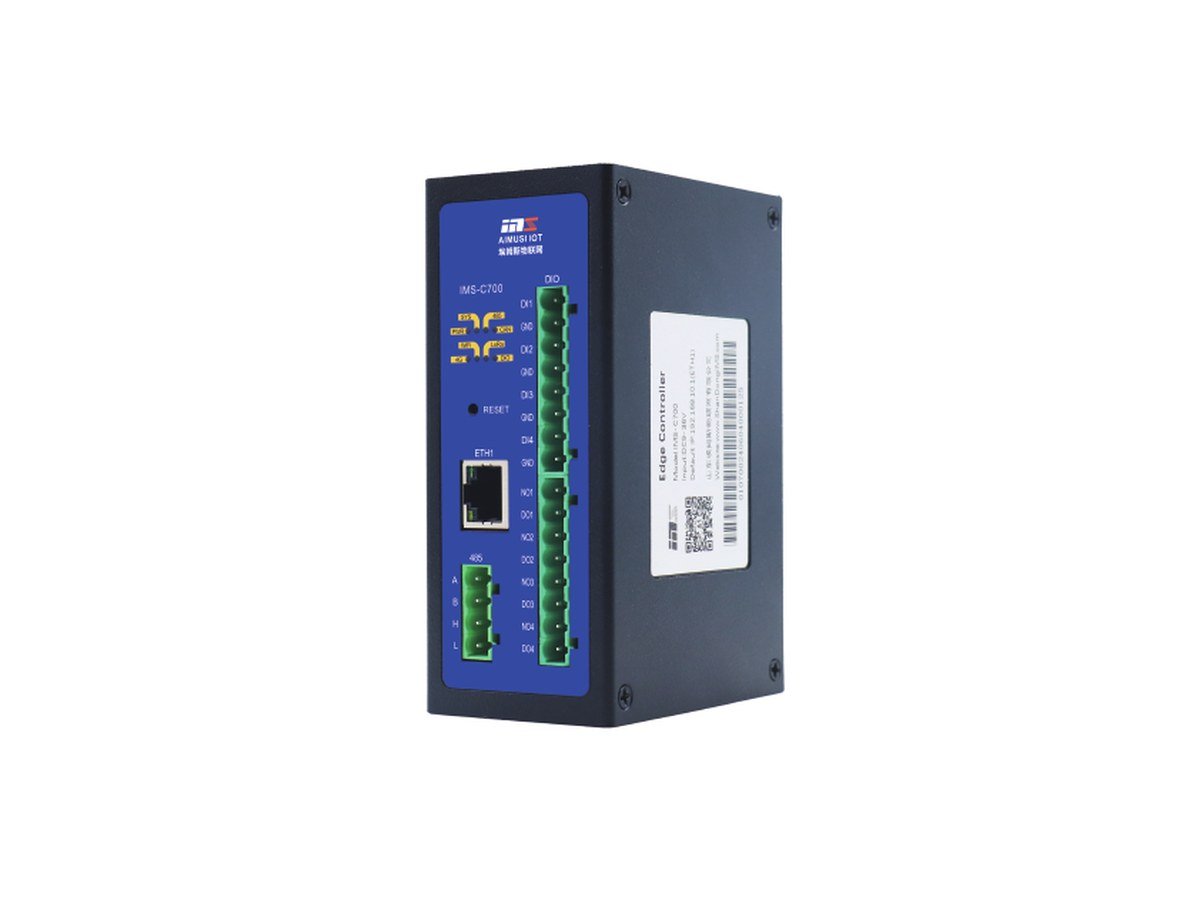

- Wall, DIN-rail or desktop installation
Where it is used in Malaysia
- Factories, utilities and plant data collection
- Water treatment and pumping stations
- Aquaculture and agriculture monitoring
- Oil and gas, chemical and petrochemical sites
- Energy and building plant rooms
Models in this range
How it works
You build the logic in a graphical editor by dragging blocks and wires. The controller reads devices over serial, CAN or network, applies your rules locally for fast response, and forwards data over MQTT or to the cloud platform.
Order from AIBS
Ai Business Solutions Sdn Bhd supplies this product in Malaysia and across Asia Pacific. Send us a quote request with the model, the quantity and your application, and we will reply within one working day.
