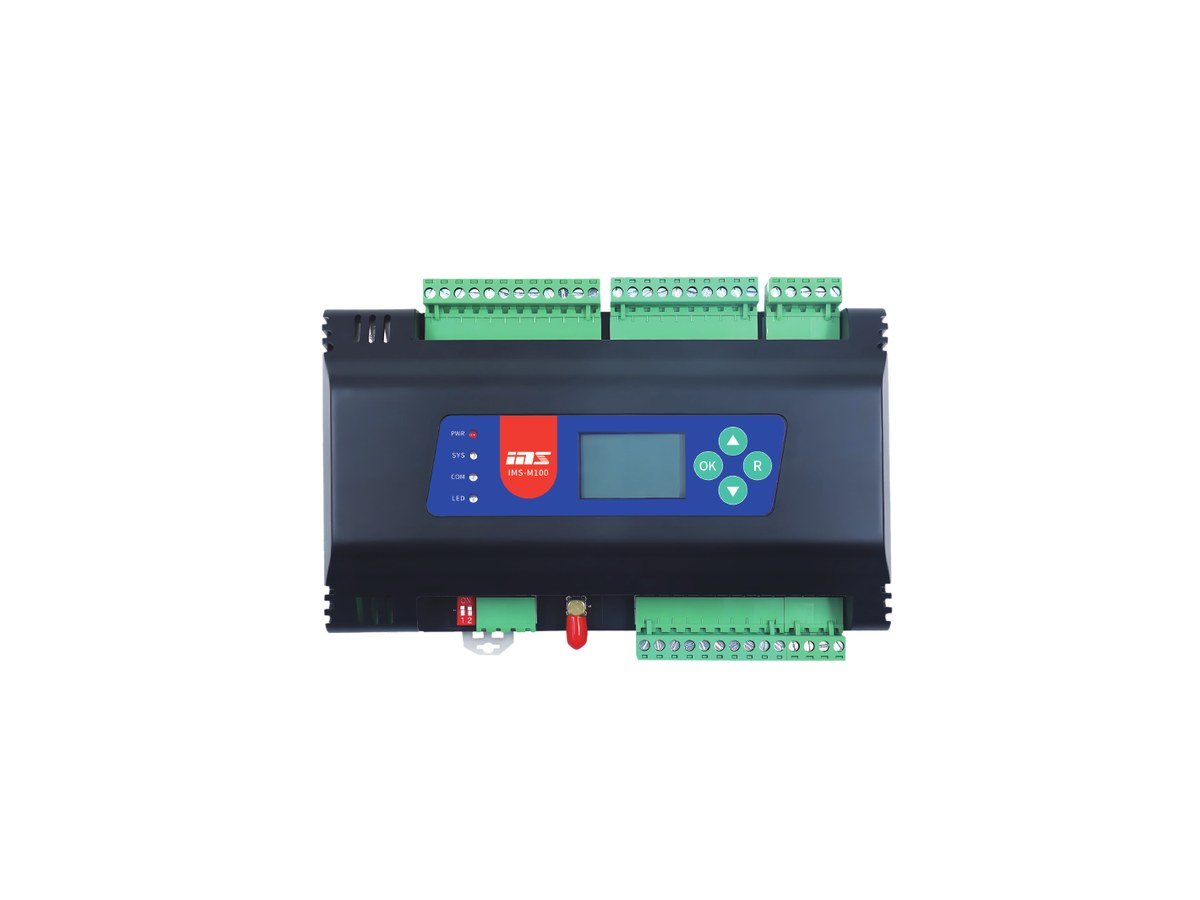

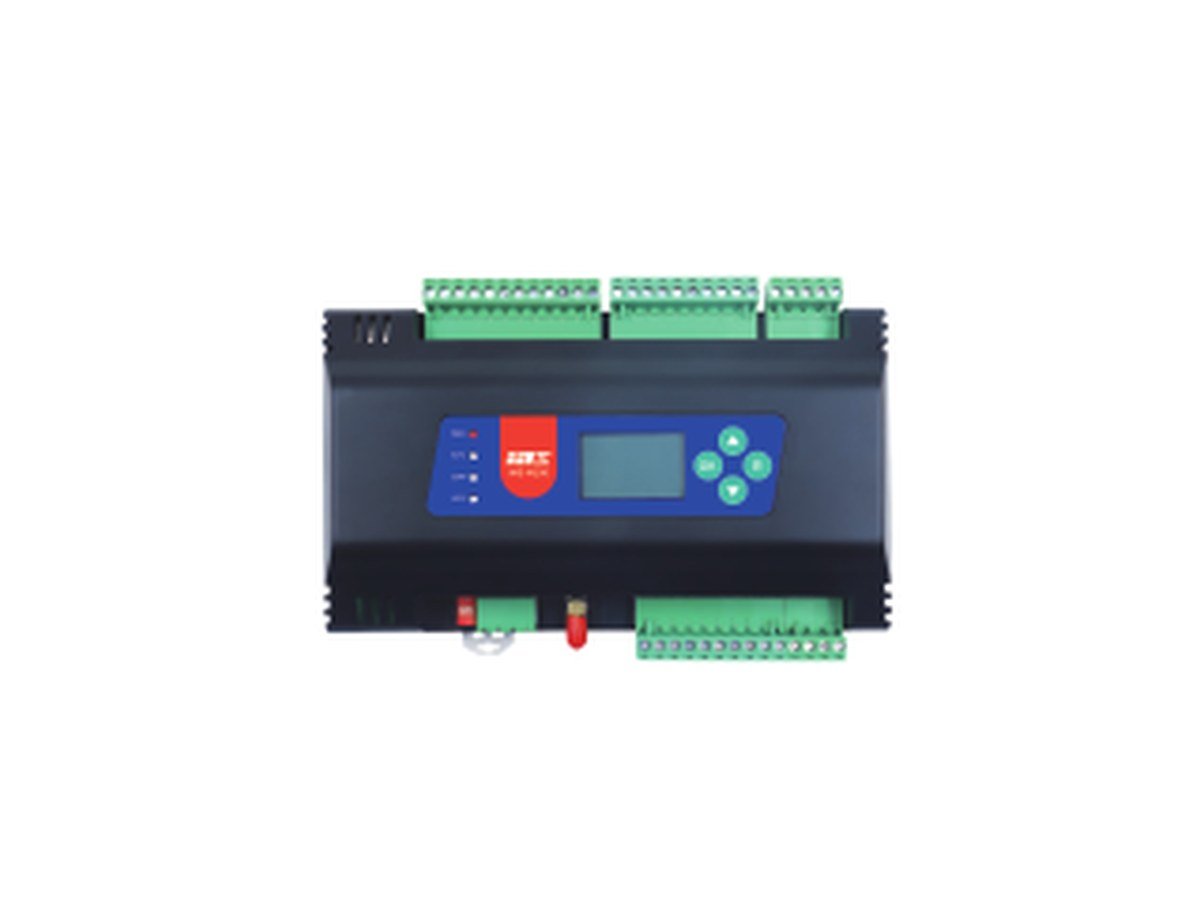

The M-series has the IO built in, so one unit can run a small plant room or HVAC system on its own. It supports local logic and sends data over Modbus, MQTT and BACnet.
At a glance
- Cortex-A7 processor; DIN-rail or wall mounting
- Up to 8 analogue inputs (0-20 mA, 0-10 V, NTC, RTD)
- Up to 4 PWM analogue outputs (4-20 mA, 0-10 V)
- Up to 16 switch or frequency inputs; relay and SCR outputs
- Optional LCD; 12/24 V DC or 100-265 V AC
- Modbus RTU/TCP, OPC UA, MQTT, BACnet
Where it is used in Malaysia
- Chillers, AHUs and building HVAC
- Pumping and water treatment rooms
- Petrochemical and pharmaceutical plants
- Metallurgy and building materials
Models in this range
How it works
The controller reads temperature, pressure and switch signals, runs control logic locally and switches outputs. It reports through Ethernet or wireless.
Order from AIBS
Ai Business Solutions Sdn Bhd supplies this product in Malaysia and across Asia Pacific. Send us a quote request with the model, the quantity and your application, and we will reply within one working day.
