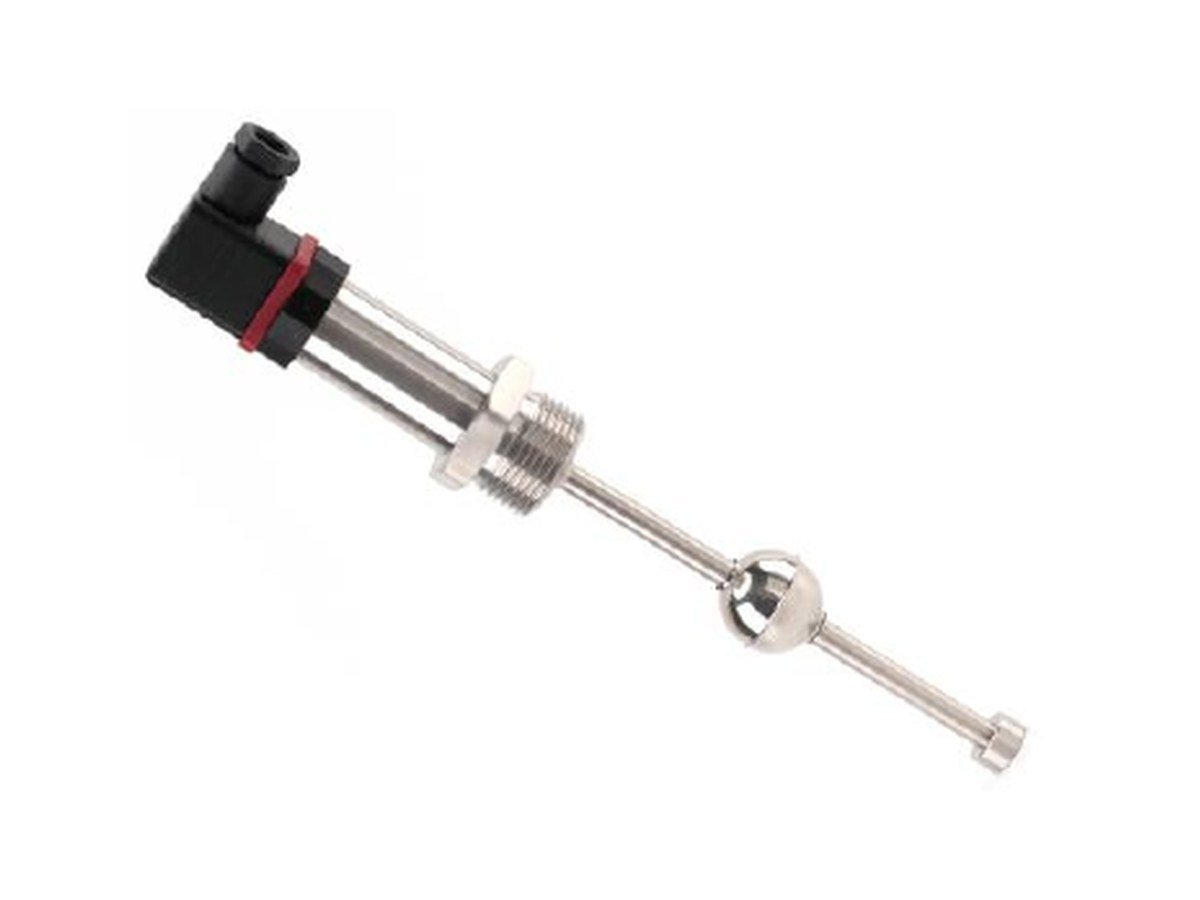

Float, Magnetic and Ultrasonic Level Sensors (0.2 to 5 m, 4-20 mA)

Choose a float sensor for simple tank level or an ultrasonic sensor when nothing should touch the liquid. All give a standard signal for a PLC or logger.

At a glance

• Float ball and rod-type level sensors with 4 mm or 8 mm options

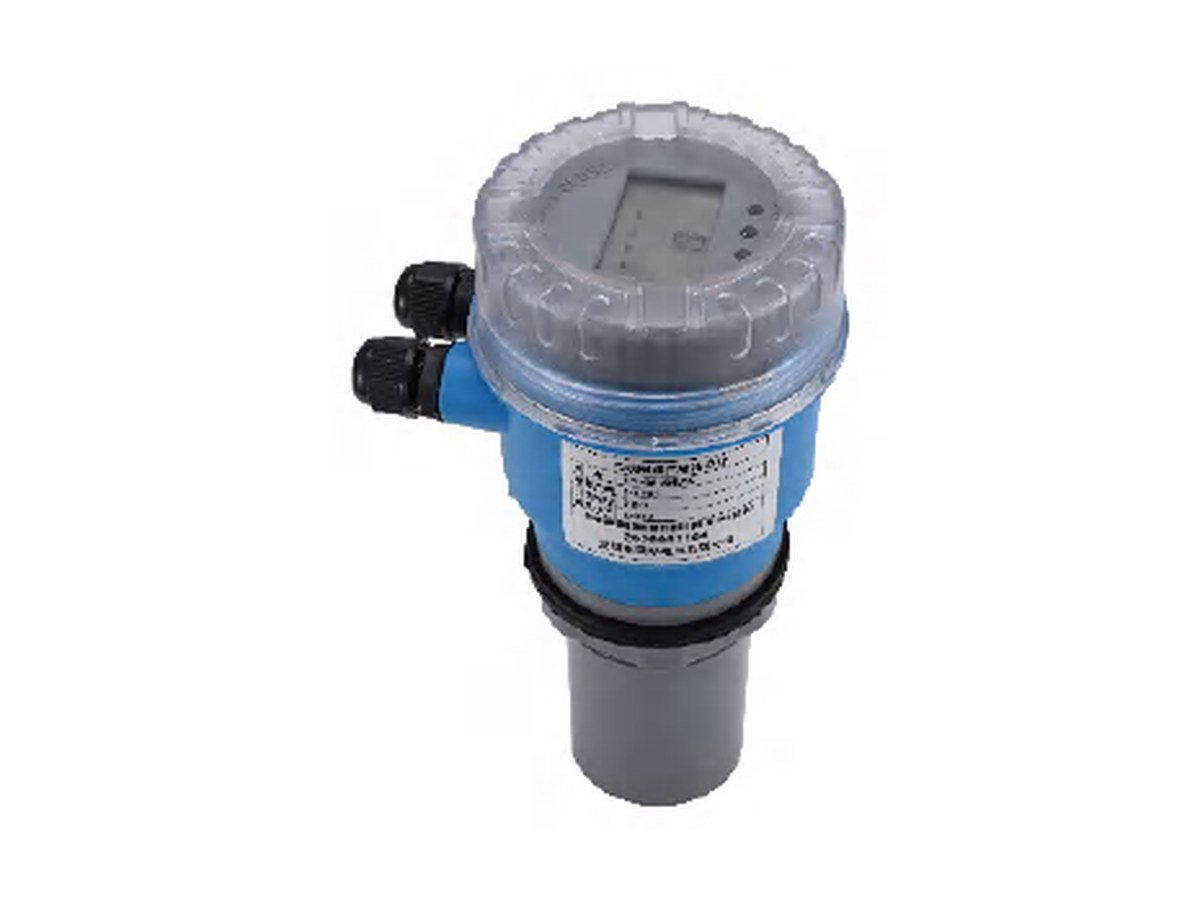

• Ultrasonic level sensor from 0.5 to 10 m
• Accuracy 0.5 percent FS
• Threaded G1/2 or 1 to 1.5 inch connection
• Stainless steel 304 or 316; ABS and PTFE for ultrasonic
• Ex ia IIC T6 Ga on selected models

Where it is used in Malaysia

• Water tanks and storage
• Chemical and fuel storage
• Boilers and cooling systems
• Wastewater lift stations
• Plants measuring level in open tanks

Models in this range

How it works

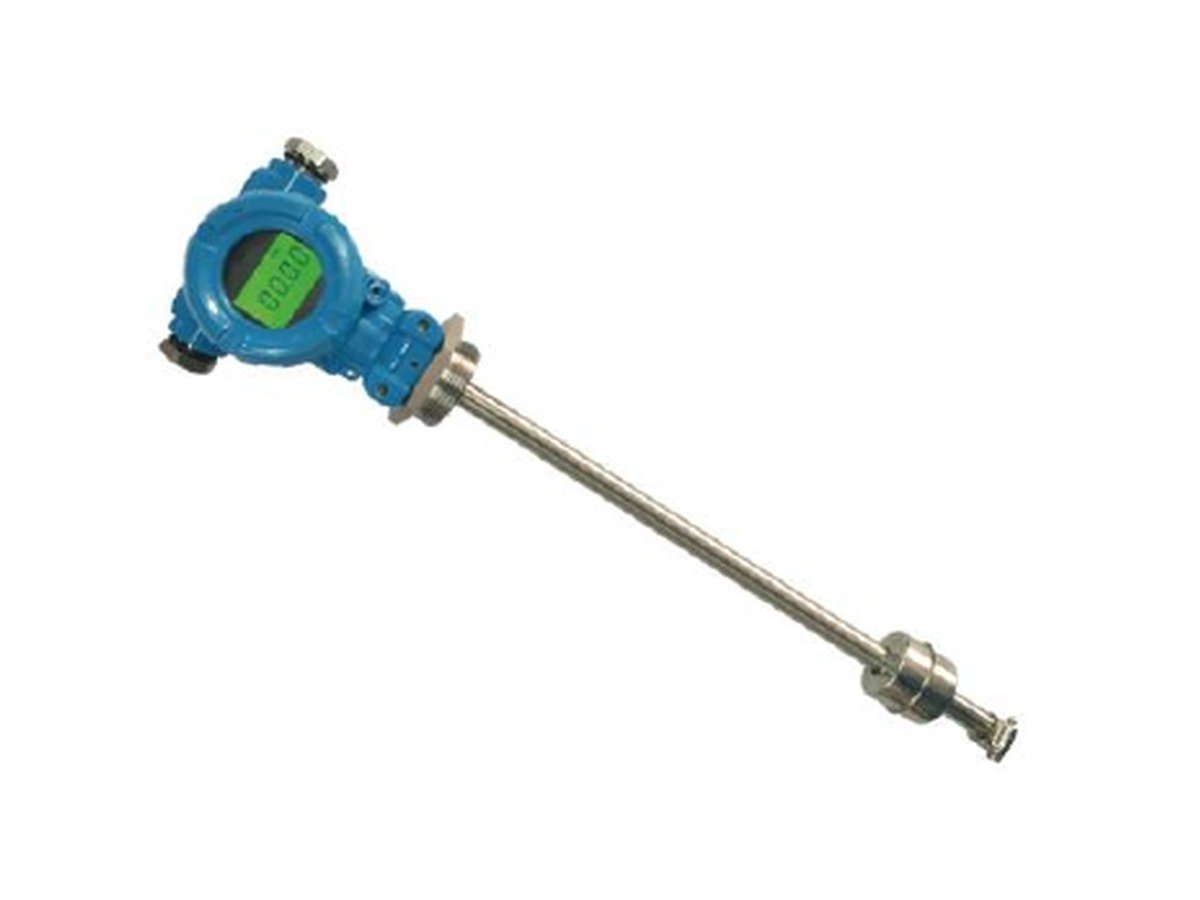

A float rises and falls with liquid and a magnetic element sets the signal. An ultrasonic version measures the time for sound to return from the surface.

Order from AIBS

Ai Business Solutions Sdn Bhd supplies this product in Malaysia and across Asia Pacific. Send us a quote request with the model, the quantity and your application, and we will reply within one working day.
