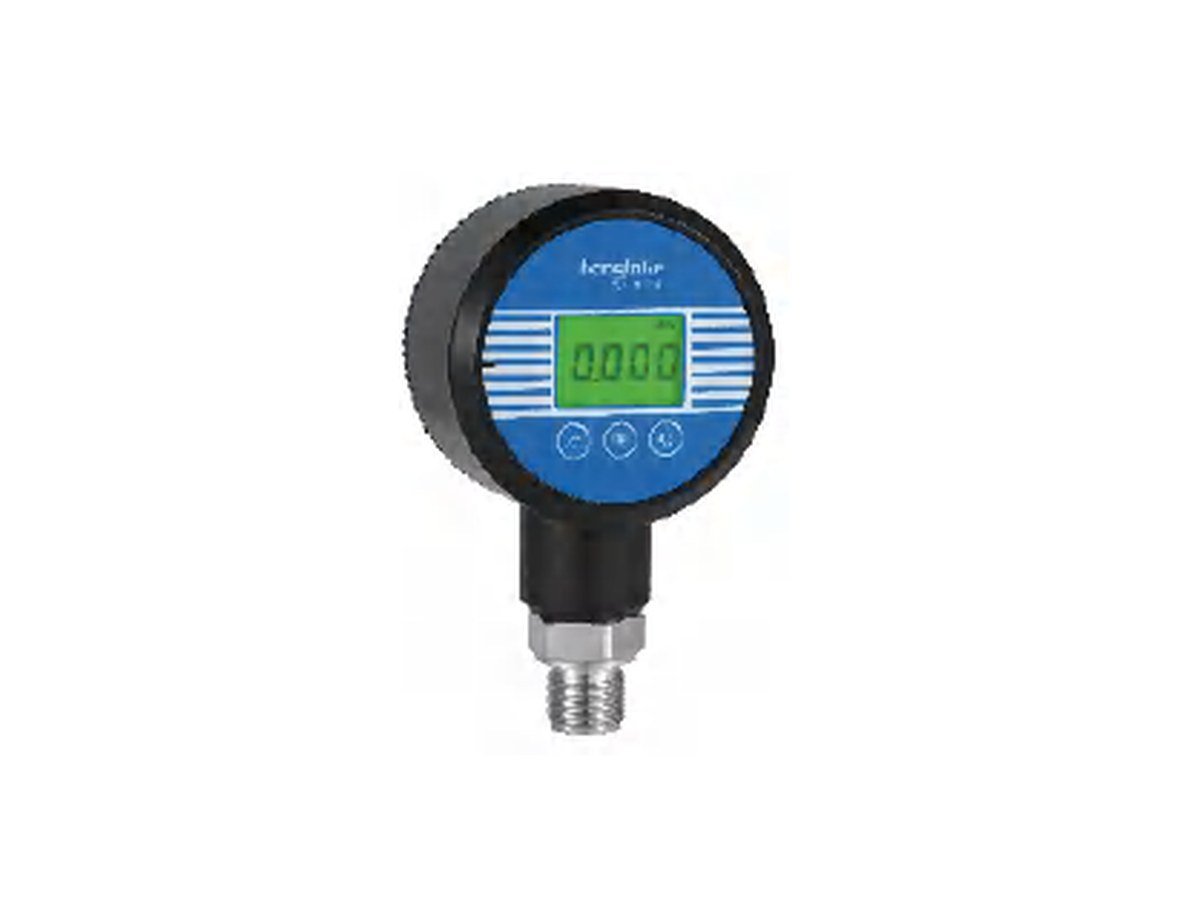

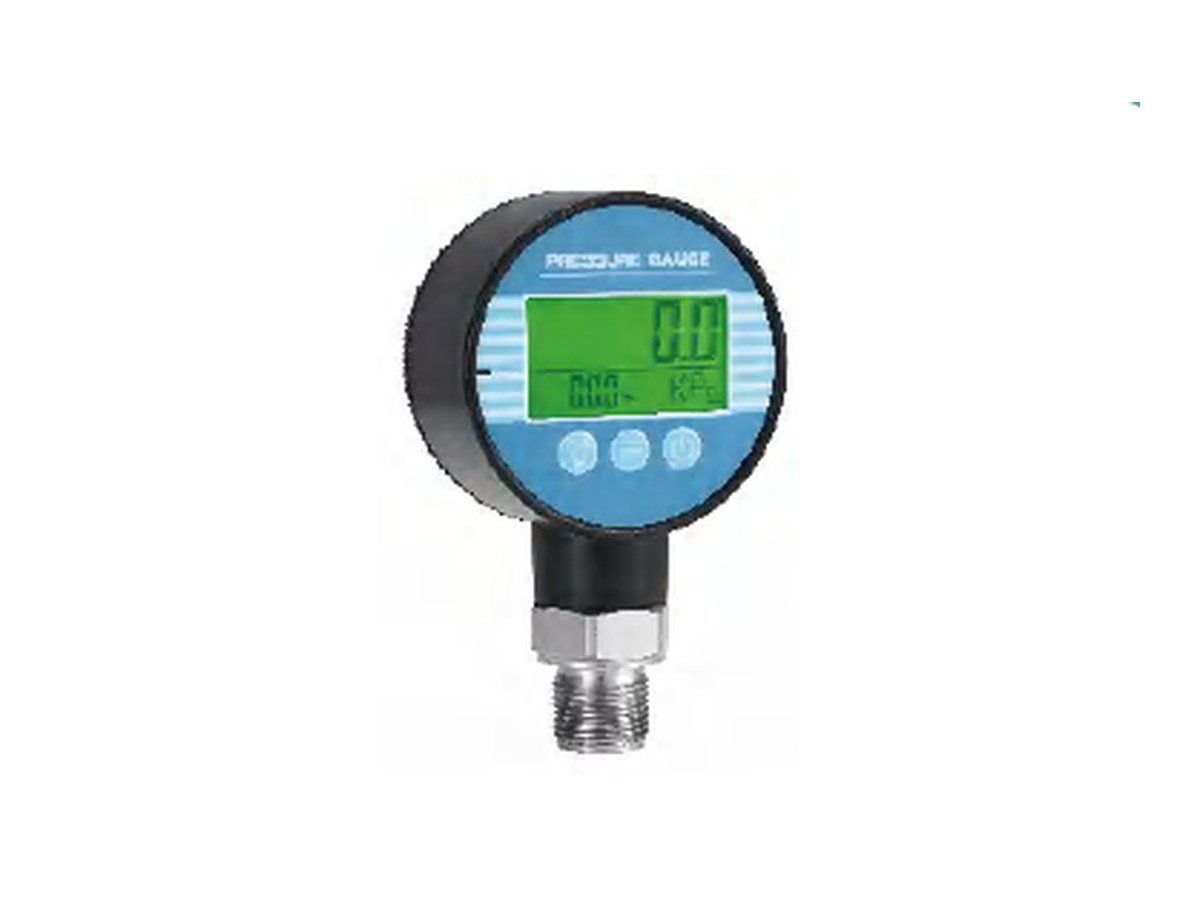

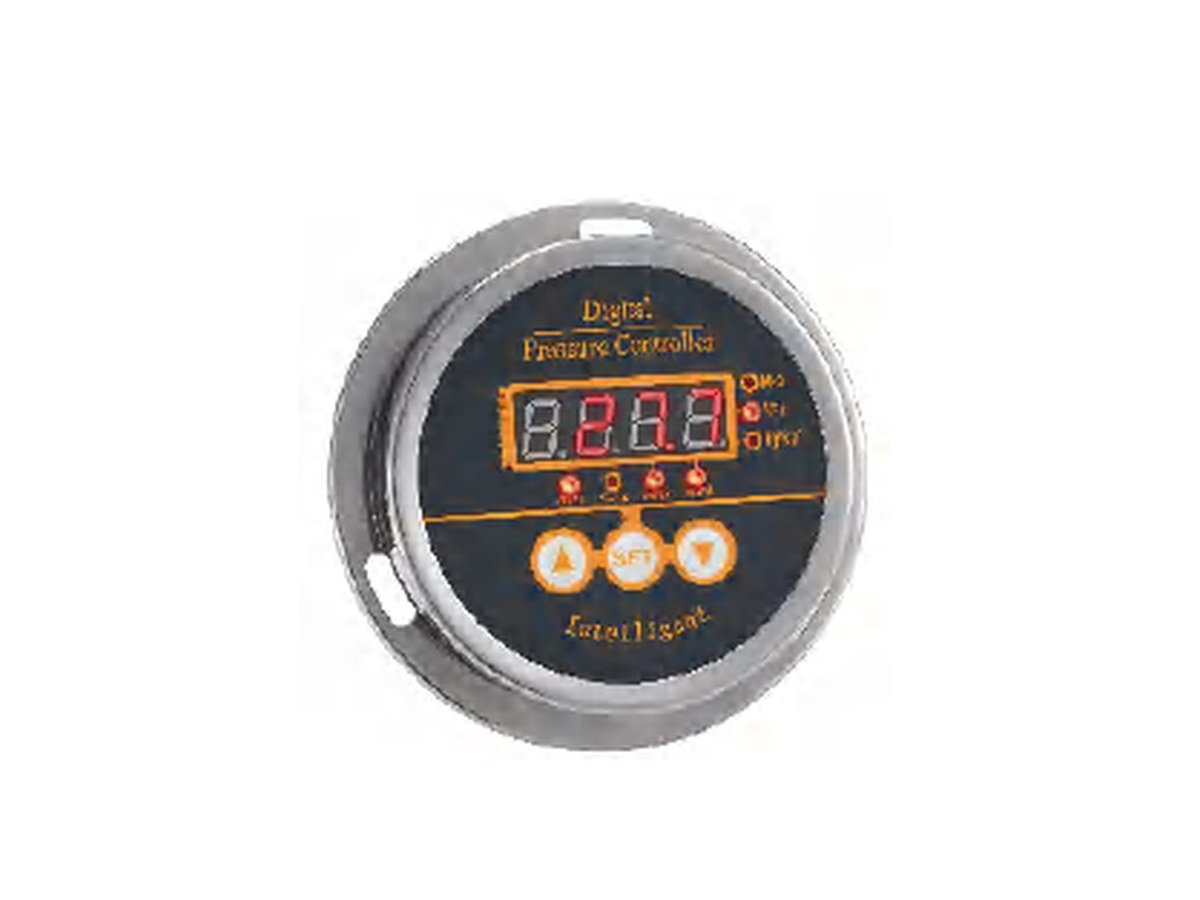

These gauges show pressure on a digital display and can send it out as a signal. Battery models need no wiring; display heads clip onto a DIN43650 connector.
At a glance
Ranges from -0.1 MPa to 250 MPa
Accuracy 0.1, 0.2 and 0.5 percent FS
Gauge sizes about 70 mm and 80 mm
LCD or LED display; 3.6 V battery or 12-28 V DC
Explosion-proof (Ex ia) version available

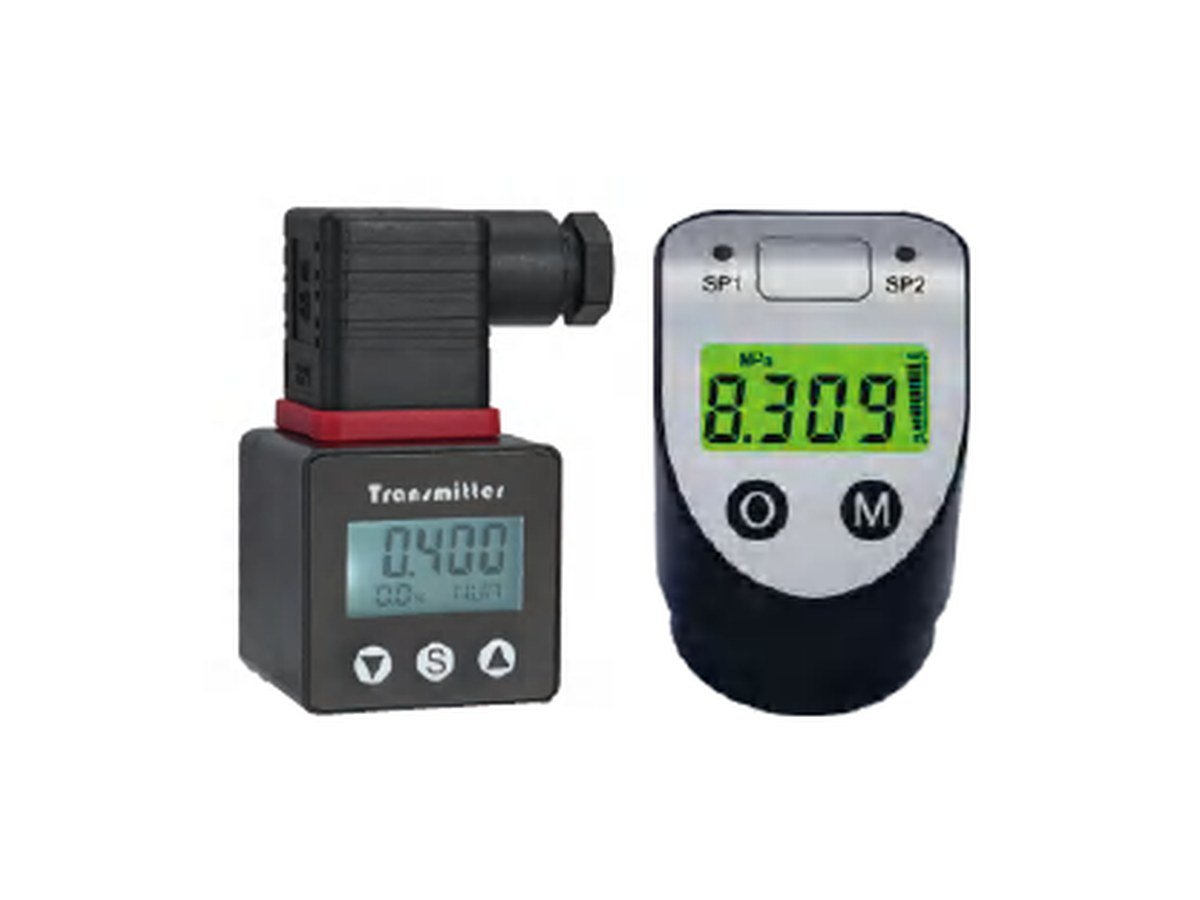

Display heads for DIN43650A and DIN43650 connectors
Where it is used in Malaysia
Pump rooms and boilers
Hydraulic and pneumatic test benches
Calibration and field service work
Water treatment plants
Factories replacing analogue dial gauges
Models in this range
How it works
A sensor converts pressure to a signal and a microcontroller shows it as numbers. Display heads fit onto a transmitter connector and show its output.
Order from AIBS
Ai Business Solutions Sdn Bhd supplies this product in Malaysia and across Asia Pacific. Send us a quote request with the model, the quantity and your application, and we will reply within one working day.
Pressure range
-0.1 MPa to 250 MPa
Accuracy
0.1%FS, 0.2%FS, 0.5%FS
Display
LCD or LED
Supply
3.6 V battery or 12-28 V DC
Size
diameter 70 to 80 mm; display head 42 x 42 x 42 mm
Connection
G1/4, M20x1.5, DIN43650A
Protection
IP65
Ask about Digital Pressure Gauges and Display Heads (Battery or 12-28 V DC, LCD and LED)
Questions about specifications, stock, lead time or compatibility? We reply within one working day.
Need a different model, size or accessory? Add it to your quotation as an item not listed on our website.
