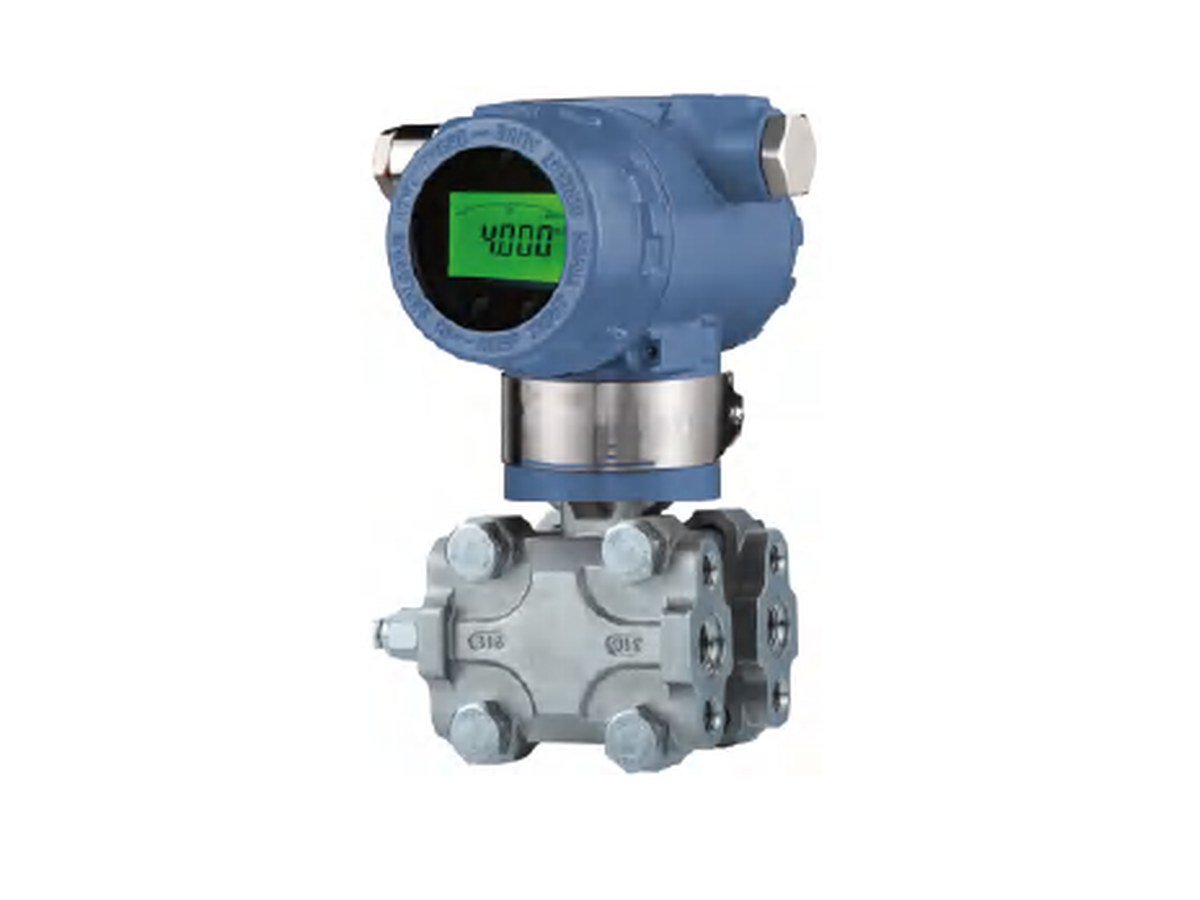

These transmitters measure the pressure difference between two points. Use them to monitor air filters and ducts, orifice-plate flow and the level in closed tanks.
At a glance
- Differential ranges from 100 Pa to 30 MPa; static pressure up to 600 kPa to 30 MPa
- Accuracy 0.1, 0.25 and 0.5 percent FS
- 4-20 mA (HART), 0-10 V or RS485 output

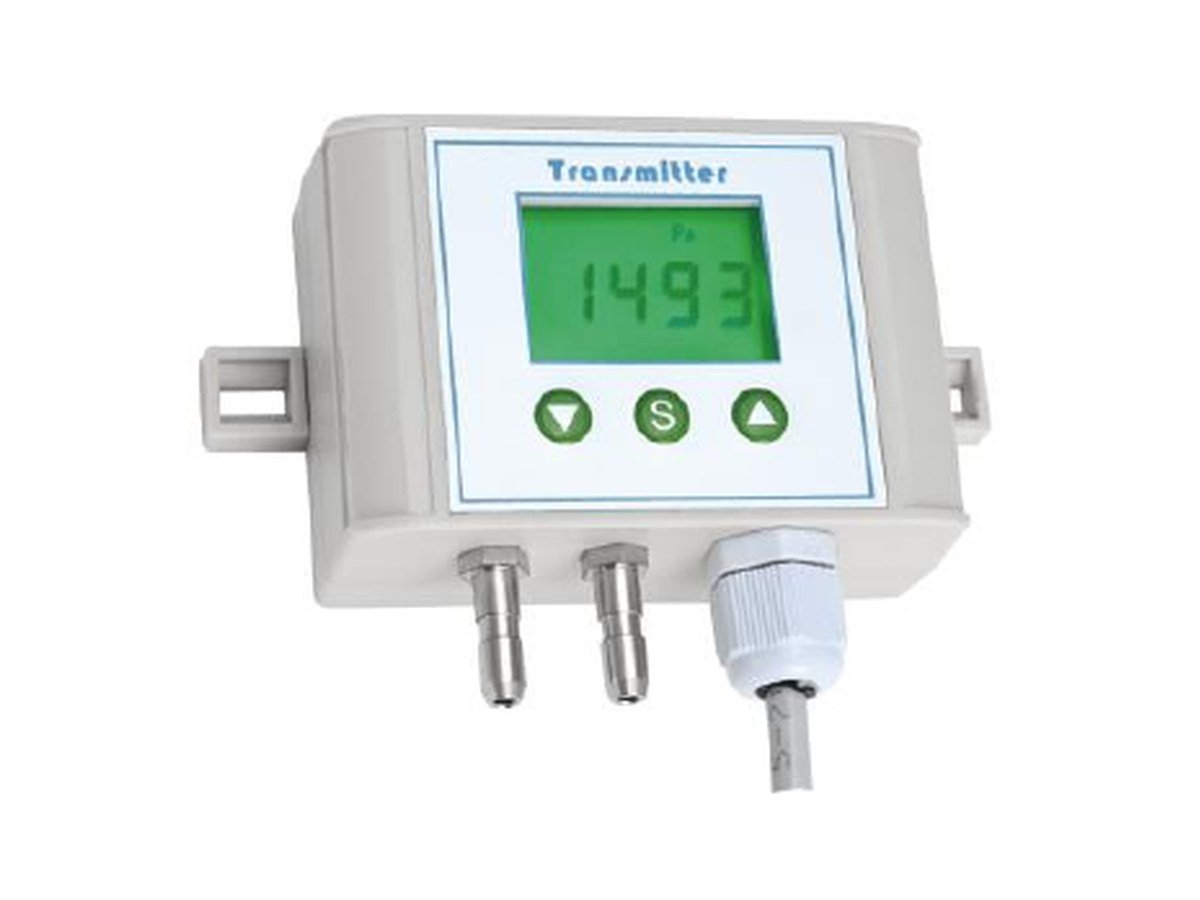

- Wall-mounted air-pressure version with display for HVAC

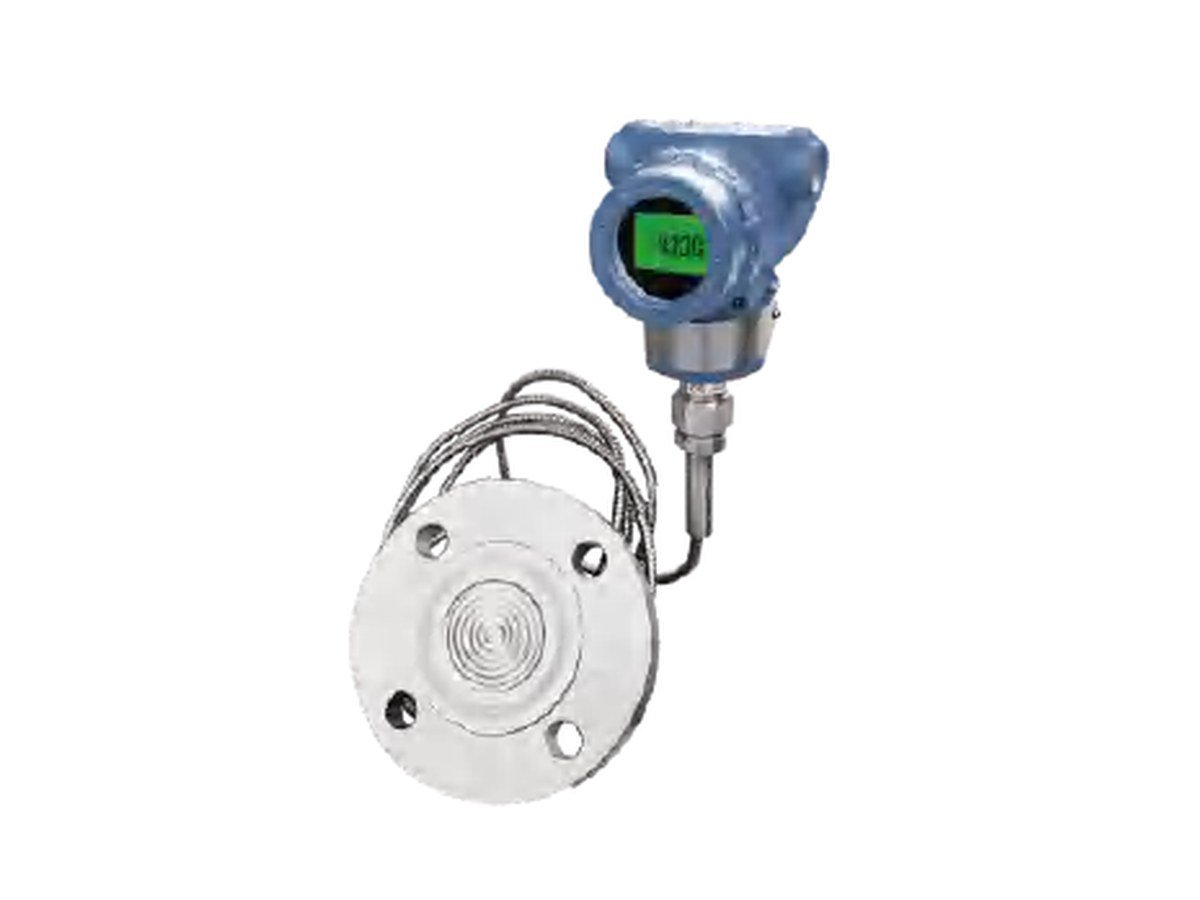

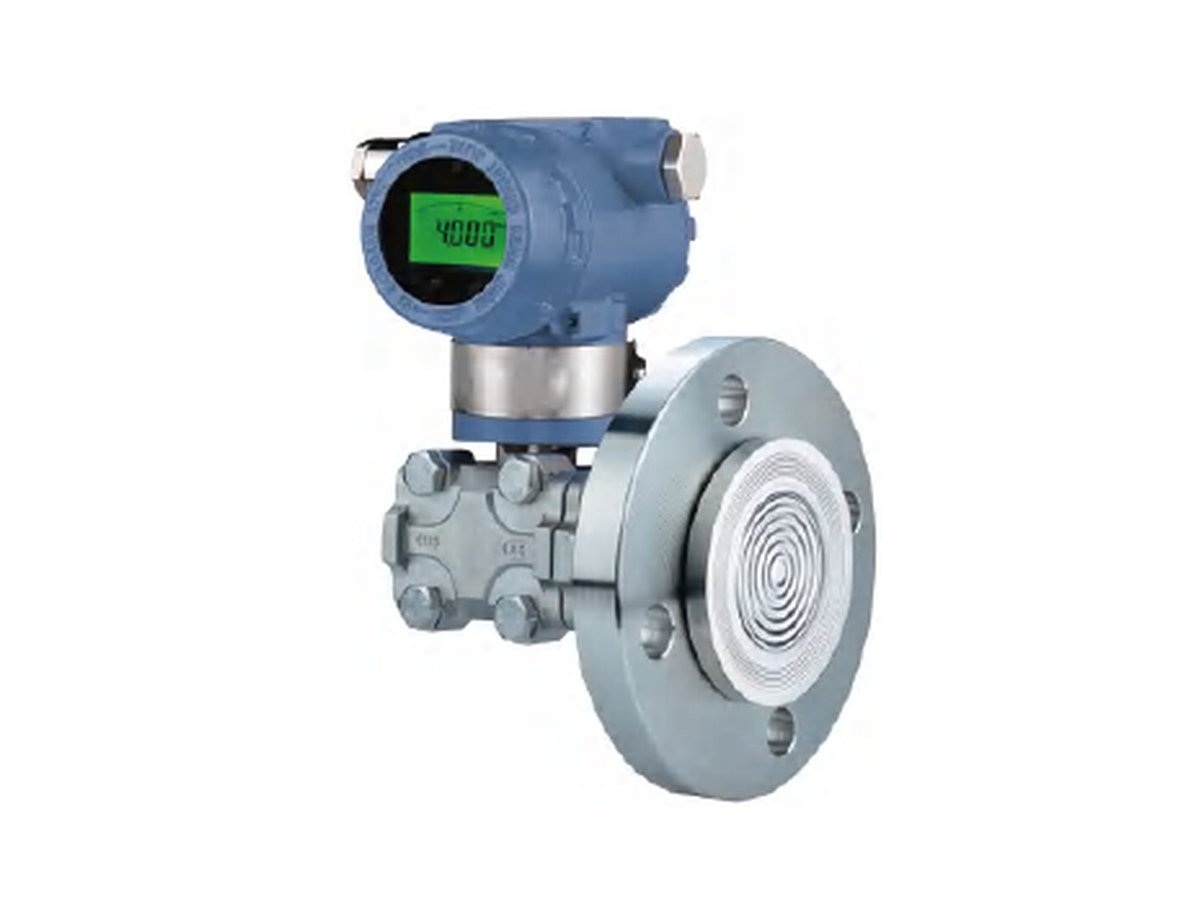

- Single and double flange types for tank level
- Stainless steel 304, 316 or alloy diaphragms
Where it is used in Malaysia
- HVAC duct and clean-room pressure
- Filter and strainer blockage alarms
- Flow measurement with orifice plates
- Closed tank and boiler drum level
- Water treatment and chemical plants
Models in this range
How it works
Two pressure ports feed one sensing diaphragm. The transmitter reports the difference between them, which can be converted to flow, level or filter loading.
Order from AIBS
Ai Business Solutions Sdn Bhd supplies this product in Malaysia and across Asia Pacific. Send us a quote request with the model, the quantity and your application, and we will reply within one working day.
