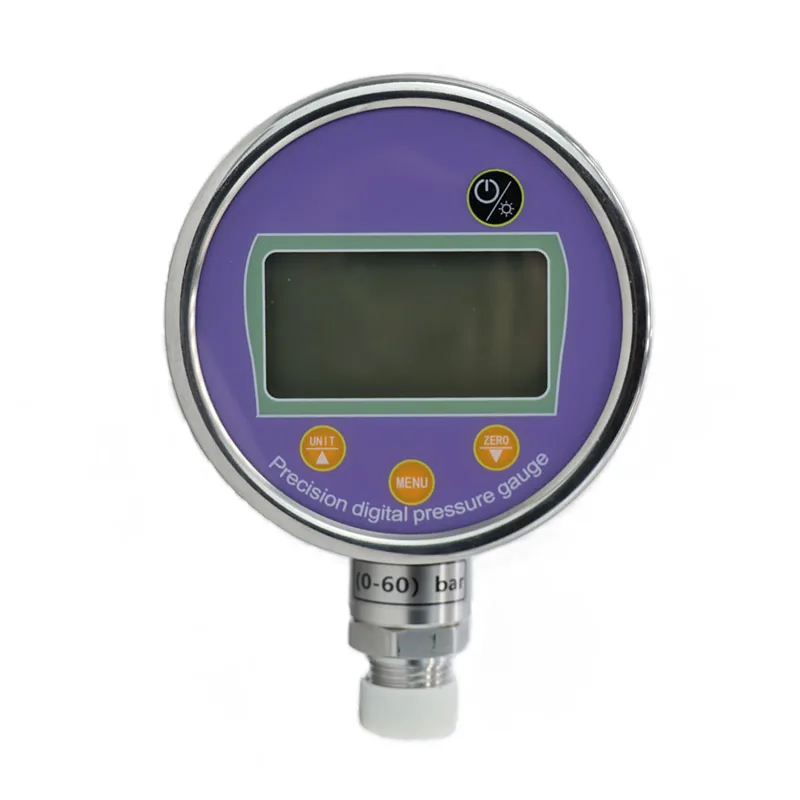

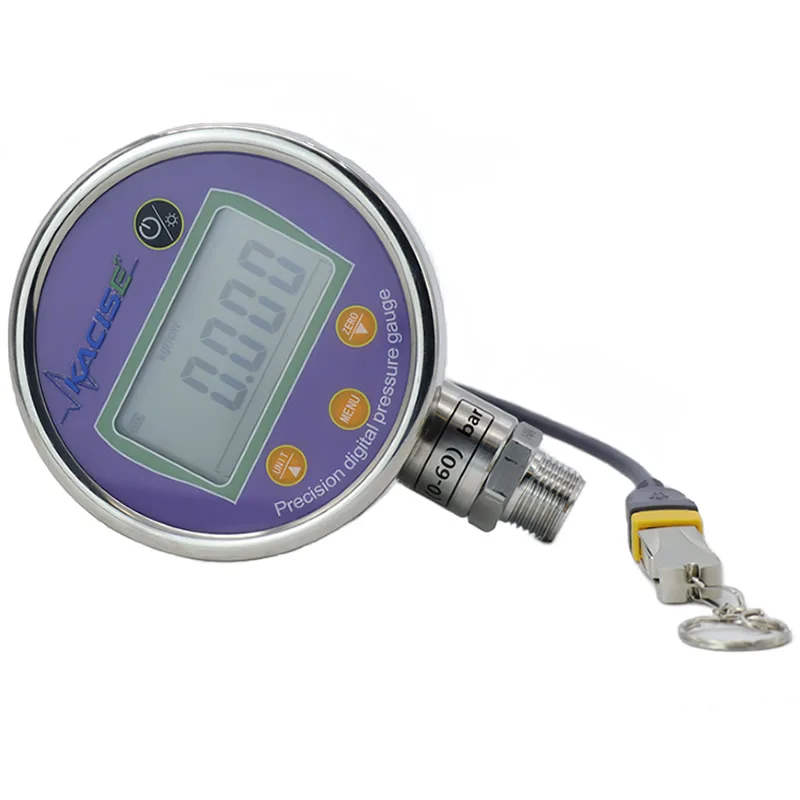

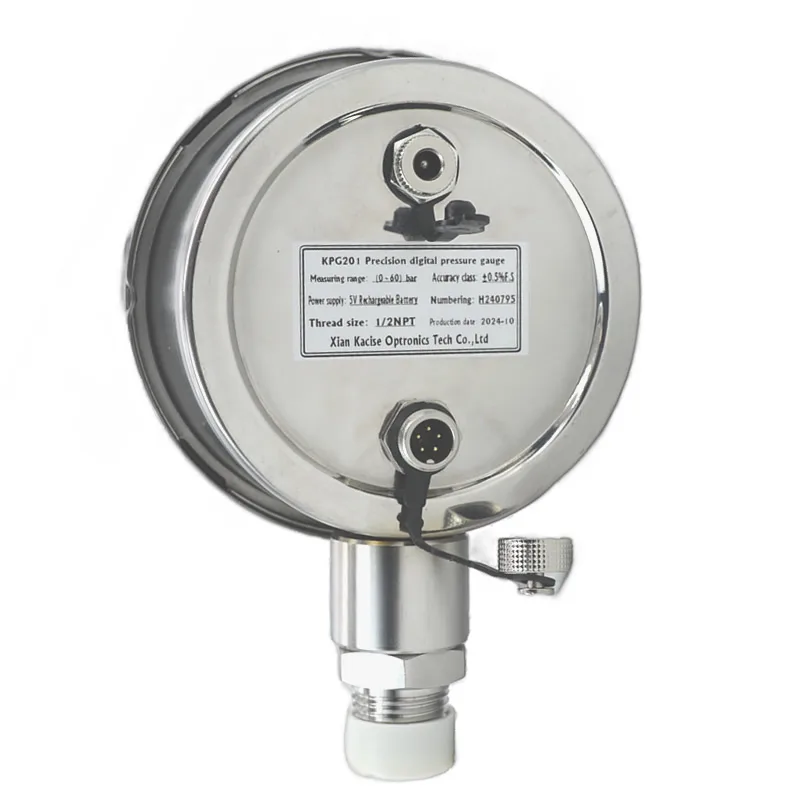

KPG201 Digital Pressure Gauge Logger
Data Logger Pressure Gauge
Description
1. Description
KPG201 precision digital pressure gauge is in accordance with the latest national standards developed and produced high-precision smart pressure measuring instruments. Pressure gauge mainly by the pressure sensor and signal processing circuit. Imported pressure sensor, superior performance, with high precision, corrosion resistance, shock resistance, vibration resistance, low temperature drift, high stability and other advantages; signal processing circuit using the latest ultra-low power processors, signal processing chips and power supply management chip composition. High-capacity high-performance lithium battery-powered, no external power supply. The appearance of the instrument is delicate and compact, easy to use.
2. Features
- Wide temperature compensation, ultra-low power consumption.
- Unit changing, peak valley and other functions fully preserved.
- Multi additional setting and functions available, usercan set by environment and habits.
- IP grade ≧ IP66, higher than the industry level.
3.Display

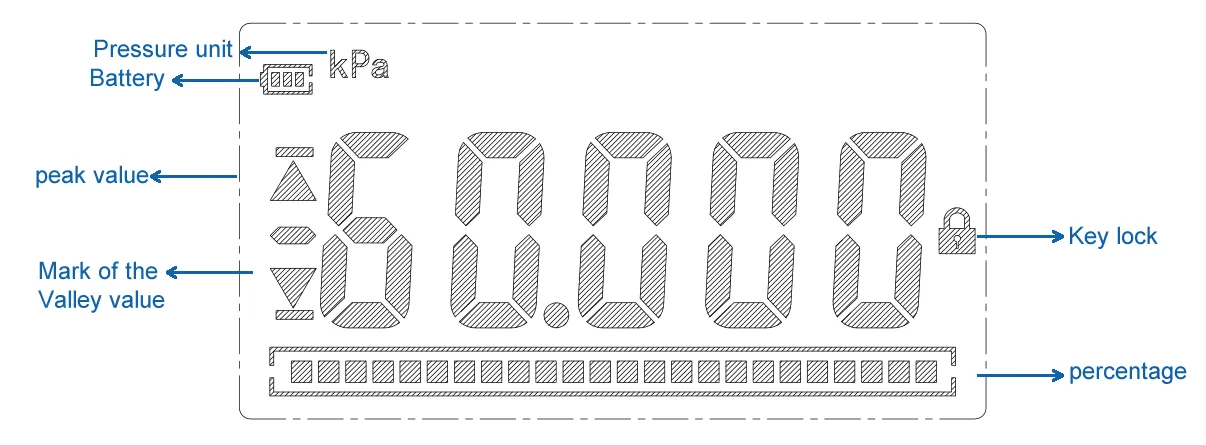

（1）Display declaration
（2）Key function description
The boot notes after the display of three content in turn to enter the pressure value display interface, respectively, shown as follows:
Measuring pressure value of 0 points, measuring pressure value Man; The precision level display format is g-x.xx, such as x.xx=0.05, and the precision level is 0.05%FS.
| Item | Spec. |
|---|---|
| Accuracy | 0.5%, 0.4%, 0.2%, 0.1%, 0.05%, 0.02% |
| Calibration environment | 20 ℃ ± 2 ℃ |
| Data record limit | 50000 |
| Destruction pressure | 200% FS |
| Dimensions | height 170mm, width 110mm, thickness 50mm |
| Display | 5-digit dynamic display + percentage indicator |
| Explosion-proof level | ExiaIICT4 optional |
| Humidity | ≤ 85% RH |
| IP Grade | IP66 |
| Overload pressure | 150% FS |
| Power supply | 3.6V rechargeable lithium battery |
| Pressure range | -100kpa~250pa~5kpa~250Mpa |
| Pressure unit | Pa, kPa, MPa, psi, bar, mbar, mmH2O, mmHg, inH2O, inHg, kgf/cm2 |
| Process connection | M20 × 1.5 (male), special thread customizable |
| Temperature | -20 ℃ ~ 60 ℃ |
