This range lets pool robots see walls and obstacles and lets underwater robots talk to each other without cables. The sensors are sealed for working underwater.
At a glance
A23: small 4 cm blind zone, 2-direction measuring for pool surface robots
L08: underwater ranging sensor with 8 m working depth, IP68
C01: underwater acoustic communication, 360 degree, up to 20 m, positioning accuracy about 3 cm
Remote upgrade and baud rate setting on L08
Typical Applications
Pool cleaning robots for homes, hotels and condominiums
Aquaculture and fish farm inspection
Underwater drones and survey vehicles
Ship hull and harbour inspection
Research and training on underwater robotics
See it in use
How it works

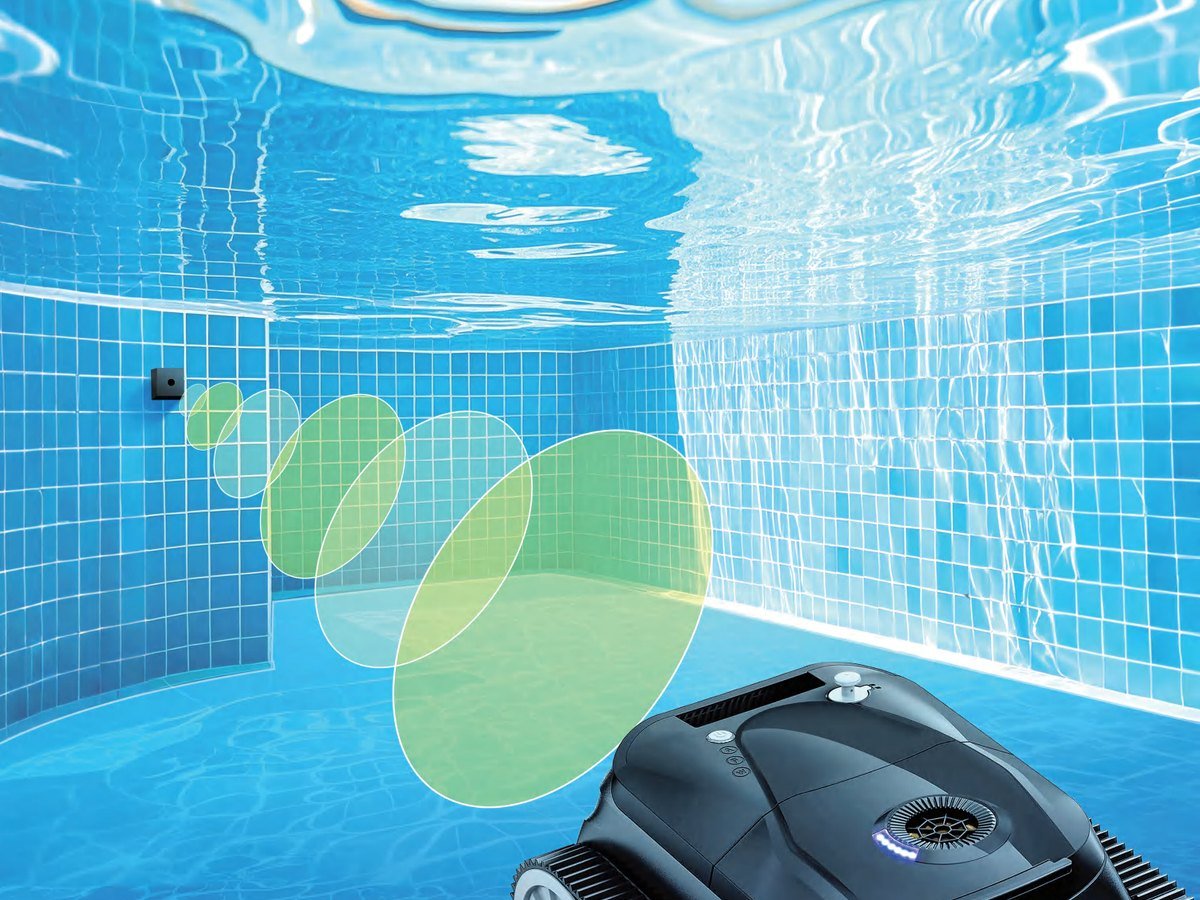

The robot uses the ranging sensor to measure distance to pool walls and objects under water. The acoustic module sends short messages through water and also tells distance and direction between two units.
Ai Business Solutions Sdn Bhd supplies this product in Malaysia and across Asia Pacific. Send us a quote request with the model, the quantity and your application, and we will reply within one working day.

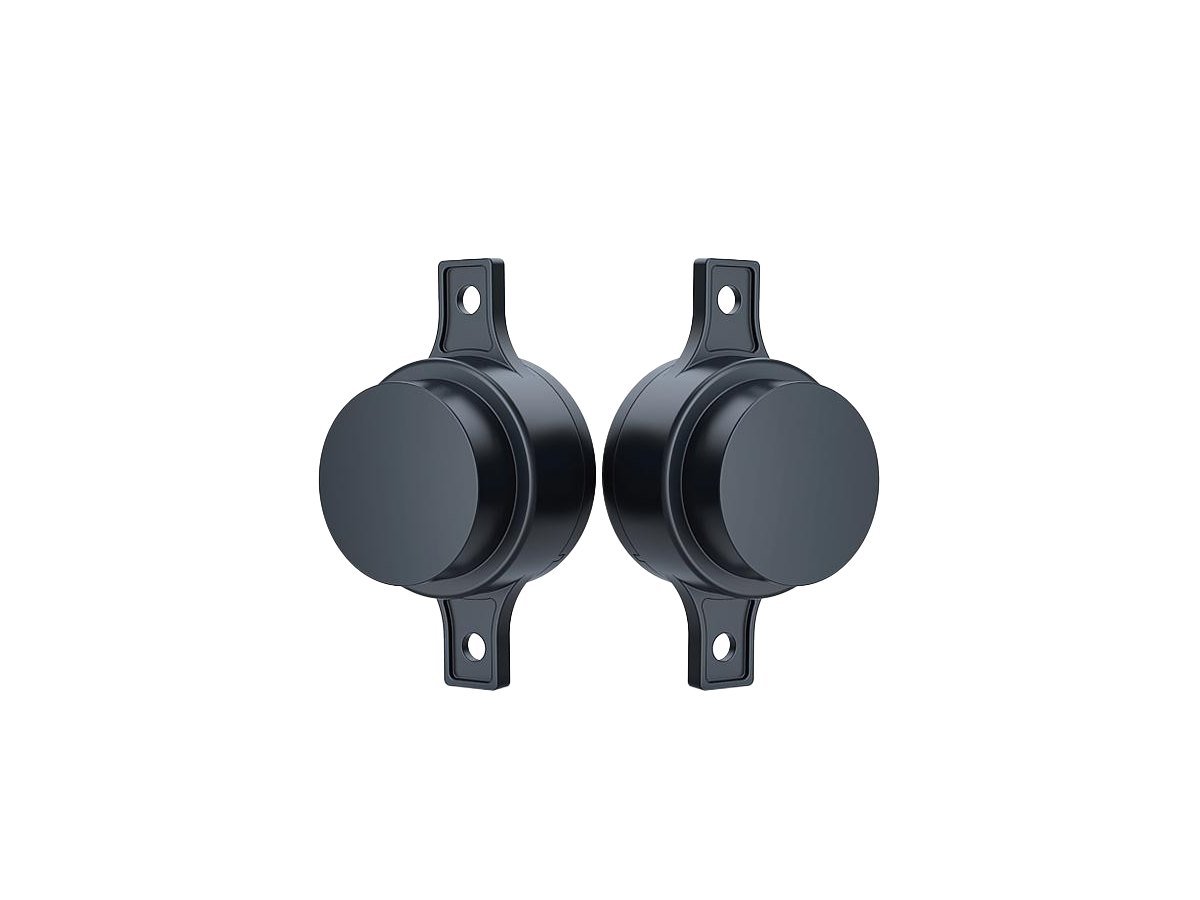

Models
A23, L08, C01
A23
5 V DC, range 4 to 200 cm, angle 40 degrees, accuracy 10 mm + 0.3% of distance, probe IP67
L08
5 V DC, range 5 to 800 cm, angle 15 x 15, accuracy 10 mm + 1% of distance, IP68
C01
5 V DC, communication distance 1 to 2000 cm, up to 18 bytes, 360 degrees, positioning accuracy 3 cm + 1%, IP68 (pressure resistant to 5 m for 168 hours)
Ask about Underwater Ultrasonic Sensors for Pool Robots and Underwater Robots (IP68)
Questions about specifications, stock, lead time or compatibility? We reply within one working day. Prices are confirmed with our suppliers, normally in 3–5 working days.
Need a different model, size or accessory? Add it to your quotation as an item not listed on our website.
