Bubble Detection Sensor and Laser Distance Sensor for Pipes, Infusion Pumps and Robots
Availability
Available on request
Two special sensors: an ultrasonic bubble sensor that detects 10 uL bubbles in tubes, and a laser distance sensor with 2 to 400 cm range and fast response.
These two small sensors cover jobs that normal ultrasonic sensors cannot. The bubble sensor clips onto a tube to detect air bubbles or an empty line. The laser sensor gives fast, narrow-beam distance readings.
At a glance

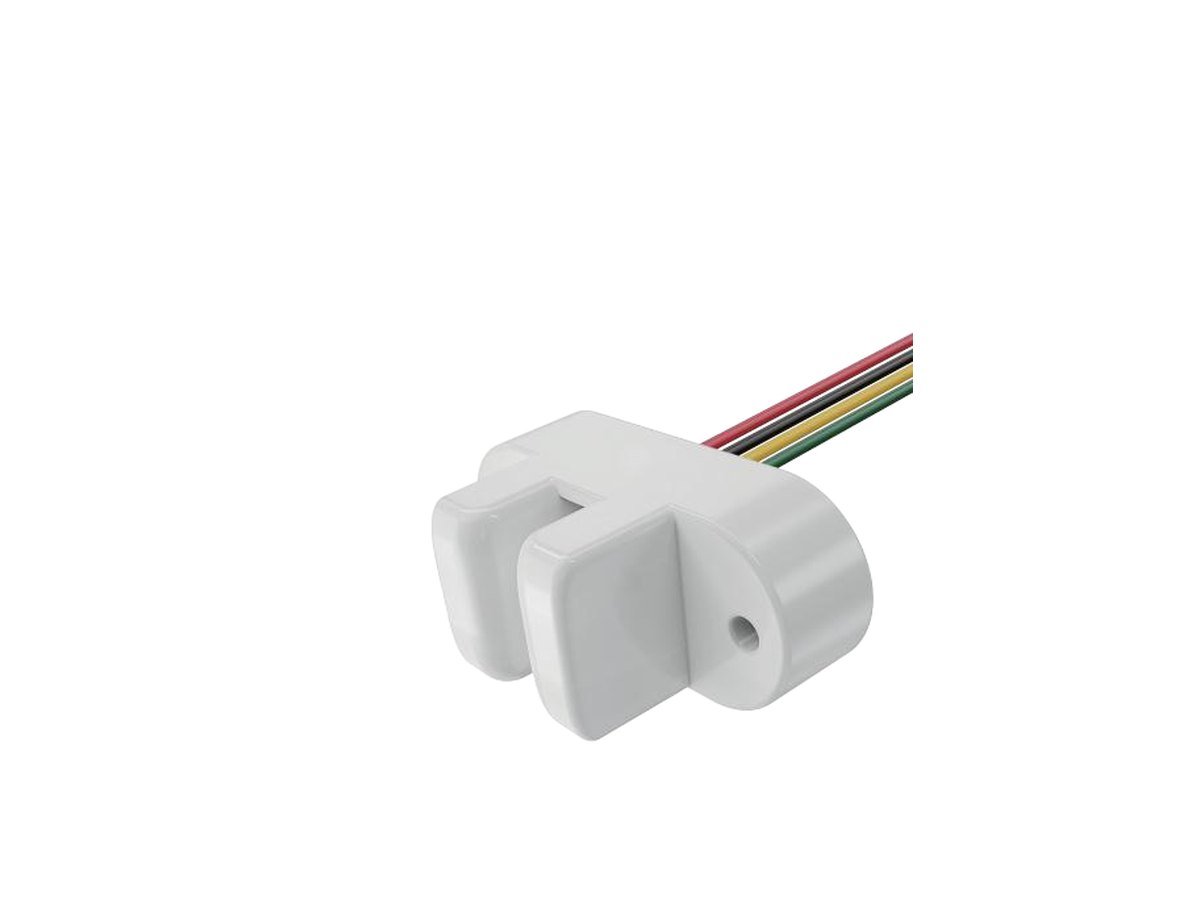

L01 bubble sensor: detects bubbles as small as 10 uL, response from 0.2 ms, works with 3.5 to 4.5 mm tubes
Not affected by liquid colour or tube material; other tube sizes on request

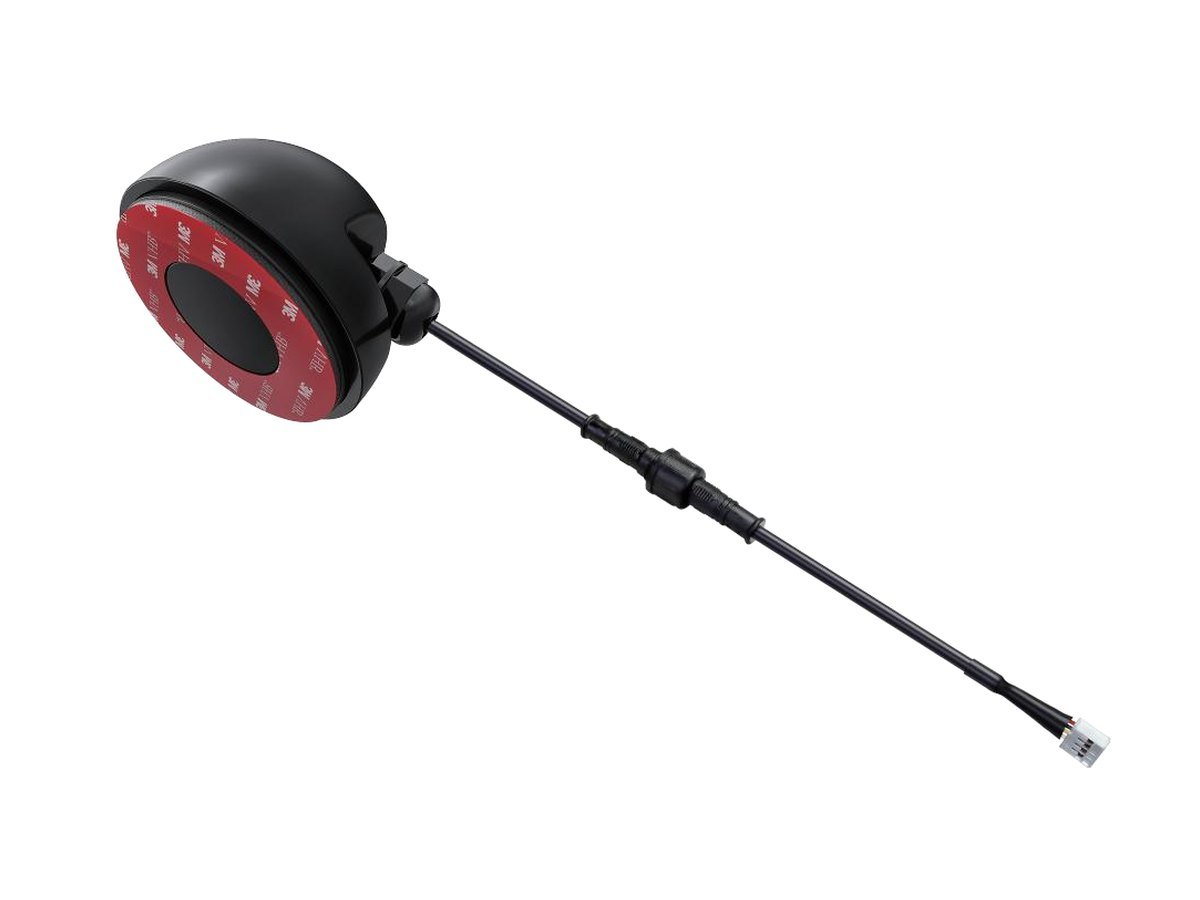

R01 laser sensor: range 2 to 400 cm, 3.3 to 5 V DC, IP67
R01 supports fast focusing and address and baud rate changes
Typical Applications
Infusion pumps and medical devices
Pipeline empty and liquid-presence alarms
Dosing and chemical lines
High-speed focusing and camera modules
Robots and production lines needing a narrow-beam distance sensor
See it in use
How it works
The L01 sensor sends ultrasound across the tube wall and checks if liquid or air is passing. The R01 sends a laser beam to the target and reads the reflection to calculate distance.
Order from AIBS
Ai Business Solutions Sdn Bhd supplies this product in Malaysia and across Asia Pacific. Send us a quote request with the model, the quantity and your application, and we will reply within one working day.
Models
L01, R01
L01
3.3 to 24 V DC, tube 3.5 to 4.5 mm, response 0.2 to 100 ms (default 0.2 ms), minimum bubble 10 uL, IP67
R01
3.3 to 5 V DC, range 2 to 400 cm, angle 19 x 19, accuracy 10 mm up to 25 cm and 4% of distance beyond, IP67
