The TG453 and TG463 are fast 5G gateways for sites with many network and serial devices. The TG463 adds analogue, digital and relay I/O and optional PoE.
At a glance
- 5G NR, 5G RedCap or 4G LTE CAT 4 to choose, dual SIM or dual module

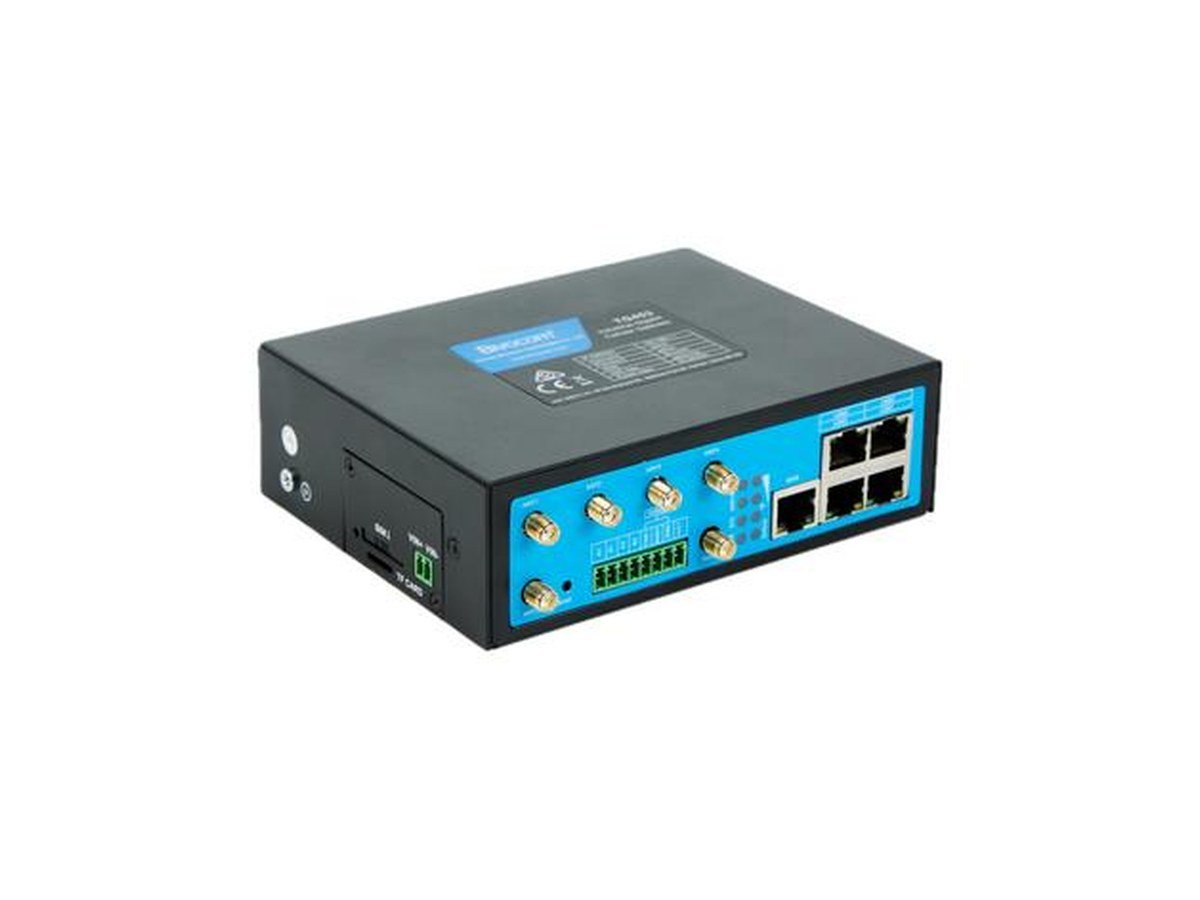

- TG453: 5 Gigabit Ethernet, 2 RS485, 1 RS232 debug, 1 power output, 2.4 GHz Wi-Fi

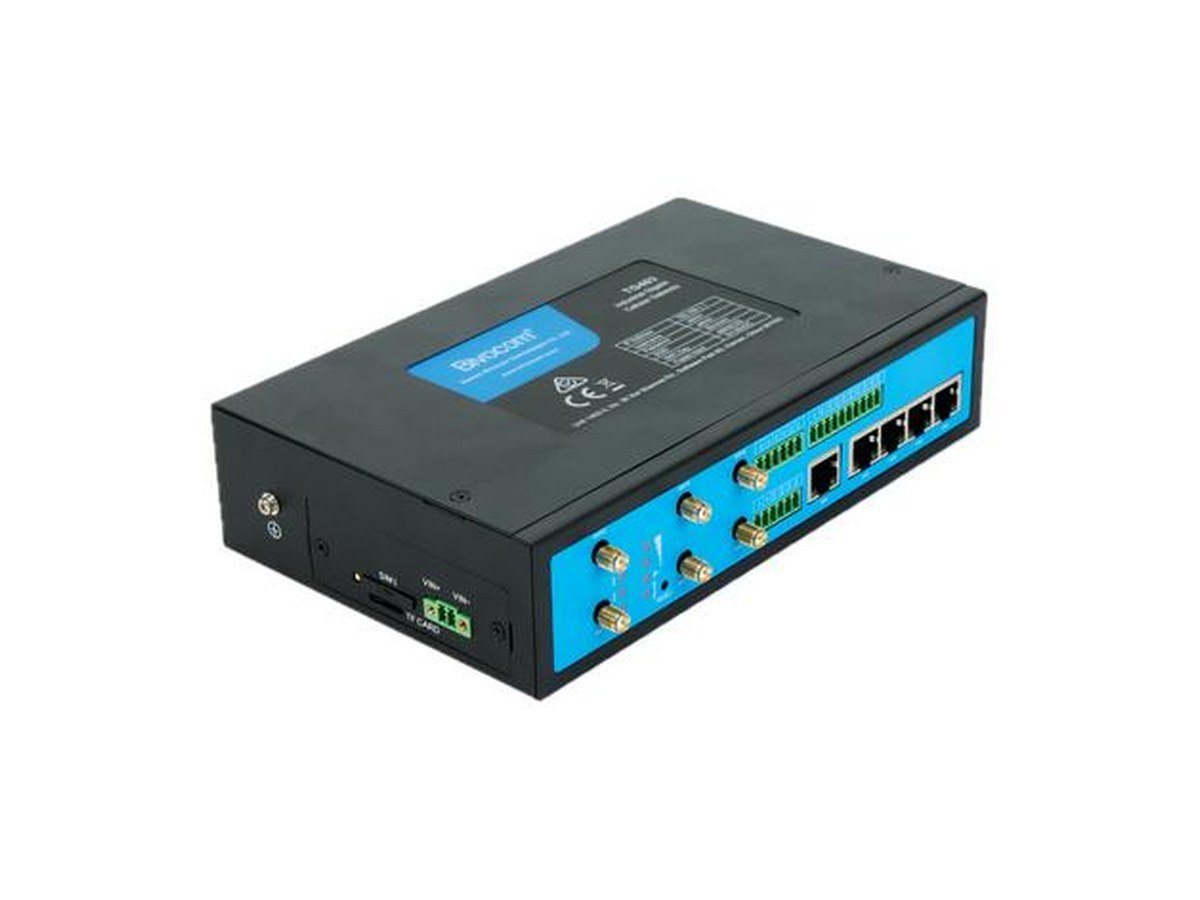

- TG463: 5 Gigabit Ethernet, 1 RS232, 1 RS485, 2 DI, 3 analogue, 3 relays, 3 power outputs, Wi-Fi 2.4/5.8 GHz and PoE (options)
- Up to 32 GB local storage and backup on a Micro SD card
- Built-in OS; Python, C/C++ and Node-RED (option); Modbus RTU/TCP and MQTT
Typical Applications
- Factories, warehouses and campuses on 5G
- Camera and access control networks
- Energy and utility sites needing fast uplinks
- Smart buildings and building automation
- Edge data collection with local storage
See it in use
How it works
The gateway links your Ethernet and serial devices to the 5G or 4G network, stores data on its card if the link drops, and runs your own program on the gateway if you need local logic.
Order from AIBS
Ai Business Solutions Sdn Bhd supplies this product in Malaysia. Send us a quote request with the model, the quantity, the network (4G, 5G or LoRa) and the devices you want to connect, and we will reply within one working day.
