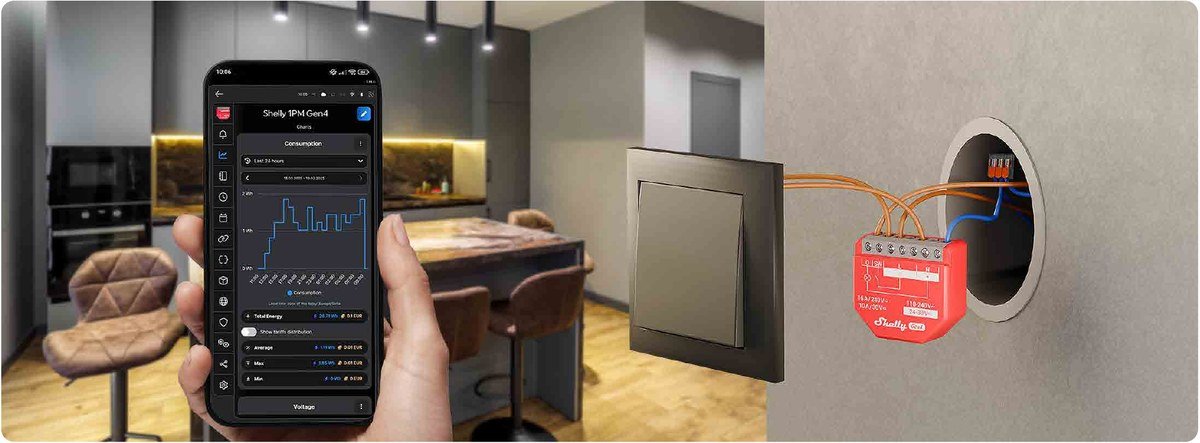

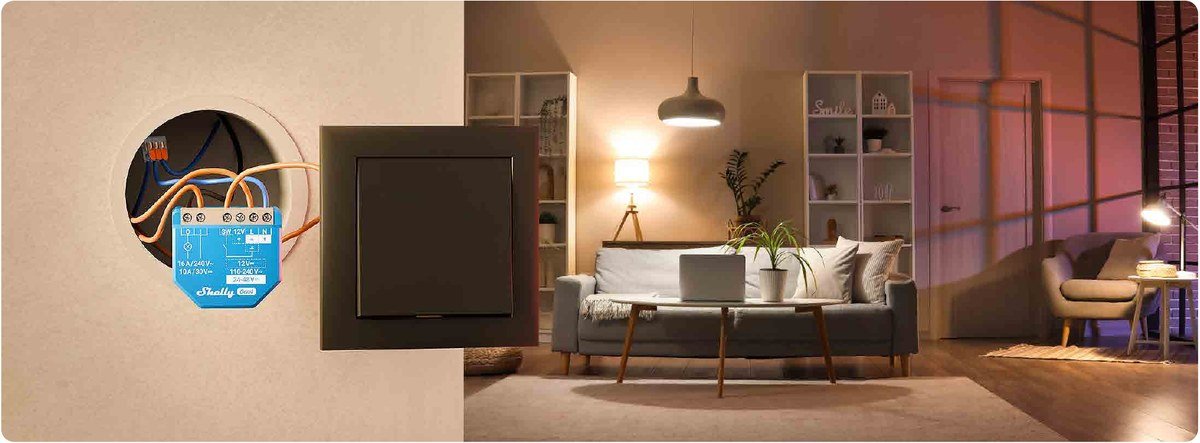

A relay hides behind your existing switch and makes the light or appliance smart, with no rewiring of the wall. Use the app, a schedule or an automation. The metering versions also show power use.
At a glance

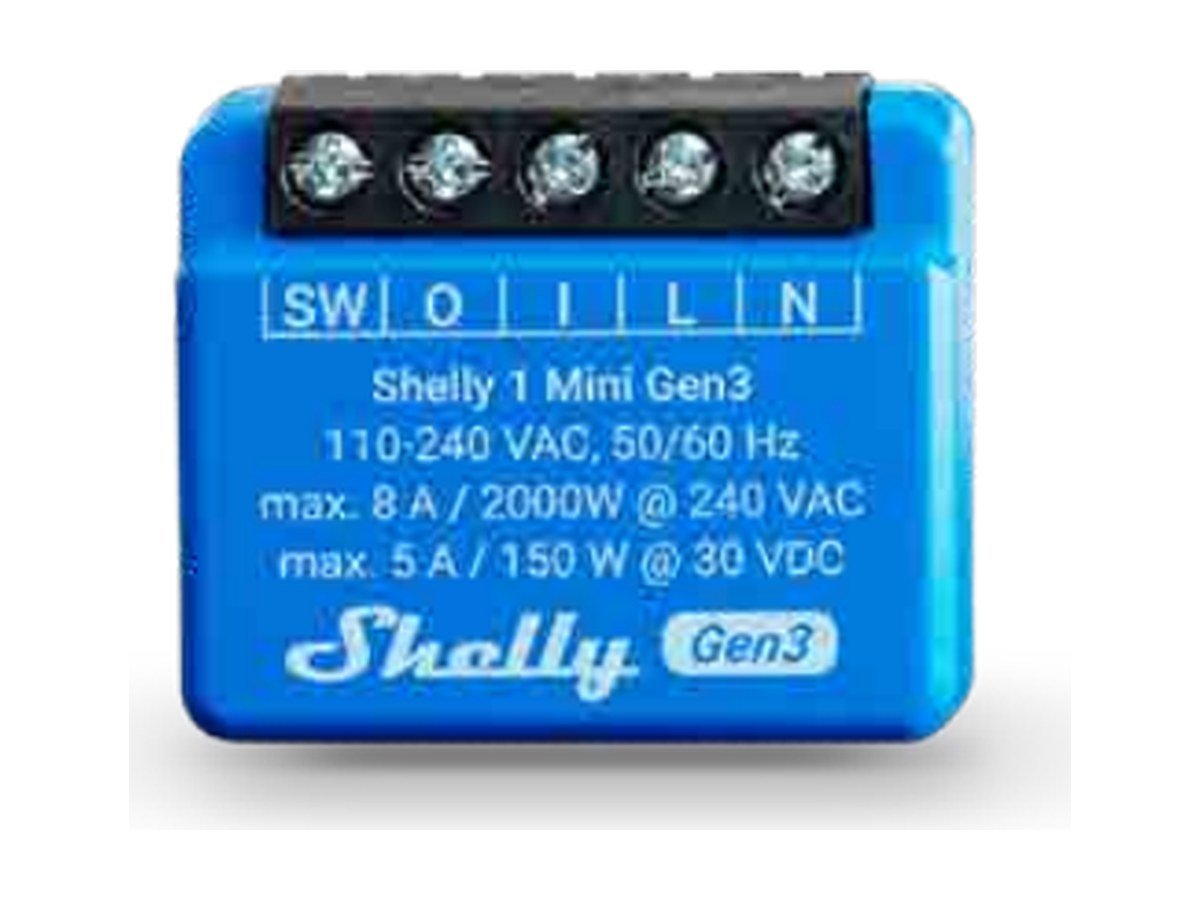

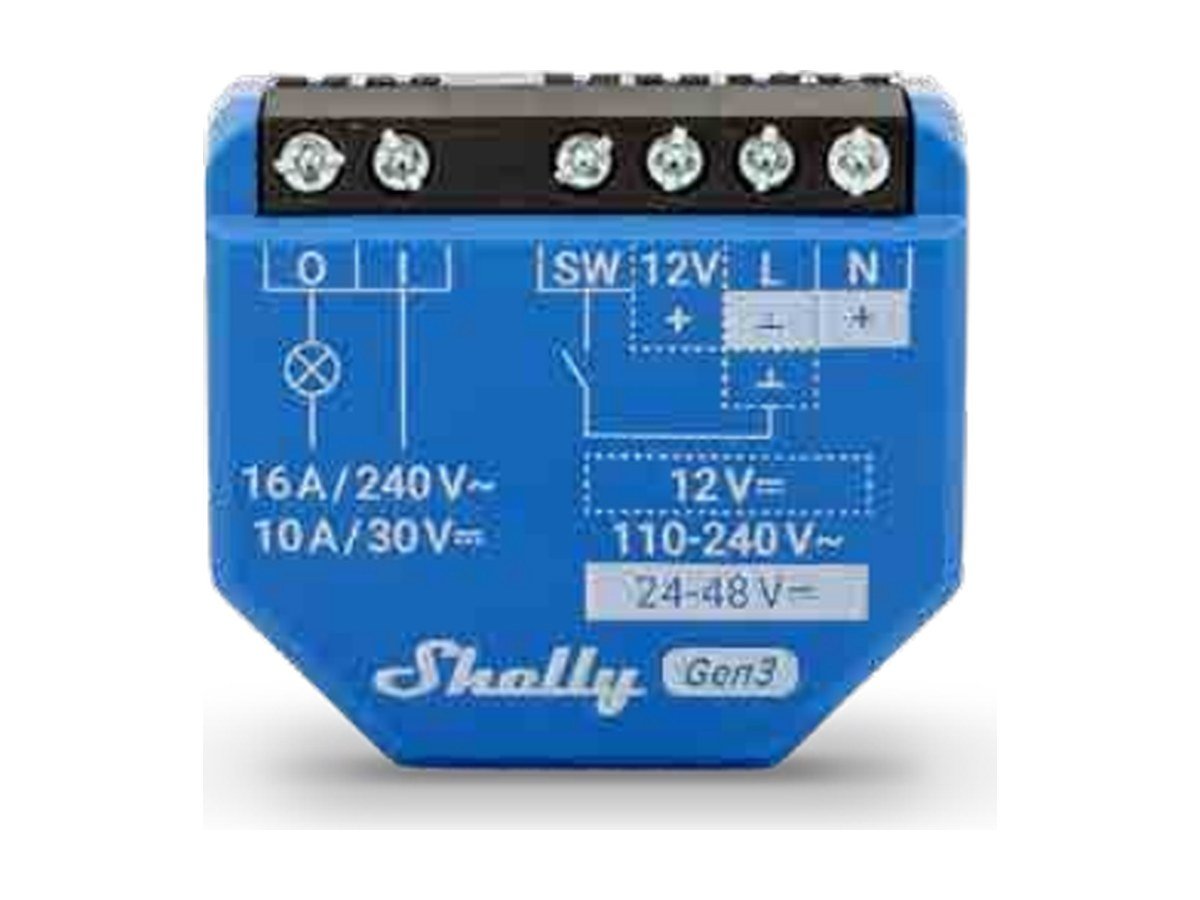

- Fits in a wall box; standard size 37 x 42 x 16 mm, mini 29 x 34 x 16 mm
- Switches up to 16 A at 240 V AC (8 A on mini versions)

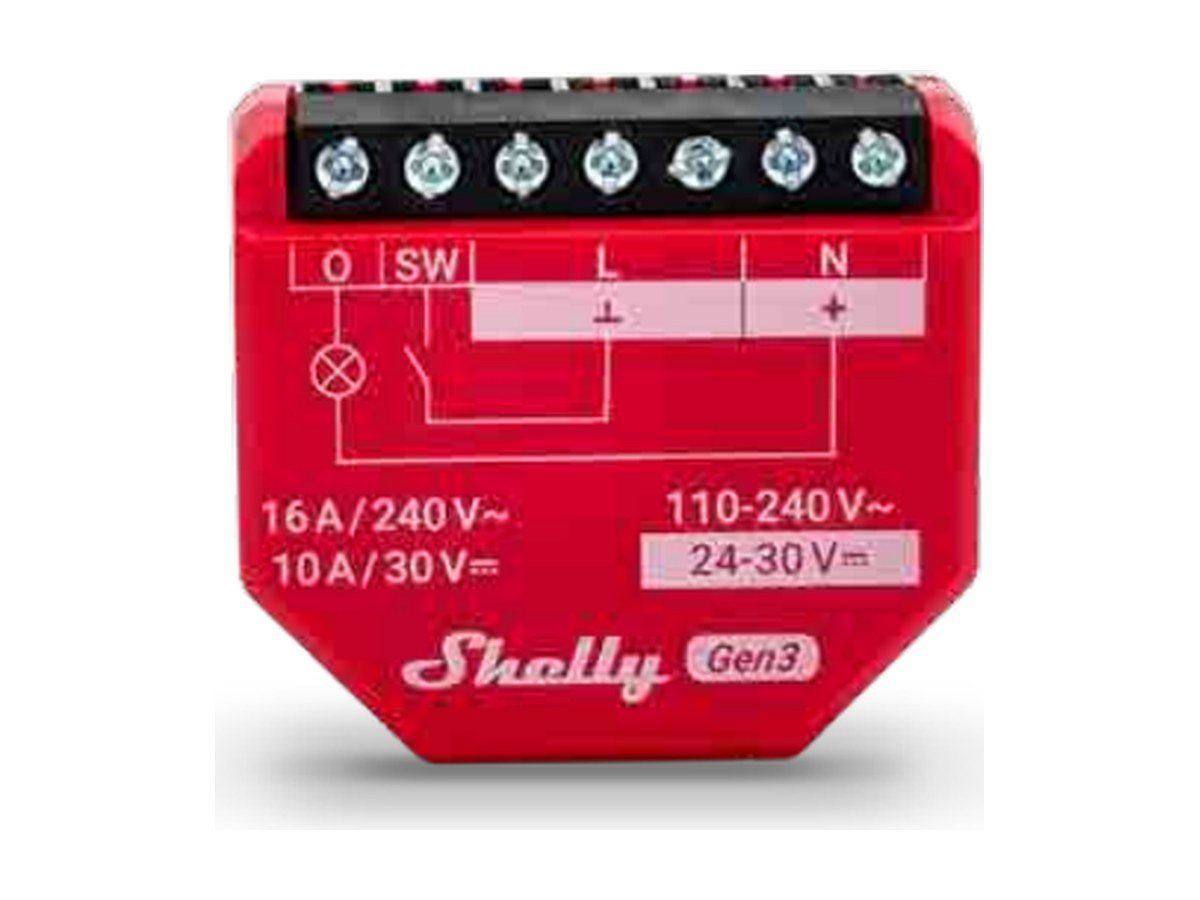

- Dry contact or power metering versions

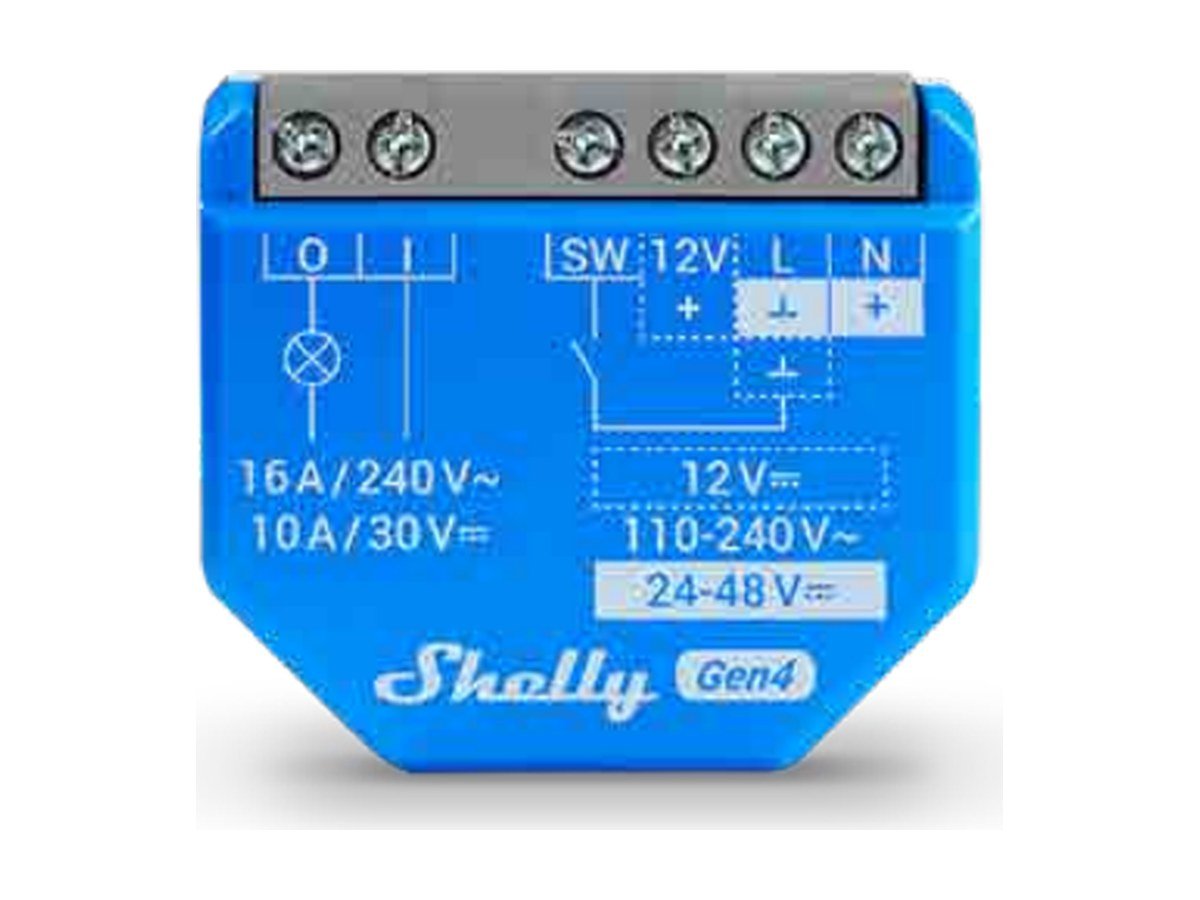

- Wi-Fi 4 or Wi-Fi 6 with Bluetooth; Zigbee on newer models; Z-Wave versions

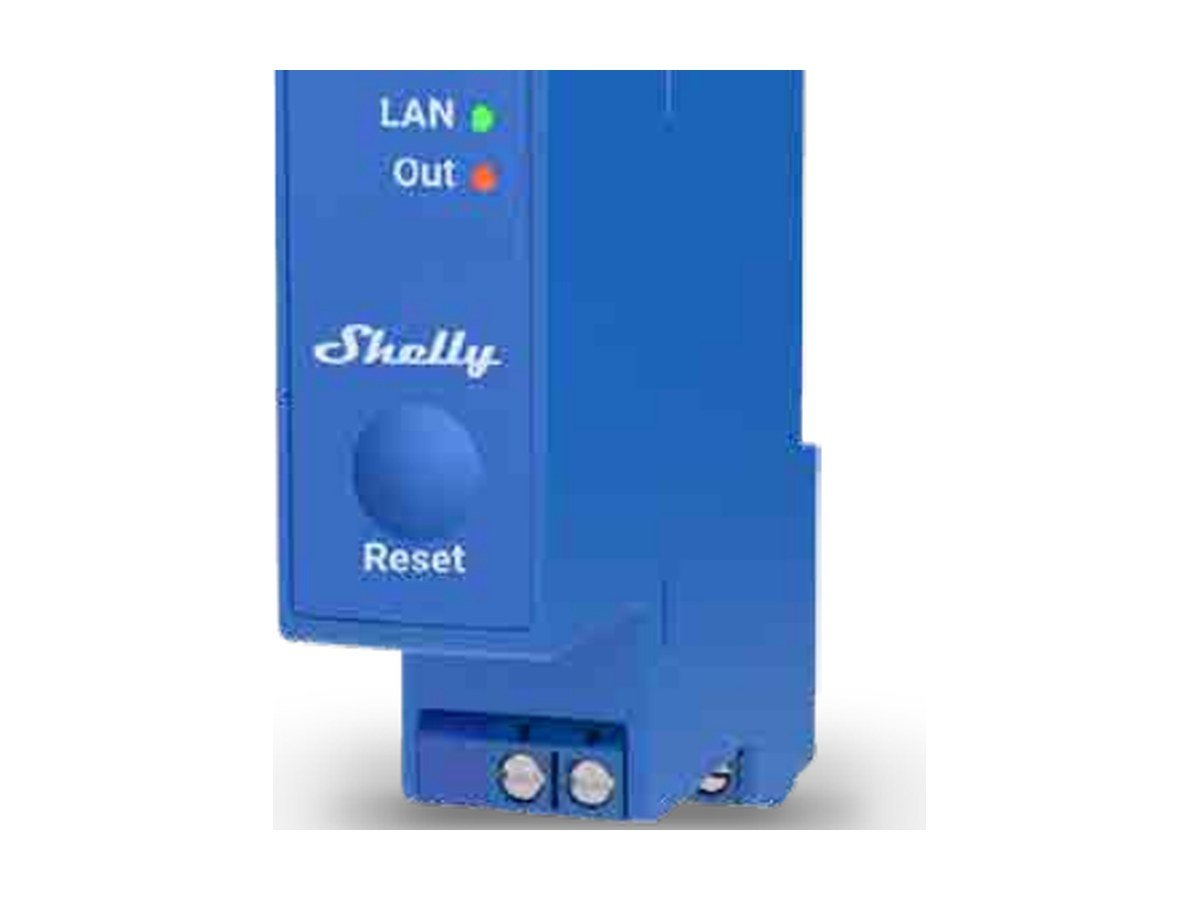

- PRO versions on DIN rail with LAN, up to 16 A
- Local control and cloud control; works with major smart home platforms
- Retrofit; no hub needed for Wi-Fi models
Where it is used in Malaysia
- Lighting and fans in homes, offices and hotels
- Water heaters, pumps and gate openers
- Shop and office equipment scheduling
- Energy saving and appliance monitoring
- Retrofitting existing wall switches
Models and installations
How it works
The relay connects in series with the load. It switches power on command from the app, a schedule or a sensor, and reports status back. Metering models also report watts and kWh.
Order from AIBS
Ai Business Solutions Sdn Bhd supplies this product in Malaysia and across Asia Pacific. Send us a quote request with the model, the quantity and your application, and we will reply within one working day.
