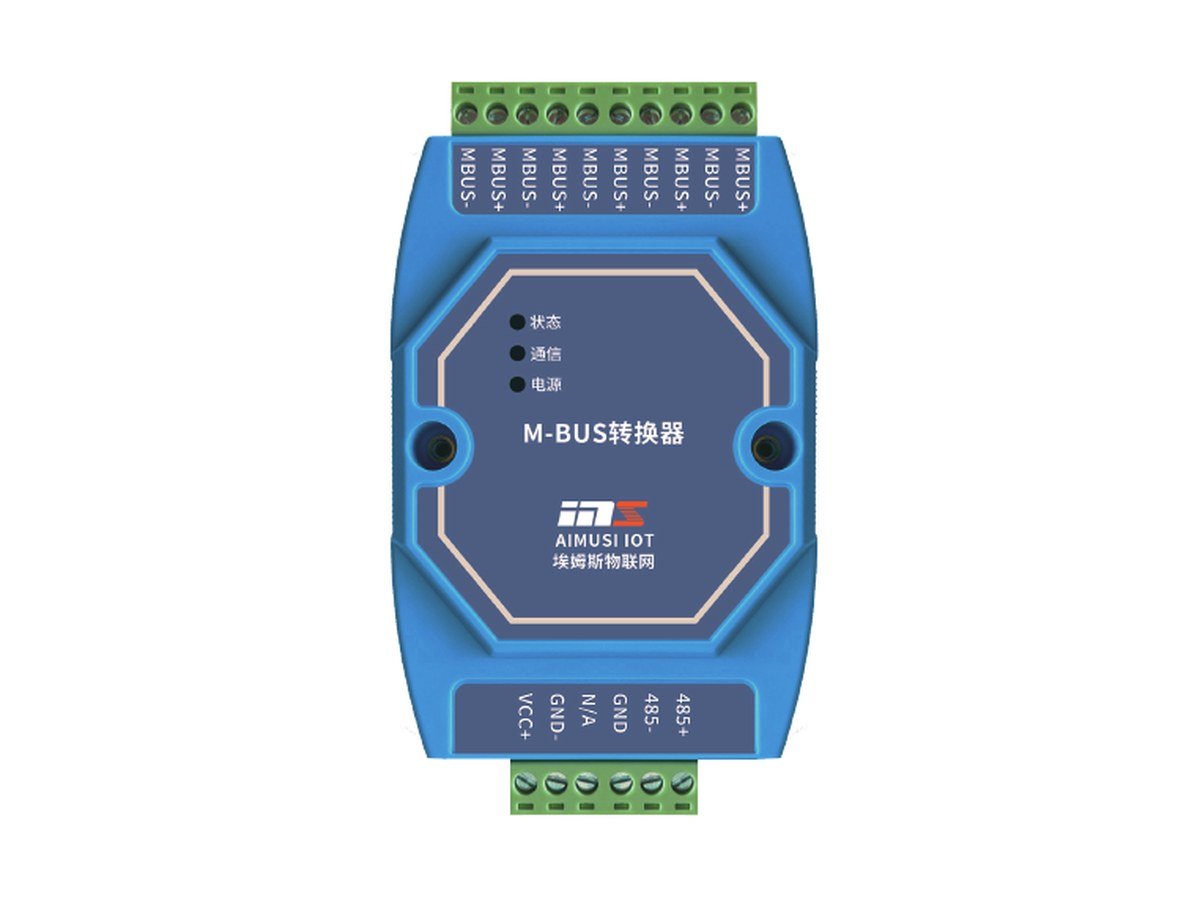

M-Bus Master Converters (M-Bus to RS485 or RS232, 500 Loads, EN 1434)
Availability
Available on request
M-Bus master converters that connect water, heat and energy meters to RS485 or RS232 systems. Up to 500 loads, EN 1434 and CJ/T 188 compliant, 12 to 24 V.
Many heat and water meters speak M-Bus. This converter lets any computer or controller with an RS485 or RS232 port read them.
At a glance
M-Bus master; up to 500 loads
RS485 or RS232 version
Complies with EN 1434 and CJ/T 188
Baud rates 300 to 9600 bps, adaptive
DC 12 to 24 V; DIN-rail mounting
Working temperature -25 to 75 degrees C
Where it is used in Malaysia
Heat and cooling energy meter reading
Water and gas metering
Apartment and building sub-metering
District cooling plants
Models in this range
How it works
The converter powers the M-Bus line and translates meter replies into serial data your controller can read.
Order from AIBS
Ai Business Solutions Sdn Bhd supplies this product in Malaysia and across Asia Pacific. Send us a quote request with the model, the quantity and your application, and we will reply within one working day.
M-Bus
master, 500 loads
Serial
RS485 x 1 or RS232 x 1
Power
DC 12-24 V
Baud rate
300-9600 bps
Size
103 x 72 x 27 mm
Operating temperature
-25 to 75 C
