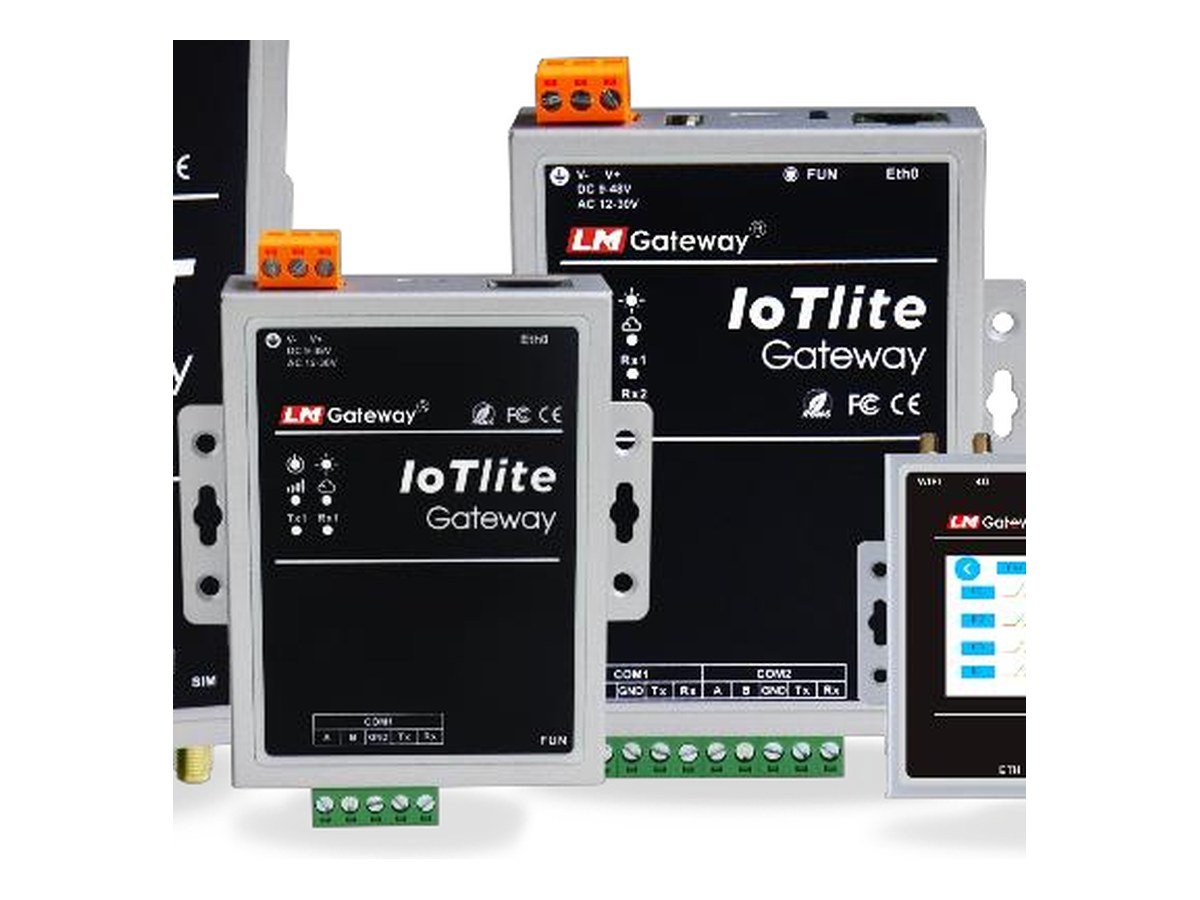

The IoTlite series is a mid-range gateway for sites with more devices. Choose a plain RS485 gateway, a version with built-in 4G, a model with analogue and digital I/O, a touchscreen model, or an M-Bus model for meter reading.
At a glance
- Up to 1,024 data points
- 1 LAN with 1 or 2 RS485 ports; 4 analogue in, 4 digital in and 2 digital out on I/O models
- Optional built-in Wi-Fi or built-in 4G
- 3610 model with a 2.4 inch touchscreen
- 331 model with 2 LAN, 2 RS485 and 1 M-Bus, up to 128 slave devices
- MQTT, HTTP, HTTPS, REST API, OPC UA and database output
Where it is used in Malaysia
- Factories collecting data from PLCs, meters and drives
- Building energy, water and gas metering (M-Bus model)
- Solar plants, pump stations and water treatment skids
- Switchrooms and plant rooms that need a few local inputs and outputs
- University teaching labs and industrial IoT demonstrations
Devices and protocols it can talk to
The gateway family ships with ready-made drivers, so most meters, PLCs and controllers connect without custom programming:
- Modbus RTU, ASCII, TCP, RTU over TCP, and Modbus RTU master or server
- BACnet/IP, BACnet MS/TP and BACnet routing, plus OPC UA, OPC DA and OPC XML DA
- Energy meters and water, gas and heat meters (DL/T 645 and CJ188)
- PLCs from Mitsubishi, Siemens, Omron, Allen-Bradley, Keyence, Fuji, Yokogawa and others, including EtherNet/IP
- Power systems (IEC 104, IEC 61850) and CNC machines (Fanuc, Siemens, Syntec and others)
- Building systems: KNX IP, C-BUS, Daikin and other HVAC, lifts, motors and curtain control
- Water and environment monitoring (HJ/T 212, SL651)
- Cloud and IT: MQTT, HTTP, HTTPS, REST API, and SQL Server, MySQL and Access databases
How it works
The gateway reads data from your meters, PLCs and controllers over RS485 or Ethernet, converts the different protocols into one common format, and sends the data to your SCADA, cloud or business system. If the network drops, it stores the data locally and uploads it automatically when the connection returns. Settings are done from a web page, and JavaScript logic on the gateway can calculate, convert or filter values before they are sent.
Order from AIBS
Ai Business Solutions Sdn Bhd supplies this product in Malaysia. Send us a quote request with the model you need, the quantity and the devices you want to connect, and we will reply within one working day.
