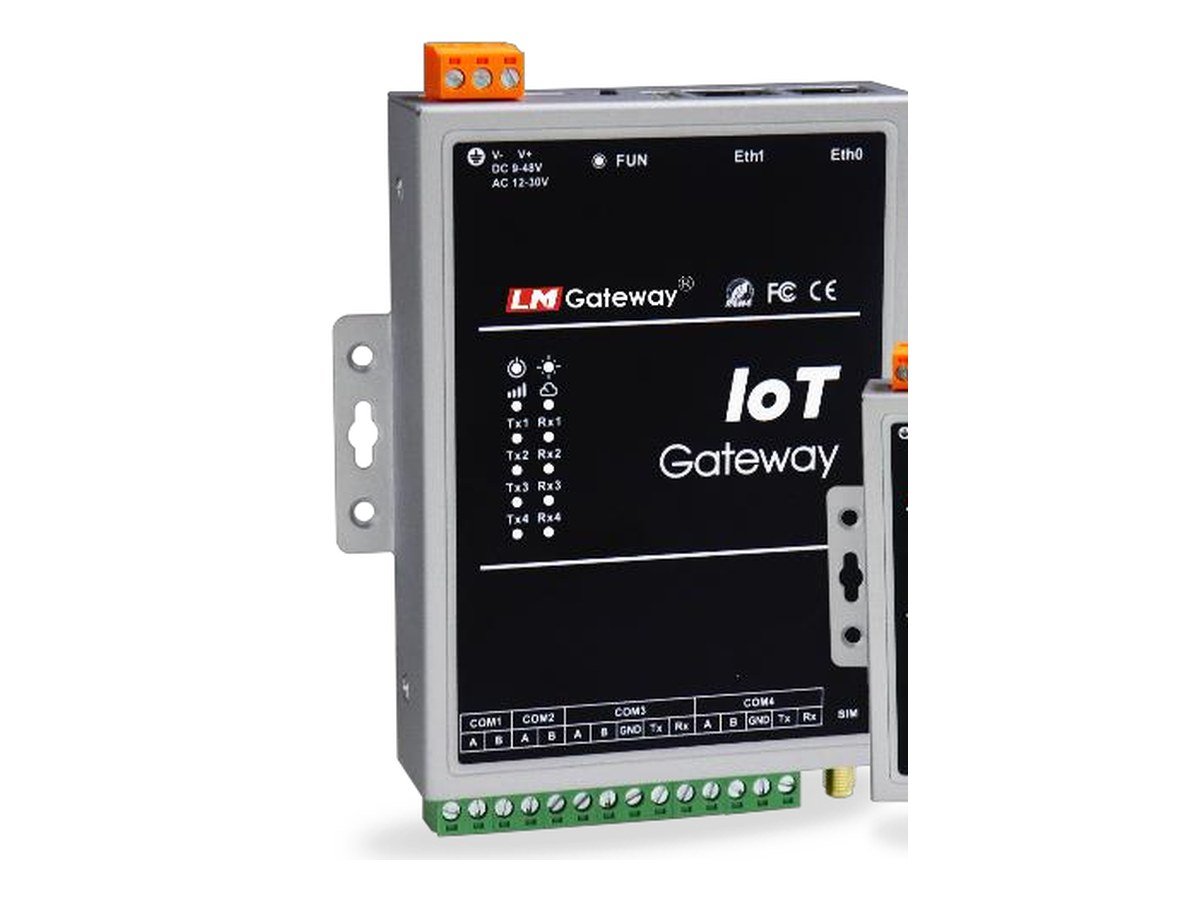

The IoT gateway series is built for larger plants and multi-building sites. It reads many devices over 4 RS485 ports and 2 network ports, and its built-in WebSCADA lets you build live screens in a web browser with no extra software.
At a glance
- 2 LAN and 4 RS485 on every model
- From 1,024 up to 10,000 data points
- Built-in 4G models, a 5G model (503), and Wi-Fi options

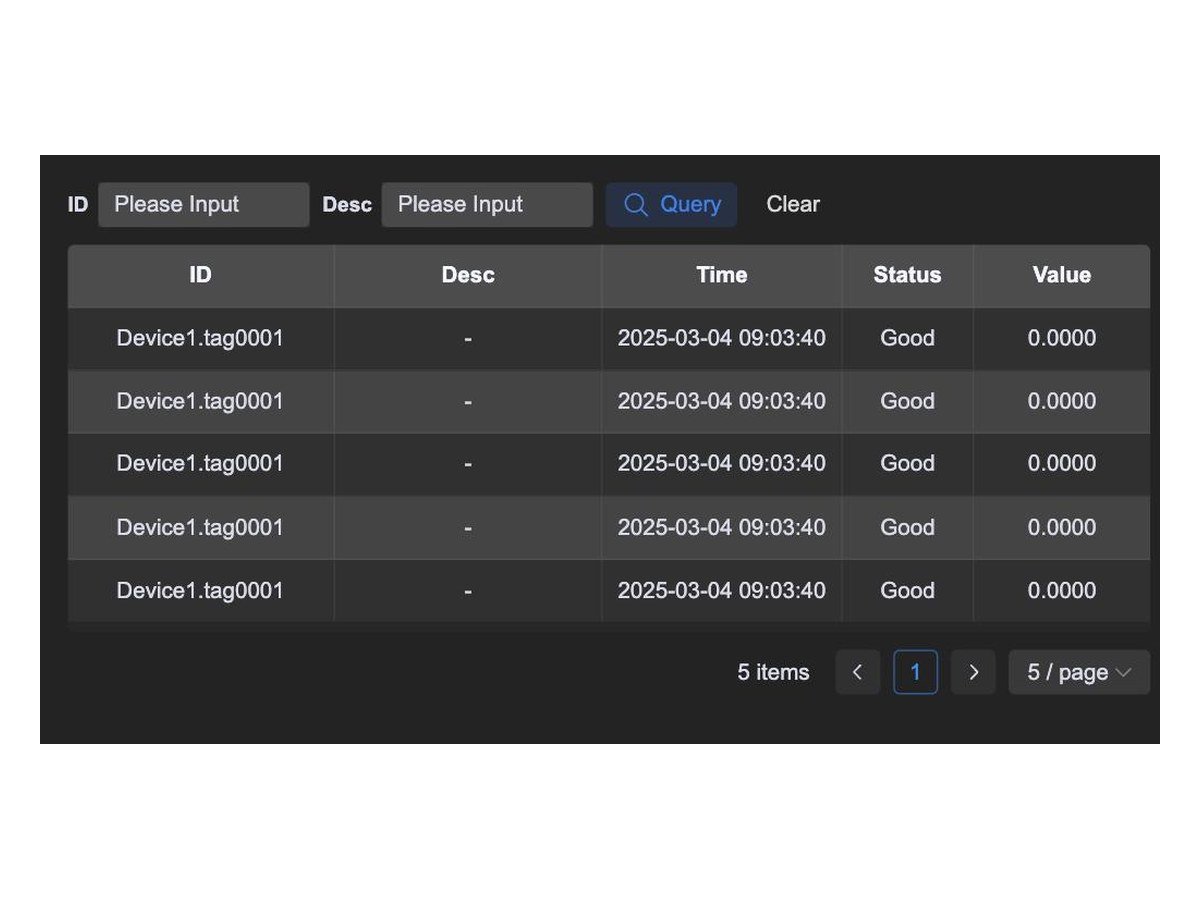

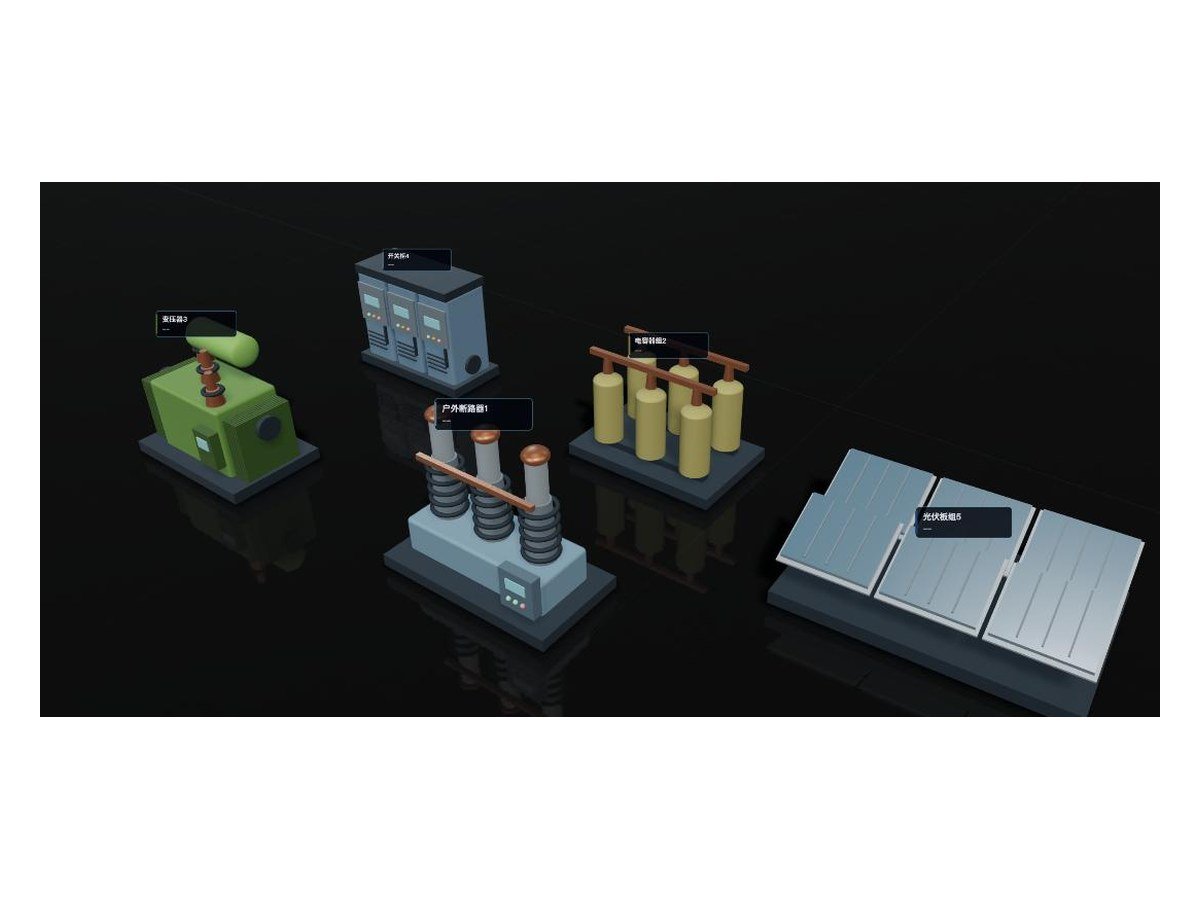

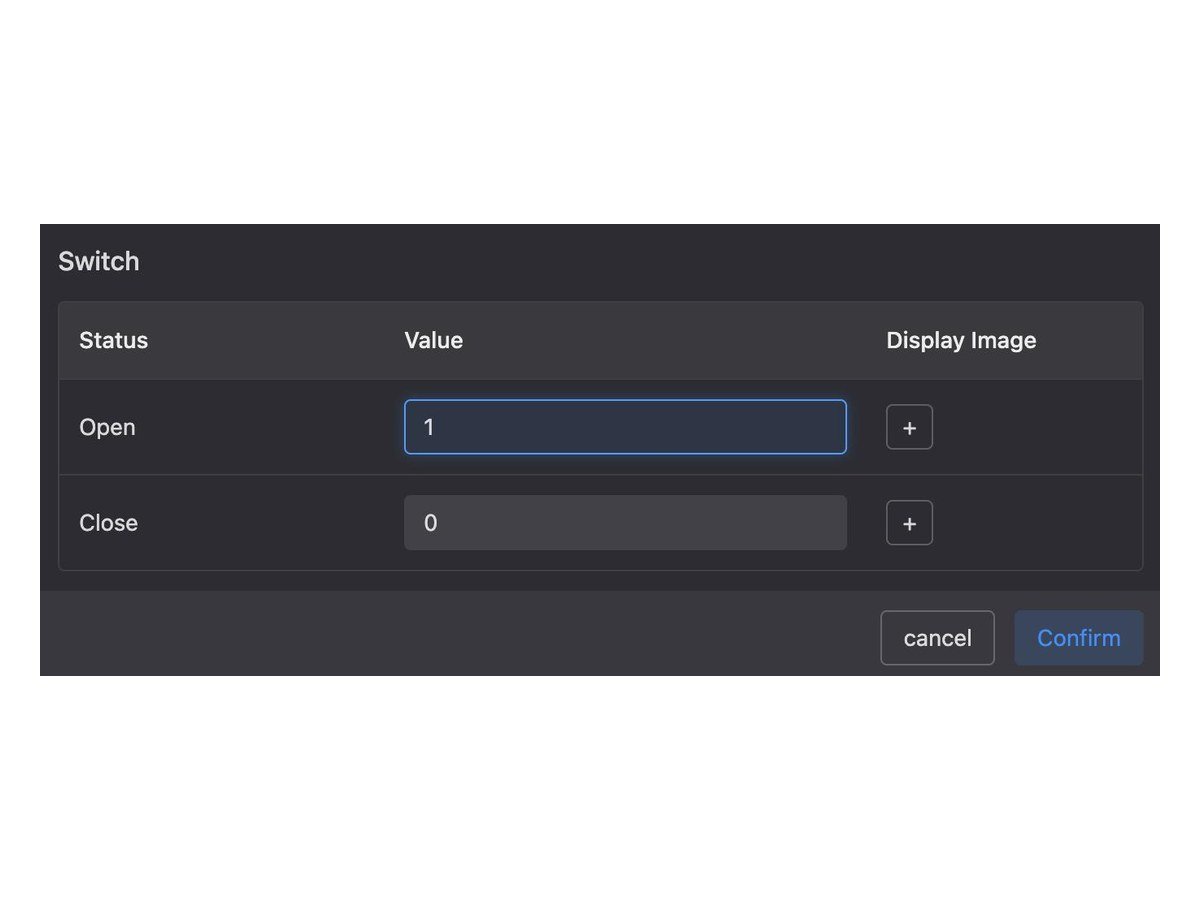

- Browser-based WebSCADA with 2D controls, tables, charts and 3D scenes
- Store and forward, JavaScript edge logic and OpenVPN
- IoServer software gateway available for PC projects, licensed by data points
Where it is used in Malaysia
- Factories and production lines with many meters and PLCs
- Commercial buildings, malls and data centres
- Solar farms and remote utility sites on 4G or 5G
- Water and wastewater plants
- System integrators who need one gateway with a built-in dashboard
See it in use
Devices and protocols it can talk to
The gateway family ships with ready-made drivers, so most meters, PLCs and controllers connect without custom programming:
- Modbus RTU, ASCII, TCP, RTU over TCP, and Modbus RTU master or server
- BACnet/IP, BACnet MS/TP and BACnet routing, plus OPC UA, OPC DA and OPC XML DA
- Energy meters and water, gas and heat meters (DL/T 645 and CJ188)
- PLCs from Mitsubishi, Siemens, Omron, Allen-Bradley, Keyence, Fuji, Yokogawa and others, including EtherNet/IP
- Power systems (IEC 104, IEC 61850) and CNC machines (Fanuc, Siemens, Syntec and others)
- Building systems: KNX IP, C-BUS, Daikin and other HVAC, lifts, motors and curtain control
- Water and environment monitoring (HJ/T 212, SL651)
- Cloud and IT: MQTT, HTTP, HTTPS, REST API, and SQL Server, MySQL and Access databases
How it works
The gateway reads data from your meters, PLCs and controllers over RS485 or Ethernet, converts the different protocols into one common format, and sends the data to your SCADA, cloud or business system. If the network drops, it stores the data locally and uploads it automatically when the connection returns. Settings are done from a web page, and JavaScript logic on the gateway can calculate, convert or filter values before they are sent.
Order from AIBS
Ai Business Solutions Sdn Bhd supplies this product in Malaysia. Send us a quote request with the model you need, the quantity and the devices you want to connect, and we will reply within one working day.
