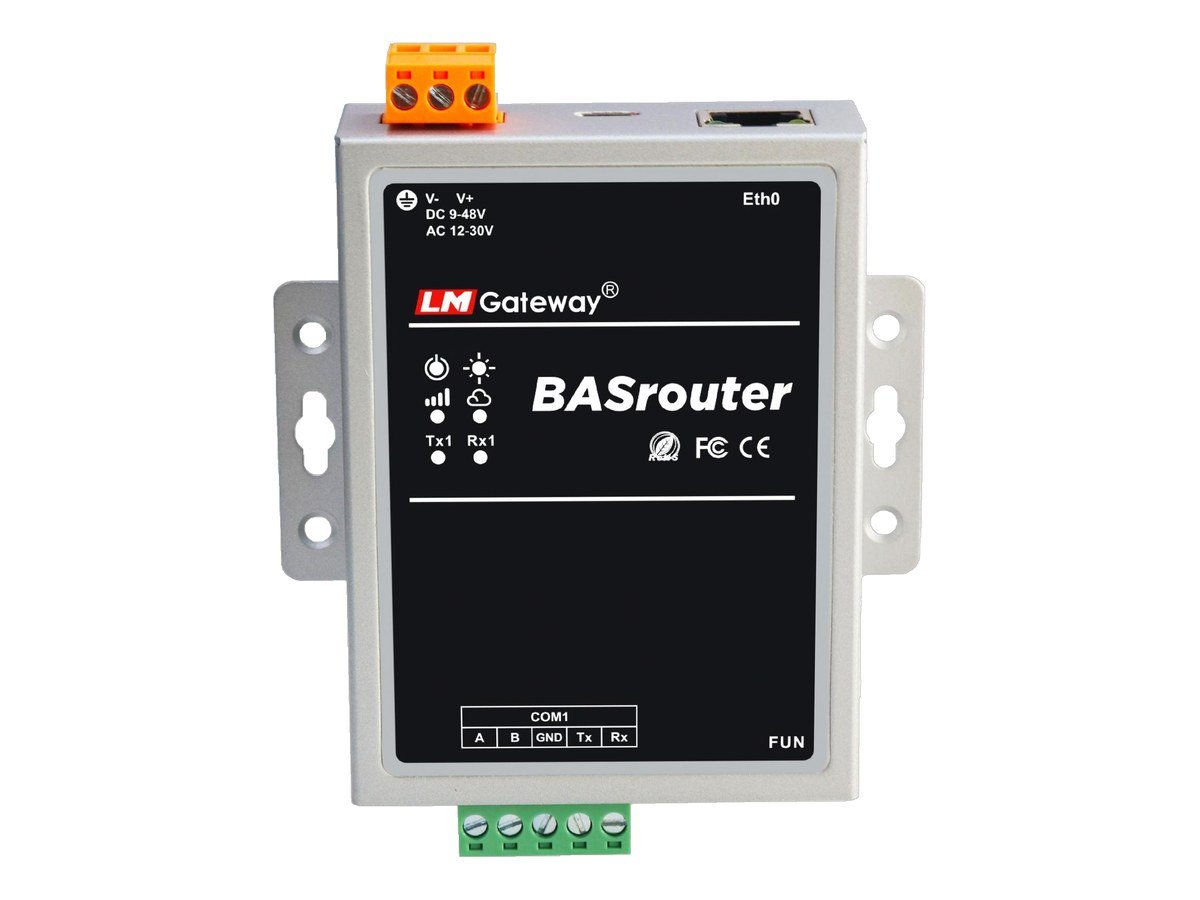

BACnet Router: BACnet MS/TP to BACnet/IP (BBMD, up to 32 devices)

The BACnet Router joins the BACnet MS/TP controllers on an RS485 bus to your BACnet/IP network, so the building management system can see all of them. It is a drop-in way to extend or connect building automation networks.

At a glance

• Independent routing between BACnet/IP and BACnet MS/TP
• Supports BBMD (BACnet Broadcast Management Device)
• Up to 32 MS/TP devices
• Web configuration and monitoring
• Wall or panel mounting

Typical Applications

• Offices, malls and hotels with MS/TP controllers and an IP BMS
• Hospitals, campuses and data centres
• Upgrading or joining separate BACnet networks in one building

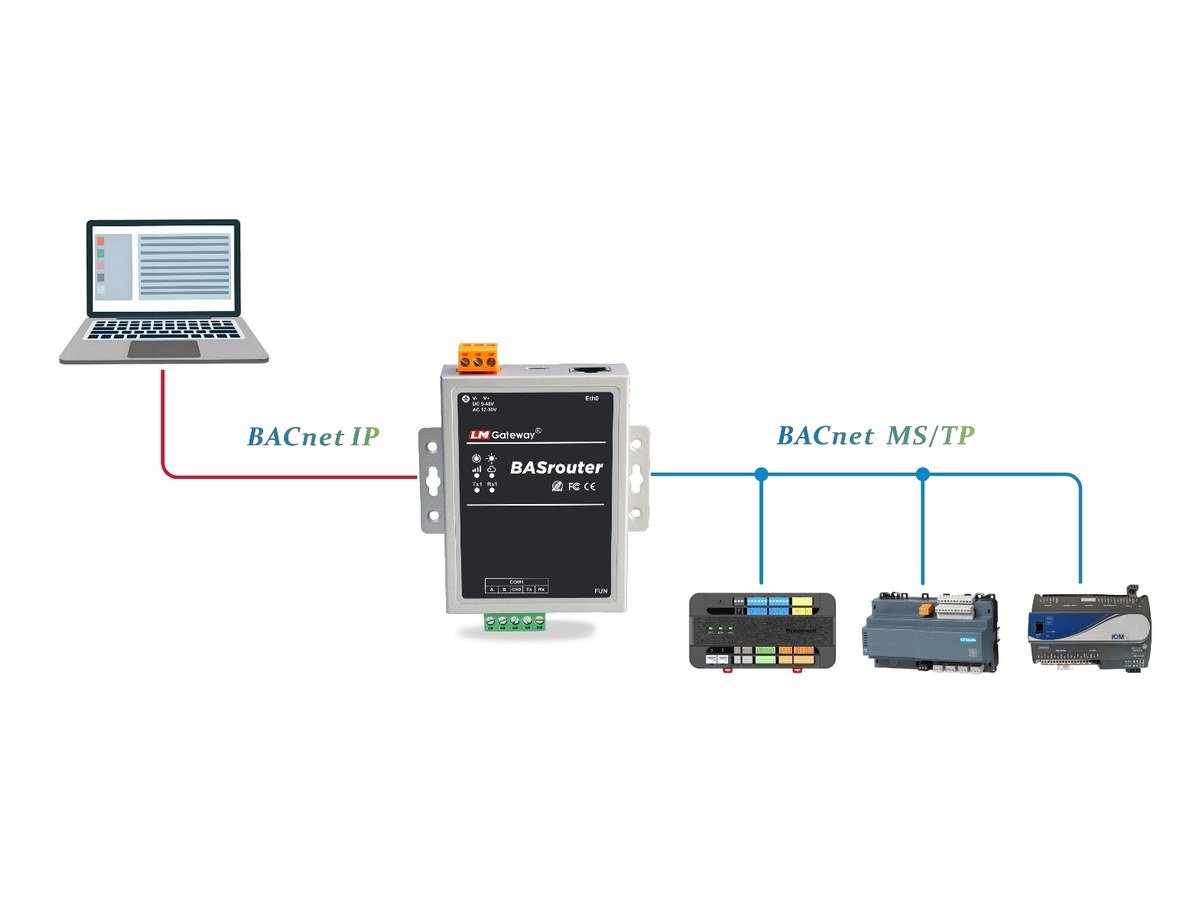

See it in use

How it works

The router passes BACnet messages between the IP network and the MS/TP bus without changing the devices on either side. With BBMD enabled it can also forward broadcasts between IP subnets.

Ai Business Solutions Sdn Bhd supplies this product in Malaysia. Send us a quote request with the model you need, the quantity and the devices you want to connect, and we will reply within one working day.
