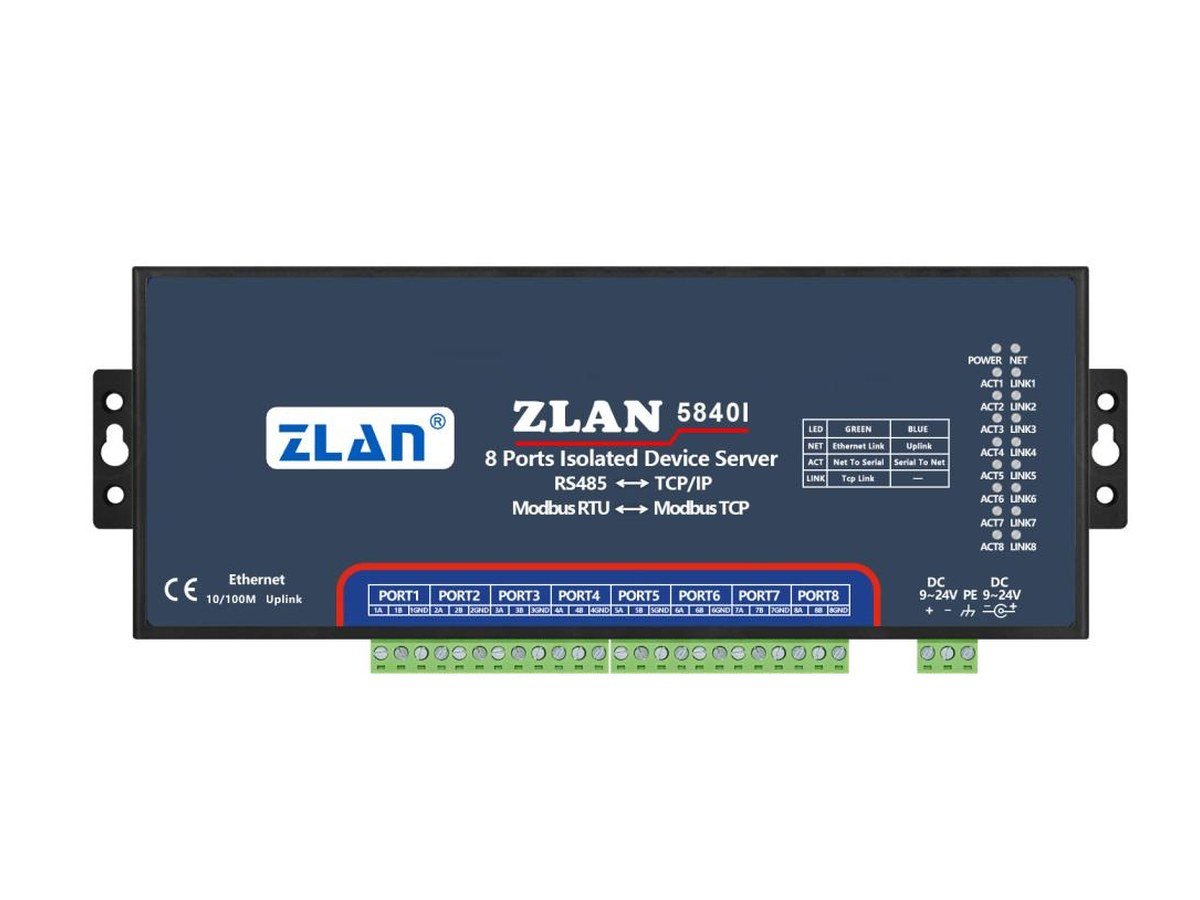

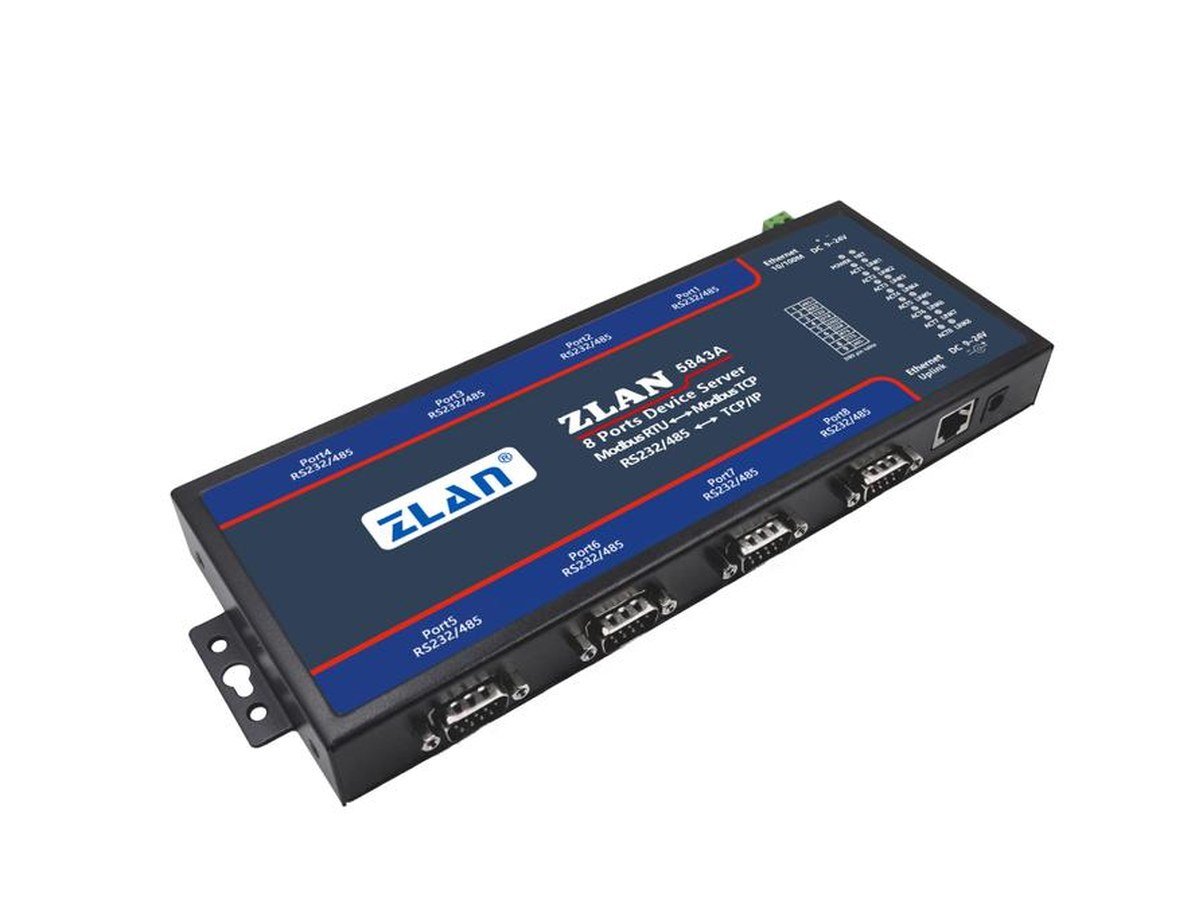

8-Port Serial Port Servers RS232, RS485, RS422 with Isolation and Single or Multiple IP
Availability
Available on request
Eight-port serial device servers for RS485, RS232 and RS422. Optocoupler isolation, one IP or eight IP addresses, Modbus gateway, MQTT, rail or desktop.
Collect eight serial devices through one box. Use one IP with different ports, or give each serial port its own IP address.
At a glance
8 serial ports; RS485, RS232 or RS422
1 to 8 IP addresses configurable

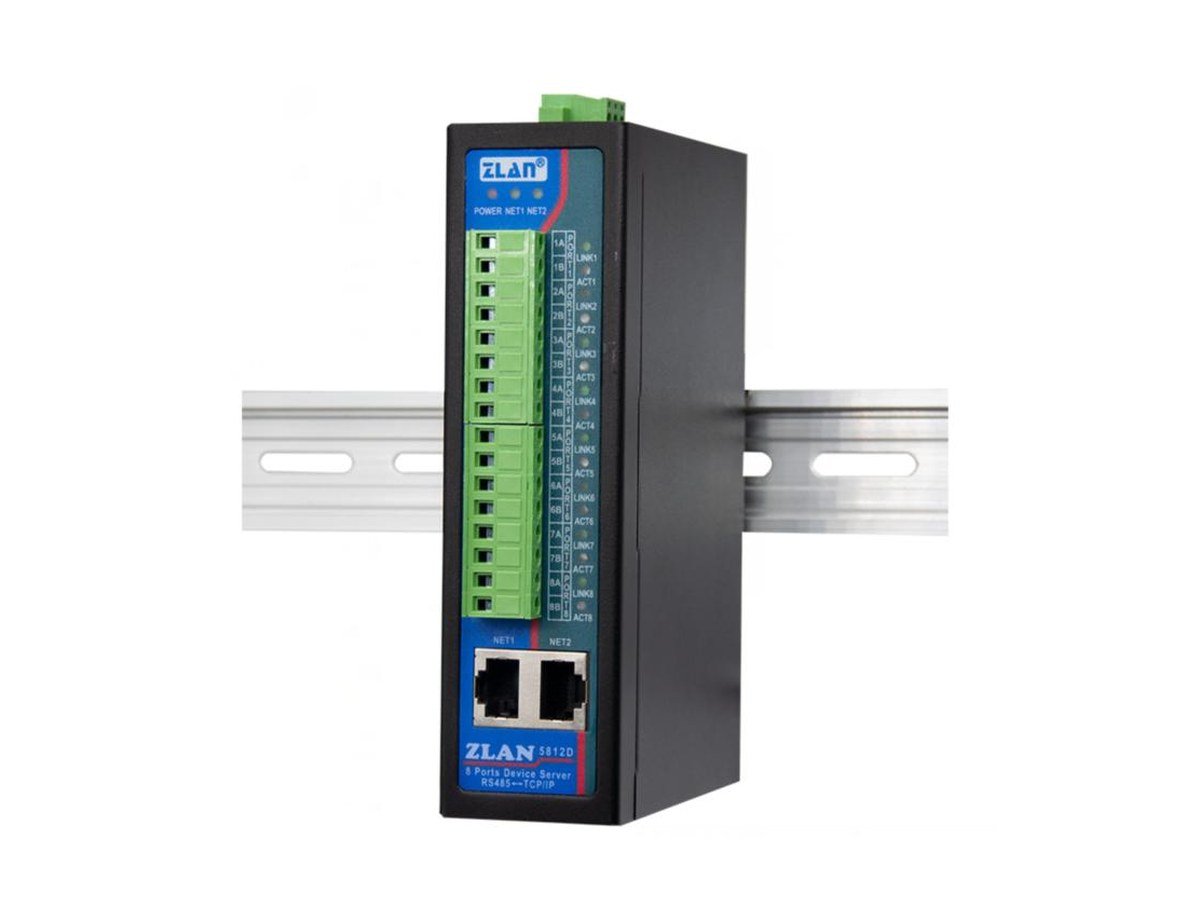

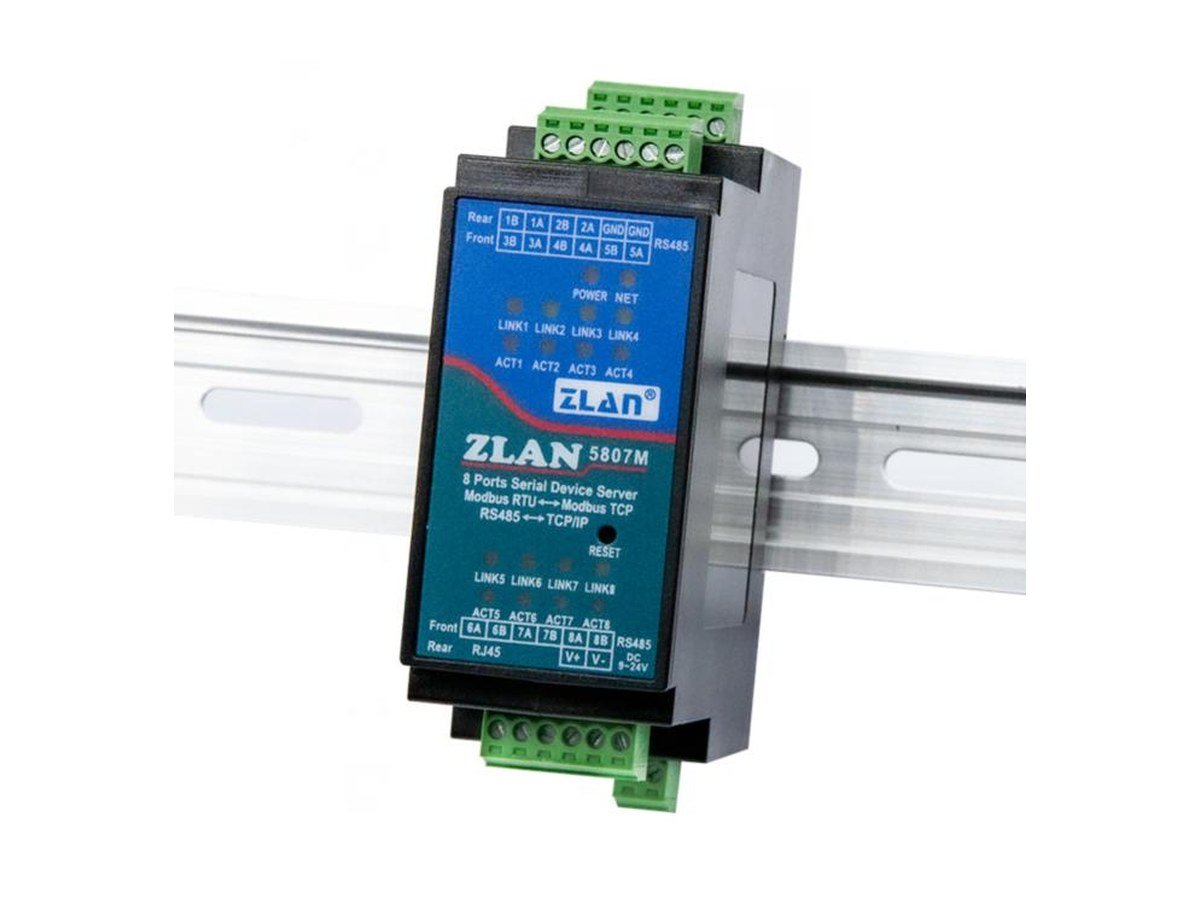

Rail or desktop, single or dual Ethernet ports
Isolation between ports and from the case on selected models
Modbus gateway, MQTT and JSON
9 to 24 V DC supply; some models 4 network ports
Where it is used in Malaysia
Substations and energy monitoring rooms
Large metering and sub-metering installations
Industrial plants with many instruments
Building services control rooms
Telecom and data cabinets
Models in this range
How it works
The 8-port server treats each RS485 or RS232 line as a separate network channel. Protocol functions let it act as a Modbus master and send JSON to the cloud.
Order from AIBS
Ai Business Solutions Sdn Bhd supplies this product in Malaysia and across Asia Pacific. Send us a quote request with the model, the quantity and your application, and we will reply within one working day.
Ports
8 (RS485 / RS232 / RS422)
Network
10/100 Mbps, 1, 2 or 4 ports
Supply
9 to 24 V DC
Isolation
optical, per-port and case (selected models)
Size
about 270 x 105 x 26 mm (desktop), 150 x 105 x 41 mm (rail)
Protocols
Modbus TCP/RTU, MQTT, JSON, DLT-645
Ask about 8-Port Serial Port Servers RS232, RS485, RS422 with Isolation and Single or Multiple IP
