Use these modules to measure water or liquid level without touching it, or to detect vehicles and riders in a blind spot.
At a glance

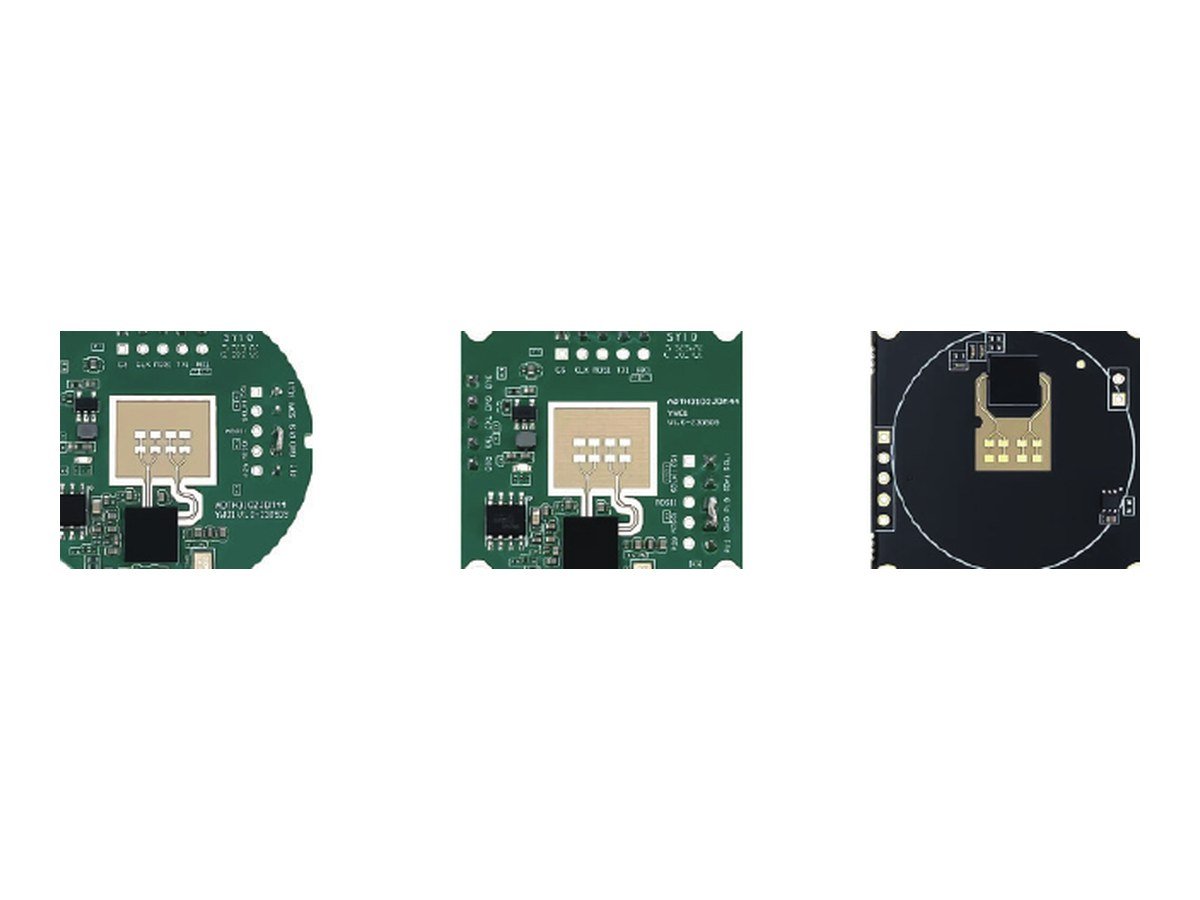

Liquid level radar at 24, 79 and 80 GHz; range up to 15 m
Accuracy to plus or minus 2 to 5 mm

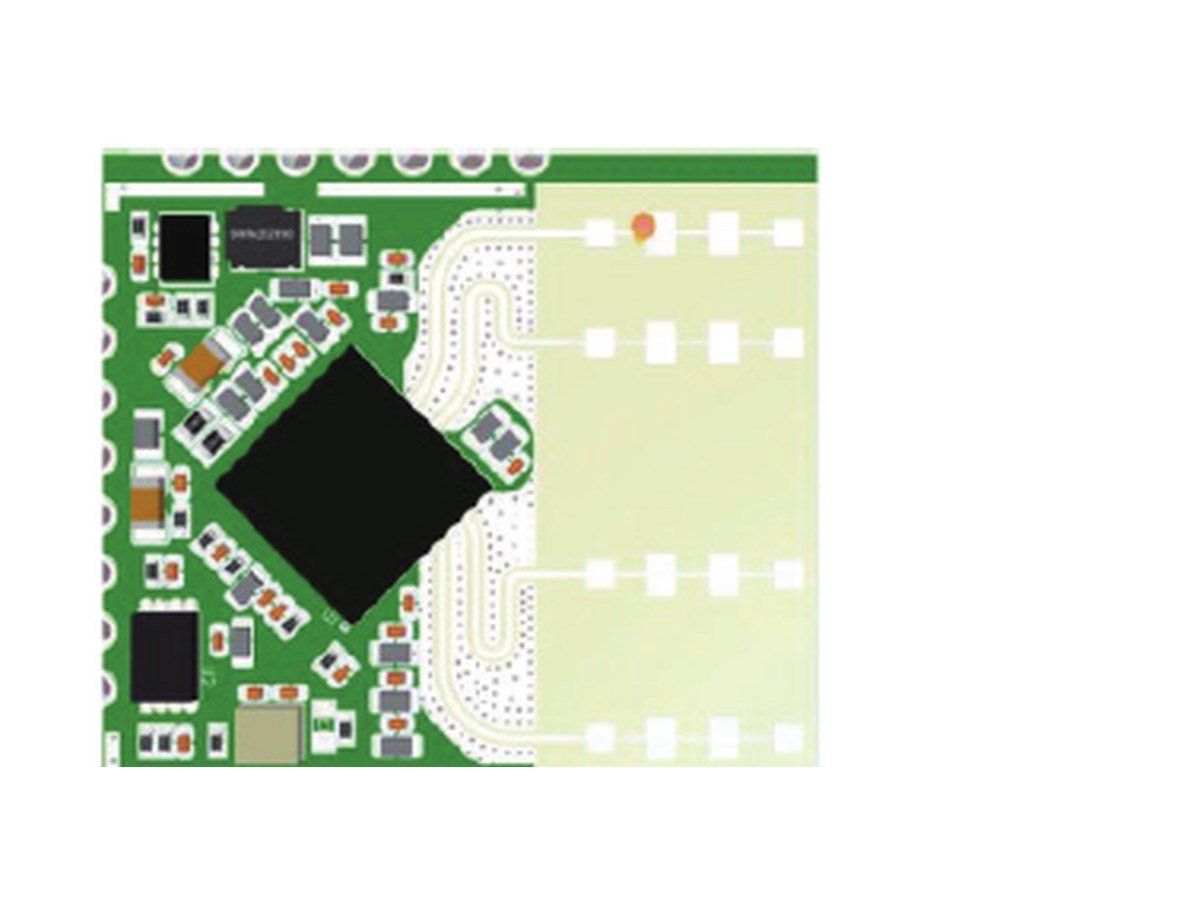

Two-wheeler blind spot radar: car 40 m, e-bike 25 m, pedestrian 16 m
79 GHz multi-target azimuth radar with 3 m range
3.3 V supply; UART output
Non-contact; works in rain and dust
Typical Applications
River, drain and tank water level stations
Hydrology and urban pipeline monitoring
Motorbike and bicycle safety
Bathroom and trajectory detection
Industrial tank monitoring
Models in this range
How it works
FMCW millimetre-wave radar sends a signal to the surface and reads the reflection to find distance in millimetres.
Ai Business Solutions Sdn Bhd supplies this product in Malaysia and across Asia Pacific. Send us a quote request with the model, the quantity and your application, and we will reply within one working day.
Frequency
24 GHz, 77 to 81 GHz, 80 GHz
Range
0.15 to 15 m (level models)
Accuracy
plus or minus 2 to 5 mm
Supply
3.3 V (3.7 V on one model)
Interface
UART
Operating temperature
-40 to 125 C
Size
about 25 x 25 mm to 44 x 36 mm
Ask about 79 GHz and 24 GHz Liquid Level Radar and Two-Wheeler Blind Spot Radar Modules
Questions about specifications, stock, lead time or compatibility? We reply within one working day. Prices are confirmed with our suppliers, normally in 3–5 working days.
Need a different model, size or accessory? Add it to your quotation as an item not listed on our website.
Radar modules with extras built in: DIP switch settings, infrared remote, Bluetooth mesh networking or a MOS driver…
Price on request

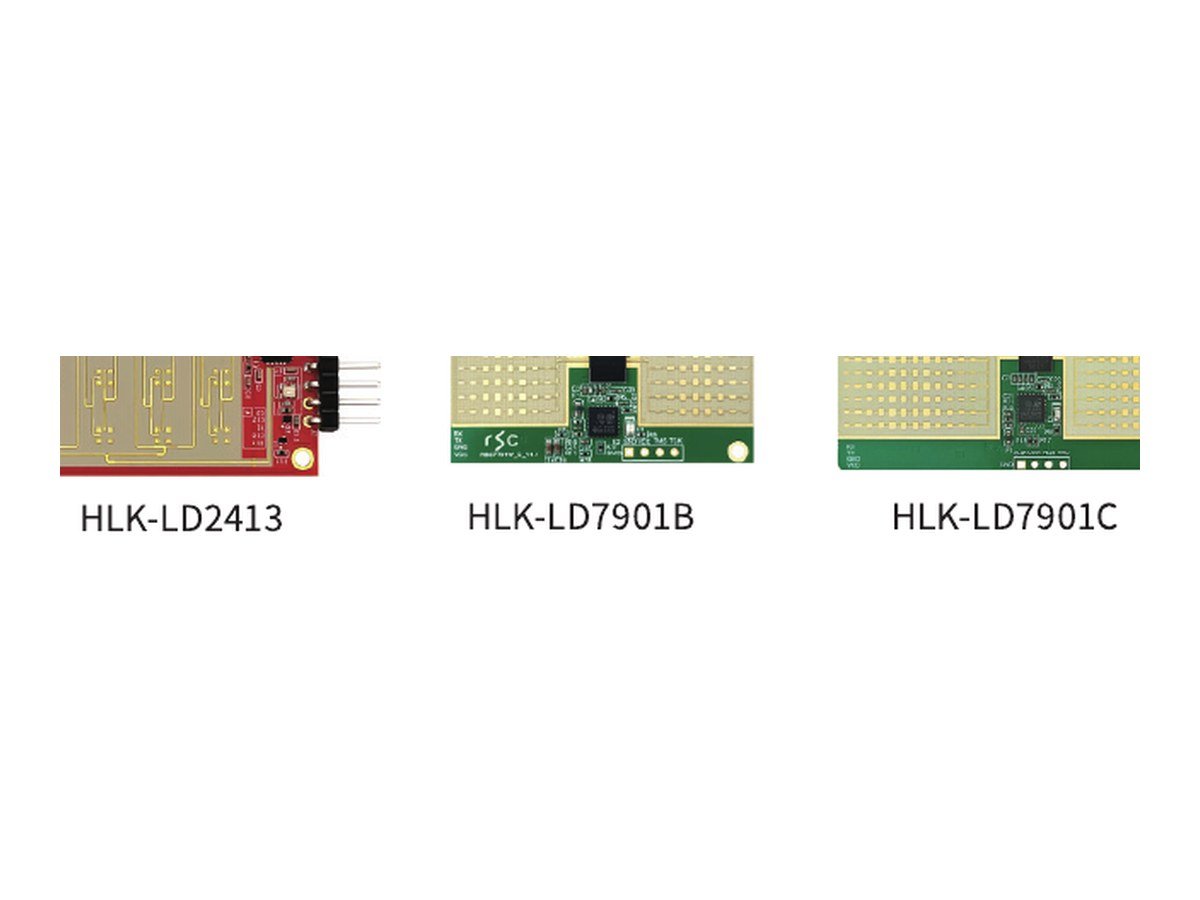

79 GHz and 24 GHz Liquid Level Radar and Two-Wheeler Blind Spot Radar Modules
