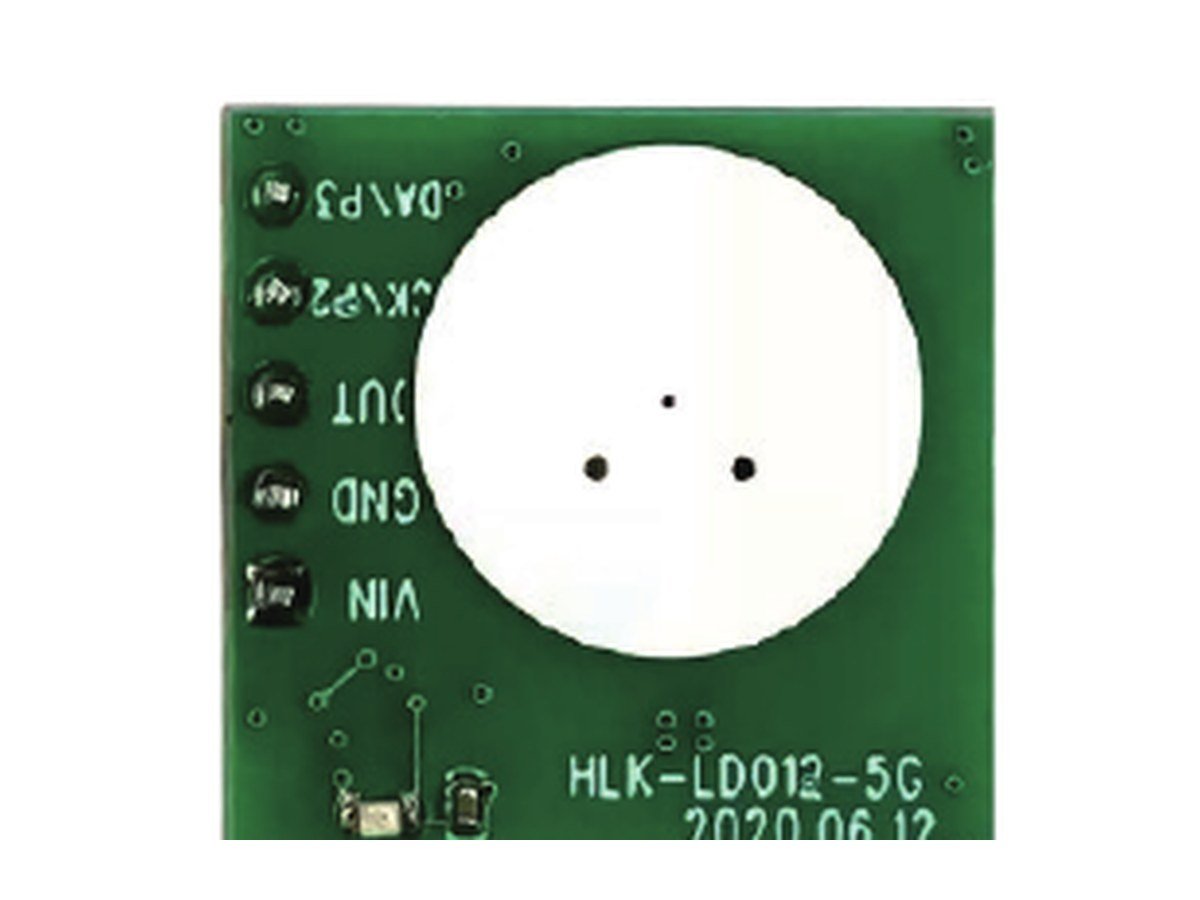

5.8 GHz Radar Sensor Modules for Motion Detection and Smart Lighting (Doppler)

These small radar boards sense motion and give a simple output you can connect straight to a switch or controller. They are made for lamps and lighting.

At a glance

• 5.8 GHz ISM band Doppler radar
• Detection height 4 to 6 m, or 8 to 12 m for wall mount
• Adjustable delay 5 to 15 s and light threshold
• Output 3.3 V high or low; supply 3.3 to 12 V
• Low power: down to 75 uA
• Pin header packaging, 18 x 19 mm or 20 x 12 mm

Where it is used in Malaysia

• Lamps, downlights and corridor lighting
• Bathroom and storeroom lights
• Smart bins and cabinets
• Security and access sensing
• Automatic doors and signage

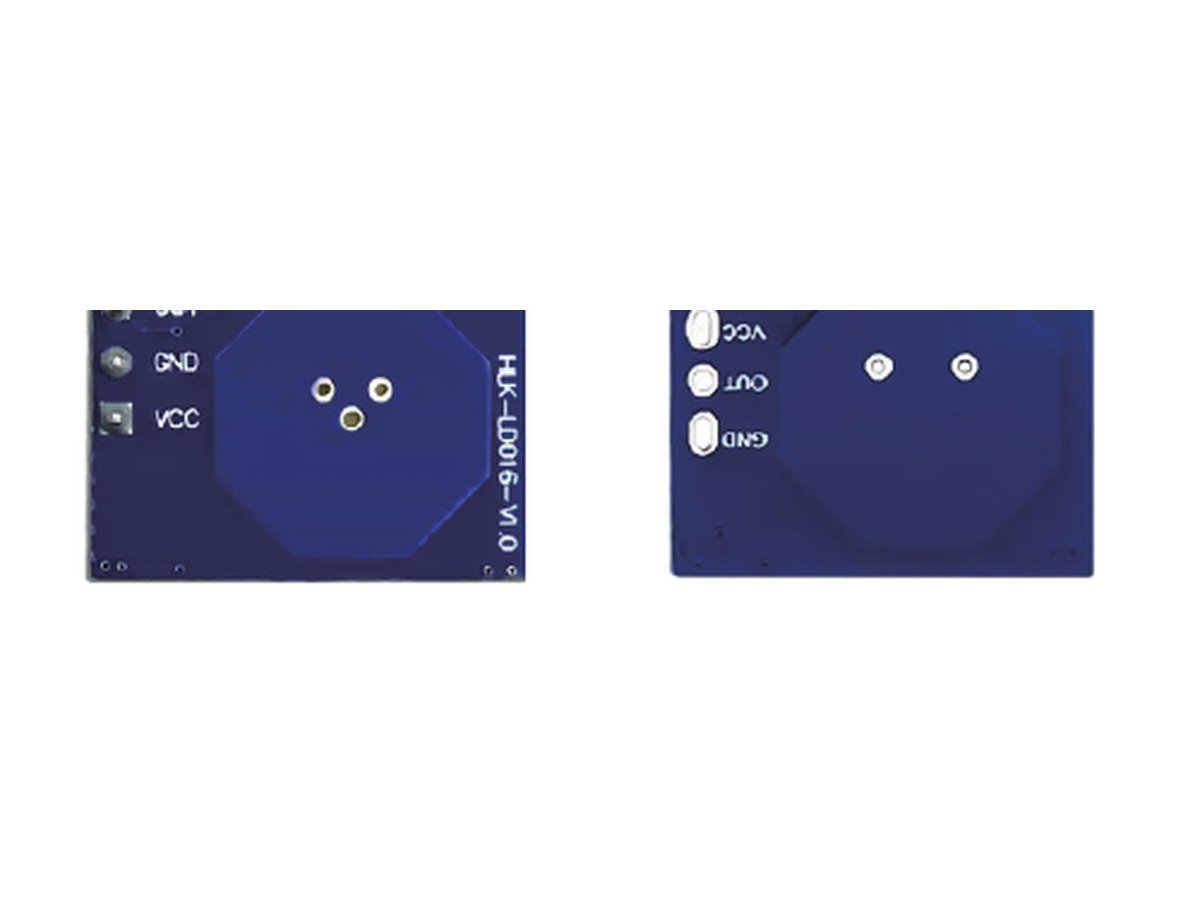

Models in this range

How it works

The module sends out a radar signal and measures changes in the echo caused by movement. It switches an output when something moves in range.

Order from AIBS

Ai Business Solutions Sdn Bhd supplies this product in Malaysia and across Asia Pacific. Send us a quote request with the model, the quantity and your application, and we will reply within one working day.
