Description

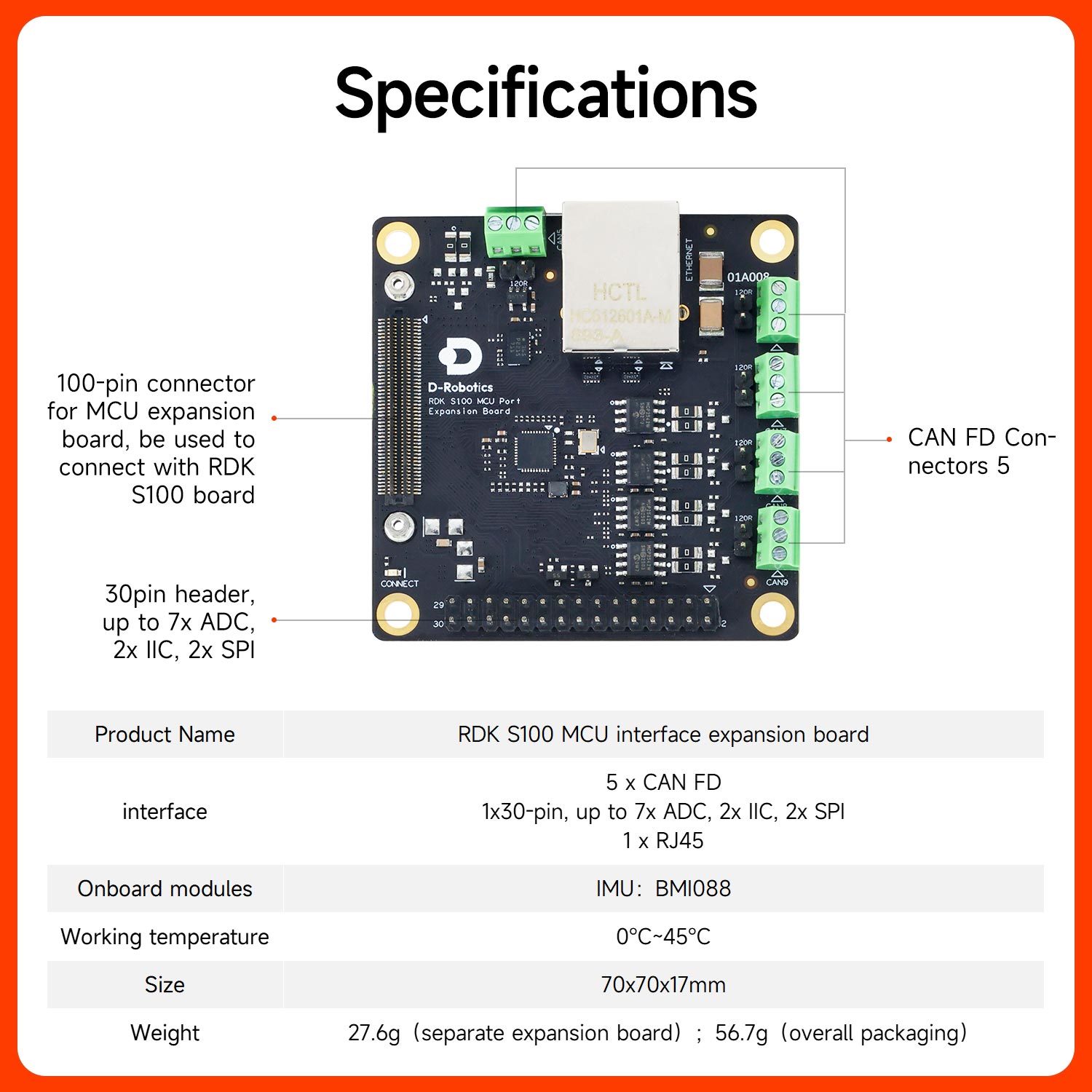

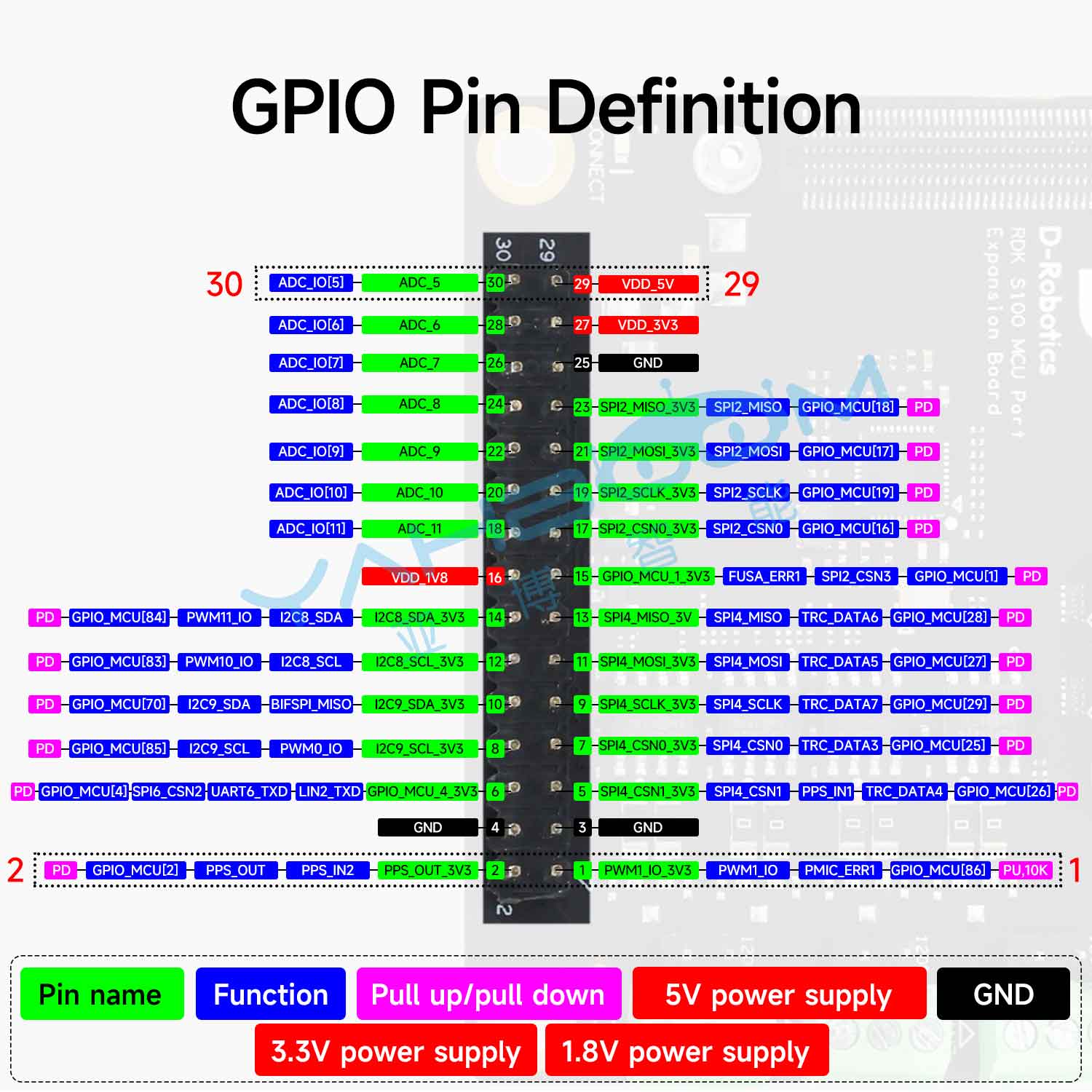

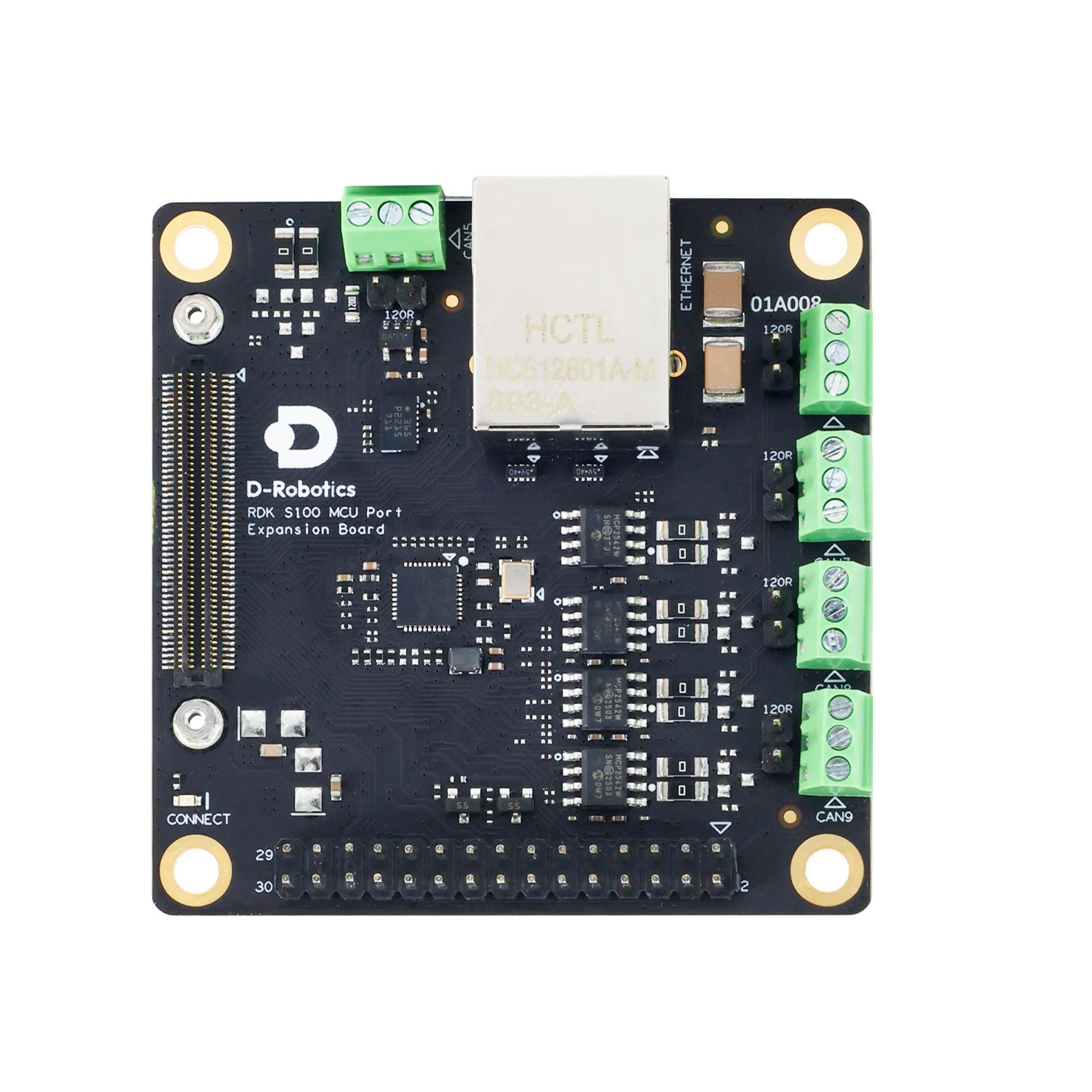

RDK S100 MCU port expansion board (including FPC connector cable) is the core expansion module of the D-Robotics RDK S100 series development kit. It is primarily used to expand the MCU interface functionality, integrate an inertial measurement unit (IMU), supports peripheral connections such as Ethernet, CAN_FD, ADC, SPI, IIC, and UART. This facilitates the connection of various peripherals, thereby accelerating the testing and development process.
-
Integrated inertial measurement unit (IMU, Bosch Sensortec BMI088 model), supporting communication control via the SPI-5 serial bus.

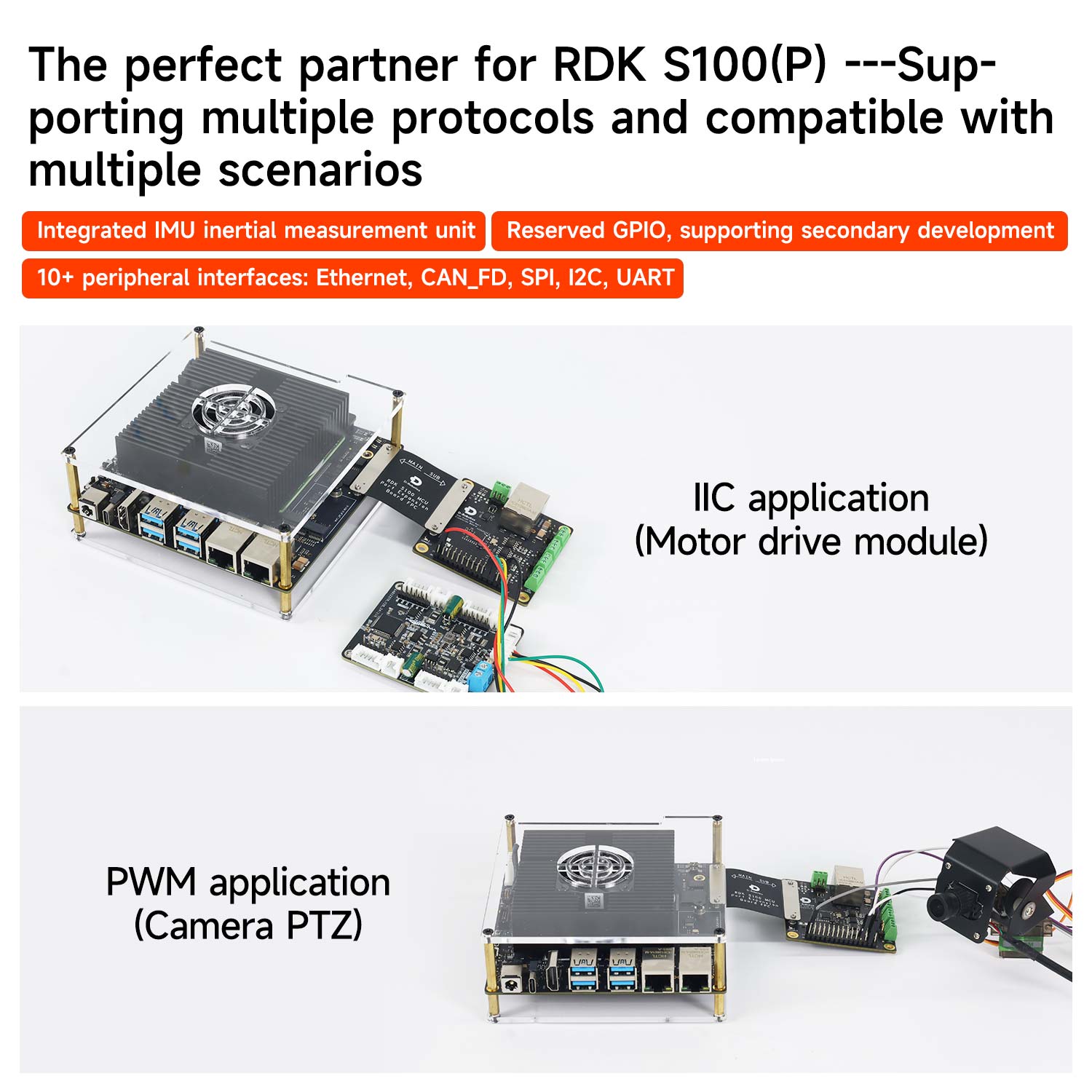

- Designed to unlock the full potential of the RDK S100 series MCU interfaces, providing one-stop expansion of Ethernet, CAN_FD, ADC, UART, and other ports, allowing you to easily connect various sensors, actuators, and network devices.

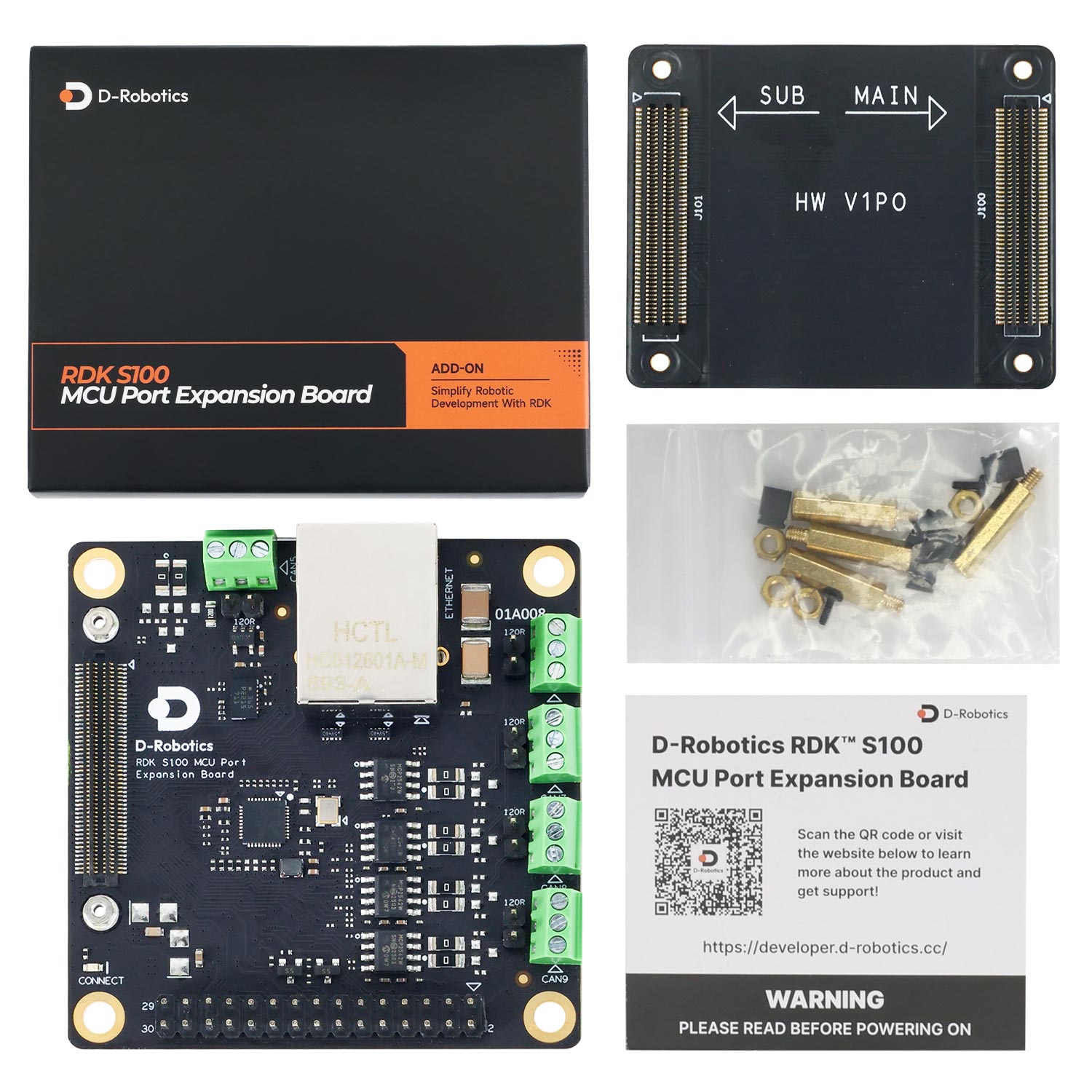

- Utilizes a dedicated FPC connector cable, providing stable and reliable high-speed signal transmission, effectively reducing interference and ensuring the communication quality of critical data channels such as Ethernet and CAN_FD in demanding environments.
