Raspberry Pi Pico 2 Starter Kit
Raspberry Pi Pico 2 Kit
Description
Raspberry Pi Pico 2 is a low-cost, high-performance microcontroller development board with flexible digital interfaces. It uses the RP2350 microcontroller chip independently developed by Raspberry Pi, which has a unique dual-core, dual-architecture, an operating frequency of up to 150MHz, built-in 520KB SRAM and 4MB memory, and up to 26 multi-function GPI0 pins on board.
Feature
â—†RP2350 microcontroller chip designed by Raspberry Pi
â—†Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3
â—† RISC-V core processor, running at up to 150MHz flexible clock
â—† Built-in 520KB SRAM and 4MB on-chip Flash
â—† Stamp hole design, can be directly soldered and integrated into the user’s self-designed baseboard
â—† USB11 host and device support
â—† Support low-power sleep and hibernation modes
â—† Can be identified as a large-capacity storage through USB for drag-and-drop download of programs

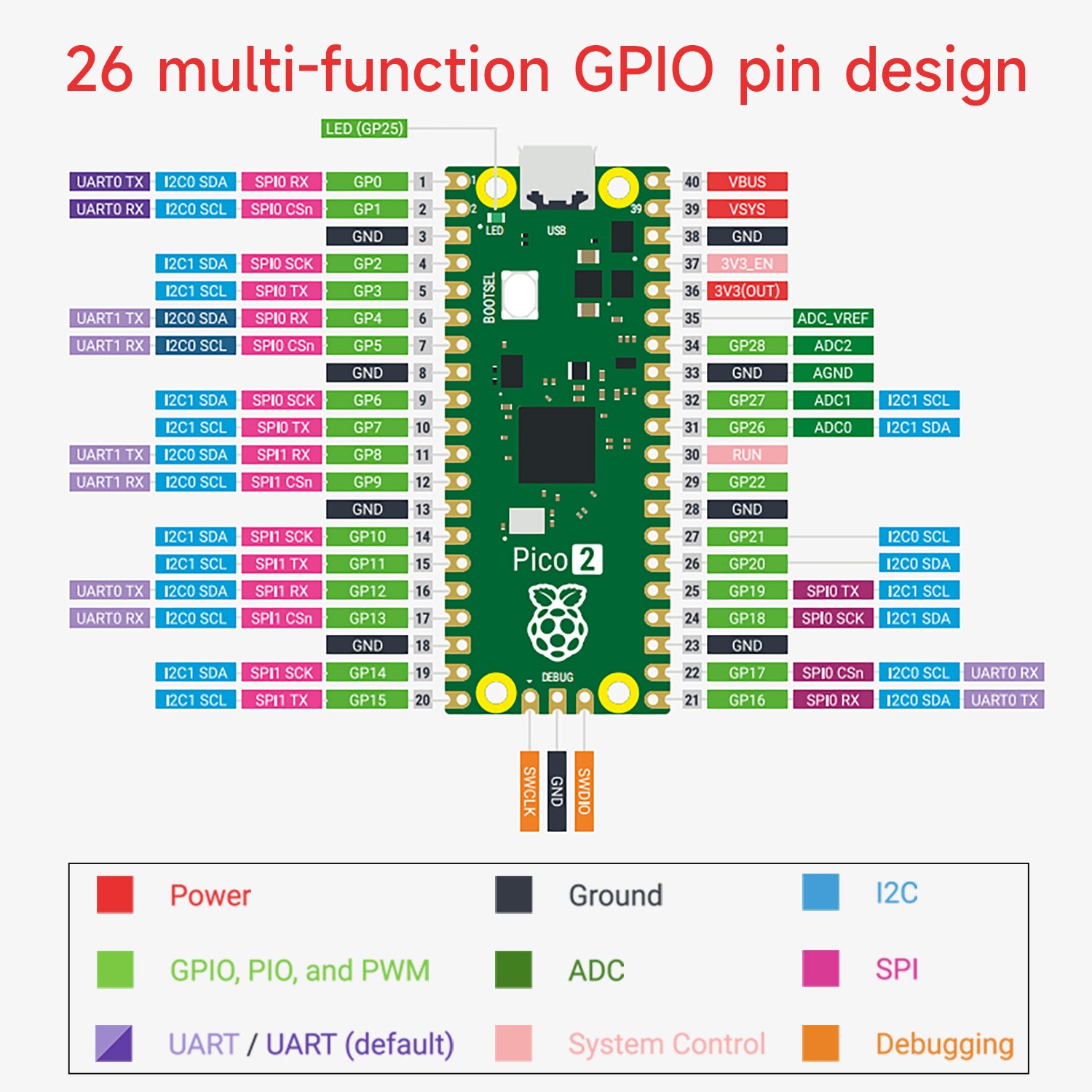

â—† Up to 26 multi-function GPIO pins
â—† 2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, and 24 controllable PWM channels
â—† Temperature sensor
â—† 12 programmable I/O (PIO) state machines for custom peripheral support
Package list
Separate board
Basic Kit
Case Kit

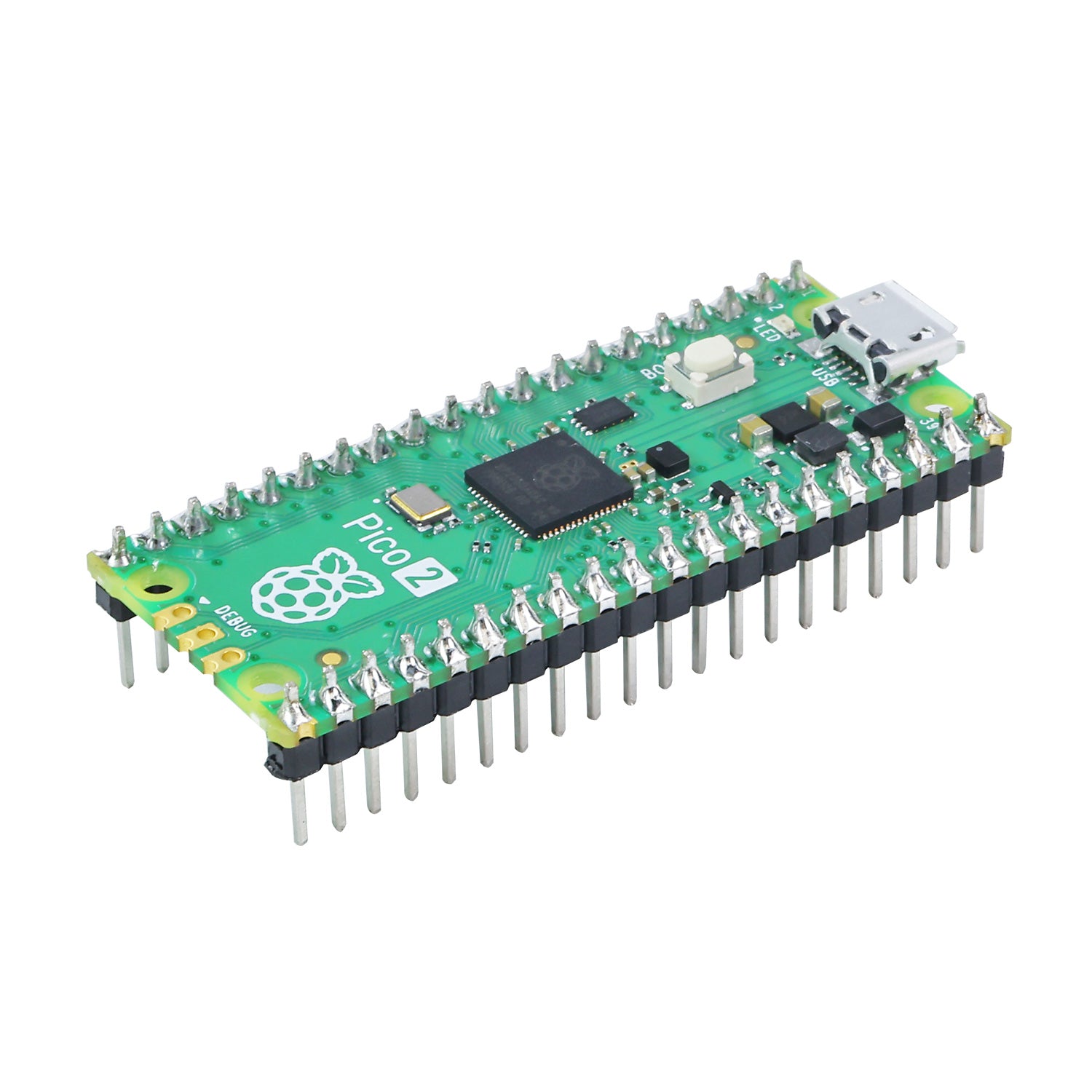

The Raspberry-Pico 2 board
