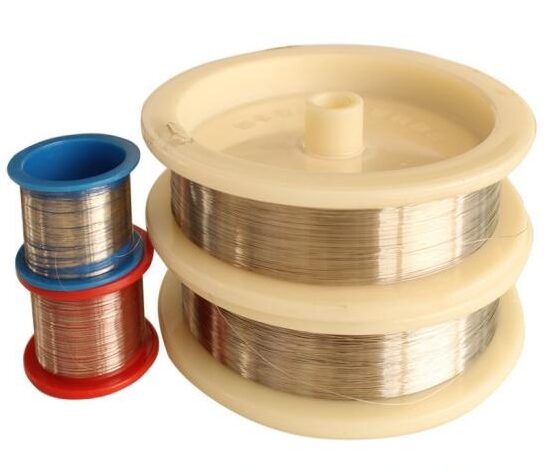

Platinum-Iridium Wire Pt-Ir Biomedical Sensor
Pt-Ir Medical Sensor Electrode Wire
Description
Description
Platinum-Iridium Wire — Biomedical Sensors & Neural Electrodes
Medical-grade platinum-iridium (Pt-Ir) alloy wire in 70/30 and 90/10 (Pt:Ir) compositions for biomedical electrode fabrication, neural recording probes, biopotential sensors, and high-temperature thermocouples. Pt-Ir combines platinum’s biocompatibility with iridium’s increased hardness and yield strength for durable, fine-wire electrodes.
Key Specifications
- Alloy: Pt70Ir30 or Pt90Ir10 (custom ratios available)
- Purity: ≥99.95% total precious metal
- Diameter: 25 µm – 500 µm
- Biocompatibility: ISO 10993 applicable
- Hardness: Higher than pure Pt — suitable for sharp tip fabrication
Applications
- Neural recording and stimulation electrodes
- Biopotential measurement probes
- High-temperature Pt-Ir thermocouples
- Micro-electrode arrays (MEA)
- Electrosurgery electrode tips
Precious metal content priced at London Fix rate. Specify Pt:Ir ratio, diameter, and length for formal quotation.
