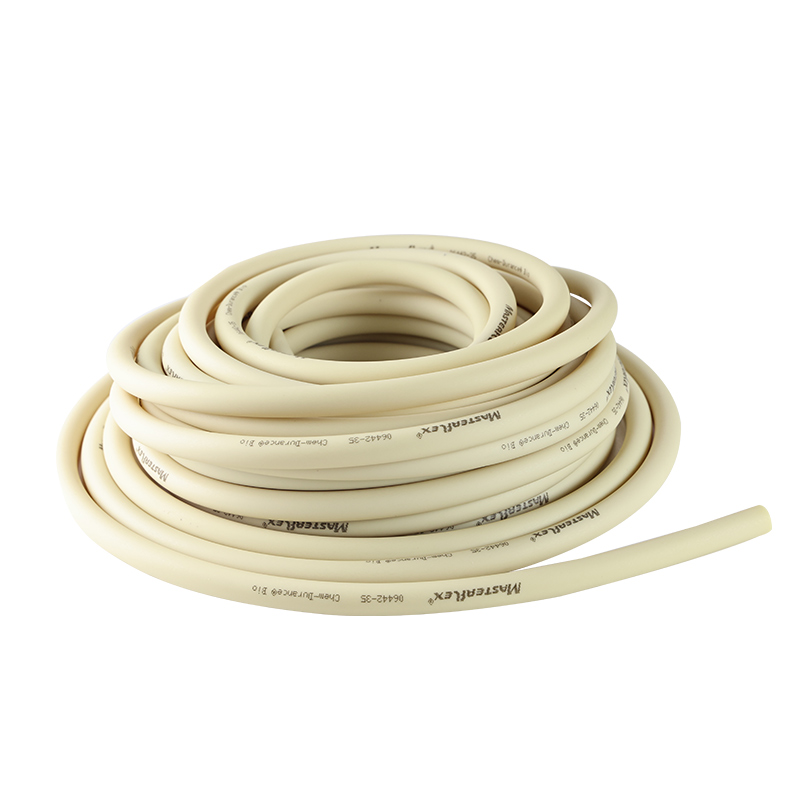

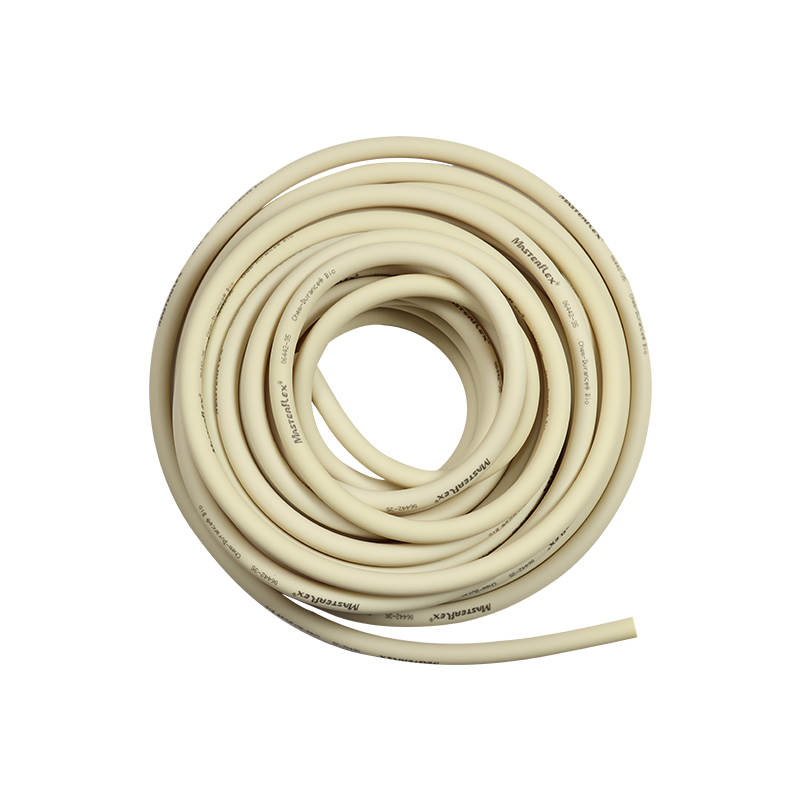

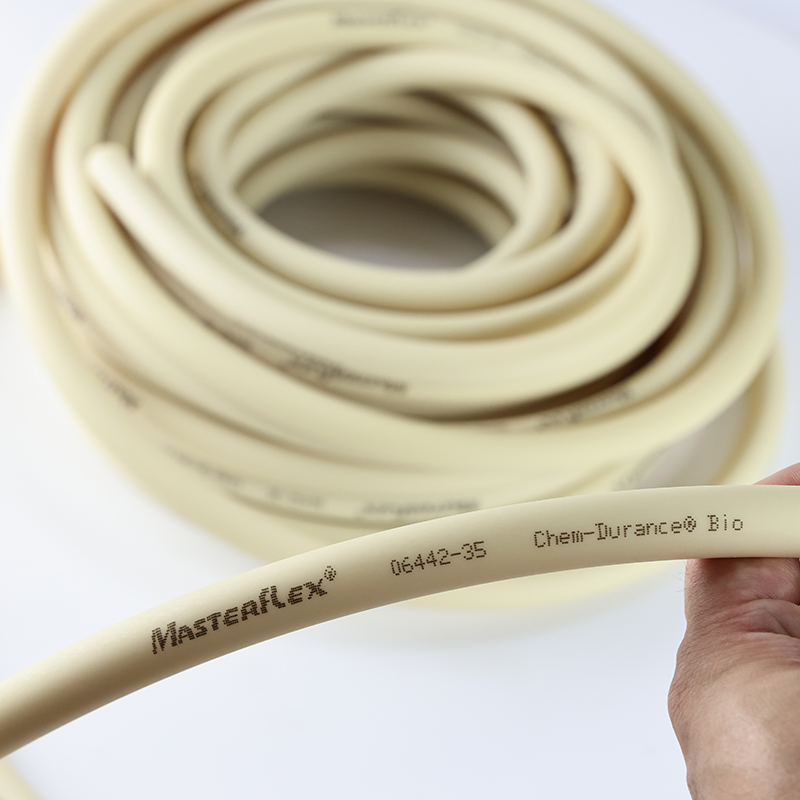

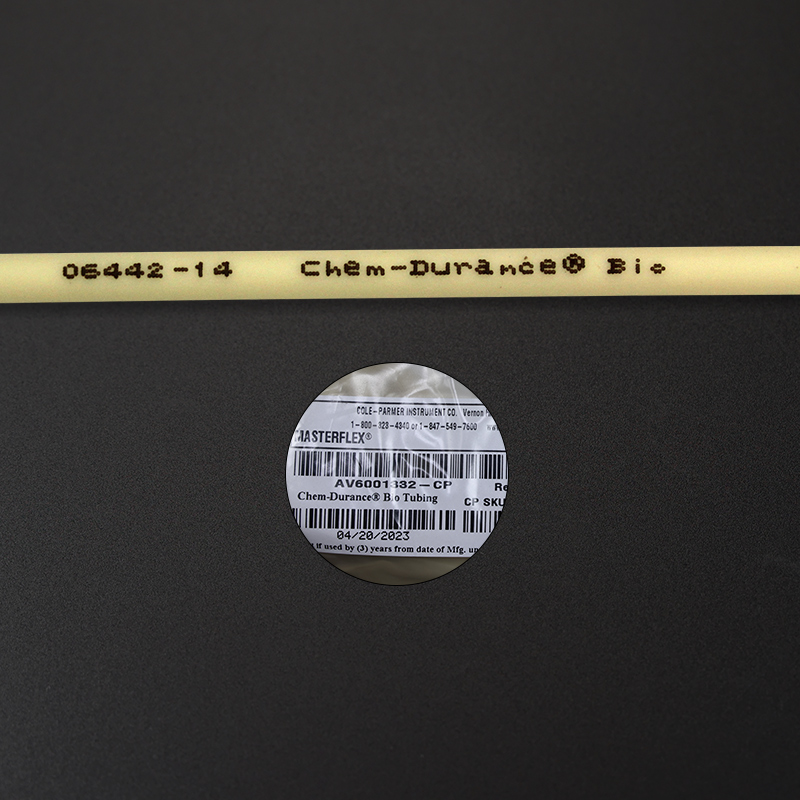

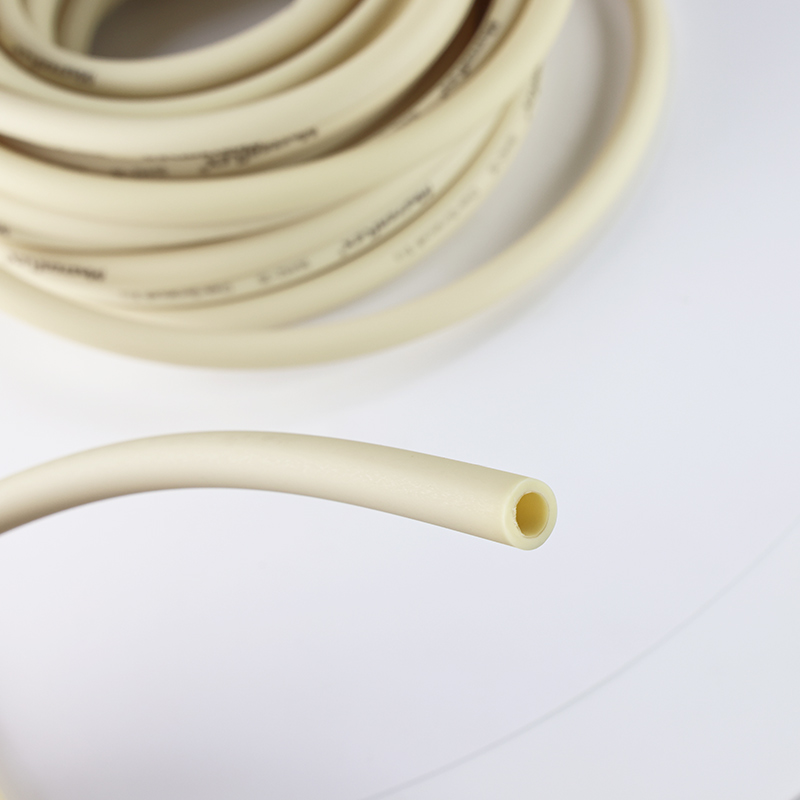

Master Flex Chem-Durance Tube
- Models: Master Flex Chem-Durance Tube
- Maximum channel quantity:
- Reference flow rate:
Product Specifications
| Master Flex Chem-Durance Tube Detailed Dimensions（Unit: mm） | ||||||||||||
| Tube no. | 1*1 | 2*1 | 3*1 | 4*1 | 13# | 14# | 19# | 16# | 25# | 17# | 18# | |
| ID（mm) | 1 | 2 | 3 | 4 | 0.8 | 1.6 | 2.4 | 3.2 | 4.8 | 6.4 | 7.9 | |
| OD（mm) | 3 | 4 | 5 | 6 | 4 | 4.8 | 5.6 | 6.4 | 8 | 9.6 | 11.1 | |
| Wall Thickness（mm) | 1 | 1.6 | ||||||||||
| Tube no. | 15# | 24# | 35# | 36# | 26# | 73# | 82# | |
| ID（mm) | 4.8 | 6.4 | 7.9 | 9.6 | 6.4 | 9.6 | 12.7 | |
| OD（mm) | 9.6 | 11.2 | 12.7 | 14.4 | 13 | 16.2 | 19.3 | |
| Wall Thickness（mm) | 2.4 | 3.3 | ||||||
| Tube no. | 88# | 92# | 86# | 90# | |
| ID（mm) | 12.7 | 25.4 | 9.5 | 19 | |
| OD（mm) | 22.3 | 35 | 21.6 | 31.6 | |
| Wall Thickness（mm) | 4.8 | 6.3 | |||
