KWS-300B Digital Conductivity Sensor
Standard Digital Conductivity Probe
Description
Introduction
The presents a new-generation four-electrode conductivity sensor developed with advanced international four-electrode technology. It features an RS485 digital interface, supports the MODBUS protocol, and adopts an environmentally friendly design. Compared with conventional two-electrode conductivity sensors, it offers higher measurement accuracy, a wider measuring range, and superior long-term stability.
The four-electrode conductivity sensor provides clear technical advantages. It effectively eliminates polarization effects during high-conductivity measurements and significantly reduces measurement errors caused by electrode contamination, ensuring reliable and accurate readings over extended operation.
Features
- Simultaneous output of conductivity, salinity, TDS, and temperature parameters
- Corrosion-resistant housing with IP68 waterproof rating for long-term underwater operation
- Built-in temperature sensor with automatic temperature compensation
Dimensions

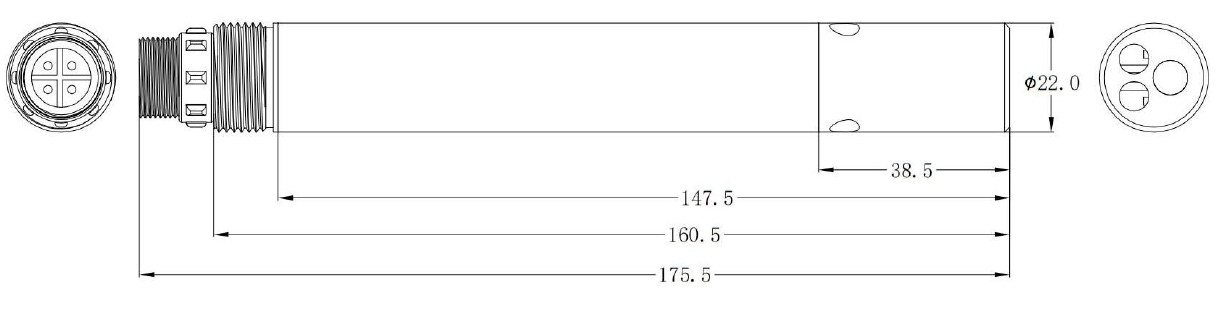

(1)KWS-300A Dimension
(2)KWS-300B Dimension
Wiring
Red——power supply (VCC)
White——485 data _B (485_B)
Green——485 data _A (485_A)
Black——GND
| Model | KWS-300A | KWS-300B |
|---|---|---|
| Conductivity Range | 0-200mS/cm (0-2mS/cm, 2-20mS/cm, 20-200mS/cm) | |
| Accuracy | ±1% or 0.01mS/cm (which is bigger) | |
| Salinity Range | 0-175ppt | |
| Accuracy | ±1ppt | |
| TDS Range | 0-128000mg/L | |
| Response Time | ＜10s | |
| Ip Grade | IP68 | |
| Max. Pressure | 6 bar | |
| Sheath Material | Titanium | |
| Operating Temperature | 0~50℃(no freezing) | |
| Output | RS485, Modbus | |
| Power Consumption | 0.2W (Recommended power supply: DC 9–24V, >500mA) | |
| Sensor Dimension | φ22mm*175.5mm | φ22mm*165.8mm |
| Assembly | NPT3/4 male thread | Connect with multi-parameter host |
| Cable Length | 10 meters (default), customizable | None |
| Calibration | support one point or two-points calibration | |
| Casing Material | Titanium+PEEK | |
