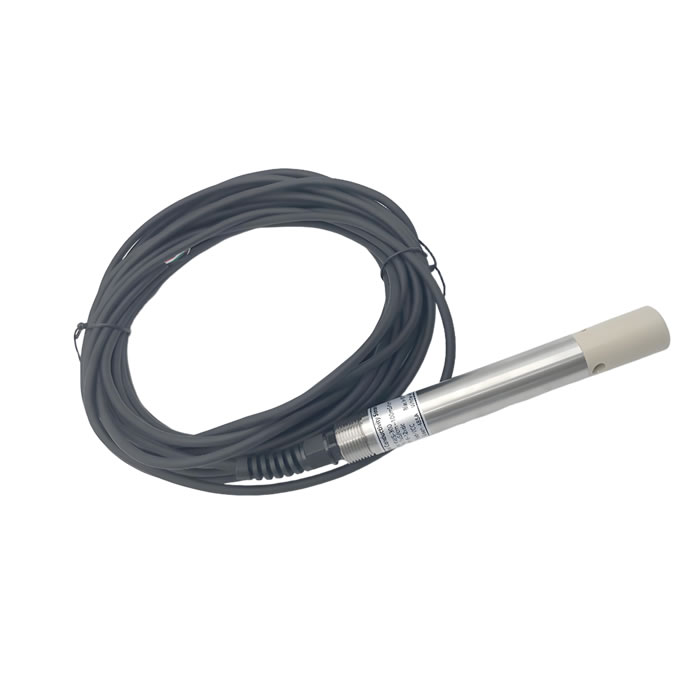

KWS-300A Digital Conductivity Sensor
4-Electrode High-Accuracy Conductivity Sensor
Description
Introduction

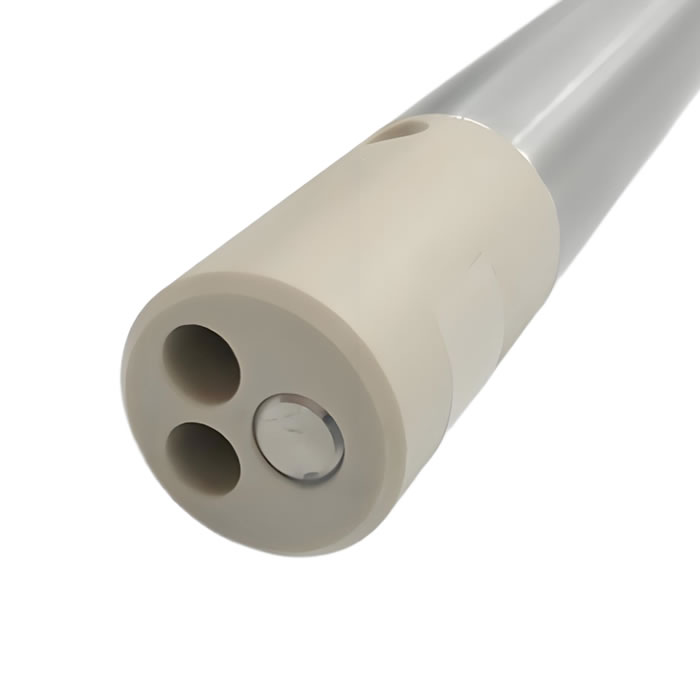

The introduces a new generation of four-electrode conductivity sensor, adopts international leading four-electrode technology, RS485 digital interface, supports MODBUS protocol, and environmentally friendly design. Compared with the traditional two-electrode conductivity sensor, it has higher accuracy, wider measurement range and excellent stability. The four-electrode conductivity sensor also has a unique advantage in quantity: one is to completely solve the polarization problem in high conductivity test; the other is to solve the problem of inaccurate reading caused by electrode contamination.
Features
- Simultaneous output of conductivity, salinity, TDS, and temperature parameters
- Corrosion-resistant housing with IP68 waterproof rating for long-term underwater operation
- Built-in temperature sensor with automatic temperature compensation
Dimensions
(1)KWS-300A Dimension
(2)KWS-300B Dimension
Wiring
Red——power supply (VCC)
White——485 data _B (485_B)
Green——485 data _A (485_A)
Black——GND
| Model | KWS-300A | KWS-300B |
|---|---|---|
| Conductivity Range | 0-200mS/cm (0-2mS/cm, 2-20mS/cm, 20-200mS/cm) | |
| Accuracy | ±1% or 0.01mS/cm (which is bigger) | |
| Salinity Range | 0-175ppt | |
| Accuracy | ±1ppt | |
| TDS Range | 0-128000mg/L | |
| Response Time | ＜10s | |
| Ip Grade | IP68 | |
| Max. Pressure | 6 bar | |
| Sheath Material | Titanium | |
| Operating Temperature | 0~50℃(no freezing) | |
| Output | RS485, Modbus | |
| Power Consumption | 0.2W (Recommended power supply: DC 9–24V, >500mA) | |
| Sensor Dimension | φ22mm*175.5mm | φ22mm*165.8mm |
| Assembly | NPT3/4 male thread | Connect with multi-parameter host |
| Cable Length | 10 meters (default), customizable | None |
| Calibration | support one point or two-points calibration | |
| Casing Material | Titanium+PEEK | |
