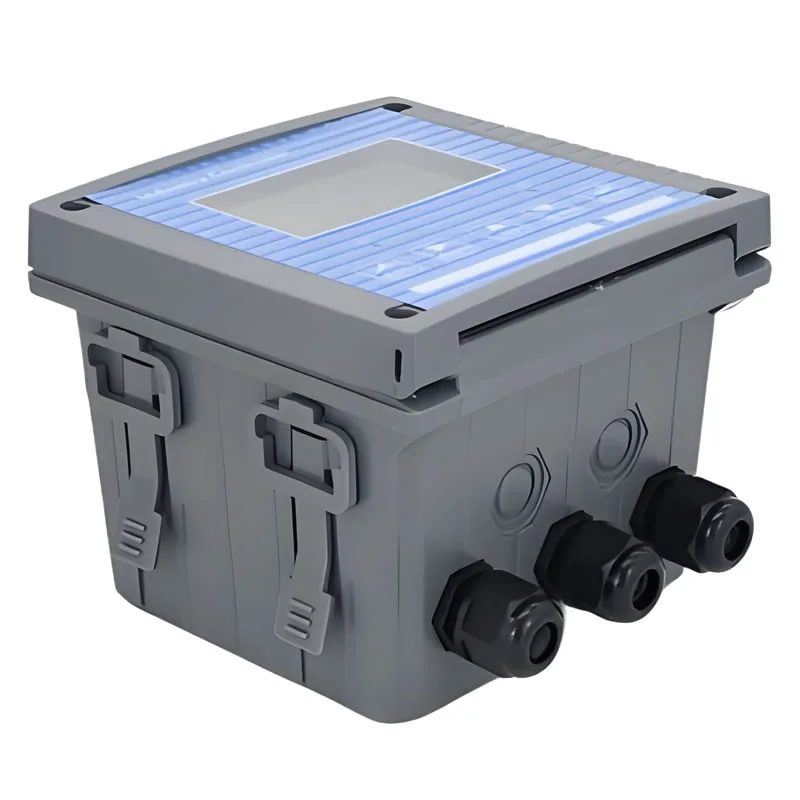

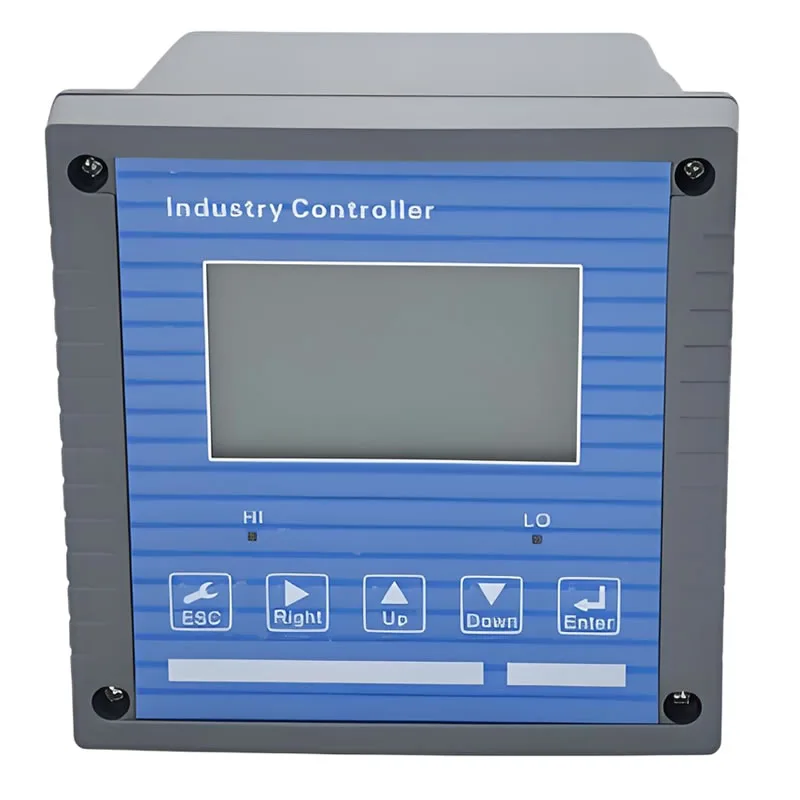

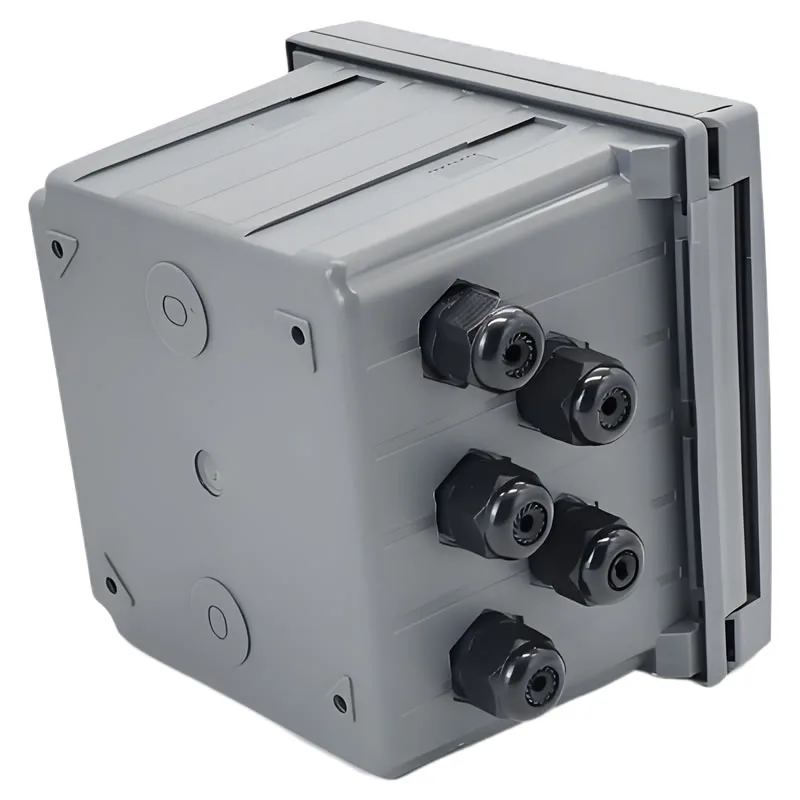

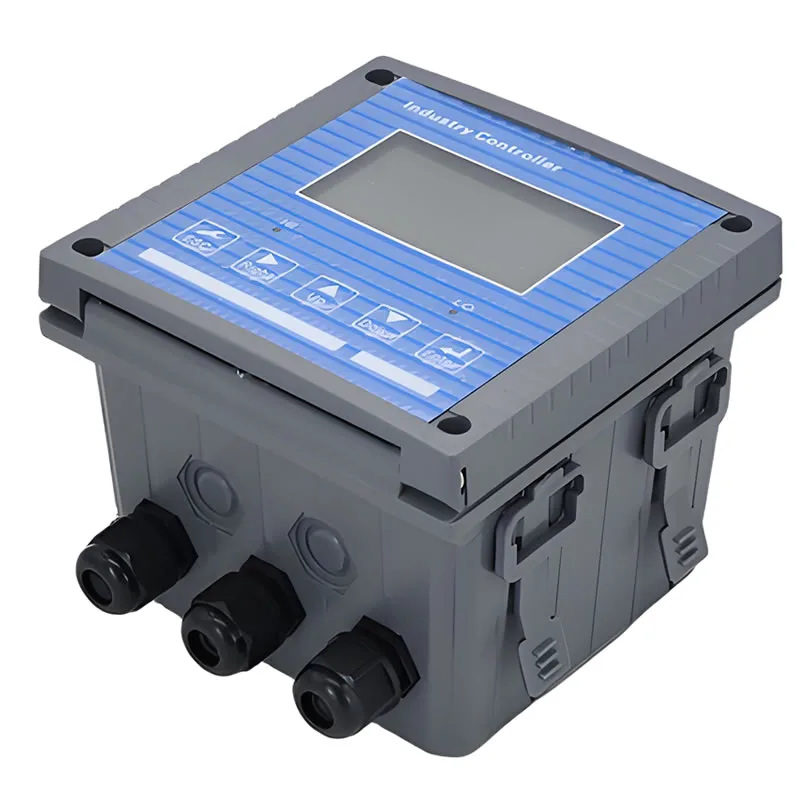

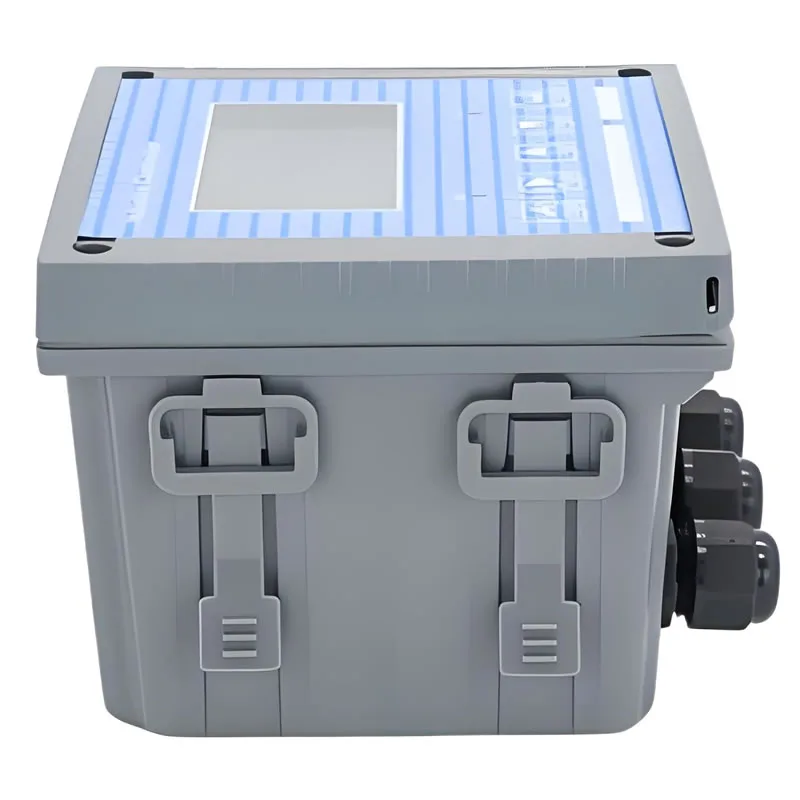

KWC-100C Online Infrared CO2 Meter
Infrared Water CO2 Monitor
Description
Description
Introduction
This industrial online infrared CO2 meter is a brand-new intelligent controller. The product is highly intelligent and flexible and is widely used in aquaculture, urban sewage treatment plants, electric power, water supply, medicine, chemical industry, food and other industries.
Feature
- Large screen display interface, eye-catching and convenient
- Digital communication function,isolation technology and strong anti-interference ability.
- Relay alarm setting function, and the hysteresis amount can be adjusted freely to avoid frequent switching of relays.
- Password management function to prevent misoperation by non-professionals
- Menu prompt function to facilitate user operation
- The 4-20mA current outputoptional.
| Parameter | Specification |
|---|---|
| Range | CO2 (0-5000ppm)/or customized |
| Accuracy | ±20ppm or ±5%FS true value, whichever is greater |
| Resolution | ±1ppm |
| Signal output | RS485 isolated output. (4-20mA output optional) |
| Alarm output | normally open contact relay (3A/250VAC) |
| Power Supply | AC 220V |
| Power consumption | 3W |
| Environmental conditions | Temperature 0～60 ℃ Humidity ≤85%RH |
| Dimension | 144×144×115mm (height×width×depth) |
| Hole size | 138×138mm (height×width) |
