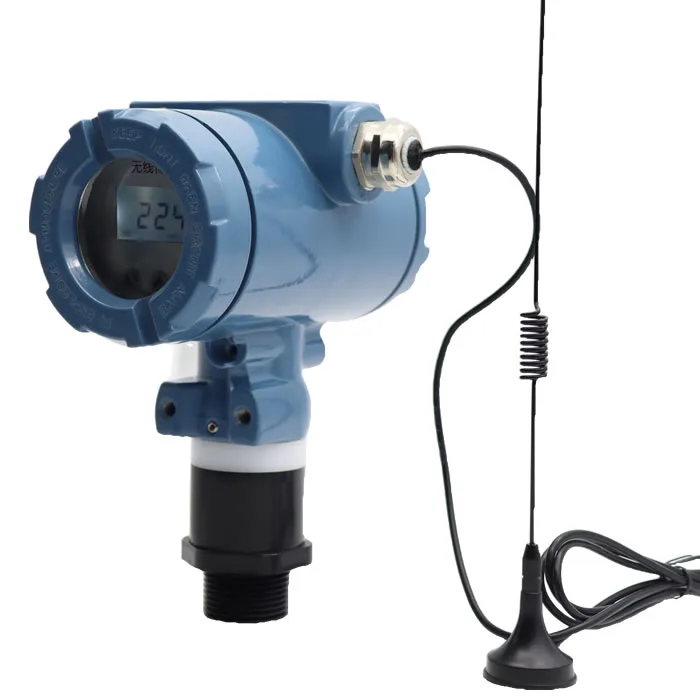

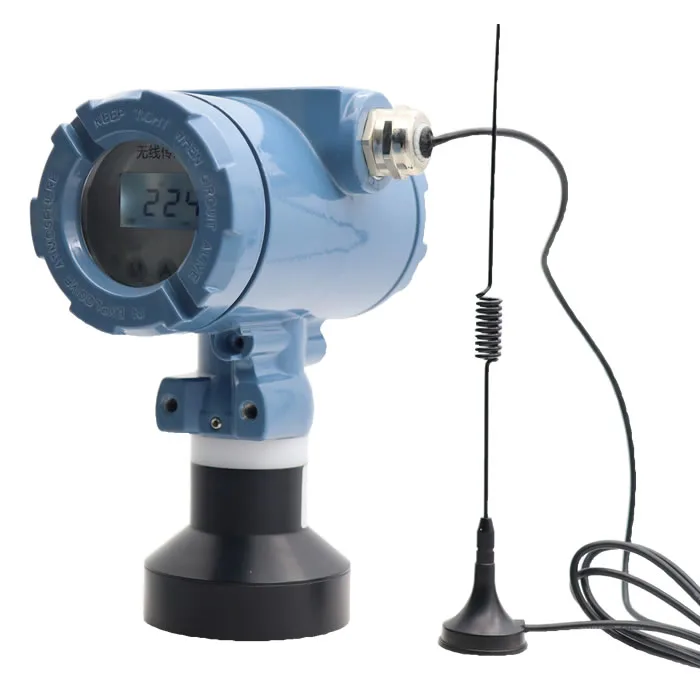

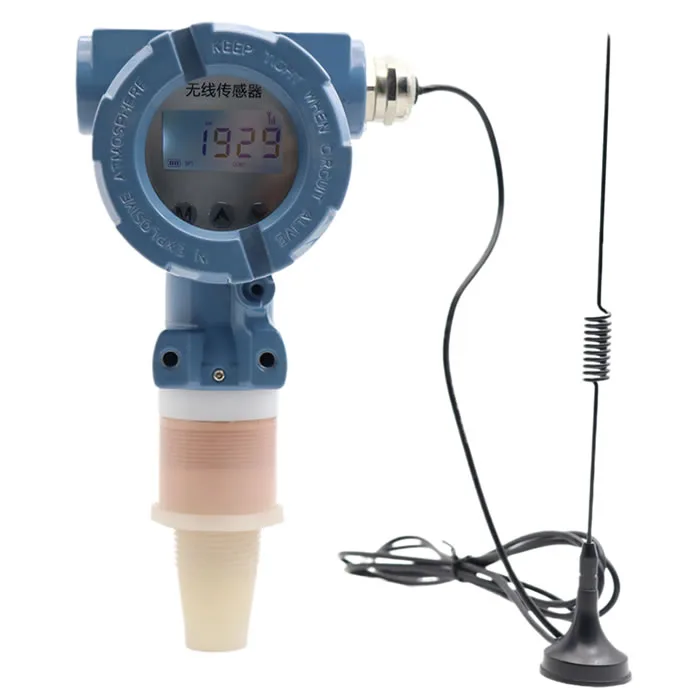

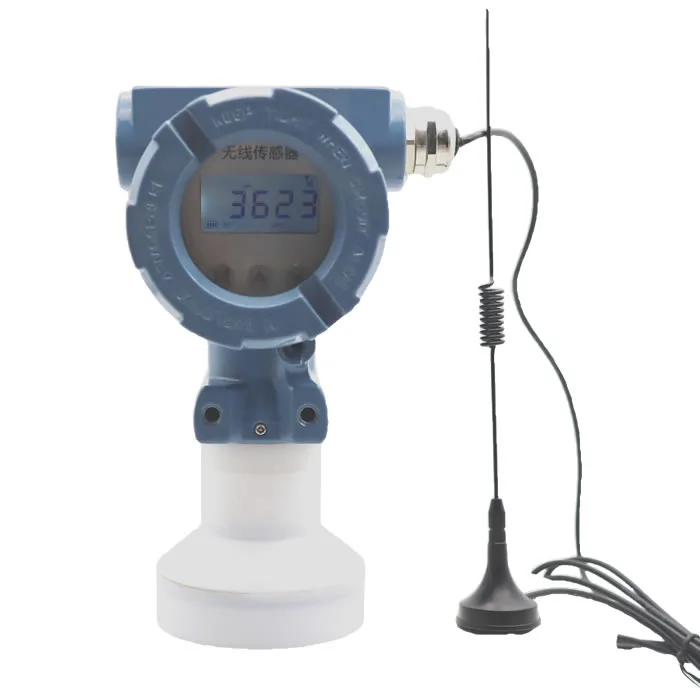

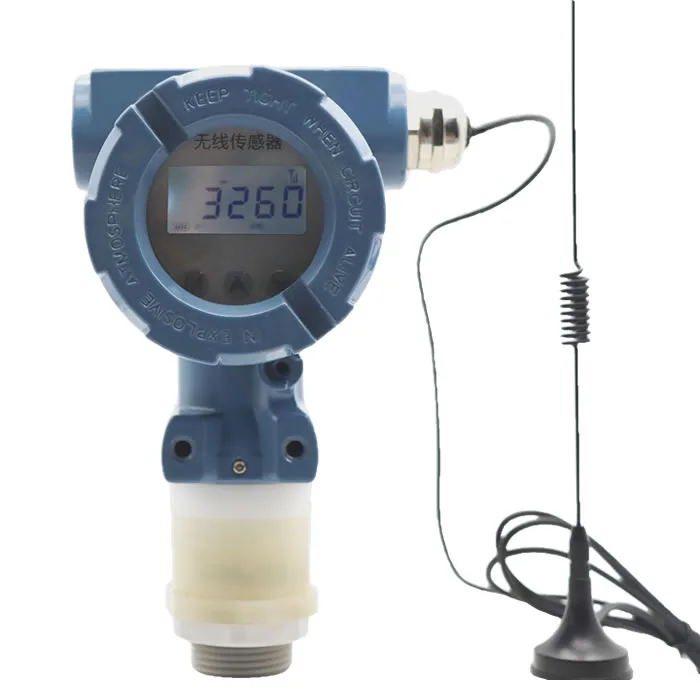

KUS650 Ultrasonic Distance Level Sensor

Description

Product overview of Ultrasonic Distance Sensor

The KUS650 Wireless Ultrasonic Level Sensor is an intelligent digital display device developed by our company. It stands out for its high precision and remarkable stability, making it an ideal solution for real-time monitoring and display of liquid levels and material levels.

This product is equipped with a specialized wide-temperature liquid crystal display and a highly stable sensor. Through meticulous implementation of precise digital temperature compensation and nonlinear correction technologies during the manufacturing process, it ensures the accuracy and consistency of liquid level and material level measurements.

The integrated wireless module leverages the network infrastructure to offer users a wireless long-distance and low-power data transmission solution. It enables the seamless real-time transfer of all sensor status data to the cloud-based background management server. This functionality allows for seamless integration with the smart cloud platform, facilitating alarm linkage and in-depth data statistical analysis.

Product Features of Ultrasonic Distance Sensor

Power: Two DC3.6V primary lithium sub-battery
Wireless transmit power: <23 dBm
Receive sensitivity: <-135 dBm
Theoretical bandwidth: 200Kbs
Support wireless transmission of alarm status to server, configurable server address and port
Using precise digital temperature compensation and nonlinear correction technology, wide temperature range and full scale precision compensation;
Multiple data type indication (percentage, output current display);
Special wide temperature LCD display (-30℃～80℃);
Provide a variety of power supply methods at the same time;
Vertical installation or axial installation, providing a variety of liquid level/level interfaces and interface materials;
LCD with parameterization and three setting buttons.
According to user needs and site conditions, the collection frequency and collection time interval can be set.
Battery power monitoring, when the power is insufficient, the meter screen will flash and report to the centralized management platform at the same time.
Water pressure/water level alarm threshold can be set and modified according to actual needs.
Water pressure/water level alarm threshold automatically alarms.

Application of Ultrasonic Distance Sensor

KUS650 series is used to indicate and monitor the changes of water pressure/water level value at the installation site, and upload the real-time data to the centralized management platform through the built-in wireless transmission module, which is convenient for users to manage intelligently and centralizedly. It is mainly used in the following industries:

Fire water system
City water supply
Sewage treatment
Long-distance heating
Food industry
Chemical, energy

Precautions:

If you need to calibrate the instrument, please contact our company. Non-professionals are not allowed to calibrate the instrument.
When calibrating the watch, please turn on the watch first, and then calibrate after 1 hour of constant temperature.
Parameter setting

Appendix: Influence of Side Lobe Effect on Ultrasonic Sensor Installation

Parameter	Specification
Range	20-4000mm（customizable）
Accuracy	±0.15%FS/ 0.15℃
Temperature Compensation	-10℃～70℃
Vibration Effects	< ± 0.05％/g， all directions 500Hz （IEC 68 -2-64）
Environmental Conditions
Ambient Temperature	-25～+85℃
Storage Temperature	-40～+85℃
IP Grade	IP65
Electromagnetic Compatibility	EN 61326/A2 Appendix A （2001 ）
Display and Controller
Display	SFTN LCD, white backlight, 5-digit display
limit value	Free setting
Parameter Setting	Using 3 buttons
Unit	mm, default is m。
Weight	Around 1.35kg
Materials of non-wetted parts
Connector	1NPT，stainless steel，length 20mm（customizable）
Electrical Connections	Watertight connector, air vent cable entry according to EN 175301-803A
Measurement Period	≤ 100ms
