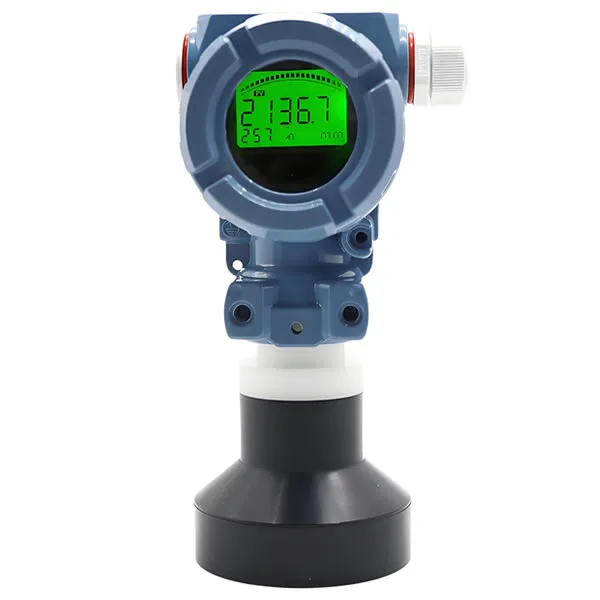

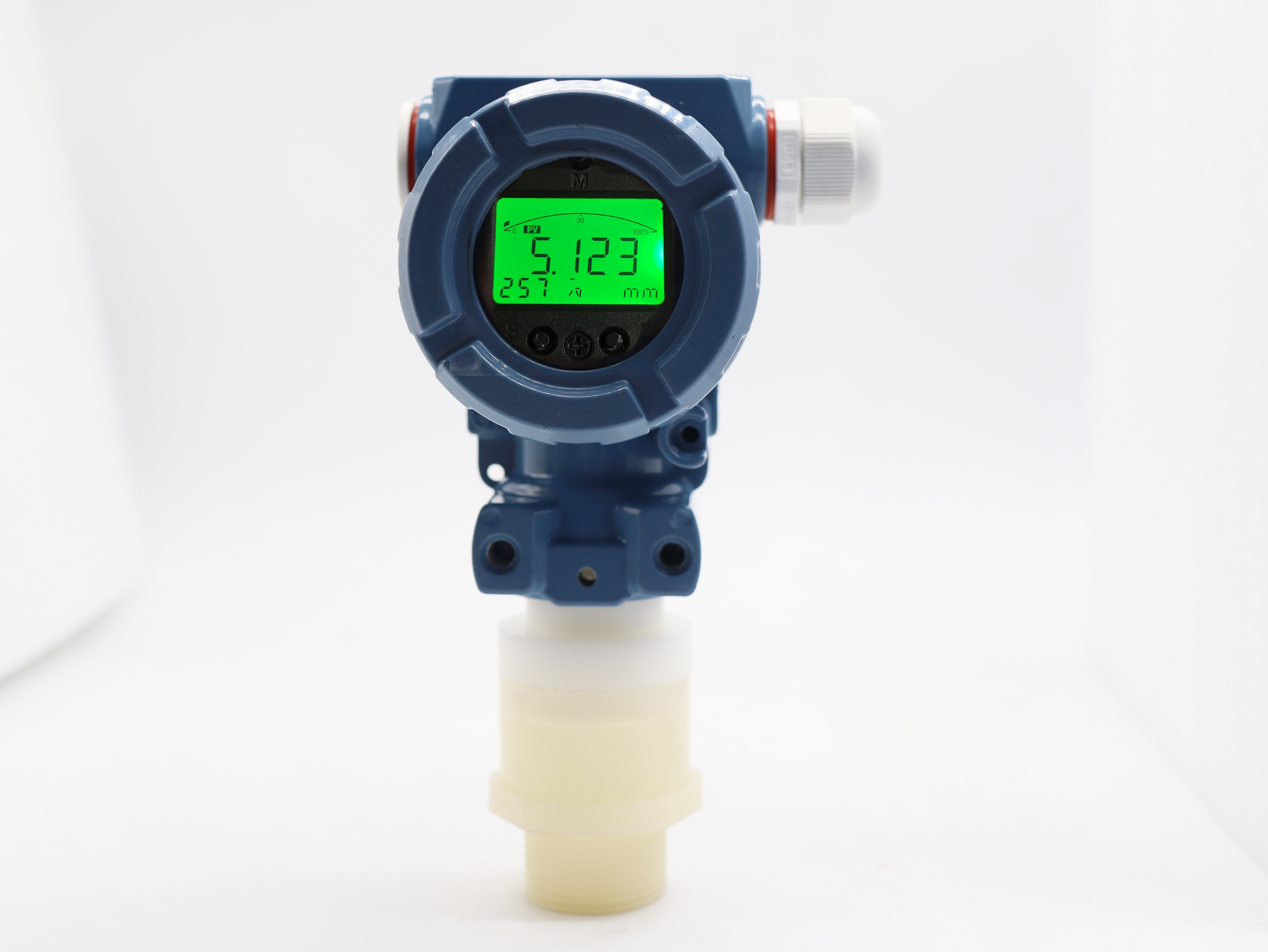

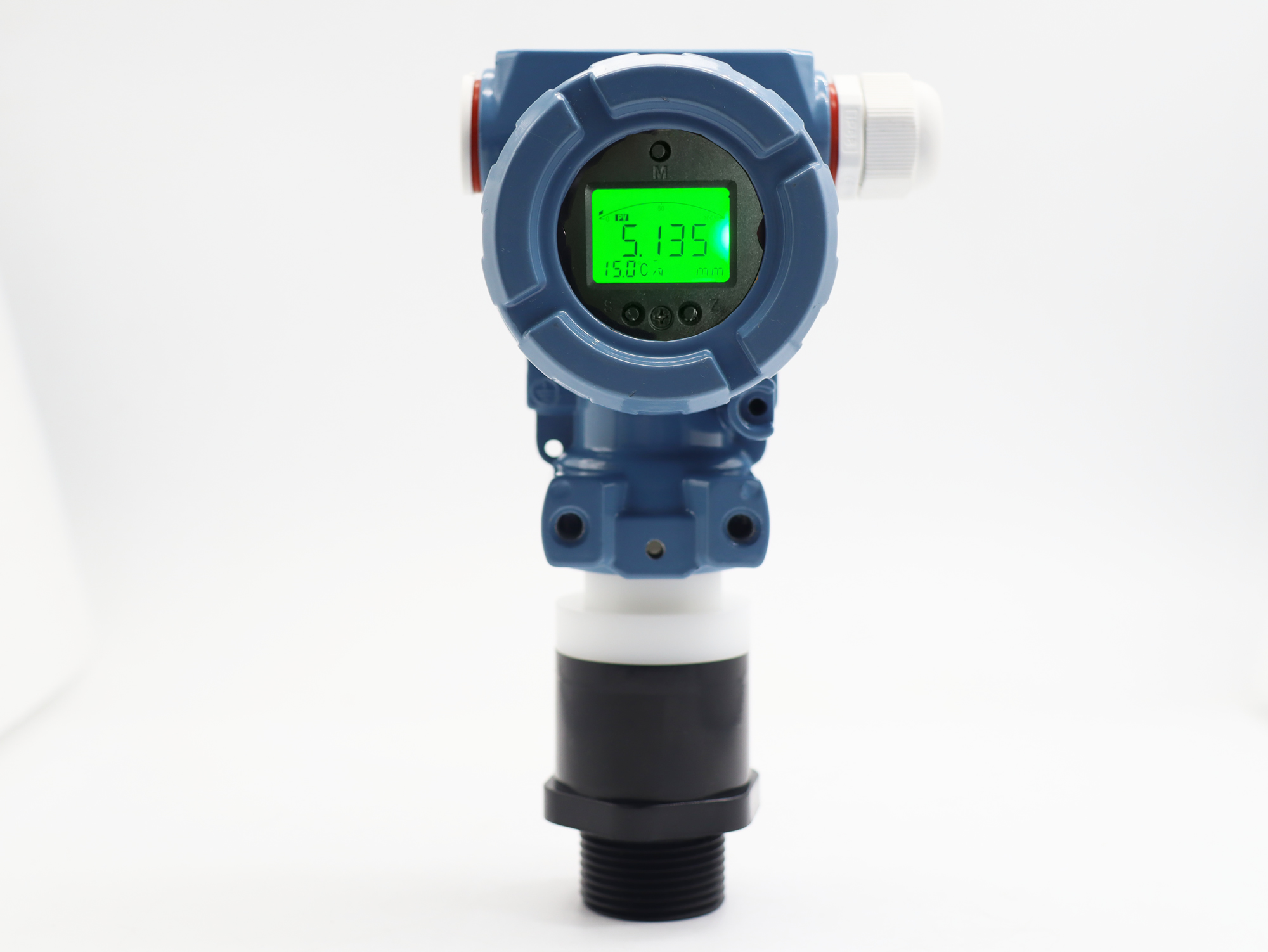

KUS640 Integrated Ultrasonic Level Sensor
Compact Integrated Ultrasonic Level Sensor
Description
Description
Ultrasonic level sensor | Ultrasonic level distance sensor Introduction
KUS640 series intelligent ultrasonic level sensor is a level gauge product with on-site display and 4-20mA remote transmission 485 remote transmission launched by our company.
Features

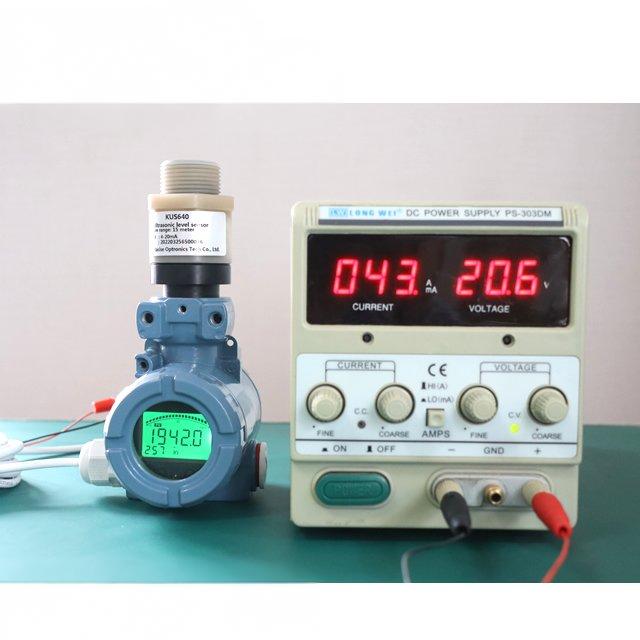

- Power supply: 24VDC, customized support 12-24VDC
- Special wide temperature LCD display (-30℃～80℃);

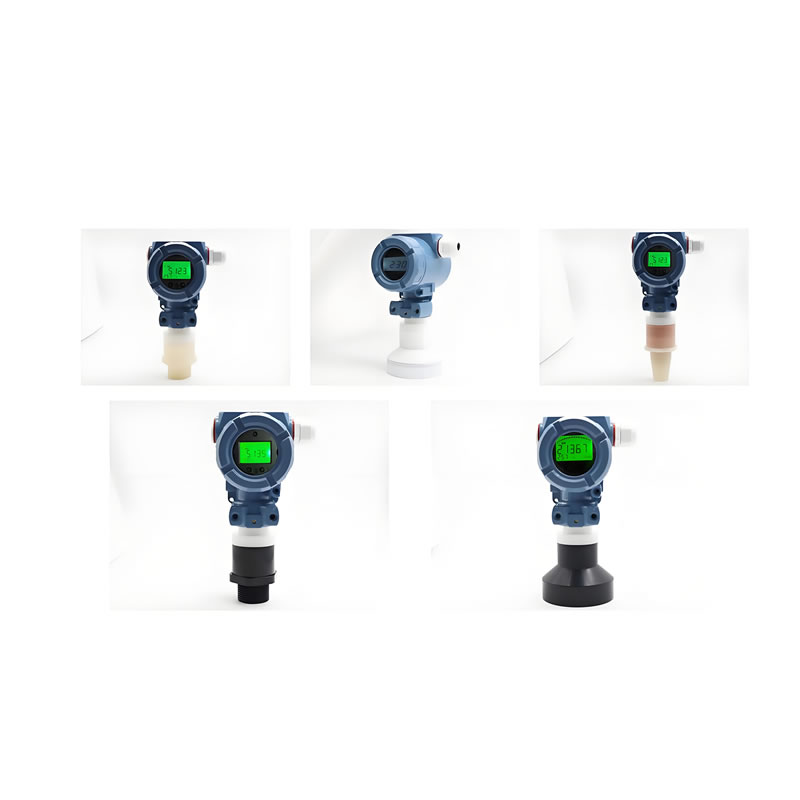

- Vertical installation or axial installation, providing a variety of liquid level/level interfaces and interface materials;
- LCD with parameterization and three setting buttons.
Application
KUS640 series is used to indicate and monitor the changes of water pressure/water level value at the installation site, and upload the real-time data to the centralized management platform through the built-in wireless transmission module, which is convenient for users to manage intelligently and centralizedly. It is mainly used in the following industries:
• Fire water system • City water supply
• Sewage treatment • Long-distance heating
• Food industry • Chemical, energy
Order information
| KUS | Model | Output | Range | Describe | |
| 640 | Product series model | ||||
| Custom | |||||
| — | without output | ||||
| 4-20mA | 4-20mA | ||||
| RS485 | RS485 (default) | ||||
| XXX mm | XXX mmIt means the maximum measurement distance is 1m-50m can be customized | ||||
| YYY mm | YYY is the length of the split order cable, the default is 1.2 meters | ||||
| KUS | 640 | 4-20mA | 3000mm | ||
| Parameter | Specification |
|---|---|
| Input | |
| measured variable | liquid level、 material level |
| measuring range | 150mm-1000mm（Can be customized according to requirements） 200mm-3000mm/300mm-6000mm/300mm-12000/600mm-20000mm/1.2m-30m/1.8-50m |
| Output | |
| comprehensive precision | RS485/4-20mA，±1%FS/ 0.15℃ |
| temperature compensation | -10℃～70℃ |
| vibration effect | <±0.05％/g，500Hz in all directions |
| Rated conditions Environmental conditions | |
| environment temperature | -25～+85℃ |
| storage temperature | -40～+85℃ |
| level of protection | IP65，accord with EN 60529 |
| electro magnetic compatibility | EN 61326/A2 Appendix A （2001 ） |
| Display and control | |
| display | SFTN LCD, green backlight, 5-digit display |
| limit value | free setting |
| parameter setting | Use 3 keys |
| units | mm, The default unit is mm |
| weight | about 1.35 kg |
| Non-wetted component material | |
| connector | 1NPT，stainless steel，The length of 20 mm（materials and joint specifications can be customized）。 |
| electrical connection | waterproof joint, vent cable inlet in accordance with EN 175301-803A standard |
| measurement period | The default is ≤200ms, which can be set by the user |
