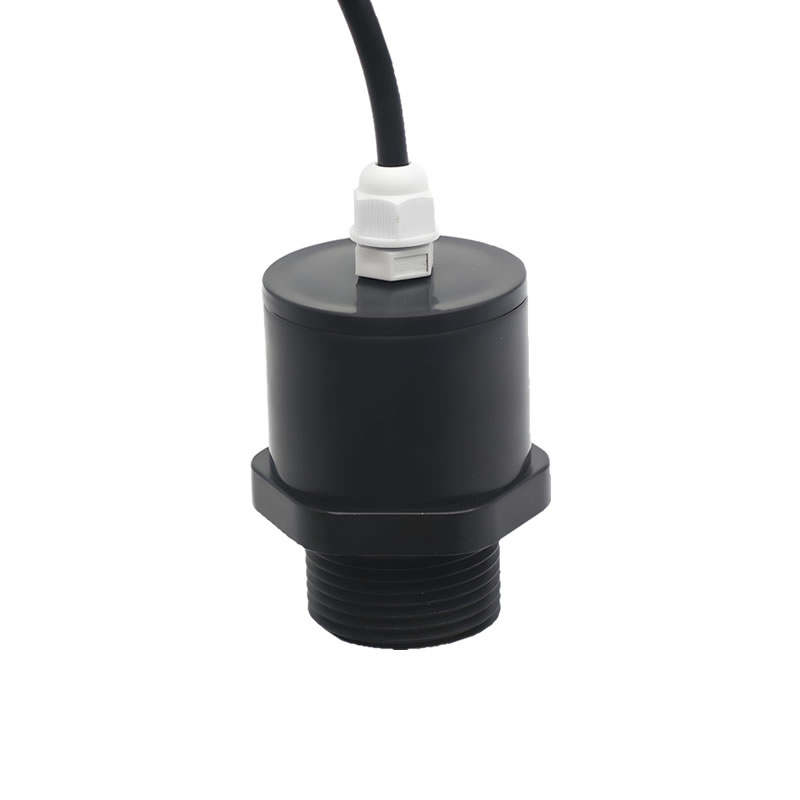

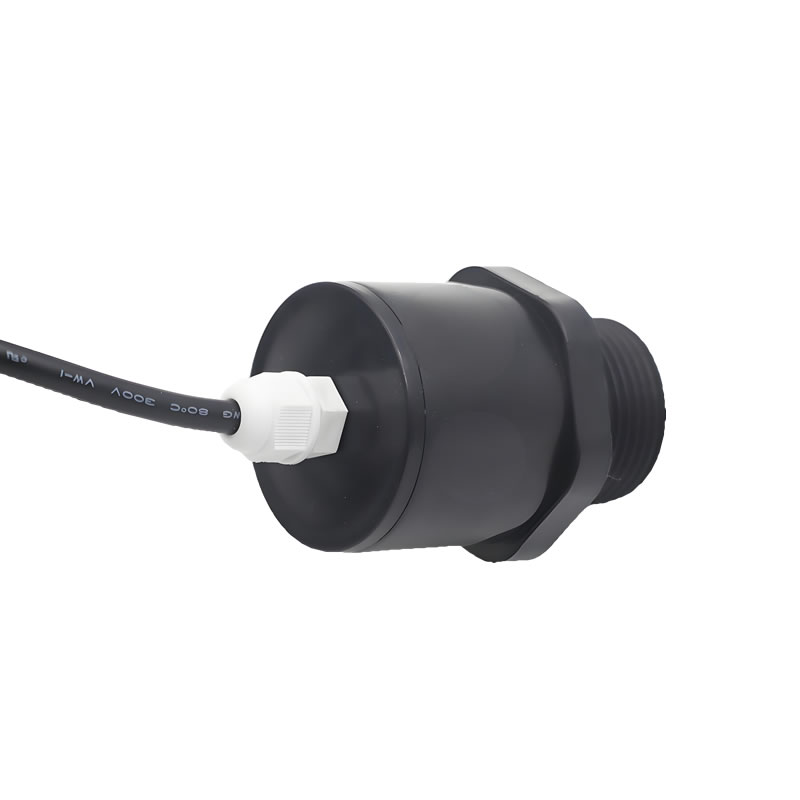

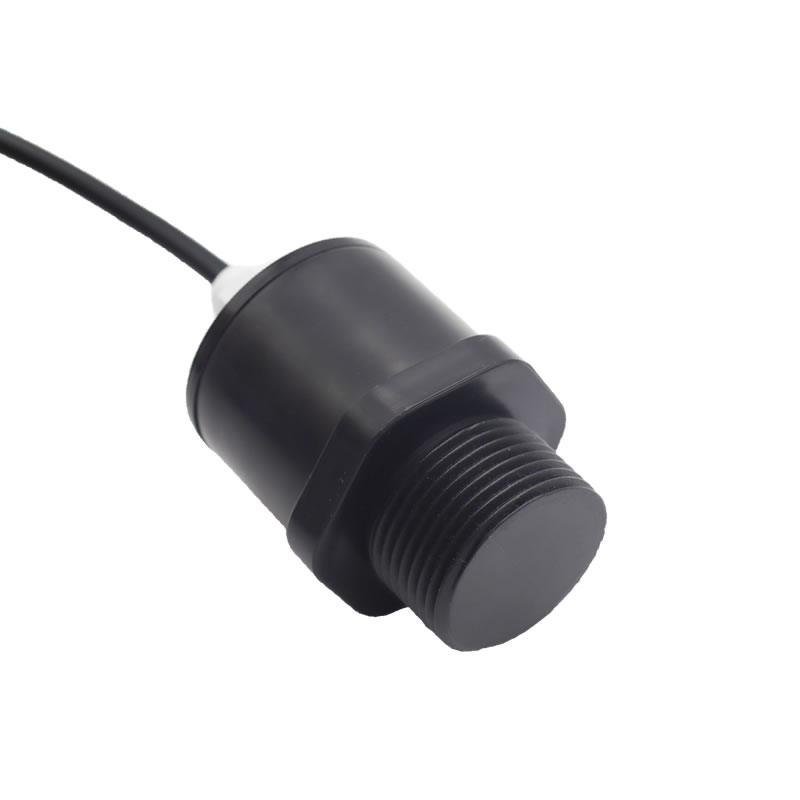

KUS550 Ultrasonic Water Level Sensor

Description

1. Ultrasonic water level distance sensor Features

Ultrasonic water level Sensor
High sensitivity.
Compact and robust structure.
IP68 high protection rating.
Corrosion resistant casing, suitable for corrosive medium and application

2. Ultrasonic water level sensor Dimension

Unit in the diagram is mm.

Analogue / switch output

The analog/switch output can be set through RS485, and the sensor can work in 8 modes. The specific reference is as follows:
Step 1, connect to the host computer through the serial port debugging assistant or modbus poll debugging assistant.
Step 2, set a near reference distance point.
Step 3, set a far reference point
Step 4, set the output voltage or current of the near reference point.
Step 5, set the output voltage or current of the far reference point.
Step 6, set the analog output to switch characteristic selection.
Step 7, set the analog output to linear output or switch output selection.
Step 8, reset the sensor to make the new parameters effective.

The 8 working modes of switch output are as follows:
1: Window mode is on by default
2: Window mode is off by default
3: Single point mode is on by default
4: Single point mode is off by default
5: Single point hysteresis mode is on by default
6: Single point hysteresis mode is off by default
7: Presence detection mode is on by default
8: Presence detection mode is off by default

RS485 output data

RS485 output data is in MODBUS-RTU format. Please refer to the KUS550 Modbus protocol manual for details.

4. Installation conditions

If the sensor is installed at the environment temperature fall below 0℃, It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.

5. Ordering information

K US	Model	Output_ _	Max range	Description
	550
	Customized
		SW	Switch Output
		mA	3 wire 4-20mA output
		10V	Output is Vout 0-10V
		5V	Output is Vout 0-5V
		3V	Output is Vout 0-3V
		RS485	Output is RS485
		TTL	UART TTL output
			XX m	XX m is the maximum range can be detected Default is 2.5m
KUS	550	RS485	2m

Parameter	Specification
Model	KUS550
Measuring Range	1m 3m (4m customizable)
Blind Zone*	0~0.15m@1m, customizable small blind zone version: 0~0.12m 0~0.25m@3m, customizable small blind zone version: 0~0.2m (The small blind zone version requires a power supply voltage of 12V or above)
Supply Voltage	3.3… 30 VDC, 12~30VDC (analog output), ripple 10 %SS
Working Current	≤ 45 mA (fastest measurement speed), typical power consumption 5mA
Output Signal	1. Programmable analog output 0-10V/4-20mA 2. RS485/UART communication 3. Relay switch output/NPN/PNP
Measurement Accuracy	0.5 %~1%F.S.
Temp. Compensation	Yes
Working Conditions
Working temperature	-25…70℃ (248…343K)
Storage temperature	-40…85℃ (233…358K)
Other Instructions
Electrical connection	Default 1.5m long PVC cable
Protection class	IP65 (IP68 customizable)

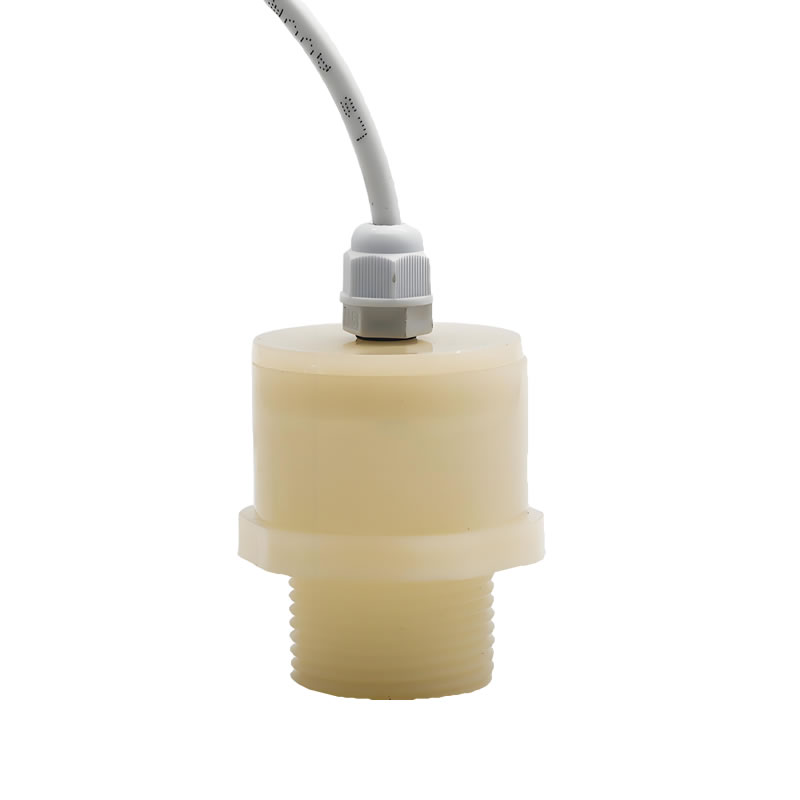

Shell material	PVDF (default) / PTFE / ABS
*The area within the blind zone is an unstable working zone, and it is not recommended to operate within this range.
