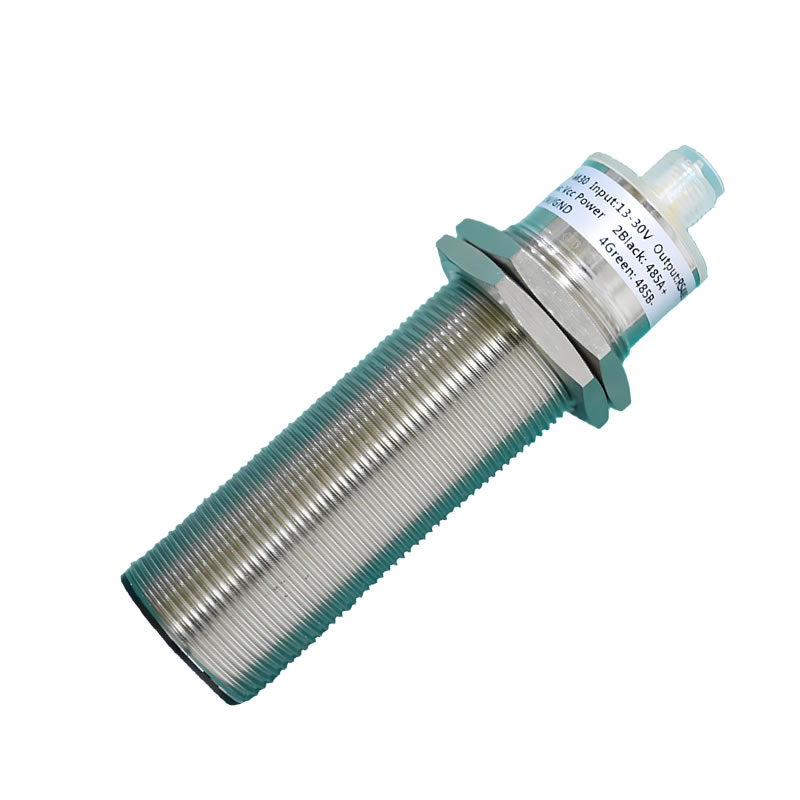

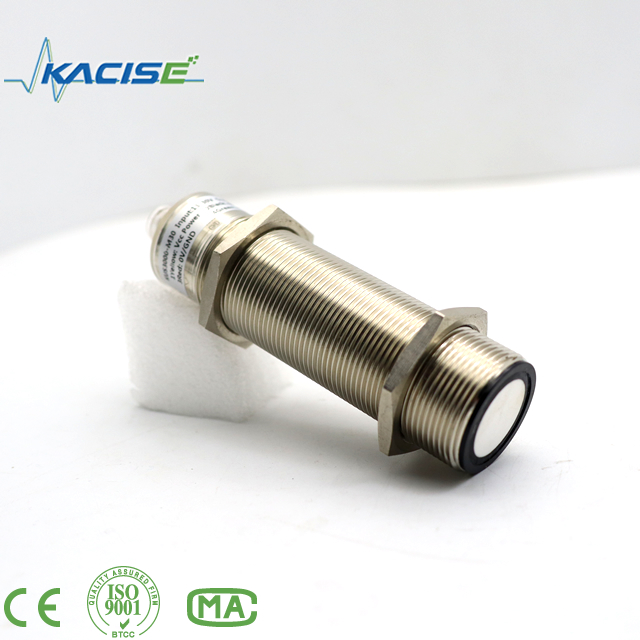

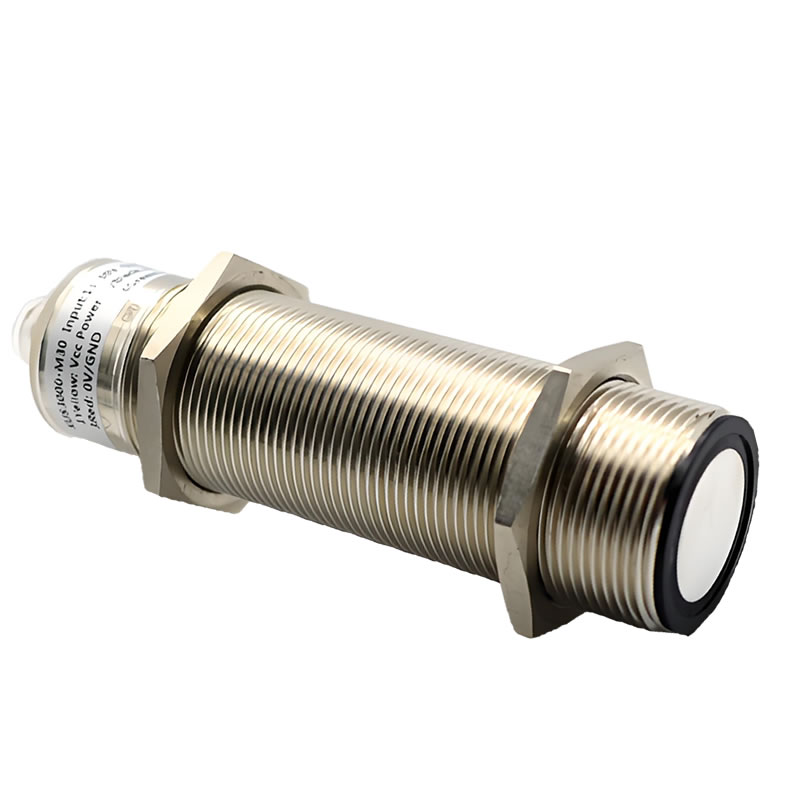

KUS3000 M30-T1 Ultrasonic Level Sensor

Description

Introduction

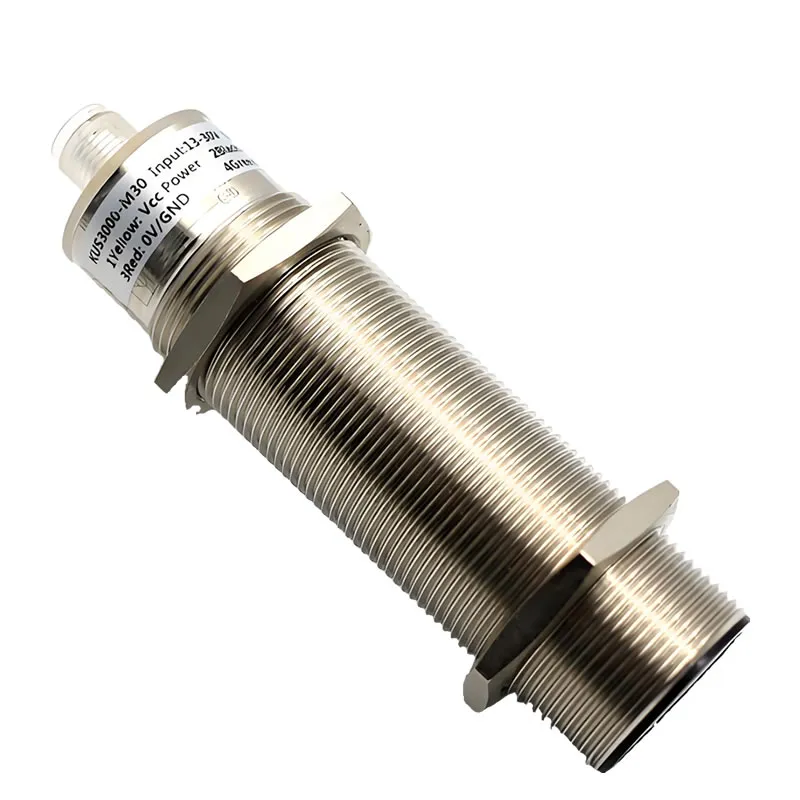

KUS3000 M30-Type1 Ultrasonic Level Sensor is a digital level meter controlled by a microprocessor. It uses ultrasonic technology to measure the distance between the surface of liquid or solid material and the sensor, so as to determine the height of the liquid level or material level.

In addition, it is widely used in industrial production, water treatment, environmental protection, food and beverage, warehousing and logistics, etc. For example, in the chemical industry, it can be used to measure the liquid level of various chemical raw materials; in sewage treatment plants, it can be used to monitor the water level of sewage pools; in the food processing industry, it can be used to measure the liquid level of food raw materials in storage tanks, etc.

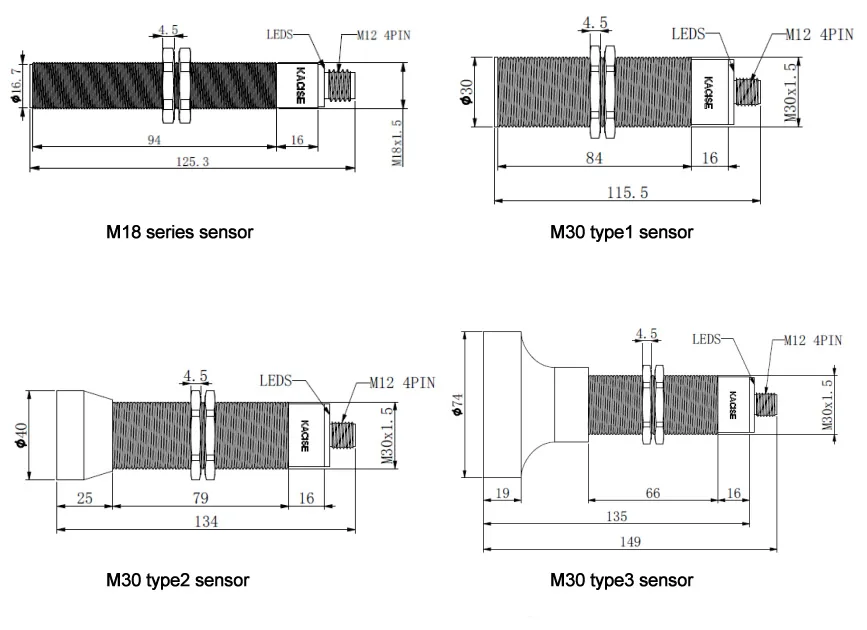

Dimensions

4 pin cable		5 pin cable
Pin1	Brown	Pin1	Brown
Pin2	White	Pin2	White
Pin3	Blue	Pin3	Blue
Pin4	Black	Pin4	Black
		Pin5	Gray

5 pin cable is used solely for sensors with RS485 + 4~20 mA output.

Ordering information

KUS	Type	OUTPUT	Max range		Description
	M18	M18 housing, 1000mm range
	M30-Type1	M30 housing, 2000mm range
	M30-Type2	M30 housing, 4000mm range
	M30-Type3	M30 housing, 6500mm range. 15000mm range customizable
	Customize	The housing supports user customization.
		NPN
		PNP
		10V		Output 0-10V, Power supply: 12-30VDC
		5V		Output 0-5V, Power supply: 12-30VDC
		mA		Output 4-20mA, Power supply: 12-30VDC
		RS485		Output RS485-modbus, Power supply: 3.3V-30V
		RS485+mA		Output 4 – 20mA + RS485, Power: 12-30VDC
				XXX mm	The customer should specify the linear range or switching range, and the settings can be made during factory shipment.
KUS	M18	RS485		1000mm

Appendix: Influence of Side Lobe Effect on Ultrasonic Sensor Installation

Parameter	Specification
KUS3000-M30-type1
Sensing range	200… 2000 mm
Adjustment range	200….2000mm
Unusable area	0… 200 mm
Response delay	approx. 10 ms
Electrical specification
Operating voltage	13… 30 V DC
No-load supply current	≤ 45 mA
Low power consumption model (RS485 output only)
Operating voltage	3.3-12VDC
No-load supply current	≤ 15 mA, sleep mode≤1mA, serial port wake-up,
Output
Output type	1.PNP switching output, switching mode can be calibrated 2.NPN switching output, switching mode can be calibrated 3.Analog 0-10V output, near and far points can be calibrated 4.Analog 4-20mA output, near and far points can be calibrated 5.RS485 output, programmable 6.RS485 + 4-20mA digital and analog output, programmable
Overload current	200 mA, short-circuit/overload protected
Default setting	M18: Near point A1: 150mm, Far point A2: 1000mm M30 type 1: Near point A1: 200mm, Far point A2: 2000mm M30 type 2: Near point A1: 300mm, Far point A2: 4000mm M30 type 3: Near point A1: 400mm, Far point A2: 6500mm
Voltage drop	≤ 2.5 V
Repeat accuracy	0.5%-1 %
Switching frequency	≤ 13 Hz (high frequency version customizable)
Range hysteresis	5 % of the set operating distance
Temp. compensation range	-40℃-85℃
Ambient condition
Ambient temperature	-25…70℃ (248…343K)
Storage temperature	-40…85℃ (233…358K)
Mechanical specification
Connection	M12×1 connector, 4-pin M12×1 connector, 5-pin
Protection	IP65, other customizable
Casing material	Nickel-plated copper, other customizable
