KUFS2000A2 Clamp-On Ultrasonic Flow Meter
Wall-Mount Clamp-On Flow Meter
Description
Description
Introduction
The KUFS2000A2 flow meter can be installed on the wall or in instrument box, protection grade is IP67.Clamp on sensors are fixed on the pipe by steel belt. Suitable for pipe sizes from DN32 mm to DN6000 mm.

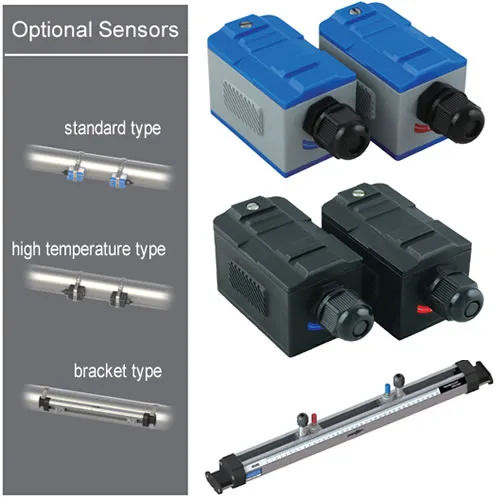

Standard Clamp On Sensor
- Built-in magnet, easy to be absorbed on pipe
- IP68
- Measuring range: DN32~DN6000
- Temperature range: – 30~90℃
| Type | Model | Measuring Range | Temperature | Dimension |
| Small Size | TS-2 | DN32~DN100 | – 30~90℃ | 45×25×28mm |
| Middle Size | TM-1 | DN50~DN700 | – 30~90℃ | 64×39×44mm |
| Large Size | TL-1 | DN300~DN6000 | – 30~90℃ | 97×54×53mm |
High Temperature Clamp On Sensor
- Built-in magnet, easy to be absorbed on pipe
- IP68
- Measuring range: DN32~DN6000
- Temperature range: – 30~160℃
| Type | Model | Measuring Range | Temperature | Dimension |
| Small Size | TS-2-HT | DN32~DN100 | – 30~160℃ | 45×25×28mm |
| Middle Size | TM-1-HT | DN50~DN700 | – 30~160℃ | 64×39×44mm |
| Large Size | TL-1-HT | DN300~DN6000 | – 30~160℃ | 97×54×53mm |
Mounting Bracket Clamp On Sensor
- Improve installation efficiency and accuracy
- IP68
- Measuring range: DN32~DN700
- Temperature range: – 30~160℃
| Type | Model | Measuring Range | Temperature | Dimension |
| Standard Small Size Sensor | HS | DN32~DN100 | – 40~90℃ | 318×59×85mm |
| Standard Middle Size Sensor | HM | DN50~DN300 | – 40~90℃ | 568×59×85mm |
| Extended (bracket only) | EB-1 | ＞DN300 | – 40~90℃ | 88×59×49mm |
| High Temp. Small Size Sensor | HS-HT | DN32~DN100 | – 40~160℃ | 318×59×145mm |
| High Temp. Middle Size Sensor | HM-HT | DN50~DN300 | – 40~160℃ | 568×59×145mm |
| Extended (bracket only) | EB-1-HT | ＞DN300 | – 40~160℃ | 88×59×49mm |
| Parameter | Parameter | |
|---|---|---|
| Working Condition | Main Unit | Sensor |
| Protection | IP67 | IP68 |
| Humidity | ≤85%RH | |
| Temperature | -20~60℃ | -30~160℃ |
| Basic Parameters | ||
| Accuracy | ≤1% | |
| Velocity Range | 0~±10m/s, Bi-directional measurement | |
| Pipe Size | DN32~DN6000 | |
| Temperature | – 30~160℃ | |
| Type of Liquid | Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals, alcohol, etc | |
| Pipe Material | Steel, Stainless steel, Cast iron, Copper, PVC, Aluminum, Glass steel, etc. Liner is allowed | |
| Signal Output | 1 way 4-20mA output(impedance 0~1K, accuracy 0.1%) 1 way OCT pulse output( Pulse width 6 ~ 1000ms) 1 way relay output |
|
| Signal Input | 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. | |
| Interface | RS485, support MODBUS | |
| Data Storage | SD card regularly store the pre-set results (optional) | |
| Power Supply | DC8~36V or AC85~264V | |
Wall Mount Clamp On type Ultrasonic Flow Meter installation
