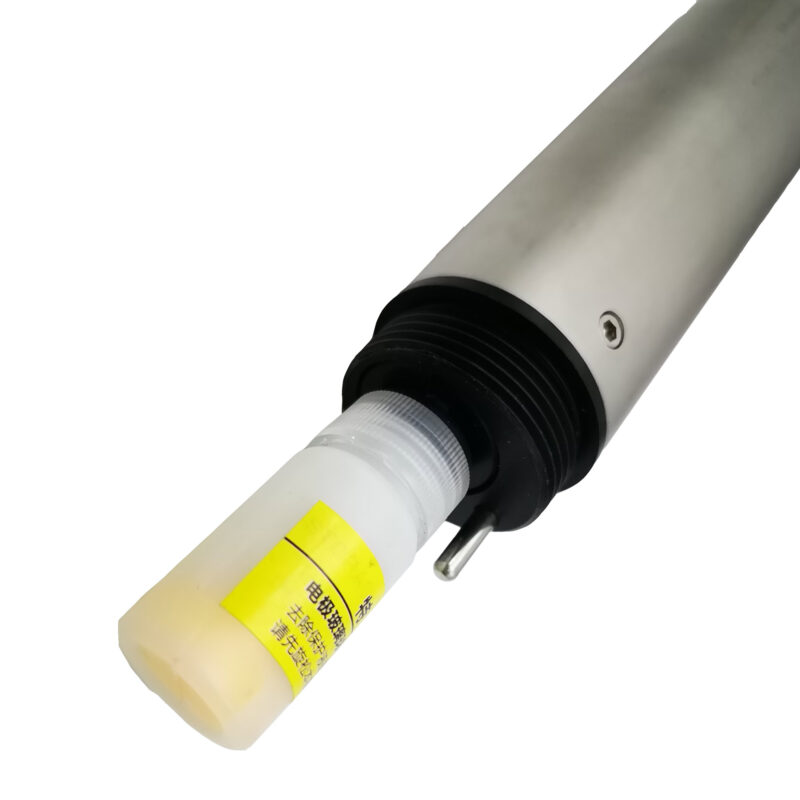

KOP300 Online Modbus ORP Sensor
Online RS485 Modbus ORP
Description
Introduction
KOP300 online ORP sensor is an online water quality analyzer based on digital water quality analysis platform. Integrated design, using industrial online electrode, digital, intelligent analyzer design concept. The functions of electrode signal detection, temperature detection and digital signal conversion are realized in the instrument. RS485 signal output, easy networking, and system integration, widely used in surface water, pollution sources and other industries.
Characteristics of ORP analyzer
Integrated design, anti-electromagnetic interference.

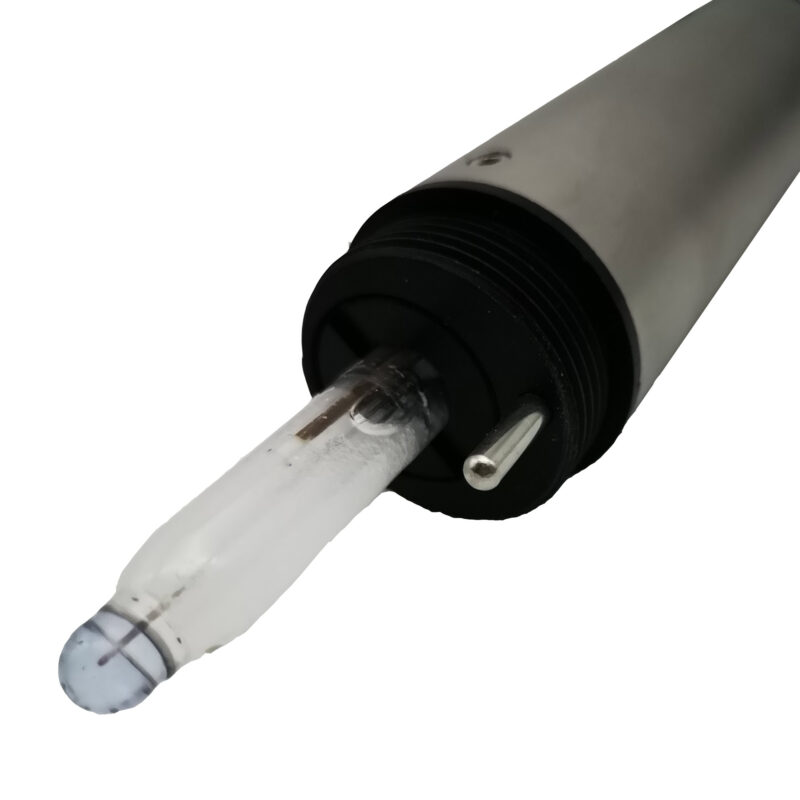

Industrial Online composite electrode, can work stably for a long time.

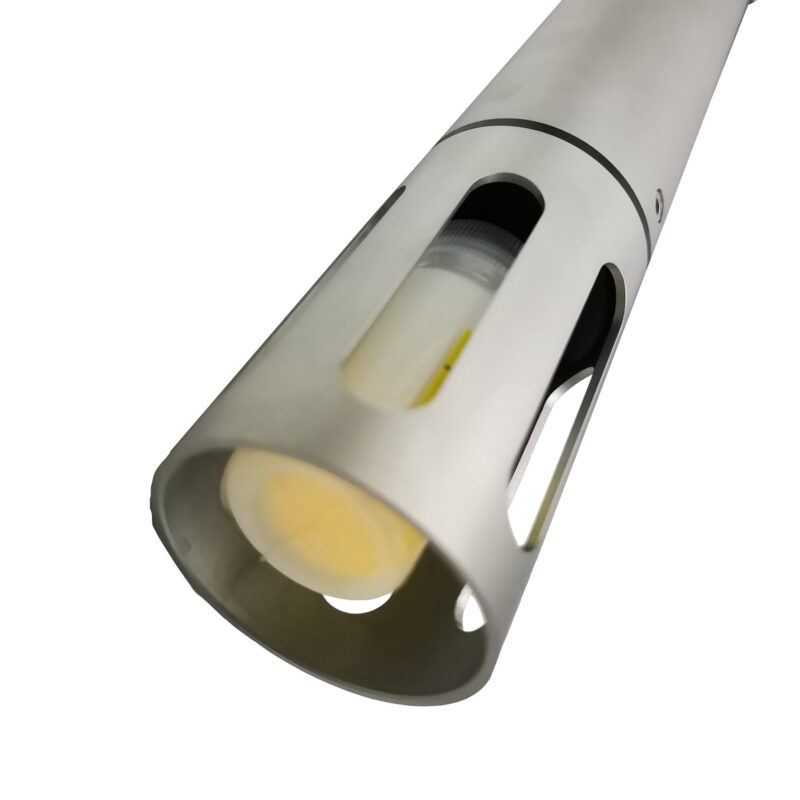

Stainless steel case, IP68 waterproof grade, suitable for various working conditions.
RS485 signal output, Standard Modbus protocol, easy integration, networking.
Technical Specifications
| Model number | KOP300 |
| Measurement parameter | ORP, temperature |
| Method of measurement | Glass electrode method |
| Measurement mode | Immersion measurement |
| Measuring range | ORP: (- 2000 ~ 2000) mV |
| Temperature: (0 ~ 60) °C | |
| Accuracy | ≤ ± 1 mv |
| Repeatability | ≤ ± 1 mv |
| Resolution | 0.1 mv |
| Response time | ≤10s |
| Drifts | ≤ ± 1 mv |
| Calibration period | Six months |
| Temperature range | (0 ~ 60) °C |
| Protection level | IP68 |
| MTBF | ≥1440h/Time |
| Means of communication | RS485(Modbus RTU), maximum baud rate 115200 bps/4-20mA analogue out put |
| Supply voltage | (12/24) V DC |
| Power consumption | < 0.5W |
| Material Quality | Stainless steel, POM |
| Weight | 0.5 kg |
| Contour dimension | 205 mm × φ40 mm |
