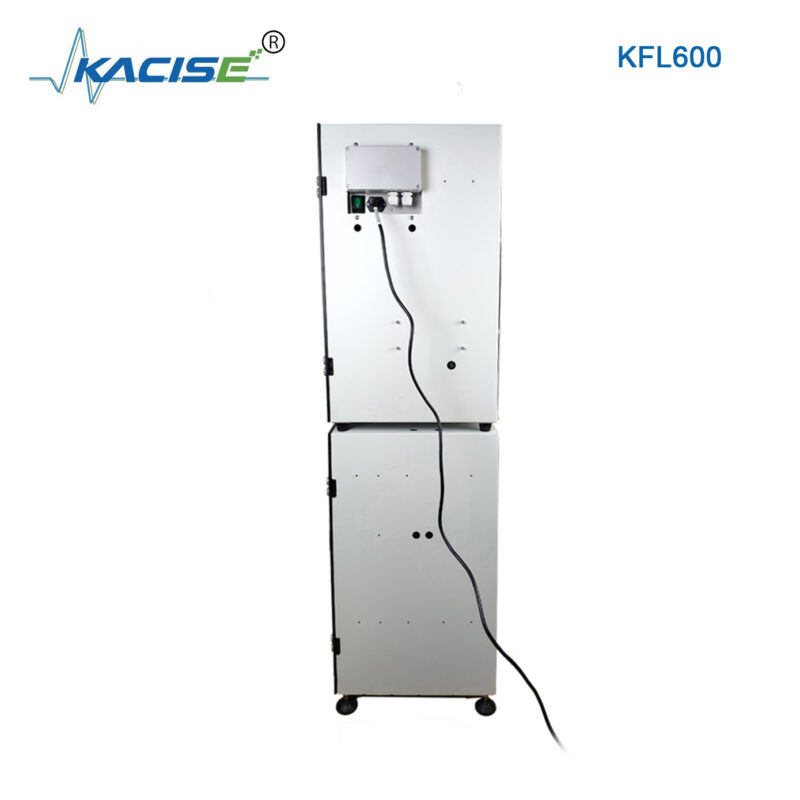

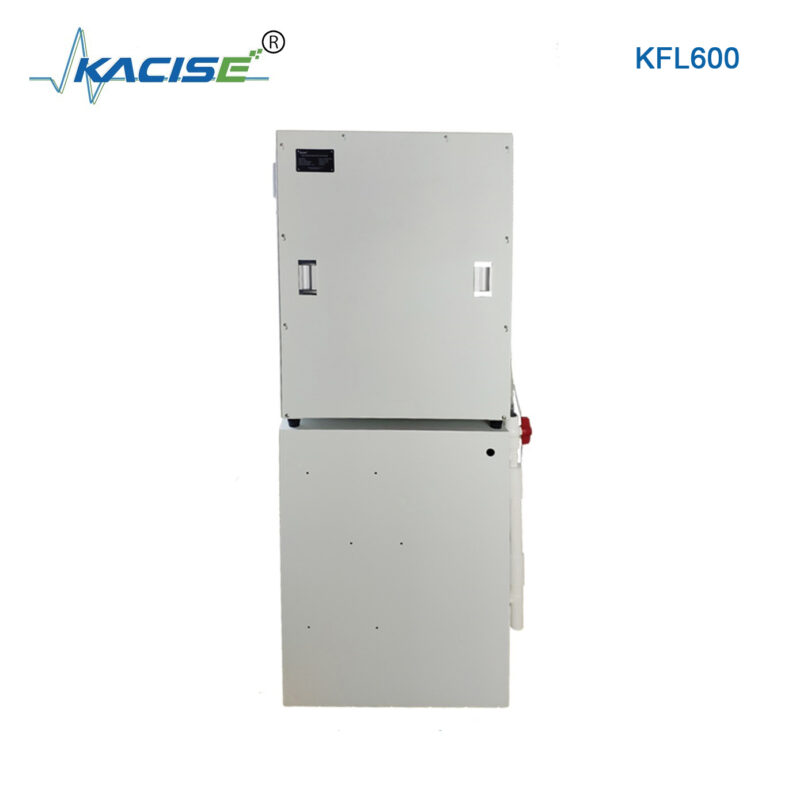

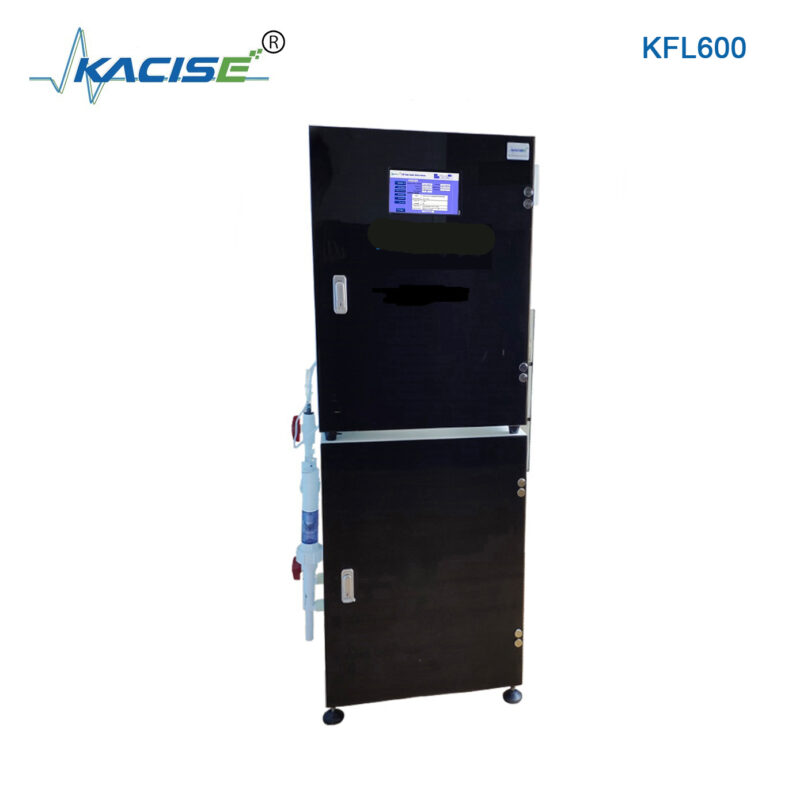

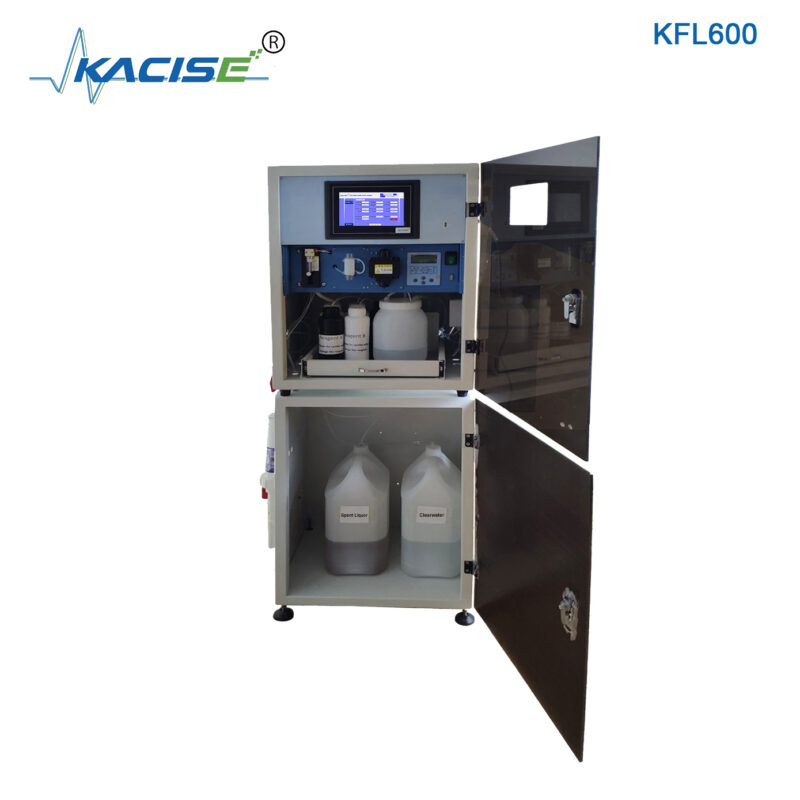

KFL600 Online Fluoride Analyzer
Online Water Fluoride Analyzer
Description
Description
Technical Specifications
| Model | KFL600 |
| Monitoring Factor | Fluoride |
| Method | Fluorinated Spectrophotometer |
| Range | (0.05-80) mg/L expandable |
| Measurement Mode | Manual measurement, continuous measurement, periodic measurement, fixed-point measurement, automatic calibration
measurement, standard solution verification |
| Measurement Period | 30 minutes to 24 hours, with adjustable expansion |
| Zero Drift | ± 5% F. S |
| Range Drift | ± 5% F. S |
| Repeatability | ≤5% |
| Accuracy | ± 5% |
| MBTF | > 720 hours |
| Stored data | Five years of data storage |
| Communication interface | 4-20mA, RS232, RS485, dry contact |
| Contour Dimension | 505 * 395 * 671(mm) |
Principle and Application of Fluoride Analyzer
Fluoride in water mainly in the presence of fluoride ions, fluoride ions and excessive circumstances, fluoride ions will combine with calcium ions in the blood, resulting in insoluble calcium fluoride, which further cause hypocalcemia.
Principle: fluorine ion reacts with fluorine reagent and lanthanum nitrate in acetate buffer medium with PH value of 4.1 to form blue complex. The absorbance of the complex is proportional to the concentration of fluorine ion, and the content of fluorine ion in water is calculated.
It is suitable for laboratory Analyzer or industrial production process water, sewage, urban domestic sewage, river, lake, sea and other surface water testing.
