Jetson MINI CUBE NANO Aluminum Case

Aluminum Cube Protective Jetson Case

Description

Description

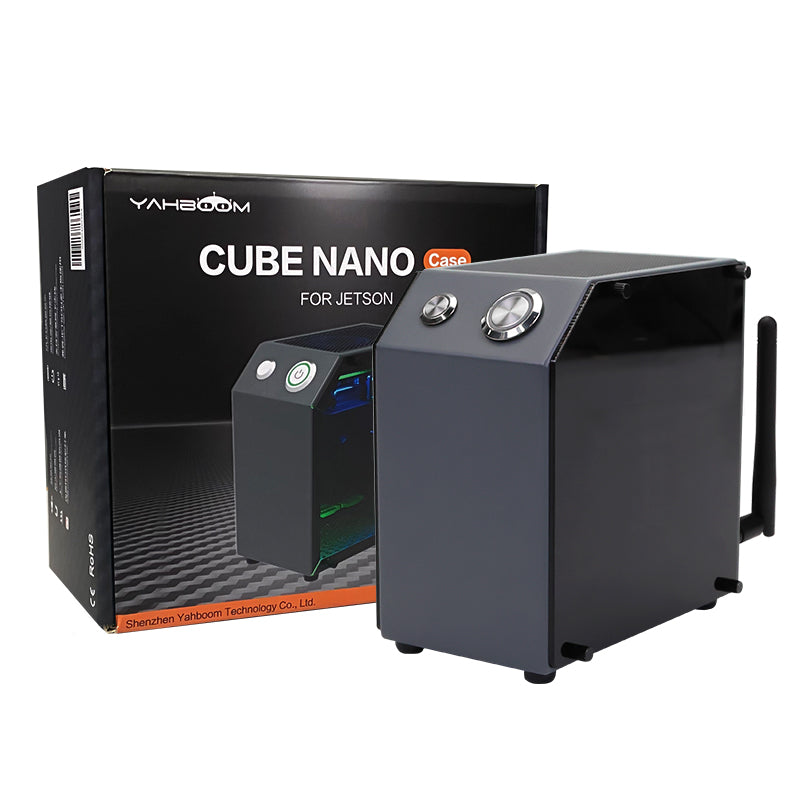

The Jetson MINI CUBE NANO Case

The CUBE NANO case is a protective case specially designed for NVIDIA Jetson development boards. Made of C-shaped metal cold-rolled plate and high-quality acrylic material, it provides comprehensive protection and stable support for Jetson boards. It looks like a mini computer case, with a built-in cooling fan, RGB colorful light bar, OLED display, and power and reset buttons. Compatible with JETSON ORIN NANO SUPER/JETSON ORIN NX SUPER/JETSON NANO BO1/JETSON XAVIER NX/JETSON TX2-NX board.

Features

Powerful protection function: It can effectively prevent the Jetson development board from being damaged by external collisions, dust or other substances, and prolong its service life.

Perfect transparency + OLED real-time display: The side is made of translucent acrylic material, so that you can clearly see the working status of the development board.

Convenient interface: The holes at the rear of the case correspond to the Jetson development board one by one, and the device can be plugged and unplugged without removing the case.

Exquisite heat dissipation design: There are upper and lower double-pass cooling air ducts to ensure that the development board always maintains a stable working state during high-load computing.

The mini protective case is designed for Jetson development board enthusiasts, equipped with cooling fan and OLED screen
The mini protective case is compatible with Jetson official/SUB developer board: ORIN NANO and NX SUPER, NANO B01, XAVIER
The side of The mini cube protective case shows a personalized design: metal texture, exquisite and compact

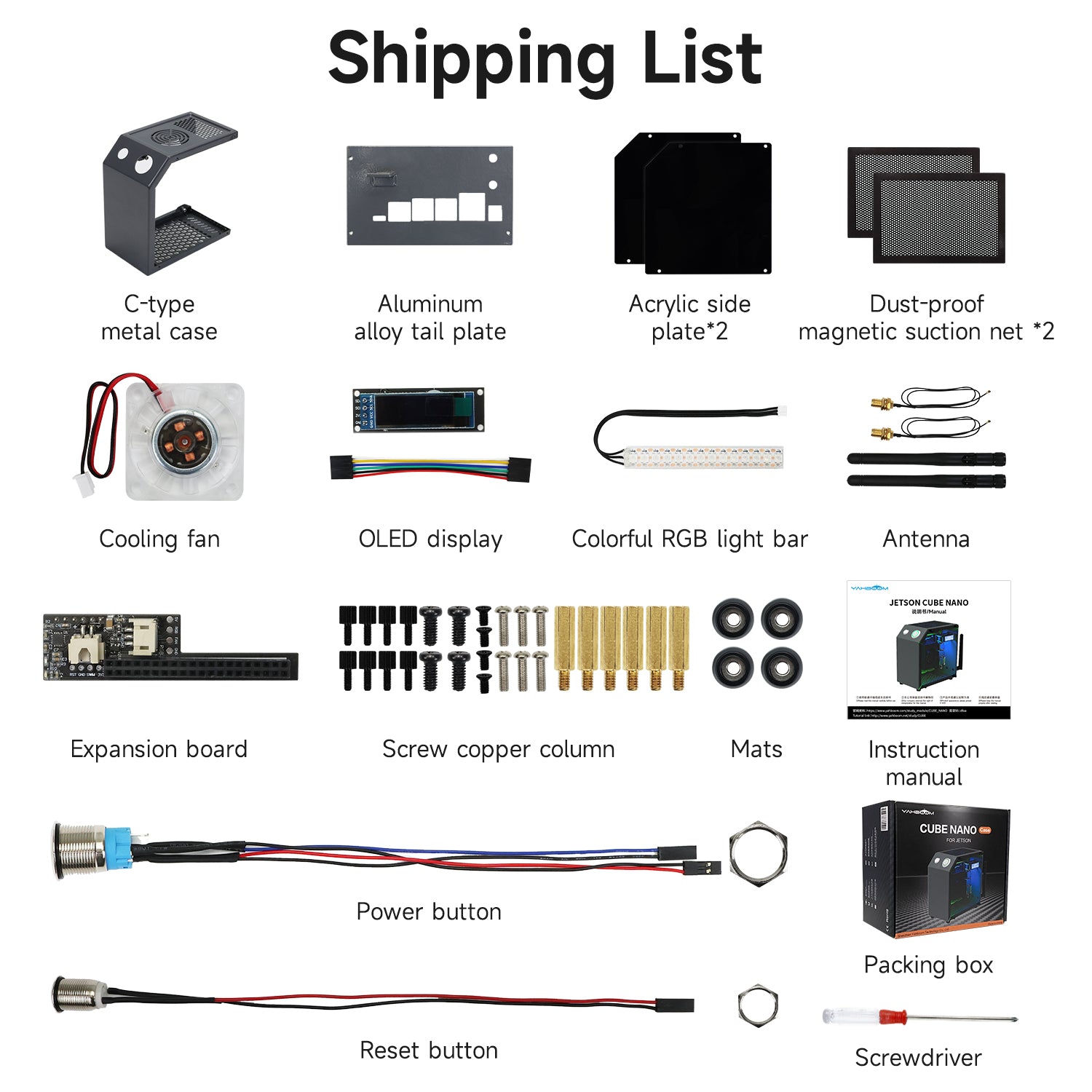

The mini cube protective case 6 parts display and material description: durable alu alloy and black acrylic shell

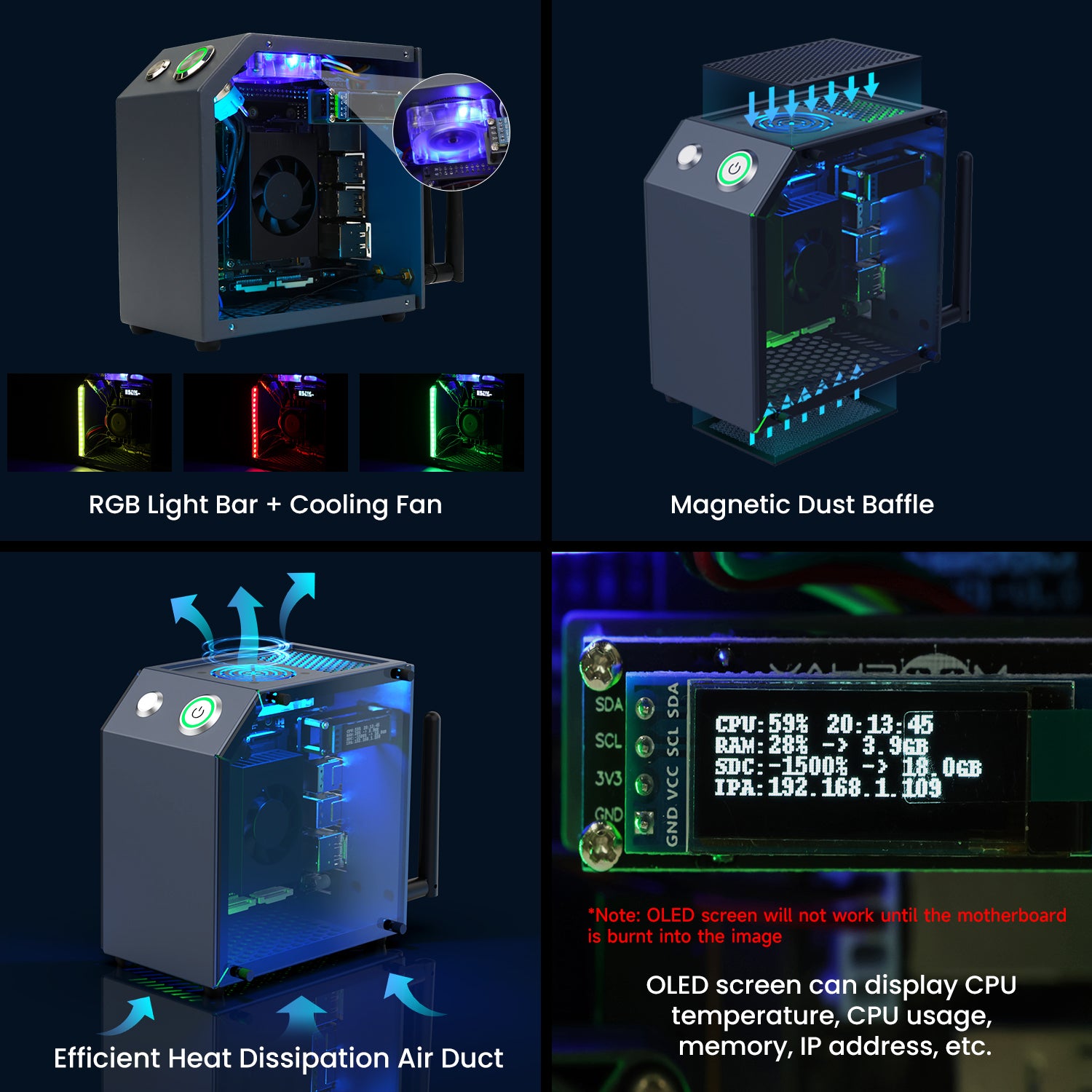

Cube housing is equipped with 2 pieces magnetic dust baffles to effectively isolate dust and is easy to remove and clean
The top and bottom of The mini cube protective case are equipped with efficient cooling fans for rapid heat dissipation
The mini cube case hole description: power buttons, USB interfaces and ports and antenna holes
Running The Jetson code, the OLED screen on the cube case can display status of the motherboard: CPU temperature, space
The mini cube case has built-in expansion board, supports functions: OLED screen, RGB colorful light bar, dazzling fan
Jetson Cube Case RGB light bar have programmable colors and adjustable brightness, blue dazzling cooling fan has cyber style
Effect of installing M.2 network card antenna and USB network card on the protective case of The Jetson development board
Cube The case reserved space to support Jetson Nano B01 and Orin development board cooling fan installation
3D exploded view showing functions and parts locations of The mini cube case for Jetson series development boards

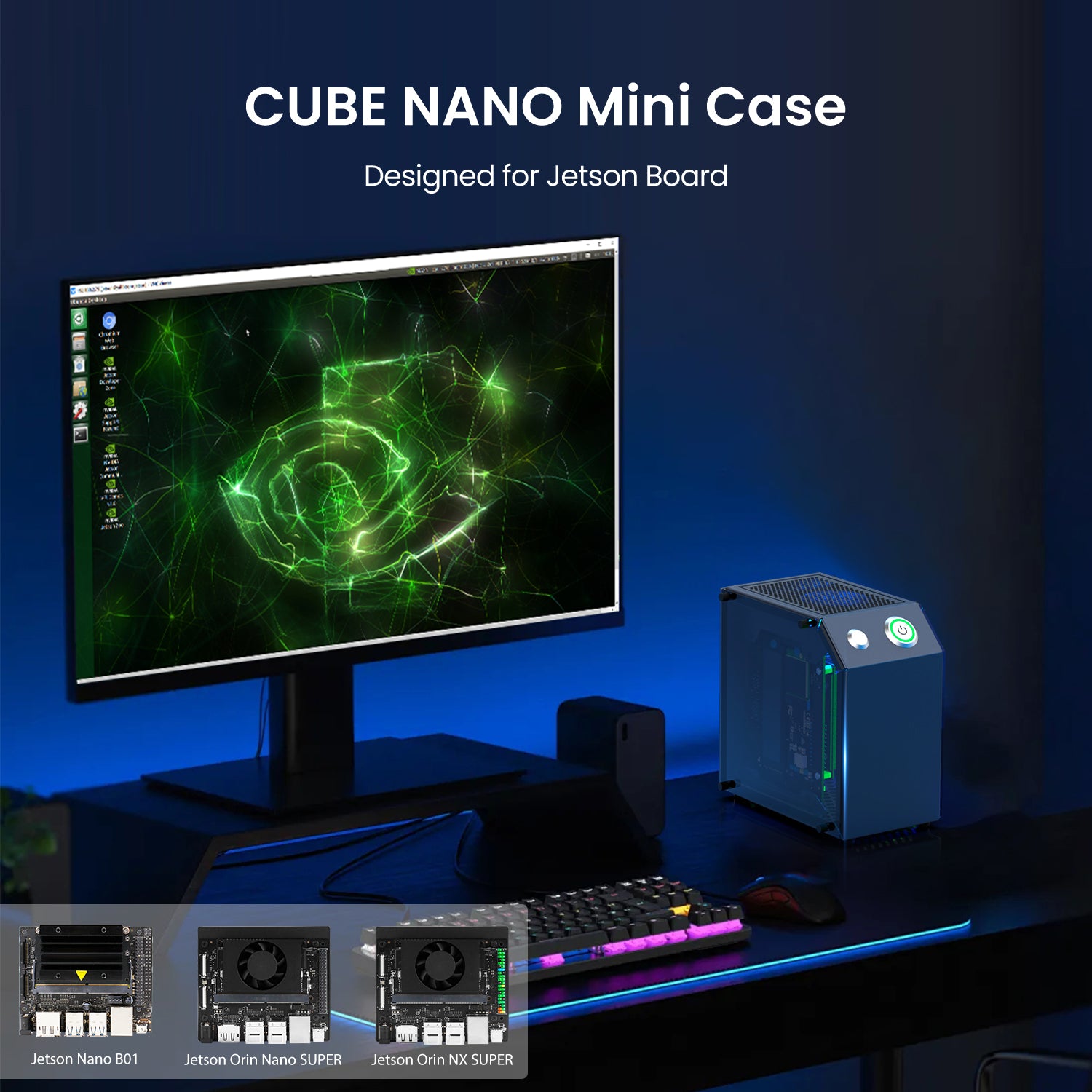

The mini cube case can meet the needs of daily external devices such as keyboard, mouse, PC computer, etc.
Computer shows the installation video of The mini cube case and the tutorial file link

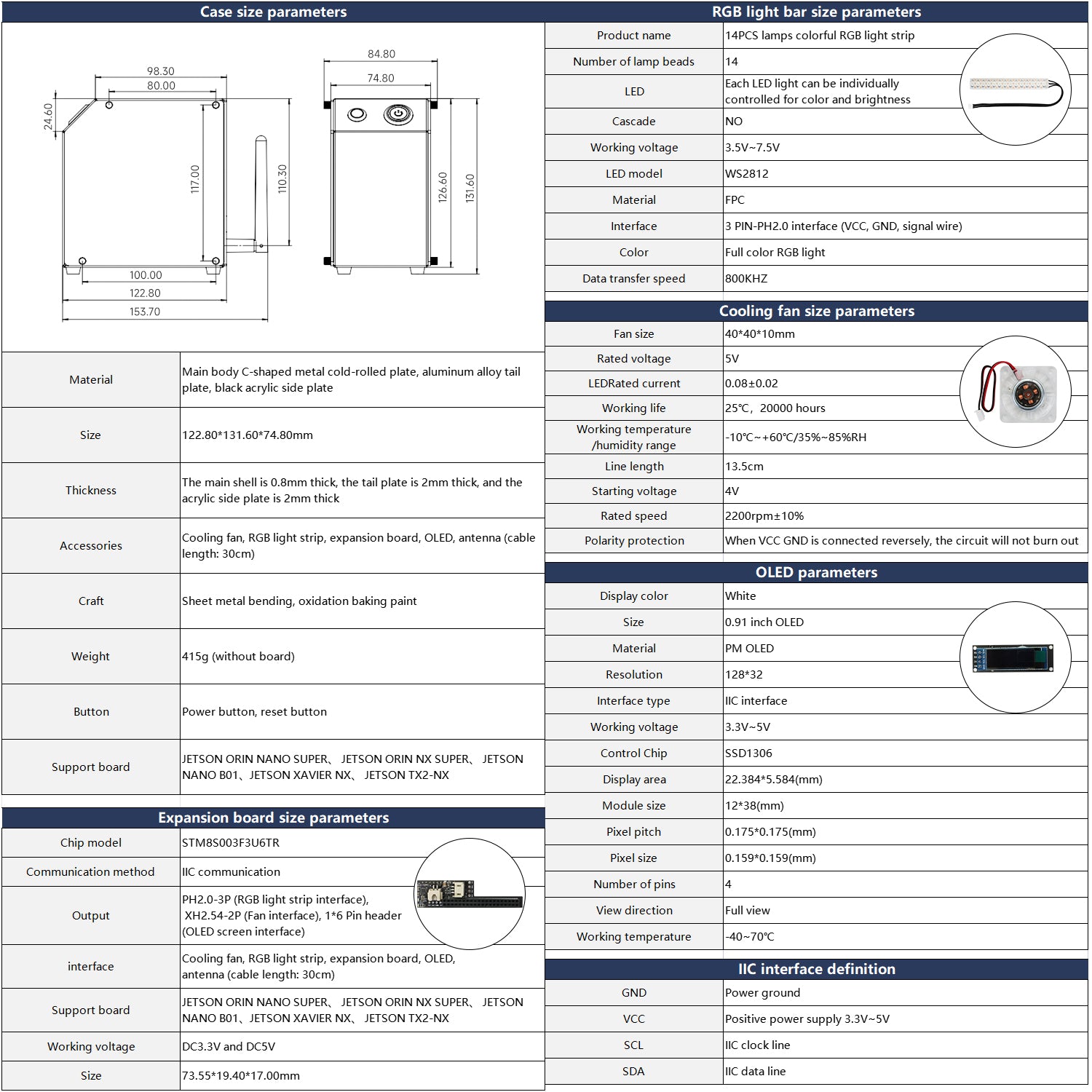

Front and side views show the dimensions of mini case and the materials, parts and supported Jetson development boards
The mini case built-in multi-function expansion board parameters, chip STM8S003F3U6TR and output interface description
The mini case RGB light bar size parameters, model WS2812, flexible FPC material and data transmission speed description
The mini case cooling fan size parameters, 20000H life, 4V starting voltage and operating temperature range description
The mini case OLED screen size parameters, resolution, pixel, IIC interface and control chip SSD1306 description
The mini Jetson NANO case product details: Antenna holes, power buttons, top dust protection, high-quality screws
