High Porosity Nickel Foam 85–98% Porous
High-Porosity Porous Ni Metal Foam
Description
Description
High Porosity Nickel Foam — 85% to 98% Porous

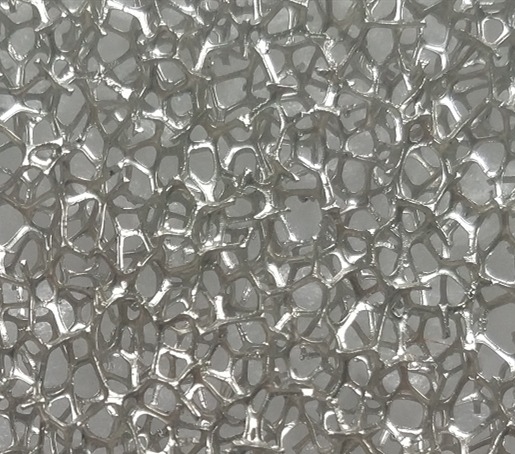

Open-cell nickel foam with controlled high porosity (85–98%) for maximum surface area in electrochemical research. The interconnected 3D porous structure provides excellent electrolyte penetration, low ionic transport resistance, and high active-material loading capacity. Suitable for Malaysian university battery and fuel cell research groups.
Key Specifications
- Porosity: 85% – 98% (selectable)
- Thickness: 0.3 mm – 5 mm standard, up to 30 mm on request
- PPI: 80 – 130 (high PPI = smaller pores, higher surface area)
- Surface area: Up to 0.6 m²/g
- Bulk density: 0.3 – 0.6 g/cm³
Applications
- High-energy-density battery electrode research
- Pseudocapacitor electrode (NiOOH, Ni(OH)₂ deposition)
- Hydrogen evolution reaction (HER) catalyst support
- 3D conductive scaffold for active material loading
Contact us with your required porosity, PPI, and sheet dimensions for a formal quotation.
