Cylindrical Nickel Foam Custom Shape
Custom Cylindrical Nickel Foam Electrode
Description
Description
Custom-Shape Nickel Foam — Cylindrical, Disc, and Profiled Cuts
Beyond standard rectangular sheets, nickel foam is available in cylindrical tubes, discs, annular rings, hexagonal tiles, and any custom profile cut by laser or CNC. Custom shapes are essential for coin-cell electrodes, cylindrical battery research, and specialized electrochemical cell configurations.
Available Custom Forms

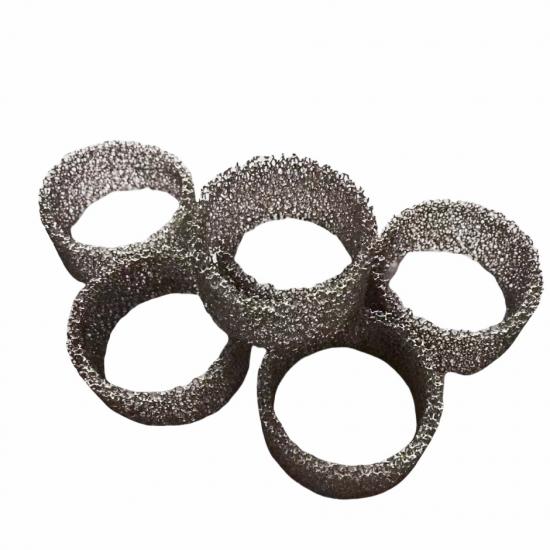

- Cylindrical tube: OD 5 mm – 100 mm, customizable wall thickness
- Disc/coin: Diameter 8 mm – 200 mm (standard: 10 mm, 15 mm, 18 mm for coin cells)
- Sheet with holes: Punched arrays for flow-cell applications
- Profiled shapes: Per customer drawing (DXF/DWG file required)
Key Specifications
- Purity: ≥99.99% Ni
- Porosity: 85% – 98% (selectable)
- PPI: 10 – 150
- Cutting method: Laser, CNC, or die-cut
Submit your drawing or dimensions — custom shapes are processed within 5–7 working days after PO confirmation.
