57 Stepper Motor Micro Controller
- Models:JBT-BM/JBT-BT/QBT-M1
- Maximum channel quantity:
- Reference flow rate:
â– Compact structure, small size and various functionsï¼›
■The driver can automatically adjust the running current according to the load， so as to reduce the temperature and vibration of the motor;

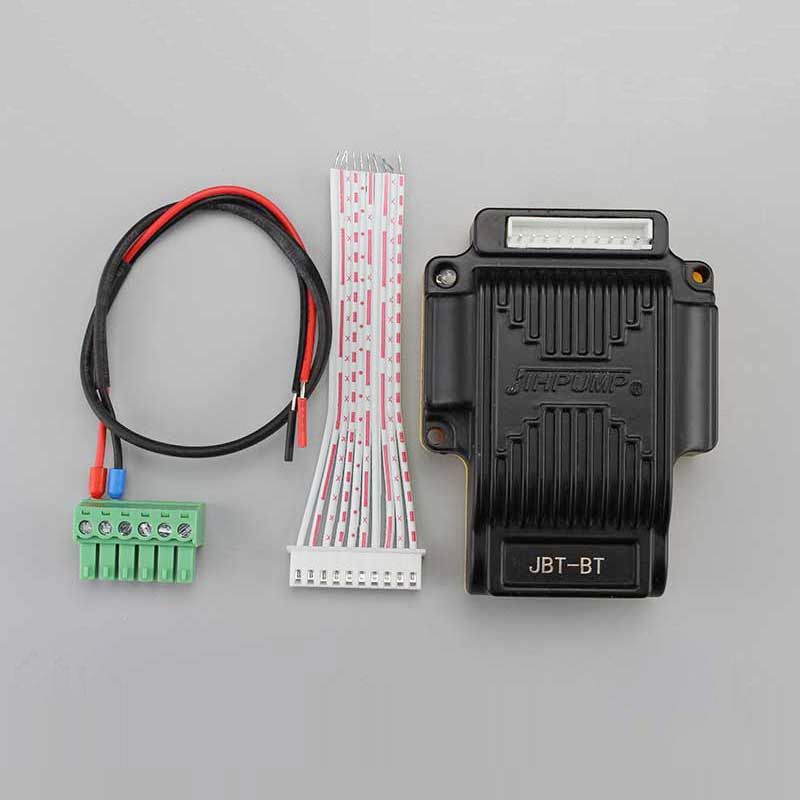

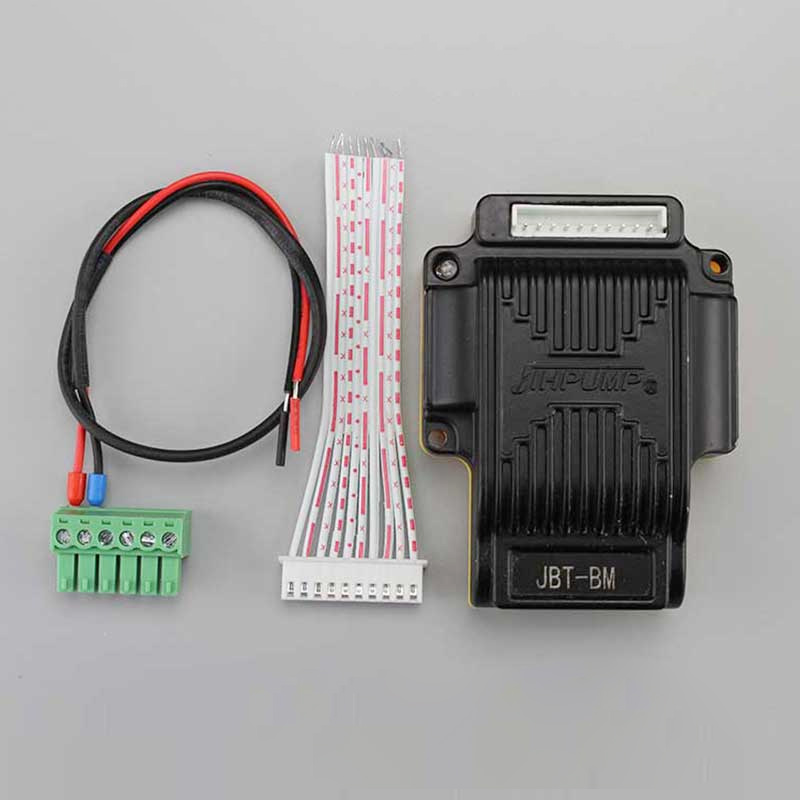

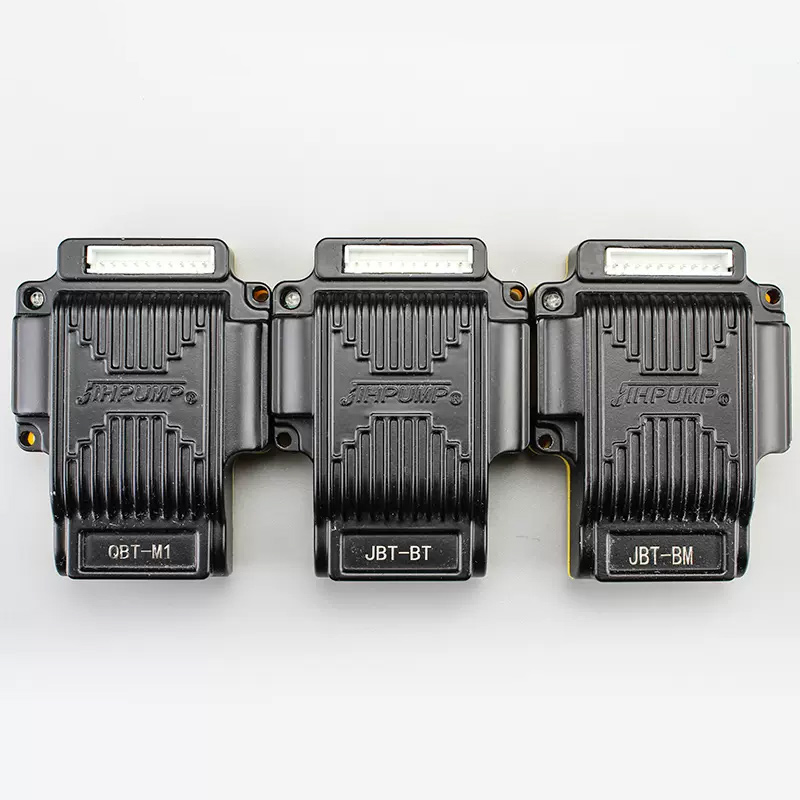

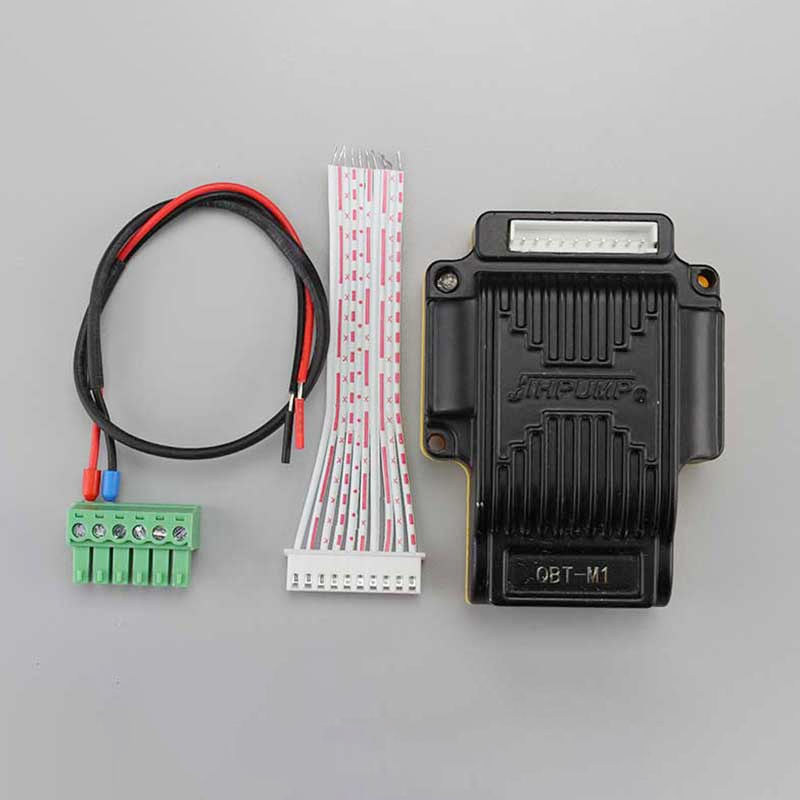

â– JBT-BM (voltage type), JBT-BT (communication type), QBT-M1 (pulse type);
■Voltage range +12V～+36V，speed range 0～600rpm;
â– The driving current has 2 options: 3A low speed and 5A high speed type, and can be set and adjusted through the DIP switch;
â– The signal indicator on the circuit board can directly observe the running status of the motor, and the speed of the motor can also be detected through the signal indicator;

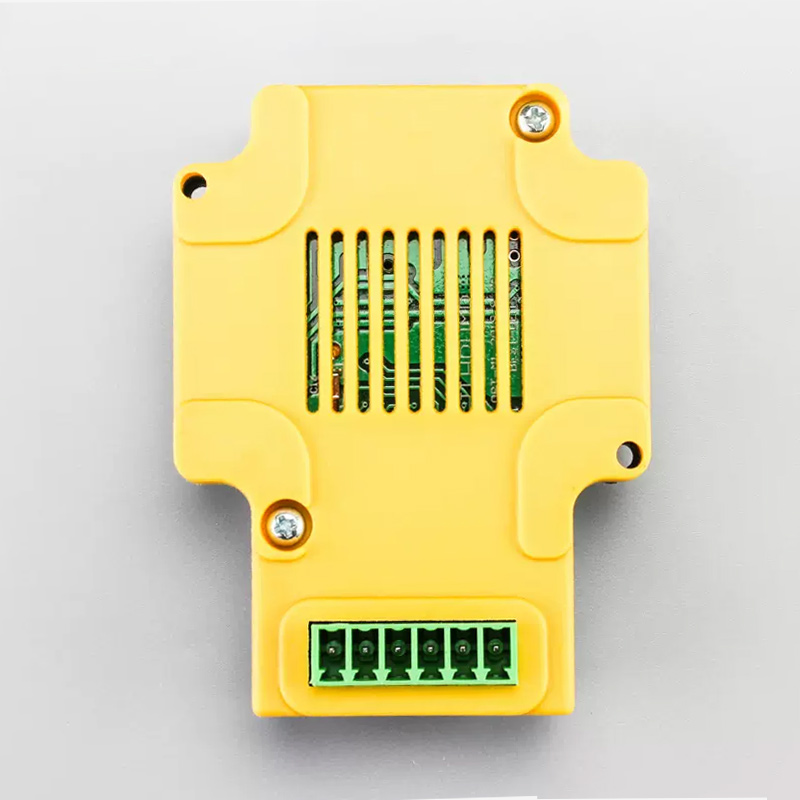

â– Terminals can choose from a variety of outlet orientations according to customer applications.
57 Stepper Motor Micro Controller, with its compact design and versatile features, is an ideal choice for efficient driving. This driver can automatically adjust the operating current based on load, significantly reducing the motor’s temperature rise and vibration, thereby enhancing system stability. It offers multiple model options, including the voltage type JBT-BM, communication type JBT-BT, and pulse type QBT-M1, with a voltage range of+12V to+36V and a speed range of 0 to 600rpm.
Users can choose between a 3A low-speed type or a 5A high-speed type of operation current, easily set and adjusted through a DIP switch. The circuit board’s signal indicator lights indicate the motor’s operating status and speed, making monitoring easier. Additionally, the terminals can be adapted to various output directions based on customer needs and meet diverse installation requirements.
Product Parameters
| Product Parameters | |||
| Product Model | JBT-BM | JBT-BT | QBT-M1 |
| Speed range | 0-600rpm | 0-600rpm | 0-600rpm |
| Power | ＜54W（working current＜1.5A） | ||
| Voltage | DC 12～36V，≤4A（Recommended 120W power，suitable for 90% users） | ||
| Functions | On/Off, Speed up/down (Built-in potentiometer, external voltage or current to regulate speed ） | On/Off, Speed up/down ( MODBUS 485 communication  Protocol ） | Receiving pulse, direction and enable signals |
| Motor Type | 57 Stepper Motor | ||
| Working Environment | Temperature 0～60℃, RH＜85%RH | ||
| External Control | Built-in potentiometer to adjust speed, dial switch to set maximum speed and drive current | Dip switch to set communication address, communication parameters and drive current | Dip switch sets the number of input subdivisions, VCC voltage and driving current |
| Weight | 72g | 72g | 70g |
