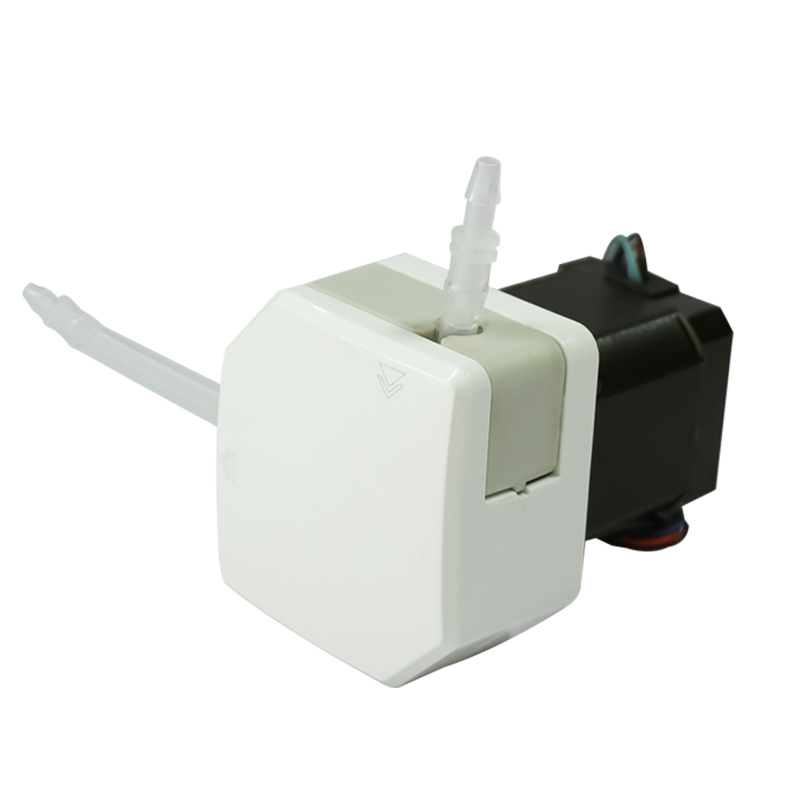

384Y Easy Mounting OEM Peristaltic Pumps
- Models:384Y
- Maximum channel quantity:1
- Reference flow rate:≤215ml/min
â– A simple and easy-to-install peristaltic pump

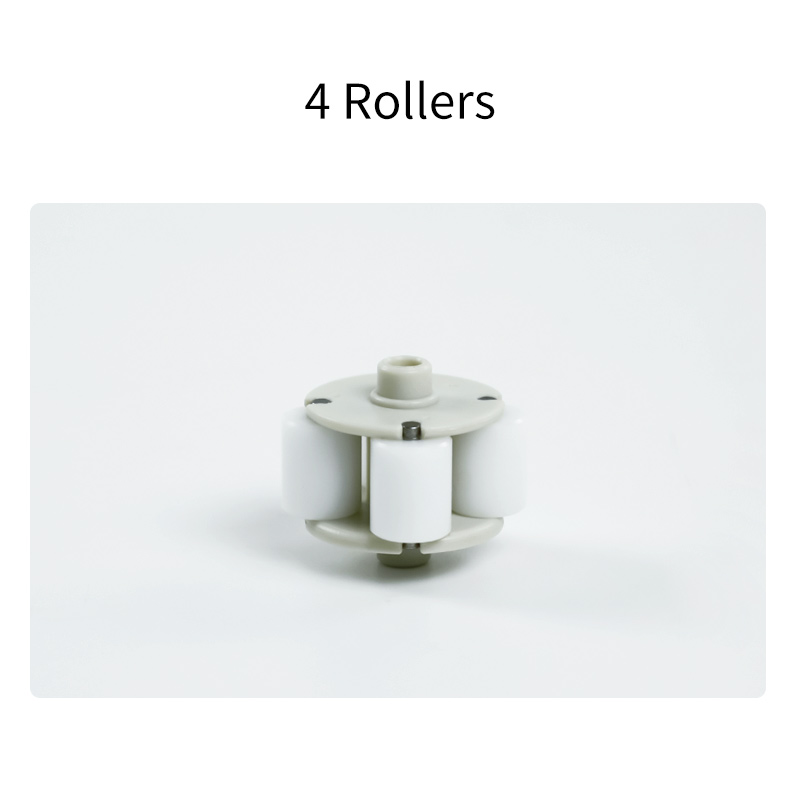

â– 4 roller design, lower pulse

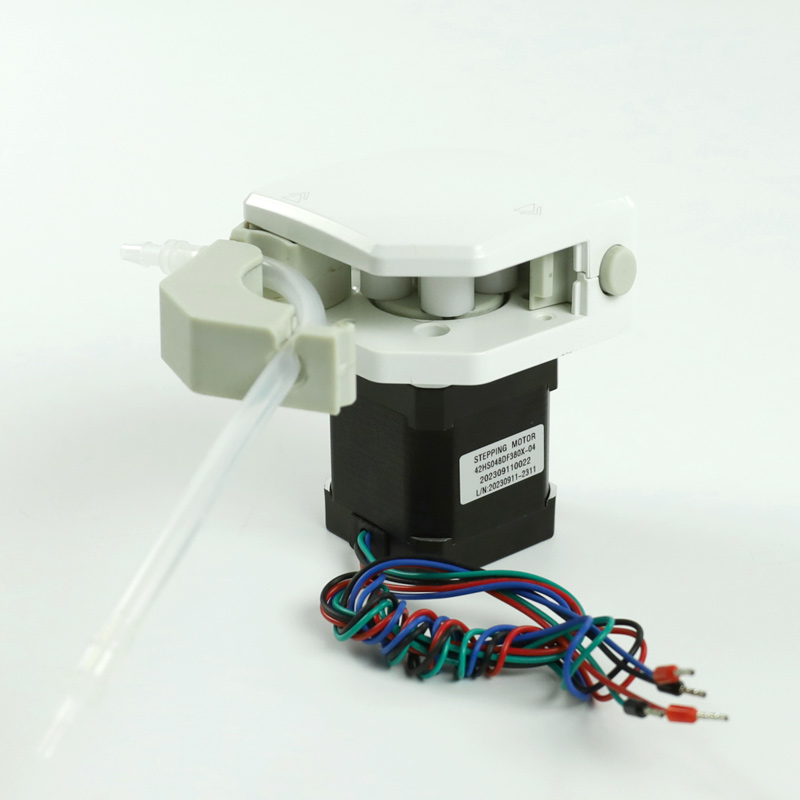

â– Â The cassette button design allows one-touch opening and closing, making tube replacement more convenient
â– Pump body comes with mounting holes
â– Compatible with stepper motors
384Y Easy Mounting OEM Peristaltic Pumps is an attractive choice that is easy to install, saving you time and effort. Its 4-roller design effectively reduces pulsation, ensuring smooth and stable flow. The unique cassette button design makes opening and closing the tube simple and quick, making it easy to replace. The pump body is equipped with built-in mounting holes, ensuring secure attachment and compatibility with stepper motors.
Product Parameters
| Product Parameter | |
| Product Model | 384Y/BT |

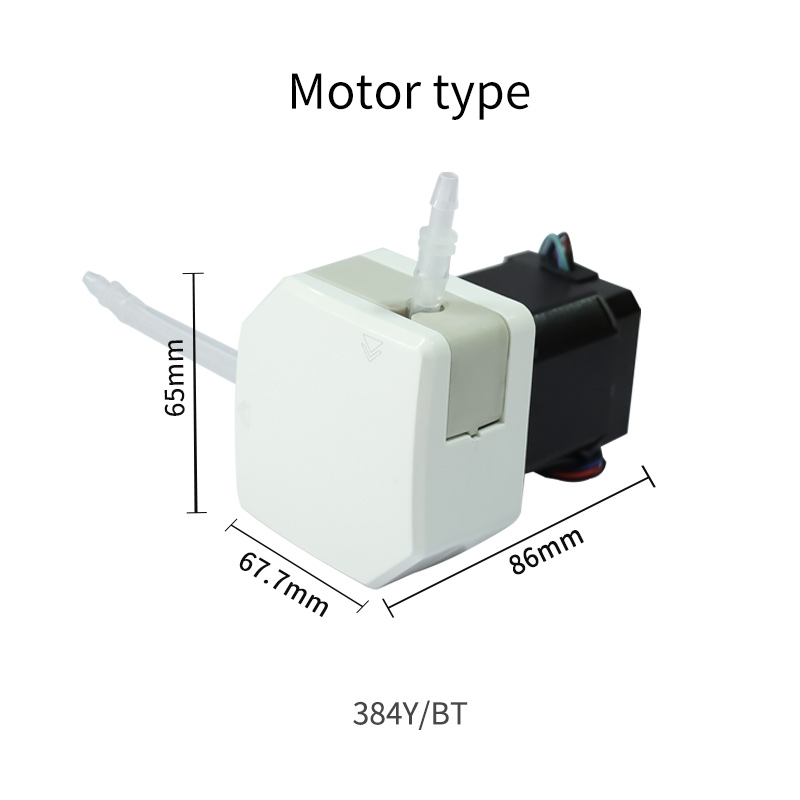

| Motor Type | Stepper motor |
| Voltage | DC24V |
| Power | 5W |
| Weight | 485g |
| Work Environment | Temperature 0 (no icing)~60 ℃, relative humidity<85% RH |
| Outlet Pressure | ≤0.1MPa |

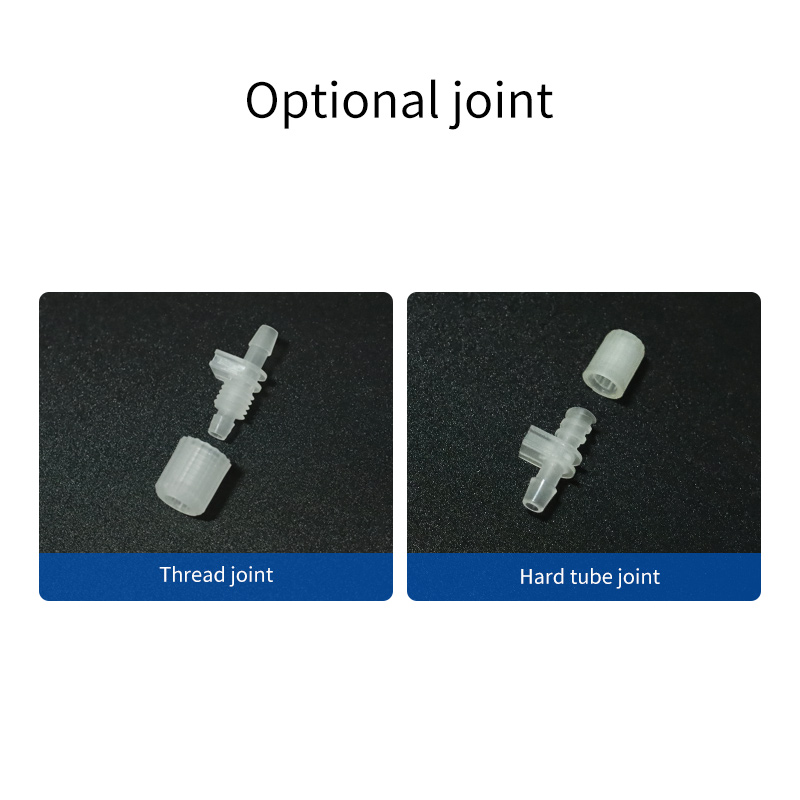

| Tube Connection Method | Standard: Direct joint |
| Installation Method | Pump body with mounting holes |
| Features | Can match infusion tubes with a wall thickness of 0.8mm to 1.6mm on the market |
| Noise | ≤58dB |
| （Testing environment noise≤58dB. The horizontal distance between the test product and the noise meter is 1 meter.） | |
| Function | Start/stop, cw/ccw rotation, up/down speed |
| Main Materials | Cover and Base: PPS   Roller: PA |
Reference Flow Rate
| Reference Flow Rate (unit: ml/min) | |||
| Motor Speed/Tube Type | Silicone Tube | BPT Tube | |
| 16#(ID3.2*OD6.4) | 4*1(ID4*OD6) | 4*1(ID4*OD6) | |
| 300r | 150 | 215 | 210 |
| Flow Description | The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. | ||
Typical Applications
Dental implant machines, Medical equipment, Analytical equipment, Cell culture, Protein analysis, Debridement, Fermentation tanks
