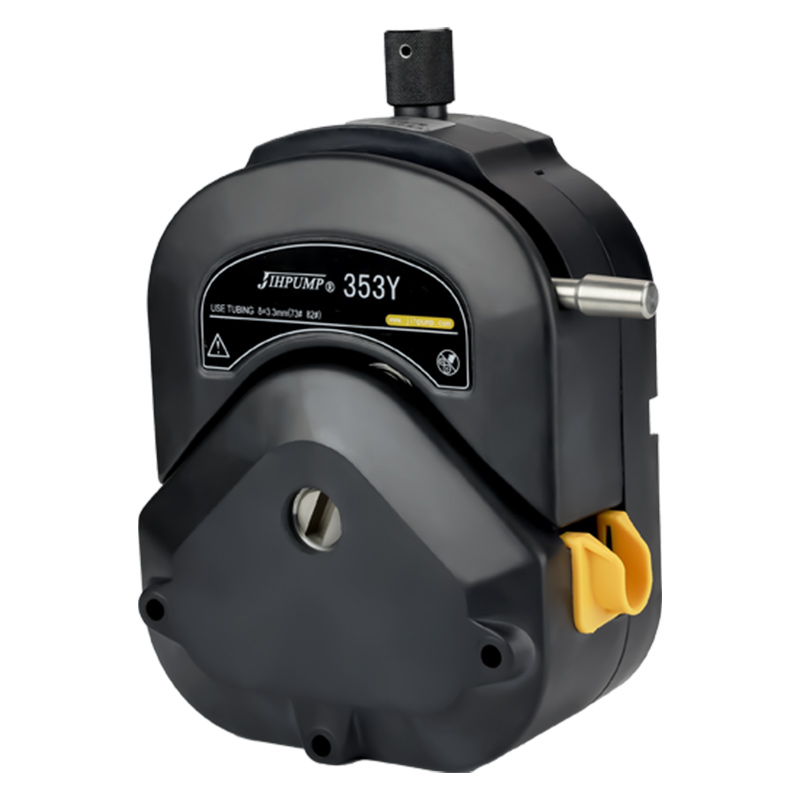

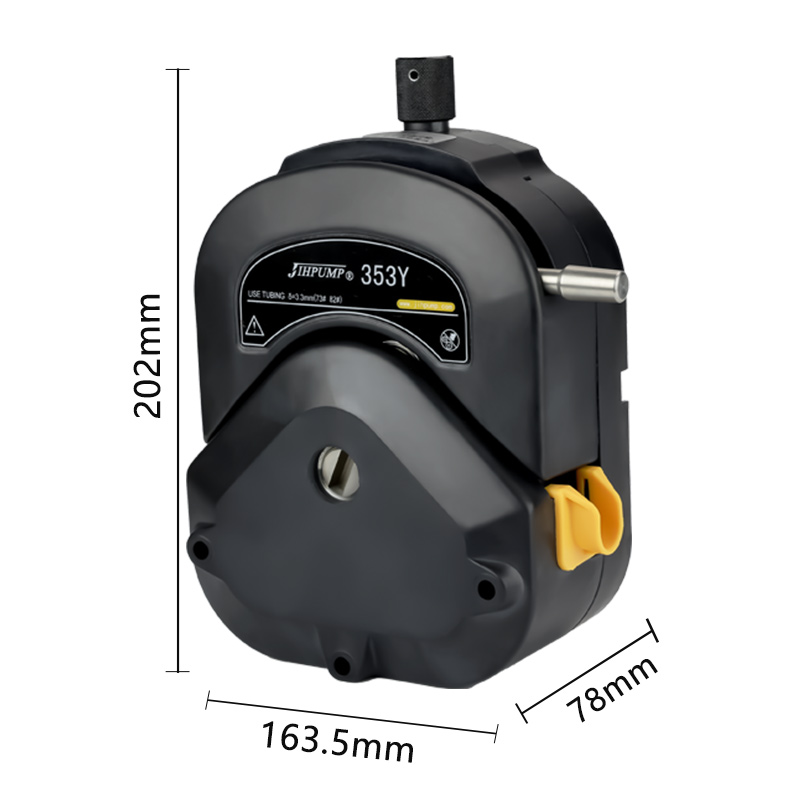

353Y Easy Load Peristaltic Pump Heads
- Models: 353Y Pump head
- Maximum channel quantity: 2
- Reference flow rate: ≤12L/min

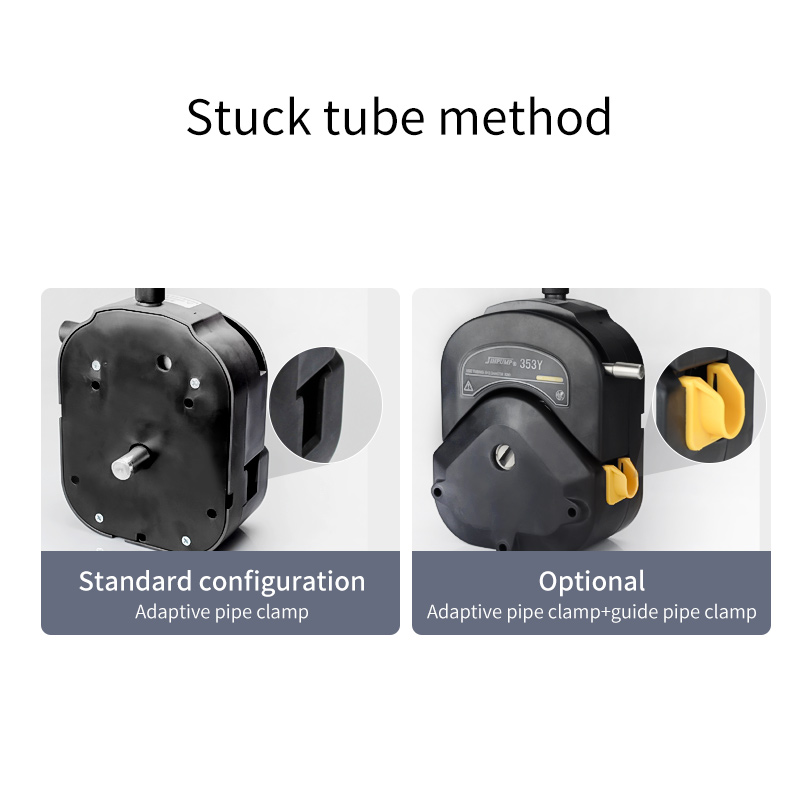

■ Easy to install peristaltic pump head, easy to disassemble and install tube.
■ Suitable for 73#, 82# tube;
■ Single and double pump heads are optional.
353Y Easy Load Peristaltic Pump Head greatly enhances user operational efficiency with its convenient installation design and quick tubing disassembly features, making it suitable for various applications. This pump head supports 73# and 82# tubing, ensuring compatibility and flexibility to meet different fluid transfer needs. Whether in a single or dual pump configuration, 353Y peristaltic pump head provides an efficient fluid transmission solution that adapts to varying workloads. Furthermore, its robust structure and high-quality materials ensure stable operation in diverse environments, enhancing reliability during use.
Product Parameters
| Product Parameters | |
| Product Model | 353Y Pump head |
| Speed Range | 60~600rpm |
| Number of Rollers | Standard 3 rollers |
| Working Environment | Temperature0 ~ 60℃, relative humidity < 85%RH |
| Outlet pressure | ≤0.17MPa |
| Clip Tube Gap | Adjustable |

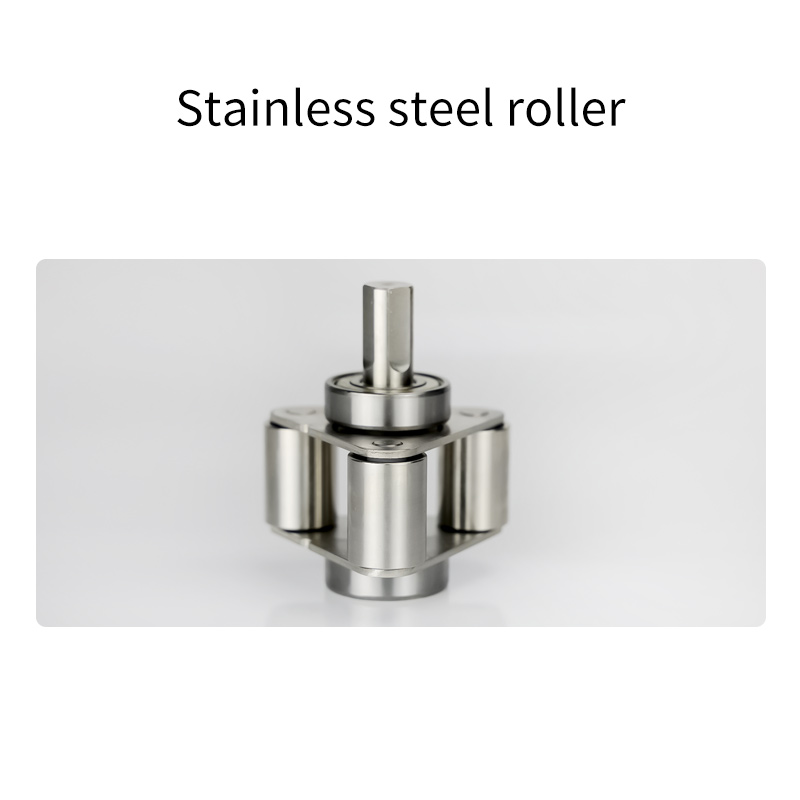

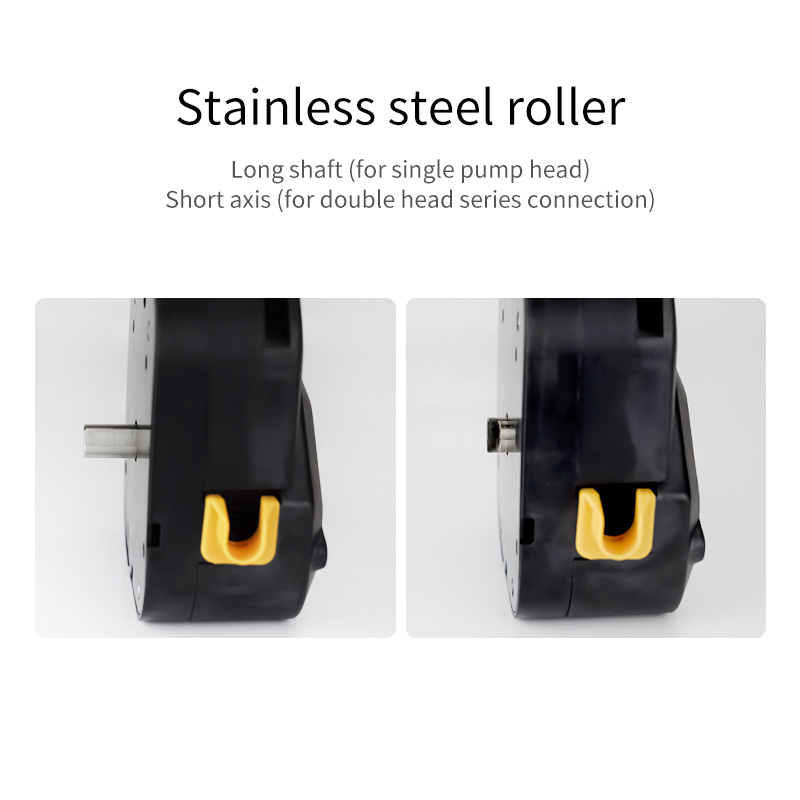

| Main Material | Shell: PPS; Roller: 304 stainless steel |
Reference Flow Rate
| Reference Flow of Single Pump head (unit: L/min) | ||||
| Tube Type | Silicone tube | A-60-F tube | ||
| Tube No. | 73# (ID9.6*OD14.4) | 82# (ID12.7*OD19.3) | 73# (ID9.6*OD14.4) | 82# (ID12.7*OD19.3) |
| Max Flow Rate | 8 | 13.2 | 7.8 | 11.8 |
| Number of Pump Heads in Series | ≤2 | 1 | ||
| Flow Description | 1、The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. 2、The total flow rate of multiple series ≈ the flow rate of a single pump head * the number of pump heads in series. |
|||
Typical Applications
Laboratory, filling equipment, industrial production, pharmaceutical granulation and coating
