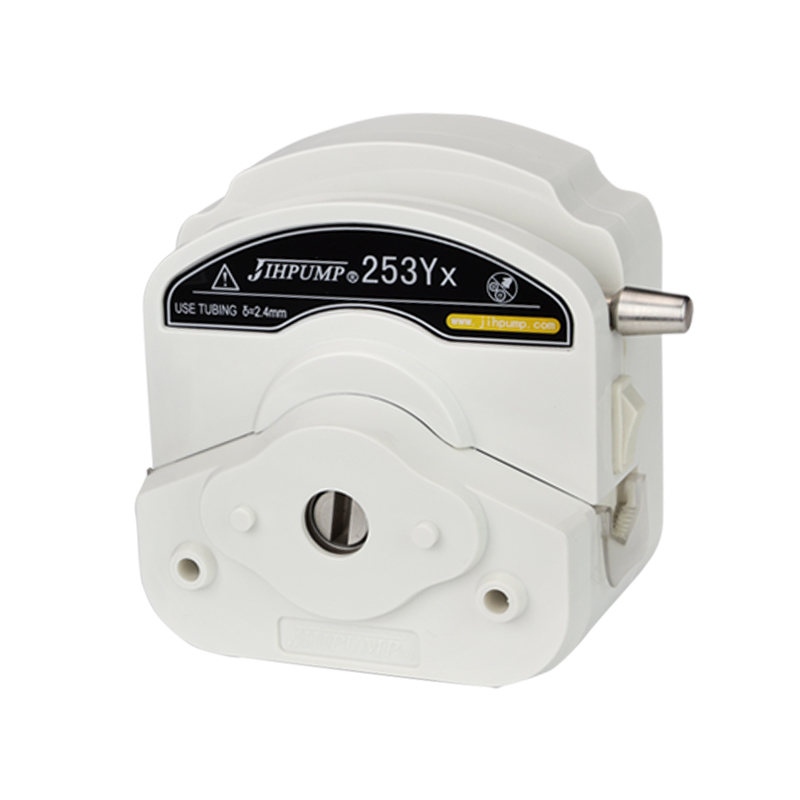

153Yx/253Yx Easy Load Peristaltic Pump Heads
- Models: 153Yx/253Yx Pump head
- Maximum channel quantity: 6
- Reference flow rate: ≤3365ml/min
■ The product is formed by exquisite and fine molds, industrial design, and has a streamlined appearance;
■ Dust-proof back cover design, more hygienic and clean;

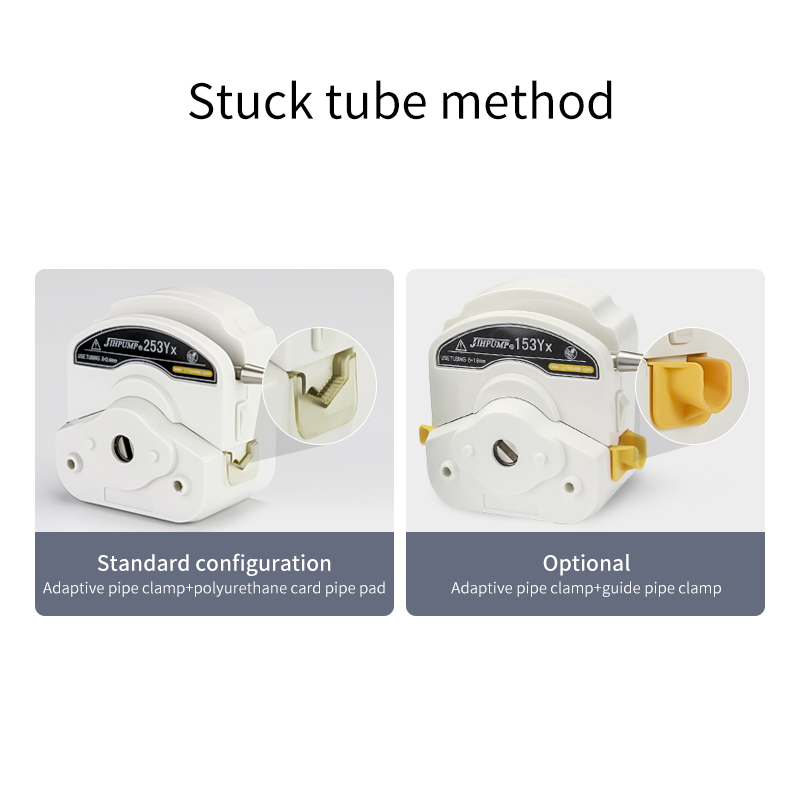

■ Easy-to-install peristaltic pump head, easy to disassemble and install tubes;

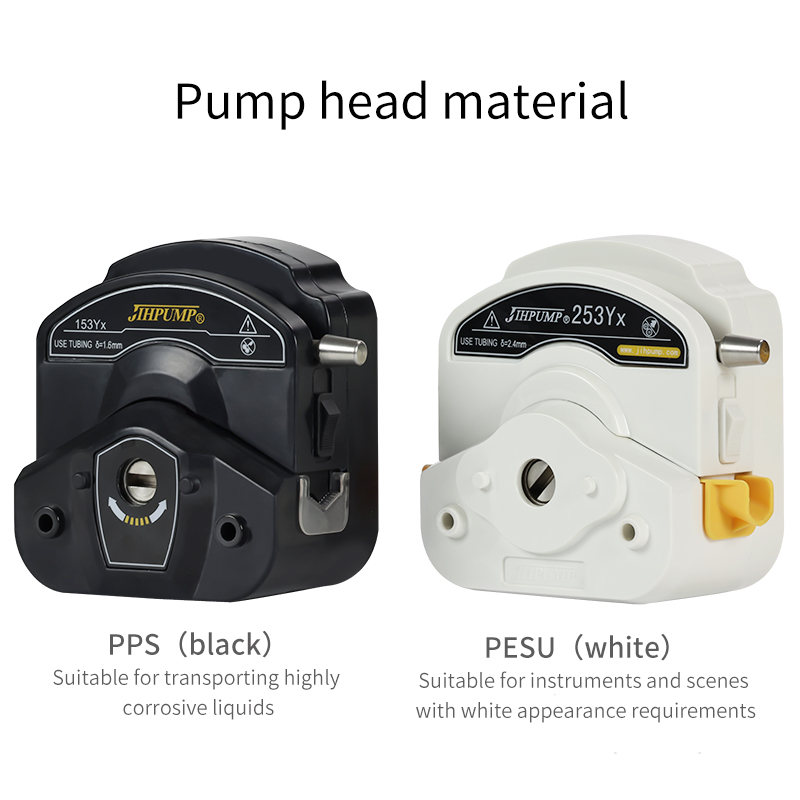

■ Available in PPS (black) and PESU (porcelain white);
■ The pump head can be matched with various structures such as OEM bracket-type peristaltic pumps and complete pump products;
■ 153Yx pump head can be installed with 14#, 16#, 25#, 17#, 18# and other tubes with a wall thickness of 1.6mm, and the flow rate can reach 2135ml/min;
■ 253Yx pump head can be installed with 15#, 24#, 35#, 36# and other tubes with a wall thickness of 2.4mm, and the flow rate can reach 3365ml/min;
■ 153Yx/253Yx can be connected in series with multiple pump heads. The number of series connections can reach 6, doubling the flow rate.
153Yx and 253Yx Easy Load Peristaltic Pump Heads are designed with exquisite mold design and a streamlined appearance for optimal hygiene and efficiency. With quick installation and disassembly, along with a choice of black PPS or porcelain white PESU, these pump heads are compatible with various OEM bracket-style pumps.
153Yx can handle 1.6mm thick tubing, reaching flow rates up to 2135ml/min, while 253Yx can handle 2.4mm thick tubing, reaching 3365ml/min. Both models can be connected in series to double the flow rate, enhancing your fluid handling efficiency while enjoying the perfect blend of technology and aesthetics!
Product Parameters
| Product Parameters | |
| Product Model | 153Yx 253Yx Series Pump Head |
| Speed Range | 0.1~600rpm |

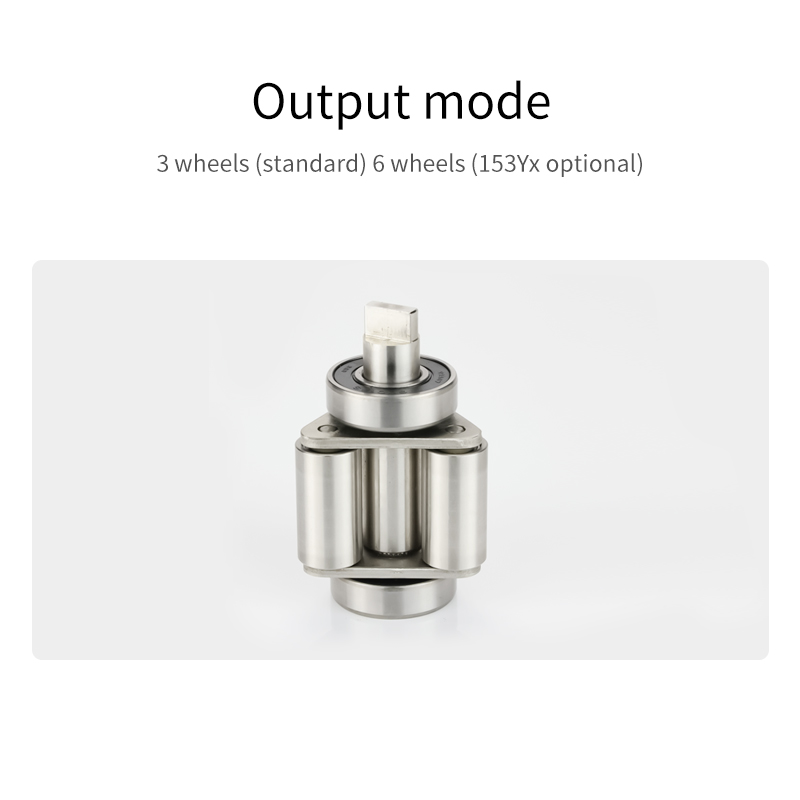

| Number of Rollers | Standard 3 rollers |
| Working Environment | Temperature0 ~ 60℃, relative humidity < 85%RH |
| Pump Head Weight | 0.5KG |
| Outlet pressure | ≤0.17MPa |
| Motor Torque | Static torque 100N.cm（≤100rpm）/Static torque 1400N.cm(≤600rpm) |
| Main Material | Shell: PPS polyphenylene sulfide (black) /PESU polyethersulfone (white), roller: 304 stainless steel |
| Other | Multiple pump heads can be connected in series |
Reference Flow Rate
| Reference Flow of Single Pump head (unit: ml/min) | |||
| Product Model | 153Yx Pump head | Product Model | 253Yx Pump head |
| Motor Speed/Tube Type | 600rpm | Motor Speed/Tube Type | 600rpm |
| 14# (ID1.6*OD4.8) | 145 | 15# | 1085 |
| 16# (ID3.2*OD6.4) | 515 | 24# | 1695 |
| 25# (ID4.8*OD8) | 1080 | 35# | 2640 |
| 17# (ID6.4*OD9.6) | 1770 | 36# | 3365 |
| 18# (ID7.9*OD11.1) | 2135 | – | – |
| Flow Description | 1、The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. 2、The total flow rate of multiple series ≈ the flow rate of a single pump head * the number of pump heads in series. |
||
Typical Applications
Analytical instruments, laboratories, industrial processes, fine chemicals, food processing, field sampling
